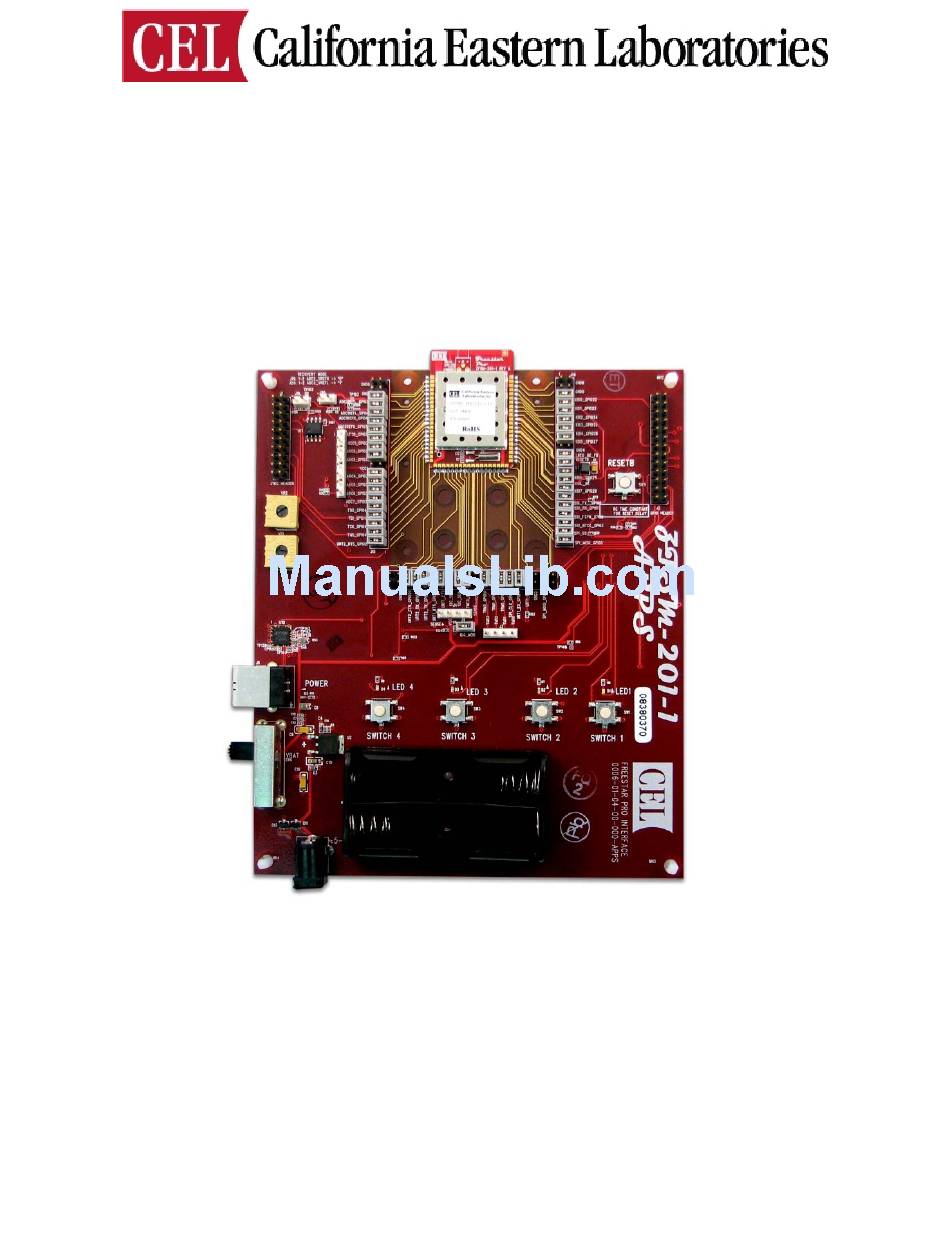

- Page 1 Free Star Pro Series ZFSM-201-EVB-1 Evaluation Board BeeKit™ Porting Guide ZFSM-201-1 FreeStar Pro Module Document # 0006-00-08-03-000 (Rev B) ...
-
Page 2: Table Of Contents
INSTALLING BEEKIT™ ................4 2.3.1 Prerequisites ...................... 4 2.3.2 The Latest Version .................... 4 2.3.3 From the CEL CD ....................4 USING BEEKIT™ WITH THE ZFSM-201-1 MODULE ..... 5 ABOUT THE PLATFORM EDITOR .............. 5 ... -
Page 3: Overview
0006-00-08-03-000 ZFSM-201-EVB-1 Evaluation Board MAC Programmers Guide 0006-00-08-05-000 ZFSM-201-KIT-1 Wireless UART Application User Guide 0006-00-08-06-000 ZFSM-201-KIT-1, ZFSM-201-EVB-1 Erratum 0006-00-08-04-000 Note: The CEL documents listed above are included on the CEL CD. Rev B Document No. 0006-00-08-03-000 Page 3 of 15... -
Page 4: Using Freescale Semiconductor's Beekit
For simplicity, CEL has included the BeeKit™ installation utility on our CD. It will load Freescale BeeKit™, Freescale Test Tool and documentation; codebase files, example source and project files, and miscellaneous utilities. The set-up file is named “BeeKitSetup” and can be found on the CEL CD in the directory: Rev B Document No. 0006-00-08-03-000... -
Page 5: Using Beekit™ With The Zfsm-201-1 Module
Some users may choose to use it; others may wish to configure GPIO in their application software. This document describes how to port a BeeKit™ project to the ZFSM-201-EVB-1 FreeStar Pro Evaluation Board with and without Platform Editor. -
Page 6: Creating A New Project Using Platform Editor
FreeStar Pro BeeKit Porting Guide CREATING A NEW PROJECT USING PLATFORM EDITOR 4) To start a new Project: Click on ‘File’ → ‘New Project’ as shown in Figure 2. 5) Select the appropriate template to get your application started. In Figure 3 / Figure 4 ‘Generic Application’... - Page 7 FreeStar Pro BeeKit Porting Guide The Window in Figure 5 will appear. 7) Click the ‘Next’ button. Figure 5 – Screen, BeeKit™ Welcome Figure 6 – Screen, BeeKit™ Selecting the Hardware The Window in Figure 6 will appear. BeeKit™ allows the user to select a Freescale development board or custom hardware.
- Page 8 12) In the LEDs and Switches tab shown in Figure 9 the only change made from the default by the Configuration Load was to set the LED 4 GPIO Pin to 01. If not using the CEL FreeStar Pro Interface Board, select these settings according to the hardware on which the module is being used.
- Page 9 FreeStar Pro BeeKit Porting Guide Figure 9 – Screen, BeeKit™ LED and Switch Settings Under the ‘MC1322x Control’ Tab shown in Figure 10, confirm the following settings and make changes if necessary. 13) In the ‘Custom Crystal Settings’ area: a. Set the ‘Crystal Frequency (Hz)’ to ‘24,000,000’. b.
- Page 10 FreeStar Pro BeeKit Porting Guide Figure 10 – Screen, BeeKit™ Custom Crystal and RF Settings 16) In the ‘GPIO Port Register’ Tab shown in Figure 11 make changes to the GPIO as necessary for custom hardware. a. Confirm (and configure if necessary) ‘GPIO_42’ as an ‘Output’ with a Data value of ‘1’ as shown in Figure 11.
- Page 11 FreeStar Pro BeeKit Porting Guide Note: Please check the cautions regarding BeeKit Platform Editor in “ZFSM-201-KIT-1, ZFSM-201-EVB-1 Errata” (CEL Doc #0006-00-08-04-000) if making changes to the GPIOs, RF ports, etc. 18) Select use of the platform modules as indicated in Figure 12. All should be selected for the FreeStar Pro Evaluation Board;...
-
Page 12: Creating A New Project Using Freescale H/W Target
EWB…’ option. See Figure 14. Figure 14 – Screen, BeeKit™ Exporting the Solution Note: Please check the cautions regarding BeeKit Platform Editor in “ZFSM-201-KIT-1, ZFSM-201-EVB-1 Errata” (CEL Doc #0006-00-08-04-000) if making changes to the GPIOs, RF ports, etc. CREATING A NEW PROJECT USING FREESCALE H/W TARGET (AND NOT PLATFORM EDITOR) 1) To start a new Project: Click on ‘File’... - Page 13 FreeStar Pro BeeKit Porting Guide The Window in Figure 16 will appear. 2) Click the ‘Next’ button. Figure 16 – Screen, BeeKit™ Welcome Figure 17 – Screen, BeeKit™ Selecting Hardware The Window in Figure 17 will appear. 3) Ensure the ‘MC1322x Sensor Node’ checkbox is selected. Click the ‘Next’ button. Rev B Document No.
- Page 14 FreeStar Pro BeeKit Porting Guide The Window in Figure 18 will appear. 4) Ensure the ‘LEDs’, ‘Keyboard’, and ‘Low Power Module’ checkboxes are selected and click the ‘Next’ button. Figure 18 – Screen, BeeKit™ Selecting Platform Modules Figure 19 – Screen, BeeKit™ Setting UART Parameters The Window in Figure 19 will appear.
-
Page 15: Revision History
FreeStar Pro BeeKit Porting Guide Figure 20 – Screen, BeeKit™ Exporting the Solution 4 REVISION HISTORY Revision Date Description PRELIMINARY 29Oct08 Released 04Feb09 Added MAC Support 22May09 Modified to support Freescale BeeKit™ v1.9.5 Rev B Document No. 0006-00-08-03-000 Page 15 of 15...
