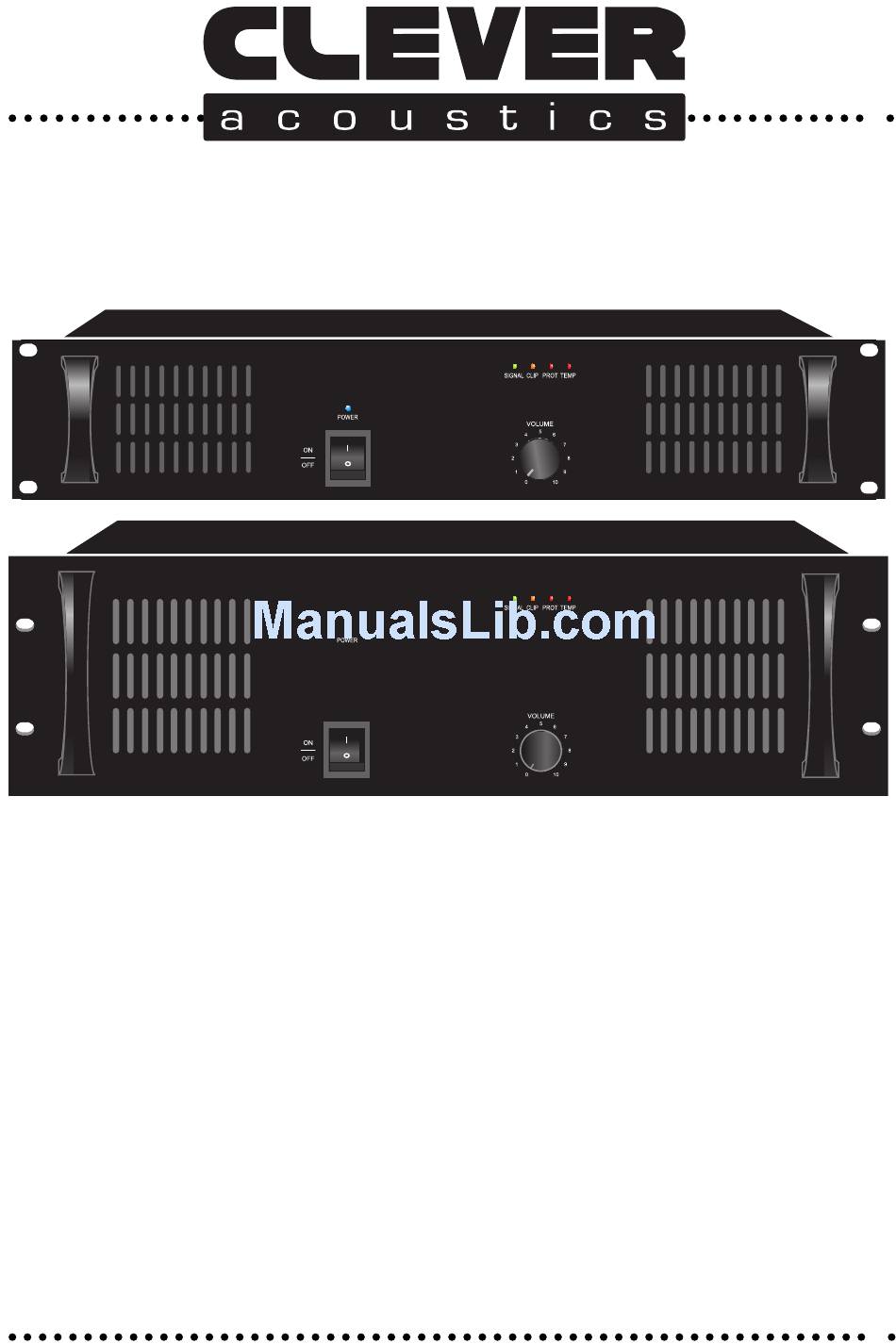

Page 1: User Manual
SL 120 100V 120W Slave Amplifier Order code: CRAM11 SL 240 100V 240W Slave Amplifier Order code: CRAM12 SL 350 100V 350W Slave Amplifier Order code: CRAM13 USER MANUAL... -
Page 2: Safety Instructions
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! - Page 3 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 This 100V line slave amplifier was designed specifically for use in permanent audio installations, where reliability and premium sound quality are a must. Highly rugged construction and high efficiency design make this amplifier perfect for continuous duty applications in situations were power will be left on for indefinite periods of time. This 100V line amplifier is warranted from defects for one year from the date of purchase.
- Page 5 Specifications SL 120 SL 240 SL 350 Power output: 120Wrms / 135W 240Wrms / 255Wpeak 350Wrms / 375Wpeak peak Speaker outputs: 70V, 100V & 4-16Ω 70V, 100V & 4-16Ω 70V, 100V & 4-16Ω Sensitivity: 775mV (0dB) 775mV (0dB) 775mV (0dB) S/N ratio: >105dB >105dB...
- Page 6 SL120, SL 240 SL 350 SL120, SL 240 SL 350...
- Page 7 Identification: 1. Power LED - This LED will light up once the amp is switched on 2. SIGNAL LED - This LED will light up when signal is being received 3. CLIP LED - This LED will flash when the output signal starts to distort. A this point turn the master volume anti-clockwise to prevent damage.
- Page 8 1. After connecting all audio source and powering on the power amplifier, adjust the and the master volume. 2. The Clever Acoustics amplifier features output signal LED with PEAK indication. Should the PEAK indicator illuminate (flashing) the output of the amplifier is too high, turn the master volume anti-clockwise to reduce the output.
- Page 9 Panel Connections: SL 120, 240, 350 MAINS SLAVE AMPLIFIER 24V DC INPUT MIXER AMPLIFIER (Optional) ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 OUTPUT REMOTE MIC 100V CHIME ACTIVE 100V 100V 100V 100V 100V 240V 50Hz T6.3AL 250V 2 TONE 4 TONE XLR BAL...
-
Page 10: Speaker Connections
Speaker connections: Total impedance Total impedance 41Ω (SL 120) 83Ω (SL 120) 20Ω (SL 240) 42Ω (SL 240) 14Ω (SL 350) 28.6Ω (SL 350) Notes: • Both the 4 - 16Ω, 70V and 100V terminals cannot be used at the same time. •... - Page 11 Connection With The Mains Connect the unit to the mains via the IEC mains inlet using the 13A UK - IEC cord supplied. The earth has to be connected. Switch the unit on. After switching on the speaker system, wait 8 - 10 seconds before you turn the volume control up in order to avoid speaker damage.
-
Page 12: Problem Chart
Problem Chart PROBLEM CAUSE REMEDY No Power The power cord is not connected Check the power cord and any extension cables No Sound Check the power cord and if the The power cord of the respective plugs are properly connected with product is not connected properly or the sockets. - Page 13 www.cleveracoustics.co.uk...
