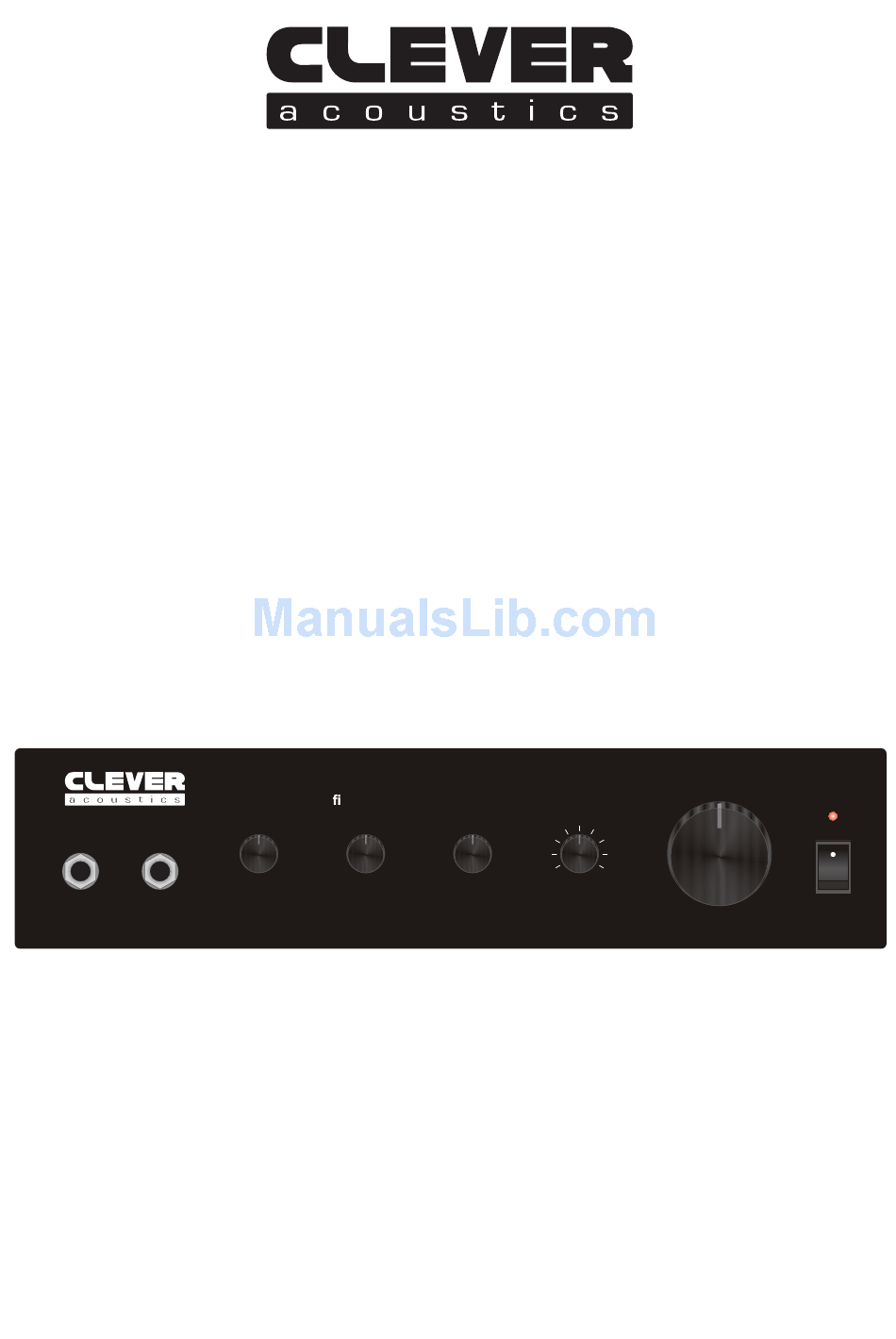

MA 120 100V 20W
MA 120 Mixer Ampli er
MIC 1
MIC 2
FUSE:
T500mA 250V
WARNING:
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
POWER INPUT:
240V~50Hz
+
DC 12V
2.5A
Mixer Amplifier
User Manual
5
5
4
6
4
6
3
7
3
7
2
8
2
1
9
1
0
10
0
10
MIC 1
MIC 2
CAUTION
www.cleveracoustics.co.uk
RISK OF ELECTRIC SHOCK
DO NOT OPEN. NO USER
SERVICABLE PARTS INSIDE
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK.
OUTPUTS
COM
4
8
16
100V
Order code: CRAM30
5
4
6
3
7
8
2
8
9
1
9
0
10
LINE 1/LINE 2
POWER CONSUMPTION: 22W (max.)
SERIAL NUMBER
MASTER VOLUME
5
4
3
2
LOW
HIGH
1
TONE
0
LINE 1
LINE 2
LINE 1
LINE 2
6
7
POWER
ON
8
OFF
9
10
Advertisement
Related Manuals for Clever Acoustics MA 120
Summary of Contents for Clever Acoustics MA 120
- Page 1 MA 120 100V 20W Mixer Amplifier User Manual MASTER VOLUME MA 120 Mixer Ampli er POWER HIGH MIC 1 MIC 2 MIC 1 MIC 2 LINE 1/LINE 2 TONE FUSE: CAUTION www.cleveracoustics.co.uk T500mA 250V RISK OF ELECTRIC SHOCK DO NOT OPEN. NO USER...
- Page 2 • Do not expose to flammable sources, liquids or gases. • If your product fails to function correctly, stop use • Always disconnect the power from the mains when immediately. Pack the unit securely (preferably in the equipment is not in use or before cleaning! Only handle original packing material), and return it to your Prolight the power-cable by the plug. Never pull out the plug by dealer for service. pulling the power-cable. • Only use fuses of same type and rating. • Make sure that the available voltage is • Repairs, servicing and power connection must only be 240V, 50Hz AC or 12V DC. carried out by a qualified technician. THIS UNIT CONTAINS • Make sure that the power cable is never crimped or NO USER SERVICEABLE PARTS. damaged. Check the equipment and the power cable • WARRANTY: Three years from date of purchase. periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 3 Product overview & technical specifications MA 120 100V 20W Mixer Amplifier A compact, desktop mixer amplifier suitable for small offices, retail spaces and garage forecourts. The 12V DC input allows the amplifier to be powered from DC power backup sources or alternatively from leisure type batteries for sound reinforcement in remote locations away from mains power. • 100V and low impedance 4-16Ω loudspeaker output Specifications MA 120 Mixer Amplifier • Two unbalanced microphone inputs via 6.35mm Power output 20Wrms (40W peak) ( ¼” jack) each with independent level controls Speaker output 100V & 4-16Ω • Line 1/2 inputs (switchable) with level control Microphone sensitivity -48dB (±2dB) • Master tone control Aux input sensitivity -12dB (±2dB) • Master volume control Frequency response 100Hz-13kHz (±3dB) • S crew terminal loudspeaker outputs Tone control ±10dB...
- Page 4 OUTPUTS POWER INPUT: SERIAL NUMBER 240V~50Hz LINE 2 LINE 1 LINE 2 100V DC 12V 2.5A 01 - Power on/off switch 07 - MIC 2 level control 13 - Loudspeaker output terminals 02 - Power LED 08 - MIC 1 input 14 - LINE 1/LINE 2 selector switch 03 - Master volume control 09 - MIC 2 input 15 - LINE 1 input RCA connector 04 - Tone control 10 - Fuse: T500mA 250V 16 - LINE 2 input RCA connector 05 - LINE 1/LINE 2 level control 11 - Captive power connection 17 - Ground connection 06 - MIC 1 level control 12 - DC power input terminals www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 5 “OFF” before any audio sources are switched off. By following this procedure it will prevent acoustic shocks to the speakers or potential damage to system components. After connecting all audio sources and powering on the mixer amplifier, adjust the level of each audio input to achieve the desired “mix”. Care should be taken to when adjusting microphone input volumes and the master volume, adjust both of these in small increment’s to avoid feedback (howl around). The goal is to achieve a clear balance between music and voice ensuring announcements can be clearly heard. DC power connection: The MA 120 features a 12V DC power input for operation from leisure type batteries or from battery DC backup sources. The amplifier should be connected to a fused, 12V DC source via the DC power input terminals (11) ensuring care is taken to observe the correct polarity. The amplifier will automatically transfer to DC operation should the main 240V input fail. The transfer is instantaneous and silent. Please note: The power on/off switch does not have any control over the 12V DC power input. 12V DC input – 4Ω 8Ω 16Ω 100V FUSE Battery DC 12V Master volume control: The master volume control affects the level of all audio sources within the amplifier. Turn the level control anti-clockwise to the lowest setting, or turn clockwise to adjust the overall output to the highest setting. Adjustments should be made gradually to avoid any sudden changes to the audio output. www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 6 Tone control: The tone control can be used to adjust the overall sound from the amplifier. Turn anti-clockwise for more bass, or turn clockwise for more mid & treble. Microphone inputs: Two low impedance microphone inputs are provided, each located on the front panel via an unbalanced, 6.35mm (¼”) jack. Each microphone input features its own independent level control. Before connecting a microphone, turn the level control anti clockwise to the lowest setting. After connection, gradually increase the level control by turning clockwise until the desired level is achieved. Note: Unbalanced cable lengths should be kept to the minimum length possible, ideally under 20m and away from any potential sources of interference including power, speaker and control cables/equipment. Unbalanced microphone Single pole phone plug Line inputs: The amplifier features two audio inputs located on the rear panel, each input features a mono RCA (phono) input connector. The line inputs are designed for line level sources (150mV) such as CD players or MP3 players. A “Y” cable may be required to combine Left and Right outputs from stereo sources. Note: Only one of the two inputs may be used at any one time, the selector switch may be used to choose from the two inputs. Slide the switch to the left to select LINE 2 or slide to the right to LINE 1. Selector switch LINE 1 150mV 150mV LINE 2 LINE 1 LINE 2 Output connections: The amplifier may be used to drive either low impedance (4/8/16Ω) loads or 100V line constant voltage loads, only one output may be used, the amplifier is not designed to drive multiple loads simultaneously. www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 7 COM 4Ω 8Ω 16Ω 100V COM 4Ω 8Ω 16Ω 100V COM 4Ω 8Ω 16Ω 100V Total impedance: 4Ω Total impedance: 8Ω Total impedance: 16Ω 100V Line: For longer cable runs, the amplifier may be used to drive 100V loudspeaker systems reducing losses within the cable. Connect the 100V line level loudspeakers using a parallel wiring configuration taking care to ensure the load connected to the amplifier is within 85% of the amplifiers rated wattage to leave appropriate headroom. Care should be taken to check the wiring and load for short circuits before connecting the cable to the COM and 100V terminals on the rear panel. COM 4Ω 8Ω 16Ω 100V 100V 100V 100V 100V www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 8 DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE POWER CONSUMPTION: 22W (max.) OUTPUTS POWER INPUT: SERIAL NUMBER 240V~50Hz LINE 2 LINE 1 LINE 2 100V DC 12V 2.5A MP3 PLAYER MAINS CD PLAYER LOUDSPEAKERS www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 9 Schematics www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 10 WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.cleveracoustics.co.uk MA 120 Mixer Amplifier User Manual...
- Page 11 MA 120 Mixer Amplifier User Manual...
- Page 12 MA 120 Mixer Amplifier User Manual...
