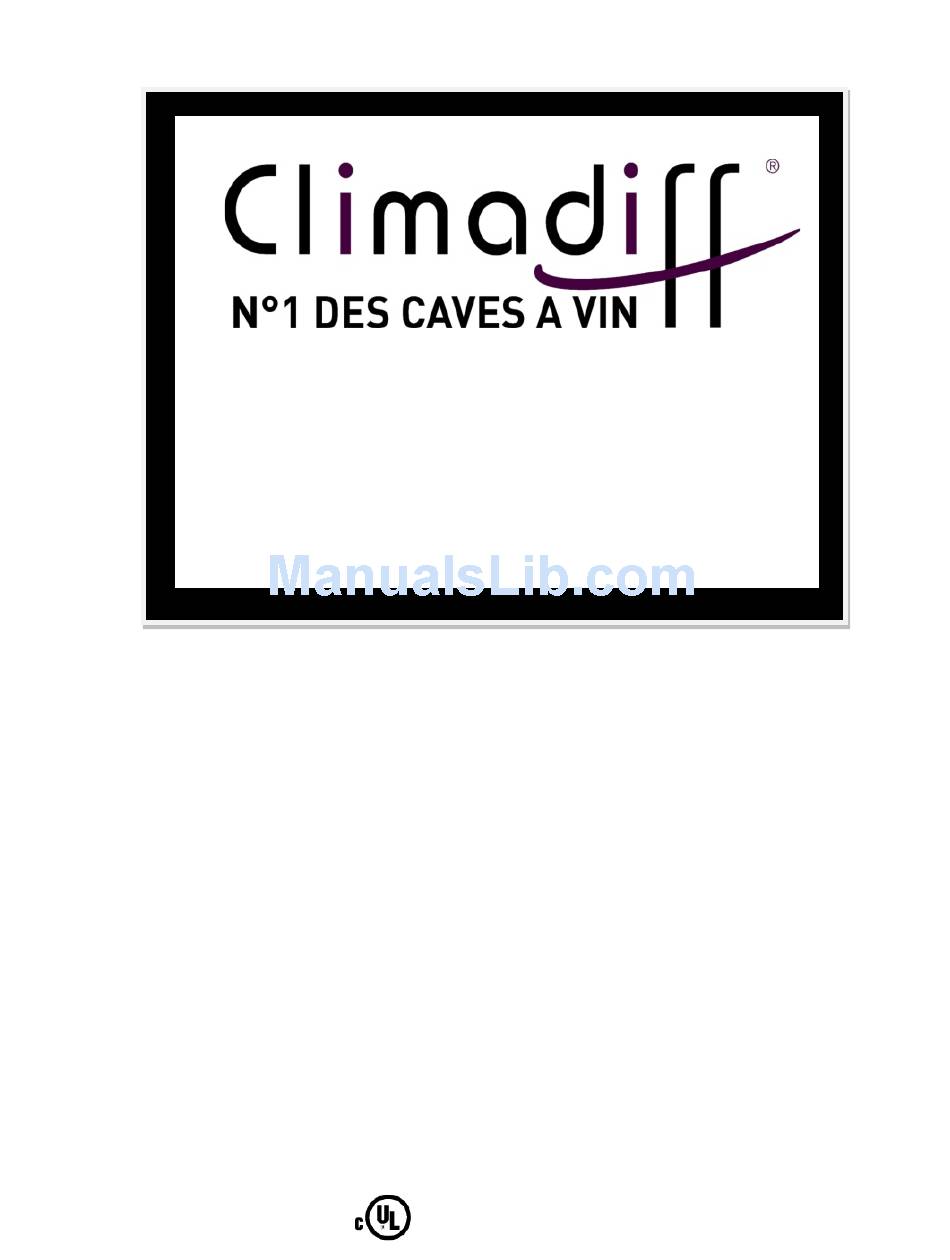

  • Page 1 OWNERS MANUAL 115 Volts – 60 Hz Version AC...

  • Page 2: Table Of Contents

    Changing Charcoal Filters • • Multi-Purpose Cellars Extended Stop • • Conditioning Cellars Defrost Condensate • CLIMADIFF WINE CELLARS – QUALITIES…….… 9 Transporting the Cellar • Reliability and Safety SHELVING OPTIONS…………………….…..18 • • Winterization Kit (Low Temperature Control) Types of Bottles •...
  • Page 3 Table of Contents …Continued LOADING METHOD TROUBLESHOOTING and .......18 FAQ’s...22 • Details on Capacities • Electricity • • Loading Temperature • • Maximum Load Compliance Compressor operation INTERNAL • Winter System (heating) LIGHTING......20 • Relative WINE CELLAR Humidity....23 REGISTER......20 • Water in the Cellar PROPER SERVING •...

  • Page 4: Thank You

    LEGAL Climadiff disclaims any warranty on its wine cellar for any use other than that described in the guide, as well as for any intervention made by a third party not approved by Climadiff (or its appointed dealers). The names and brands indicated in this guide are copyrighted.

  • Page 5: Identification

    Leave the shelves in place so that children may not easily climb inside. Follow your local laws and by-laws for safely disposing refrigerated appliances Climadiff disclaims any responsibility for damages resulting from the failure to comply with the connection or utilization instructions.

  • Page 6: Wine Cellar - Part Identification

    12. Heating system's power (if > 100 W) 13. Defrosting system's power 14. Refrigerant gas and quantity 15. Insulating agent's chemical formula 16. Maximum pressure 17. Minimum pressure 18. Note : read the user instructions 19. Note : conformity to the certificates 20.

  • Page 7: Installation Area

    INSTALLATION AREA Make sure to place your wine cellar in a suitable and stable location, away from any heat source, protected from direct sunlight, and protected from low/extreme temperatures. Make sure that the surface area where the cellar will be placed is flat and strong enough to support it when fully loaded (weight of the cellar plus bottles loaded).
  • Page 8 IMPORTANT: B E CAREFUL TO NOT EXCEED THE FOLLOWING MINIMUM AND MAXIMUM VALUES RETAINED FOR OPTIMUM OPERATION OF YOUR CELLAR Wine cellar winter system (Not available after purchase as on optional system): • Glass door : +50°F and +86°F (10 C and 30 •...

  • Page 9: Odors/ Ventilation

    “WINTERIZATION KIT” (LOW TEMPERATURE PROTECTION) To optimize the security of a constant ideal temperature inside your Climadiff wine cellar, Climadiff outfits the cellar with a “Winter Kit” (depending on the model). The temperature inside your wine cellar is automatically regulated with respect to the ambient temperature.

  • Page 10: Vibration Controls

    AERATION/ ODOR CONTROL Your Climadiff wine cellar is equipped with a permanent air refreshing system filtered by an activated charcoal filter. It is recommended to replace this filter once a year (may be ordered from a dealer). For replacement instruction, refer to the "maintenance”...

  • Page 11: Temperature Control

    TEMPERATURE CONTROL WINE CELLAR DISPLAY Fig. 1 Fig. 2 Fig. 3 MULTI-PURPOSE CELLAR - DISPLAY Failure alert pictogram Top area temperature Heating resistance's operating pictogram Average relative humidity indicator Central area temperature Compressor's operating pictogram Bottom area temperature Add water indicator Error code “AGING”...

  • Page 12: Temperature Selection

    To start or stop the wine cellar, press the button (above the lit display) for 5 seconds. During the start-up of the wine cellar or after an electrical power cut-off, the control system is set by a calibration process. During this process, the display and the selection buttons are lit and the alert pictogram (triangle with exclamation point) flashes.
  • Page 13 Simultaneously press the Up and Down arrows for 5 seconds. A beep sounds. Simultaneously The temperature value already selected flashes. Using The changes are accepted, and the press the Up and the Up and Down arrows, select the new temperature cellar returns to display the current Down arrows for 5 value desired.

  • Page 14: Cellar Operation

    In the traditional natural cellar, temperature and humidity remain fairly consistent – any subtle changes from one season to another, are relatively small and very gradual. Your Climadiff cellar mechanically reproduces these optimum conditions for your wines in the convenience of your home.

  • Page 15: Temperature Indicator

    RELATIVE HUMIDITY Your Climadiff wine cellar automatically controls the relative humidity in the cabinet. The combination of the circulation of filtered ambient air loaded with humidity in the cabinet, the phenomenon of condensation linked to the cabinet's operation, and the surface area of the inner steel walls coated with a paint of large particle size offers your wines the ideal ambient conditions.

  • Page 16: Maintanence

    Note: Wait a few days after you have started operating the wine cellar for the first time so that the ideal average relative humidity (55 to 70%) is stabilized in the cabinet. Frost may form in the bottom of the cellar - this is a normal phenomenon which will disappear when the natural inertia level of the wine cellar is reached.

  • Page 17: Extended Stop

    EXTENDED STOP Completely disconnect the cellar. Be sure to remove the bottles. Clean and dry the inside of the tank and especially the condensate water recovery drain located in the bottom part of the cabinet. Condensate drainage Condensate reservoir DEFROST CONDENSATE The cabinet is equipped with an automatic defrost cycle.

  • Page 18: Shelving Options

    The "Collector “ wine bottle shelf is a reversible Bordeaux or Burgundy wine bottle shelf invented by Climadiff to allow making an efficient, reliable and practical arrangement choice. One side has imprints for "Bordeaux 25 oz. (750 ml) type bottles", while the other side has imprints for "Burgundy 25 oz.

  • Page 19: Loading Method

    DETAILS ON CAPACITIES Capacity indications assigned to the various Climadiff wine cellar models are given as a guideline only. These will help you make your choice according to your desires and your available space. These capacities are based on a standard 25 oz.

  • Page 20: Maximum Load Compliance

    WINE CELLAR REGISTER The wine cellar register is an original Climadiff innovation. The cellar registration (or prestigious "grand cru" wine table) can be found on the inside of the cellar door (based on model and excluding glass doors). Use chalk to record information about the characteristics of your collection, or give a list of your prestigious "grand cru’s".

  • Page 21: Proper Serving Temperatures

    45-46°F Liquoreux wines 43°F Cellar selection could never been more well rounded, and all can be properly accommodated in the Climadiff Multi- Purpose cellar! MATURATION SCHEDULE The time required for various vintages to attain their optimum maturity can vary widely. The table below will give to you an idea about the number of years your bottles will need to reach the peak of their maturity.

  • Page 22: Spare Parts

    It should therefore be taken to an appropriate collection centre for electrical and/or electronic refrigerated appliances. The user is responsible for making sure that the appliance is given to the appropriate recycling agency. For more detailed information regarding recycling, please contact your local office of the environment or the store in which the appliance was bought.

  • Page 23: Relative Humidity

    Check to see if door is completely closed Check the door gasket for proper seal Door may have been opened frequently or for extended period of time. If no cold effect is observed, call the after-sales service. THE WINTER SYSTEM (HEATING) DOES NOT SEEM TO BE OPERATING The system operates only if the inside temperature in the lower part of your wine cellar is below the set temperature.

  • Page 24: Power Outages

    In spite of high manufacturing standards, quality process control checks and the best quality parts used in all Climadiff Wine Cellars, the possibility of a technical problem can arise. In order to easily detect any problems, error codes will be shown on the display.
  • Page 25 The original Climadiff innovation which allows you to manage your collection by writing about it with a piece of chalk on the inside counter door of the cabinet. Climadiff S.A., Les Docks – Atrium 10.5, BP 56224, 13567 Marseille Cedex 2, France. Tel: + 33 (0) 4.96.11.52.52 Fax: +33 (0)4. 91.35.36 Info@climadiff.com...
