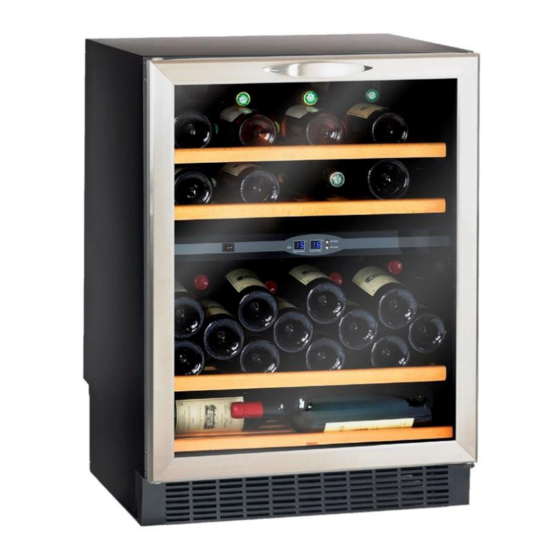

Free-standing and under-mount service cellar
Hide thumbs Also See for CV52IXDZ:

Advertisement

Quick Links

Free-standing and under-mount service cellar
INSTRUCTIONS FOR USE – CV52IXDZ
FR – MANUEL D'UTILISATION
D – GEBRAUCHSANWEISUNG
SP – MANUAL DE UTILIZACION p. 95
p. 2
GB – USE INSTRUCTIONS
p. 47
NL – HANDLEIDING
p. 25
p. 71

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV52IXDZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Climadiff CV52IXDZ

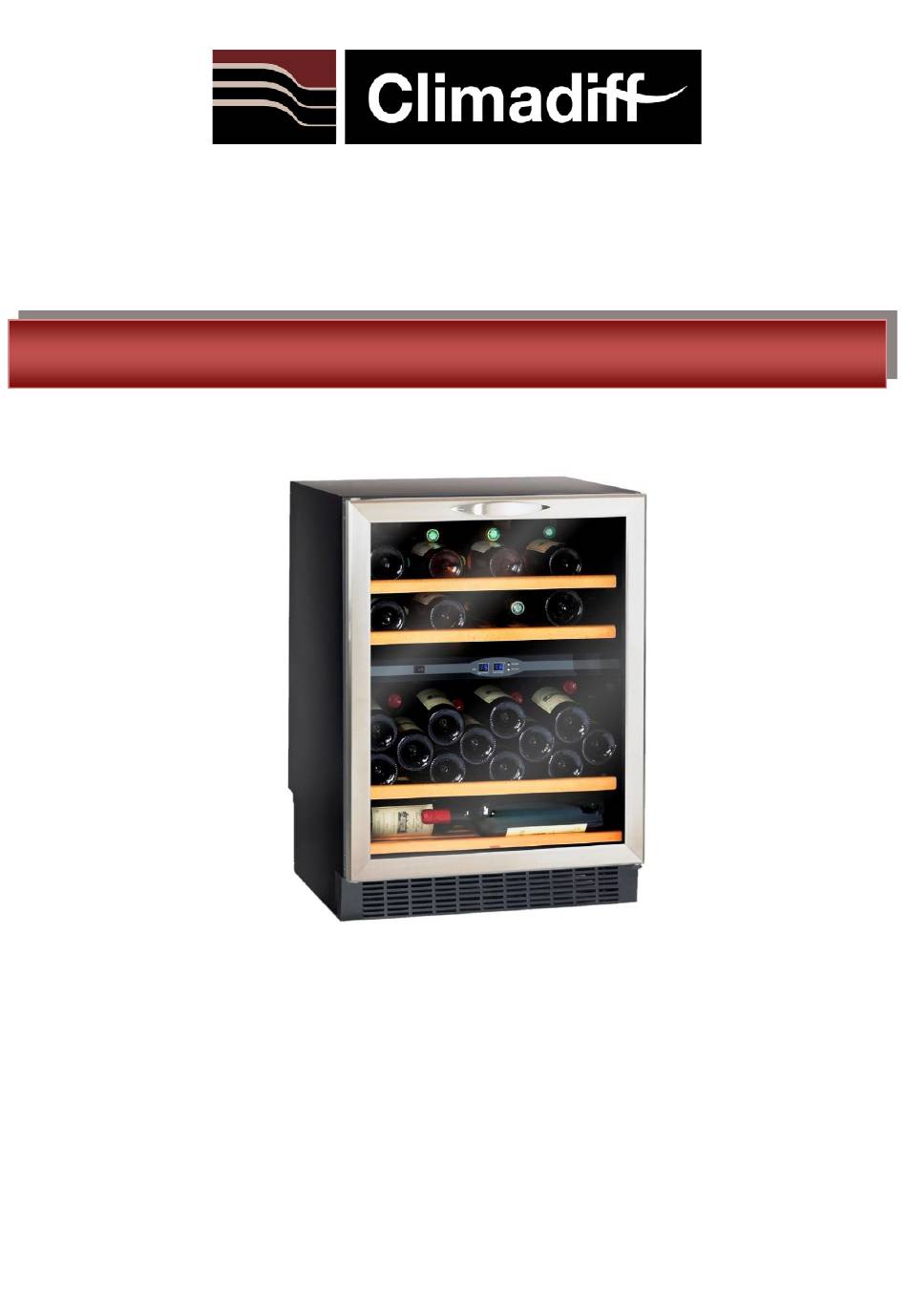

  • Page 1 Free-standing and under-mount service cellar INSTRUCTIONS FOR USE – CV52IXDZ FR – MANUEL D’UTILISATION p. 2 GB – USE INSTRUCTIONS p. 25 D – GEBRAUCHSANWEISUNG p. 47 NL – HANDLEIDING p. 71 SP – MANUAL DE UTILIZACION p. 95...
  • Page 2 Before use, please read and follow the safety rules and operating instructions in this manual. Firstly, we would like to thank you for purchasing an CLIMADIFF product and hope that this appliance fully lives up to your expectations. This appliance enables you to bring your bottles at room temperature or bring them to service temperature (depending on the bottles) thanks to its wide adjustment range.
  • Page 3 temperature higher than that of a storage compartment for fresh products. Under no circumstances is it intended to keep food products fresh. Make sure that your electrical installation's voltage corresponds to that on the appliance’s nameplate; the appliance must be connected to an approved, earthed system.
  • Page 4 etc.) on electrical components (motor, etc.), disconnect the mains plug immediately. To prevent any risk of fire, electrocution or injury, do not immerse the mains cable, plug or the appliance itself in water or any other liquid. Do not handle the appliance with wet hands. Keep the appliance away from any source of heat and out of direct sunlight.
  • Page 5 out by children, unless they are more than 8 years old and are supervised. Keep all packaging away from children as there is risk of suffocation. • Risk of child entrapment. Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will “just sit in the garage a few days”.
  • Page 6  Bed and breakfast type environments,  Catering and similar non-retail applications. WARNING — To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions. WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance, as they could leak or release fluids.
  • Page 7 flammable and explosive articles should not be put in or near the cabinet, to avoid the fire or explode caused. Refrigerating fluid The refrigerating circuit in the appliance uses refrigerating isobutene (R600a), which is a highly inflammable natural gas and is therefore dangerous for the environment. When transporting or installing the appliance, ensure that no element of the refrigerating circuit is damaged.
  • Page 8 Ensure that the appliance is always electrically earthed. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire. You must not operate the appliance without the interior lighting lamp cover. Disconnect the appliance before replacing the lighting bulb.
  • Page 9 appliance on fire. The appliance is intended for keeping beverages in normal household as explained in this instruction booklet. The appliance is heavy. Care should be taken when moving it. If your appliance is equipped with castors, remember that these are only designed to facilitate minor movements. Do not move the appliance over long distances.
  • Page 10 Plug the wine cooler into an exclusive, properly installed- grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized products service center.
  • Page 11  Leave the doors open as little time as possible.  To ensure that the appliance operates properly, clean the condenser regularly (see “Maintenance”).  Regularly inspect the door seals and ensure that they are still closing properly. If this is not the case, contact your after-sales service.
  • Page 12: Technical Data

    refrigerating fluid type is specified on the power cabinet identification plate. • Caution — electrical equipment compartments of the appliance, unless they are of the type recommended by the manufacturer. This appliance meets the requirements of all applicable European directives and their amendments, and notably complies with the following standards: 2011/65/EU (ROHS) 2014/35/EU on electrical safety...
  • Page 13: Installation Instructions

    3. INSTALLATION INSTRUCTIONS Before using this appliance Remove the exterior and interior packing. Before connecting the appliance to the power source, let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
  • Page 14 Built-in installation drawings Reversing the door The door can be changed from left and right side. No special requirement, all the door is opened from left side. If required to open from right side please refer to the following direction. 1.
  • Page 15 8. Reinstall the grille and screw it in (figure A). 4. OPERATING INSTRUCTIONS It is recommended that you installed your appliance in a place where the ambient temperature is between 16-32°C (N class marked on the rating plate). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected and it may not be possible to obtain temperature between 5-10°C/10-18°C.
  • Page 16 Ensure that the tray always contains water. Designed by specialists for oenophiles, Climadiff brand has taken into account the sensitivity of corks to too low a level of ambient humidity. This is why the tray should be placed on the shelf below the fan situated in the bottom, to provide minimum humidity.
  • Page 17 heat produced by the compressor then evaporates the condensates collected in the tray. The winter system The winter kit is a frost protection system which enables the cellar to operate in an environment where the temperature is between 0 and 32°C. A sensor located outside the appliance triggers a low power electrical element when the ambient temperature in the room falls to around 8°C in case.
  • Page 18 Installing the handle Your appliance has a stainless-steel handle. To fit it, simply screw it onto the door with the screws supplied as per the diagram below, having first removed the seal. Front Back 6. LOADING The maximum recommended loading quantities for bottles are given as guidelines and are indicative only;...
  • Page 19: Care And Maintenance

    Criss-crossing types Top-to-bottom neck-to-neck: Note the difference in depth! Top-to-bottom neck between bottle bodies: Increased loading. Examples of serving temperatures Opinions vary, and the ambient temperature too, but many people agree on the following: Prestigious Bordeaux wines – Reds 16 – 17°C Prestigious Burgundy wines –...
  • Page 20: In The Event Of A Breakdown

    Vacation time • Short vacations: leave the wine cooler operating during vacations of less than three weeks. • Long vacations: if the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.
  • Page 21: Troubleshooting

    9. TROUBLE SHOOTING You can solve many common Wine cooler problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the servicer. PROBLEM POSSIBLE CAUSE •...
  • Page 22 As we continuously improve our products for the benefit of our customers, we reserve the right to modify technical characteristics without notice. Warranties for CLIMADIFF brand products are offered exclusively by selected retailers. No part of these instructions may be considered as a supplementary guarantee.
  • Page 23 EUROPEAN DATA SHEET according to the regulations (UE) N°1060/2010 SERVICE WINE CABINET BRAND CLIMADIFF COMMERCIAL REFERENCE CV52IXDZ POWER SUPPLY 220-240 V / 50 Hz PRODUCT DIMENSIONS (W x D x H) 595 x 571 x 820 mm NET WEIGHT 50 kg...
