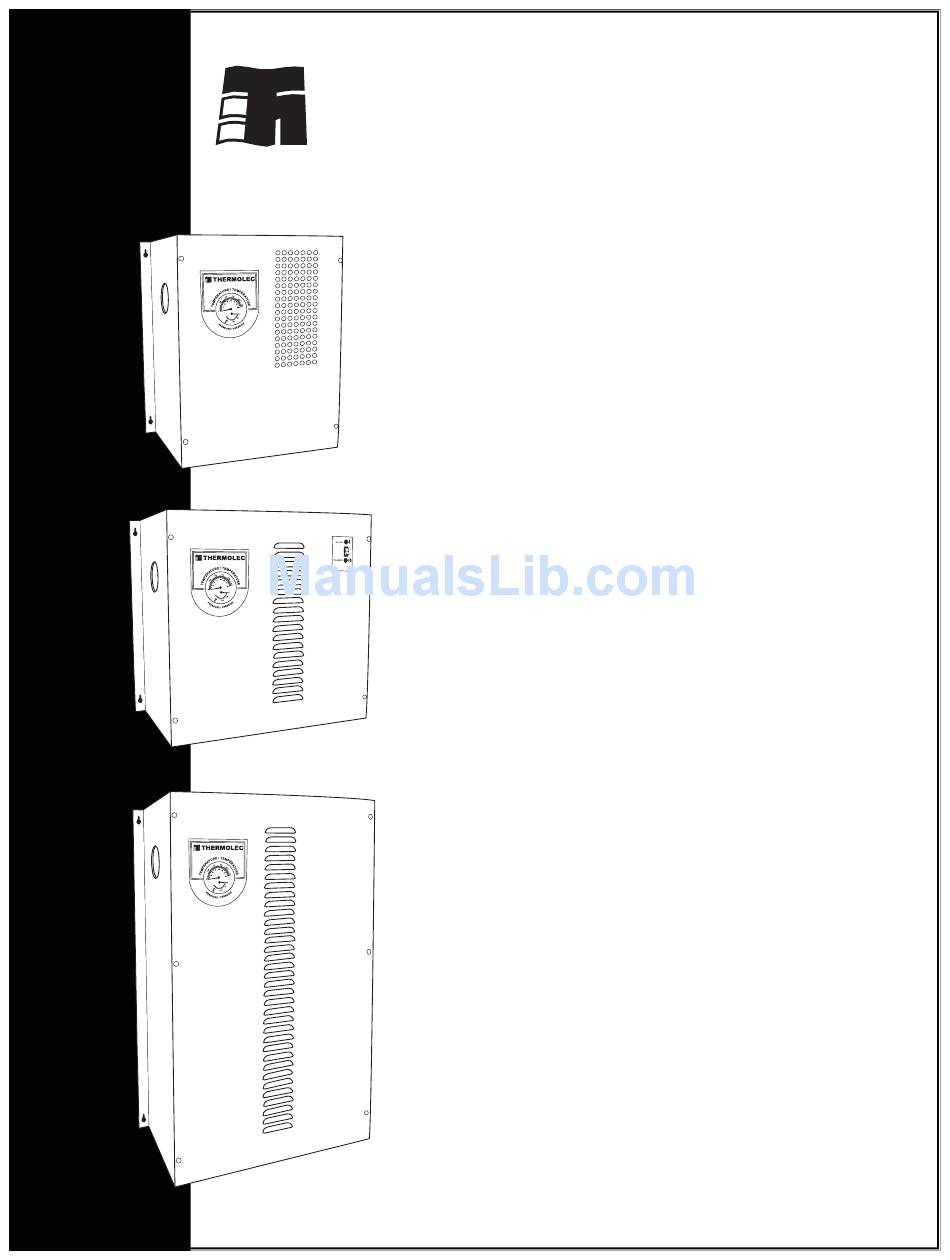

Page 1: Installation Instructions

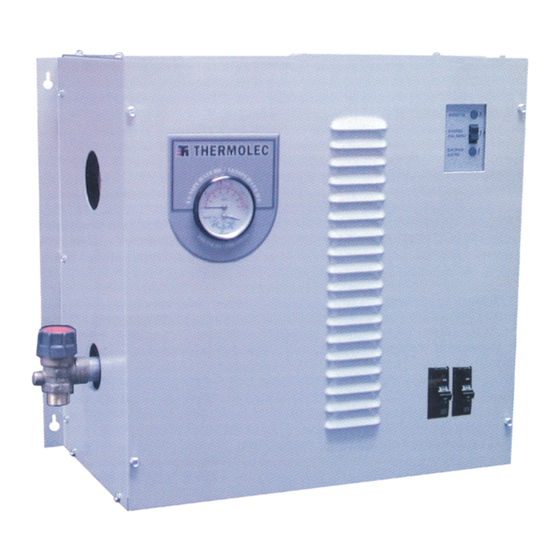

THERMOLEC Installation Instructions Electric Boilers (CANADA) December 2011 VERSION 11... - Page 3 These instructions should be used as a general guide only. Electrical Code and local utility requirements must be followed and take precedence over these instructions. Thermolec electric boilers are manufactured with quality components for maximum life, durability and minimum service. To ensure a satisfactory installation it is imperative that you read these instructions carefully before installing and operating the heating system.
- Page 4 Components Mono or Dual energy controller Adjustable electronic aquastat (output temperature) Incoloy elements Manual reset Solid state relays thermal cut-out Fig. 2 Thermostat terminals Electronic temperature sensor Mounting holes Magnetic back-up contactor Outlet 1-1/4’’ NPT Boiler control transformer Temperature / 18”...
- Page 5 Table 2 Standard Model Specifications @ 240V / 1ph (Canada) Dual-Energy Models B-10 B-12 B-15 11.5 17,060 20,472 27,296 30,708 34,120 39,238 51,180 BTU / H Total Amps 20.83 25.00 33.33 37.50 41.67 47.92 62.50 No. Of Power Supplies 1 x 30A 1 x 30A 1 x 50A 1 x 50A 1 x 60A 1 x 60A 1 x 80A (Amps Per Breaker) Dual-Energy Models B-18...
- Page 6 Water circulation and plumbing notes The system is designed to operate with a maximum output temperature of 180°F or lower and a temperature rise across the unit of 20°F or lower. Please refer to Table 4 for the recommended flow rate versus the capacity of the boiler. Table 4 Recommended Water Flow Rate vs Capacity Capacity (kW)
-
Page 7: Mechanical Installation
The automatic pressure relief valve supplied with the boiler is required to prevent dangerous pressure build-ups in the system in case of system malfunction and may under certain conditions vent hot water. Do not install the system where water could damage rugs, furniture, etc. When piping the relief valve to a drain, check with local authority for recommended method of installation. - Page 8 Electronic Aquastat MAXIMUM WATER TEMPERATURE MINIMUM WATER TEMPERATURE °C °F Fig. 4 Fig. 5 The outdoor sensor will : a) Maintain the selected maximum water temperature when the outdoor temperature is at -10°C (+14° F) or colder. b) Automatically and proportionally compensate by varying the water temperature between the maximum and minimum when the outdoor temperature is between –10°C (+14°F) and +10°C (+50°F).
- Page 9 Set the thermostat above the room temperature. The system should start. Make sure the pump starts running as soon as the system starts. 9.10 Heating stages will be switched ON in sequence at 30 second intervals, confirmed by green lights on the left hand side of the PC board on the TH600 or by red lights on the right hand side on the D22-B.
-
Page 10: Installation Examples
Your boiler is now ready and functional. Installation examples 11.1 Installation A shows a Thermolec electric boiler in a Full-Electric Configuration. 11.2 Installation B shows a Thermolec electric boiler in a Dual-Energy-Series Configuration. Water is always passing through both boilers even if only one heat source is selected at a time. -
Page 11: Warranty
Thermolec’s responsibility shall be limited in any case to the replacement or repair, in its factory or in the field, by its own personnel or by others choosen by Thermolec, at its option, of such boiler or parts thereof, as shall prove to be defective within the warranty period. - Page 13 Telephone : ________________ Date Installed : _____________________ Comments / Suggestions : _____________________________________________________________________________________ _____________________________________________________________________________________ _____________________________________________________________________________________ Please send this registration form to Thermolec Ltd. Warranty Registration 2060 Lucien-Thimens St. Ville St-Laurent, Montreal Quebec, Canada H4R 1L1 Or fax it to (514) 336-3270...
- Page 15 Page 13...
- Page 16 Page 14...
- Page 17 ALL-ELECTRIC INSTALLATION (Illustration A)
- Page 19 DUAL-ENERGY SERIES INSTALLATION (Illustration B)
- Page 21 DUAL-ENERGY PARALLEL INSTALLATION (Illustration C)
