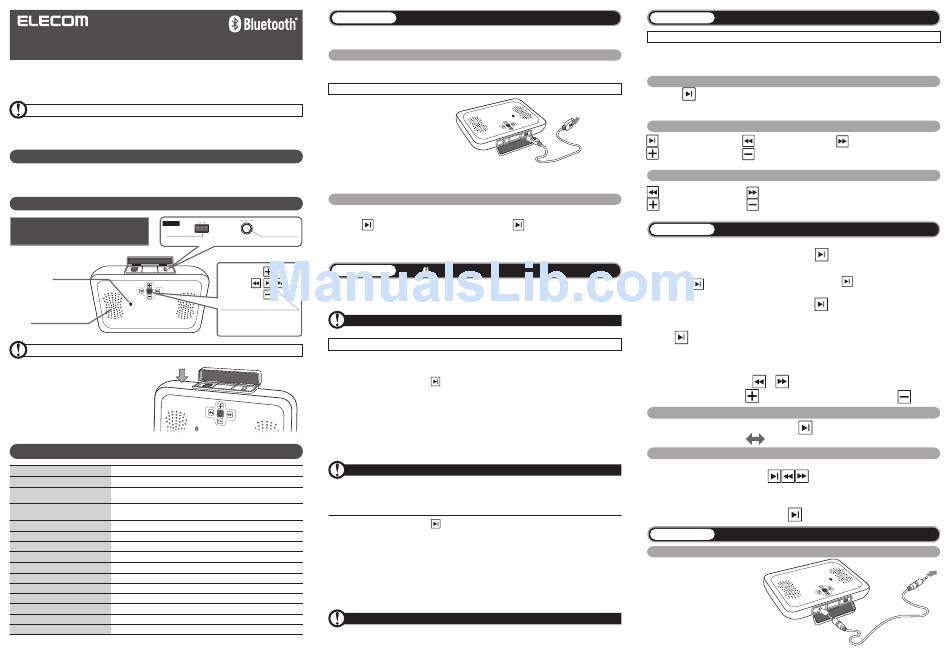

Elecom LBT-SPWP100 User Manual

Waterproof Wireless Speaker Unit User's Manual
Thank you for purchasing the waterproof Bluetooth wireless speaker unit. Able to be paired with
mobile phones and smartphones, this product enables you to enjoy listening to music even in a wet
or damp environment. Also, handsfree calling functions enable you to talk over the phone while you
are in the bath.
A note about waterproof performance
This product, which is waterproof to IPX5/IPX7 standards, is designed to ensure normal operation
in water at a specified pressure.
Check the items supplied in the package.
 Speaker unit (1)
 User's Manual (this document)
Part Names
Top

Name of this product: LBT-SPWP100
DC-IN
 Link key: 0000 [four zeros]
Connect a USB charging cable to this terminal.
Microphone
Speaker
Before using this unit
Please make sure to completely close the watertight
cap before using this unit. Troubles attributed to
water seeping into the unit from a loosely closed
watertight cap are not covered by the warranty.
* Water droplets that enter the speaker/microphone holes do
not cause troubles. Please note, however, that the unit's
performance may temporarily decrease until the water
droplets are dried. Problems may include unclear sound
and difficulties in getting your voice clearly picked up. If
such problems arise, please remove water droplets and
dry the unit.
Product specifications
Radio wave method FHSS (Frequency-Hopping Spread Spectrum)
HFP, HSP, A2DP (supporting SCMS-T), AVRCP
Compatible profiles
Radio wave outreach Up to approx. 100 m (Note that this is a theoretical value, and the transmission
distance changes depending on the environment in which this unit is used.), Class 1
Power source
Built-in lithium polymer battery (400 mAh)
Input voltage: DC 5V (from the USB charging cable included in the package)
Current consumption 500 mA (max)
Continuous standby time* Up to approx. 150 hrs
Continuous transmission time* Up to approx. 5 hrs
Battery full charge time Up to approx. 4.5 hrs
External dimensions 120 (W) x 16.2 (D) x 83 (H) mm (including protrusions)
Operating temperature range 0–40°C
Operating humidity range 20–80% (no condensation)
Weight Approx. 112 g
Conforming standards ARIB STD-T66, JATE, Bluetooth Version 2.1 + EDR, and RoHS directive
Waterproof performance To IPX5/IPX7 standards
Number of devices that can be registered 8
* The actual continuous standby/transmission times may become shorter than those in the specifications depending on the environment or conditions for
keeping/using the unit, etc.
* Batteries are consumables. The battery service time gradually decreases after the charging and discharging cycles, even if the batteries are used properly.
* The battery performance deteriorates quickly if the unit is kept under high temperature conditions. Please keep the unit in a cool, well-ventilated location,
away from direct sunlight.
STEP 1 STEP 1
Charge the battery from your PC via the USB charging cable included in the package.
The LED lamp is lit red while the battery is charged.
The LED lamp is turned off when the battery is fully charged.
* It takes up to 4.5 hours to fully charge the battery.
To charge the battery from your PC

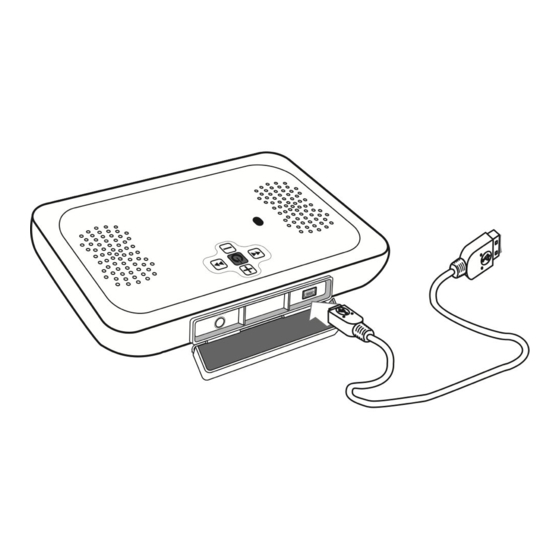

(1) Connect the USB charging cable
to the unit.
(2) Connect the USB charging cable
to your PC.
* When the battery power is used up, a beeping alarm will sound, with the LED lamp blinking red. (After a while, the unit will
 USB charging cable (1)
turn off.)
Turning on/off the unit
 To turn on the unit
Press down on the unit for approx. two seconds.
Audio input terminal A melody will sound, and the LED lamp will light
blue for one second before the unit turns on.
Operation STEP 2 STEP 2
panel
This operation is necessary to use the unit for the first time or to connect the unit to a new
Bluetooth device.
Multifunction button
The LED lamp blinks/is lit depending
At this point, do not turn on the unit.
on the status.
(Ex. The LED lamp blinks blue during
the pairing and connection process.)
[Basic] Pairing procedure
(1) Before using the unit, charge the battery by connecting the unit to your PC.
Watertight cap
* To use the unit on the battery, charge the battery before starting the pairing procedure.
(2) After start-up sound, press down
* Release your finger when the beep sounds.
* If the unit is turned on before starting the pairing procedure, turn off the unit.
(3) Follow the pairing procedure of the Bluetooth device to be connected to the unit.
* Check the pairing procedure in the user's manual for the Bluetooth device to be connected to the unit.
* When the unit is detected by the Bluetooth device, "LBT-SPWP100" will appear on the display of the Bluetooth device.
* When a link key is requested, enter [0000] (four zeros). (The link key may be requested with such terms as "PIN code"
and "password.")
Up to eight Bluetooth devices can be registered.
When nine or more devices are registered, the previously registered devices will be deleted
starting from the oldest, to register new ones. A device that is registered twice or more is identified
as one device.
Ex. Pairing the unit with an iPhone
(1) After start-up sound, press down
* Release your finger when the beep sounds.
* If the unit is turned on before starting the pairing procedure, turn off the unit.
(2) Open the iPhone's "Settings" screen.
(3) On the "General" menu, turn "Bluetooth" on.
(4) Detected Bluetooth devices are listed. Select "LBT-SPWP100."
(5) When the pairing procedure is completed, a signal will sound.
Terminate any connections between the unit and any devices before starting the pairing procedure.
The pairing procedure cannot be started while a Bluetooth connection is established between the unit and a
registered device. Terminate the connection and turn off the unit.
* Note that the pairing procedure cannot be started while the unit is connected to a device via an audio cable.
Charging the battery
To your PC's USB
connector
 To turn off the unit
Press down on the unit for approx. two seconds.
A melody will sound, and the LED lamp will light red
for one second before the unit turns off.
Con guring the initial settings (pairing)
on the unit until a beep sounds.
on the unit until a beep sounds.
STEP 3-1 STEP 3-1 Playing music
Procedure to establish a connection with a registered (paired) Bluetooth device
(1) Turn on the Bluetooth device.
(2) Turn on the unit. -> The connection is automatically established.
* The procedure may be different depending on the devices to be used. For more information, please refer to the
user's manual of your device.
To establish a connection via manual operation
Press down on the unit until a beep sounds. -> The unit is connected to the device with which the
last connection was established.
* When a connection cannot be established, the unit tries to connect to devices with which a connection was previously
established, in the order of registration.
When the unit is connected to a music player
......... Pause/Play ......... Restart the track*
......... Increase the volume ......... Decrease the volume
* The unit works with iOS4.1 or later on an iPhone/iPod touch.
When the unit is connected to a device equipped with a 1seg tuner
......... Select a channel ......... Select a channel
......... Increase the volume ......... Decrease the volume
* For some mobile phones, 1seg channels may not be changed.
STEP 3-2 STEP 3-2 Handsfree calling
 Making a call  Receiving a call
Make a call with your mobile phone. -> Your
Press
mobile phone is automatically connected to the
phone via the unit.
unit. You can talk over the phone via the unit.
* To establish a connection with a headset,
* To establish a connection with a headset,
press down
press down on the unit.
* For some mobile phones, it may be necessary to  Rejecting a call
follow the instructions of "How to switch the
Press
sound output mode during a call" below.
received.
 Redialing
(1) Set your mobile phone to standby mode.
(2) Press on the unit twice.
-> Your mobile phone will make a call to the last number that you dialed.
* The music playing function will be interrupted during the call; the music playing function will resume when you hang up the phone.
* For some mobile phones, it is necessary to stop playing music before redialing.
 Adjusting the volume
 Muting the microphone ...... Press or on the unit.
 Increase the volume ......
Press on the unit.  Reduce the volume .........
How to switch the sound output mode during a call
The two modes below can be switched by pressing on the unit until a beep sounds.
Talking via a mobile phone Handsfree calling via the unit
Initializing the registration history/resetting the hardware
 The Bluetooth device registration history can be initialized with the following procedure.
When the unit is turned off, press down on the unit at the same time for 10 seconds
or longer.
-> When the registration history is successfully initialized, the LED lamp will blink purple four times.
 The hardware can be reset with the following procedure.
Start charging the battery while pressing down on the unit.
STEP EX STEP EX Using an audio cable
An audio cable (φ3.5 stereo type) can also be used to connect the unit with an audio device.
* The LED lamp is lit purple when the
unit is connected with an audio
device via an audio cable.
(The LED lamp is lit blue when the
unit is connected with an audio
device via Bluetooth.)
* An audio cable (φ3.5 stereo type) is
not included in the package. Please
buy one if necessary.
When the unit is connected with an audio device via an audio cable, signals from
the audio input terminal are automatically selected to play music.
The unit is turned off when the audio cable is removed from the audio input terminal.
* When the unit is connected to an audio device via an audio cable, please do not use the unit in a wet or damp
environment, because the watertight cap cannot be closed to ensure waterproof performance.
......... Play the next track*
on the unit. -> You can talk over the
on the unit.
on the unit twice when a call is
Press on the unit.
To an audio device
