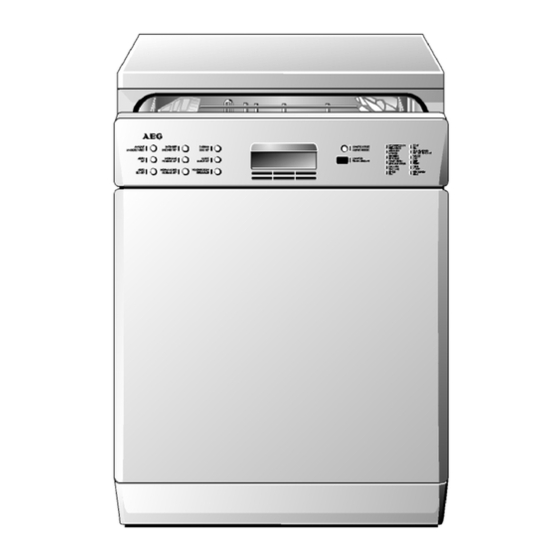

Electrolux ÖKO-FAVORIT 6270 Service Manual

Easytronic dishwashers with flow heater - fully integrated, integrated, built under, freestanding
Hide thumbs

Advertisement

Quick Links

Download this manual
© AEG Hausgeräte GmbH
Muggenhofer Straße 135
D-90429 Nürnberg
Germany
Fax +49 (0)911 323 1420
TSE - N
Ausgabe:
11.98
Edition:
11.98
Publ.-Nr.:
599 50 69 24
685
EN
SERVICE MANUAL
DISHWASHER
Dishwasher
Easytronic Dishwashers
with Flow Heater -
Fully Integrated,
Integrated, Built Under,
Freestanding

Advertisement

loading

  Related Manuals for Electrolux ÖKO-FAVORIT 6270

  Summary of Contents for Electrolux ÖKO-FAVORIT 6270

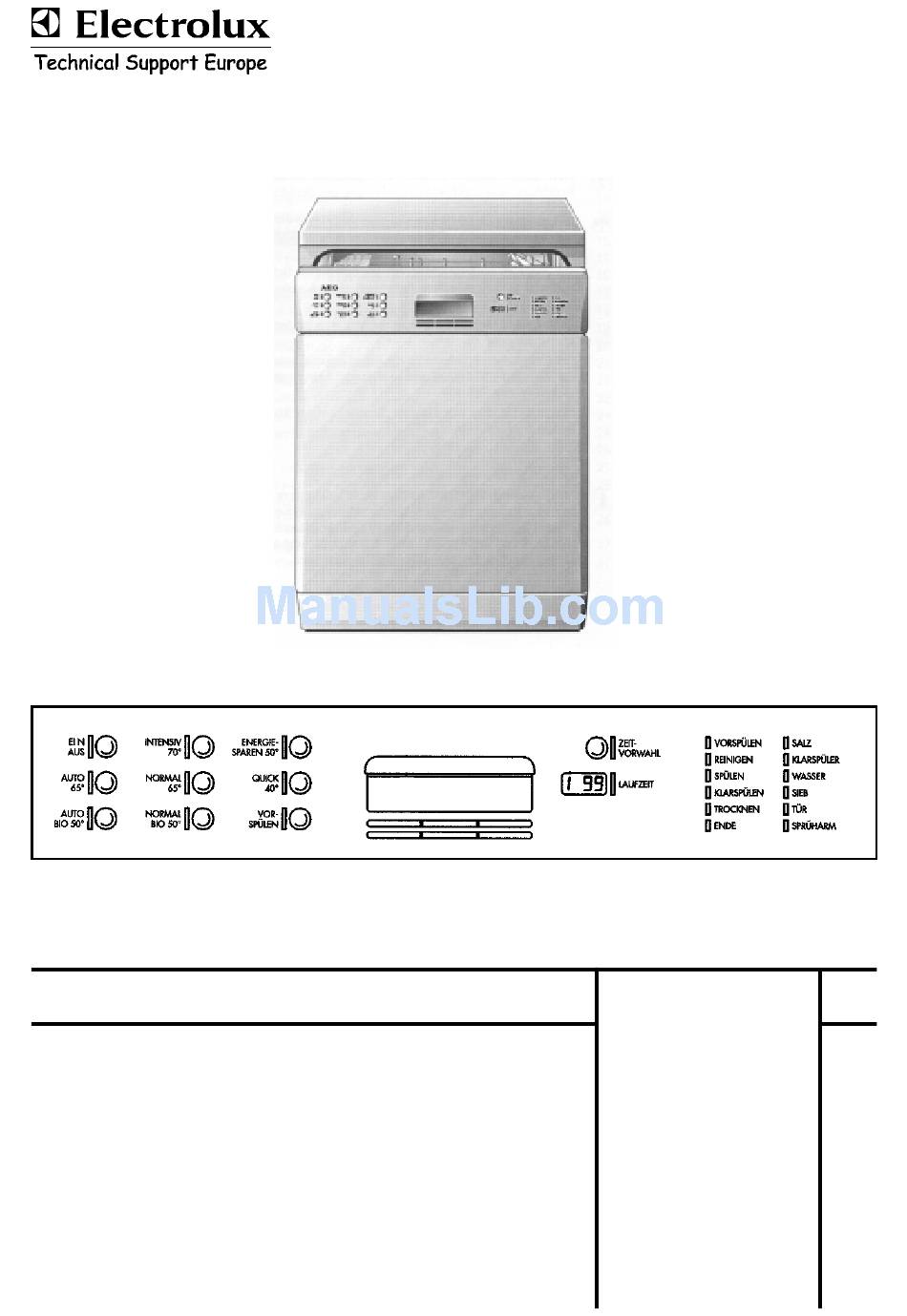

  • Page 1 SERVICE MANUAL DISHWASHER Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, © AEG Hausgeräte GmbH Publ.-Nr.: Integrated, Built Under, Muggenhofer Straße 135 599 50 69 24 Freestanding D-90429 Nürnberg Germany Fax +49 (0)911 323 1420 TSE - N Ausgabe: 11.98 Edition: 11.98...
  • Page 2 292 1372 01 292 1372 1 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Dimensions ÖKO-FAVORIT 6270 / 5270 / 3270 Vi ÖKO-FAVORIT 8081 i, 6060 i, 5060 i, 5050 i * Appliances with height-adjustable feet Plinth height for appliances 820 mm high 100 - 175 mm Plinth height for appliances 870 mm high...
  • Page 3 292 1372 2 Dishwasher 292 1372 02 Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Model ÖKO-FAVORIT 6080 ..13 l .... 0,95 kWh ... 15 l ... 1,15 kWh ..45 dB ÖKO-FAVORIT 5080 ..13 l .... 0,95 kWh ... 15 l ... 1,15 kWh ..47 dB ÖKO-FAVORIT 5070 ..
  • Page 4 292 1372 3 Dishwasher 292 1372 03 Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Components Interference Filter The interference filter is connected in the terminal board parallel to the mains feed. Pressure Switch Switch point with level 65 mm Ws Reset point with level...

  • Page 5: Circulation Pump

    292 1372 4 Dishwasher 292 1372 04 Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Circulation Pump The circulation pump is driven by an asynchronous motor with an auxiliary winding. The auxiliary winding ist in circuit with a 4 mF capacitor.
  • Page 6 292 1372 5 Dishwasher 292 1372 05 Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Detergent / Rinse Aid Combination Dispenser Unit Detergent dosage = 20 ml - 30 ml Rinse Aid capacity 150 ml Dosage settings 1 - 6 Quantity...
  • Page 7 292 1372 06 292 1372 6 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Electronic On electronic models, a micro processor controls all components, this is done using triacs. The electronic also memorizes all programme data. Fully integrated dishwashers have a servo door lock.
  • Page 8 292 1372 7 Dishwasher 292 1372 07 Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Water Softening The components required for water softening. softener unit regeneration dosage chamber The incoming water flows through the softener which works according to the ion exchange principle.
  • Page 9 292 1372 08 292 1372 8 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Electronic (1) Thermal sensor (2) Drain pump (3) Pressure switch (4) Flow heater (1) Terminal board (2) Inlet valve (3) To remove side panel : Remove fixing screws Pull the panel away from the rear, and gently out of the...
  • Page 10 292 1372 09 292 1372 9 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Removing the regeneration dosage chamber : disengage locking tabs (1) disconnect hoses (2) holding the top of the chamber, pull upwards disengaging it from the softener.
  • Page 11 292 1372 10 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Inlet valve Base tray Air break Float switch Regeneration water dosage Pressure switch Overflow safety level Filter Safety overflow Circulation pump Inlet to sump from regeneration dosage Flow heater chamber Drain pump...
  • Page 12 292 1372 11 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding All-Around Water Protection Aqua-Control Inlet Hose The inlet hose has a double-wall construction. The inner hose is equipped with a flow restrictor built into the tap connection, and has a flow rate of 4 litres per minute. The inlet valve (1) is located in the base of the dishwasher.
  • Page 13 292 1372 12 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Inlet valve Base tray Air break Float switch Regeneration water dosage Pressure switch Overflow safety level Filter Safety overflow Circulation pump Inlet to sump from regeneration dosage Flow heater chamber Drain pump...
  • Page 14 292 1372 13 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Water Inlet The water flows into the regeneration dosage chamber (7) via inlet valve (1), over air break (2), into regeneration dosage chambers (3) into softener (8). At this point the water divides. 1/4 of the water enters the tub through the vent (23).
  • Page 15 292 1372 14 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Filling Steps static fill level timed fill 30 seconds dynamic filling with circulation pump running (speed 2000 min to level, maximum time 60 sec.) Circulation The circulation pump (17) pumps the water into the roof-mounted shower (22) and both spray...
  • Page 16 292 1372 15 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data 04.99 HV 83-N...
  • Page 17 292 1372 16 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Pumping Out During the wash cycle the water is pumped out at various stages. First the draining water cleans the filters (16). The filters are open at the bottom which allows any soilage to be rinsed off sufficiently.
  • Page 18 292 1372 17 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Drain hose connection: Max. permissible height: 1 metre; Min. height required 30 cm above floor level. The drain hose can be extended horizontally to a maximum length of 3 metres, at a height of 85 cm.
  • Page 19 292 1372 18 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Inlet valve Base tray Air break Float switch Regeneration water dosage Pressure switch Overflow safety level Filter Safety overflow Circulation pump Inlet to sump from regeneration dosage Flow heater chamber Drain pump...

  • Page 20: Technical Data

    292 1372 19 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Flushing Out the Softener After the regeneration process the softener has to be flushed through at the start of the next wash cycle. This is performed using the following steps: pumping up to the reset point ”level”...
  • Page 21 292 1372 20 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data 5 Programme. FAVORIT 5080 oder FAVORIT 5270 vi normal pre rinse salt BIO 50° washing-up liquid washing intensive quick rinsing 70° 40° washing-up drying normal...
  • Page 22 292 1372 21 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Pre-rinse Intensive Intensive Normal Normal Economy Quick Quick Extra 65° 70° 65° BIO 50° BIO 50° 50° 40° Fuzzy (empty/half or full) Tub rinse √...
  • Page 23 292 1372 22 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data 04.99 HV 83-N...
  • Page 24 292 1372 23 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data 04.99 HV 83-N...
  • Page 25 292 1372 24 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data 04.99 HV 83-N...
  • Page 26 292 1372 25 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Test of individual conponents Engage the service test programme. The individual components will be checked for a duration of 5 seconds in the sequence listed blelow. When the last test (7) has been performed, the test sequence is then repeated, but will automatically be cancelled after a maximum 2 minute duration, or when the appliance is turned off.
  • Page 27 292 1372 26 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Measuring Points on the Electronic (at the base) to the input to the input 7-pole plug 4-pole plug 4-pole plug 4-pole plug module module Carry out all resistance...
  • Page 28 292 1372 27 Dishwasher Easytronic Dishwashers with Flow Heater - Fully Integrated, Integrated, Built Under, Freestanding Technical Data Measuring Points on the Electronic (at the base) to the input to the input 7-pole plug 4-pole plug 4-pole plug 4-pole plug module module Carry out all resistance...
