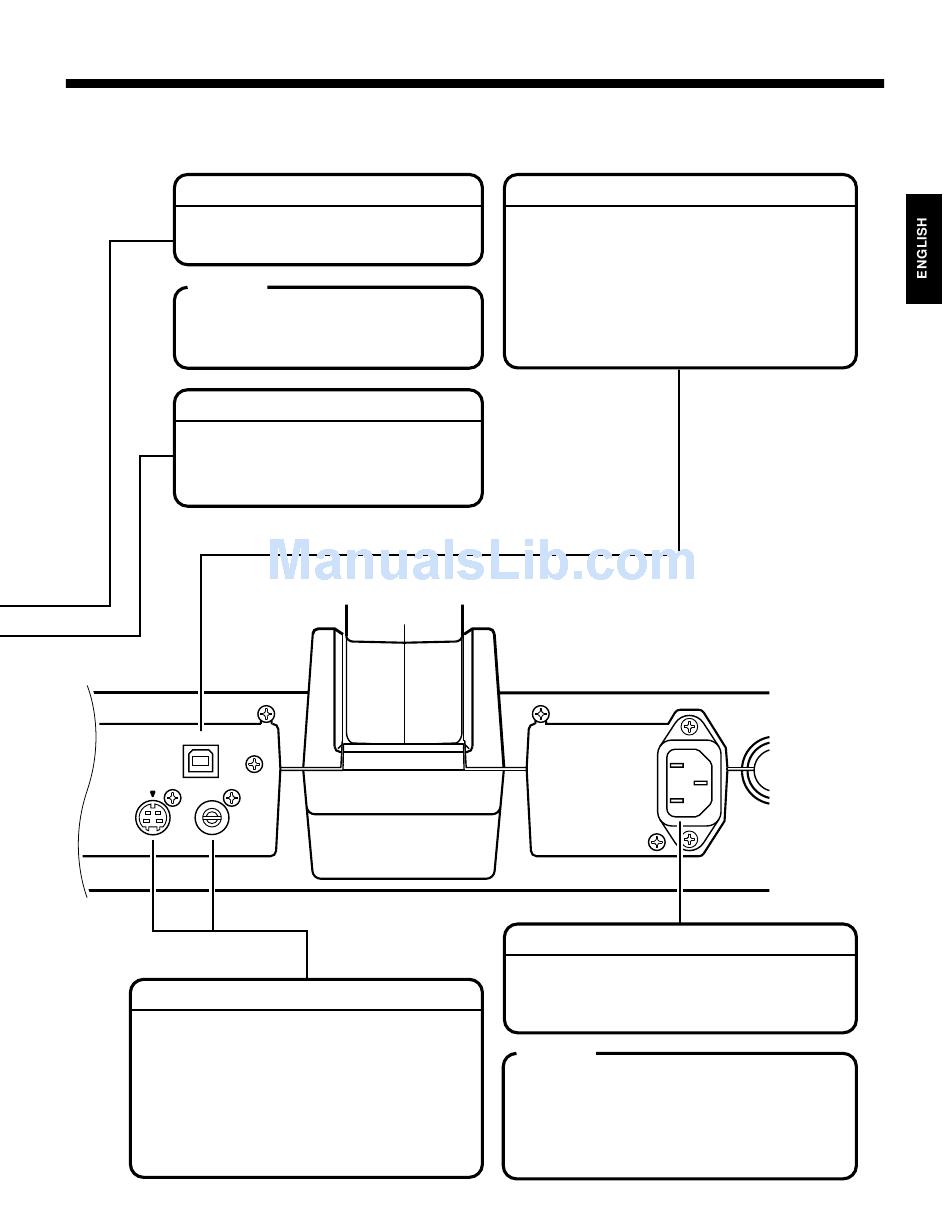

DC OUTPUT
Supplies the power exclusively for the
optional LCD monitor (TA-AV-Z7U).
CAUTION
Connect TA-AV-Z7U only. Connecting
other apparatus may cause
malfunctioning.
LCD monitor installation holder
Use to attach the optional LCD monitor (TA-
AV-Z7U) to this holder. For installation
procedure, refer to the LCD monitor's
instruction manual.
USB
S-VIDEO
OUTPUT
VIDEO
OUTPUT
S-VIDEO OUTPUT, VIDEO OUTPUT
S-VIDEO OUTPUT
Outputs a camera picture with Y/C signals.
VIDEO OUTPUT
Outputs a camera picture with composite signals.
Outputs the same picture as the one output by S-
VIDEO OUTPUT.
• Input signals at EXT INPUT connector cannot be
used for the output at these connectors.
USB
Use to transfer pictures to a personal computer.
Also, use to control this unit from a personal
computer.
* For instructions on installation of picture-transfer
software in your personal computer and data
transfer procedures, refer to the separate
"Application software instructions".
AC IN
Plug the connector of the provided power cord into
this inlet.
Use a 220 V to 240 V AC power supply.
CAUTION
• Only use the provided power cord. If a power
cord with insufficient electric current capacity is
used, the cord can overheat and cause a fire.
• Be sure to use a commercial AC220 V-240 V
power supply.
