Indicator
7
Battery status
8
Bluetooth status
R
9
Wireless WAN
status

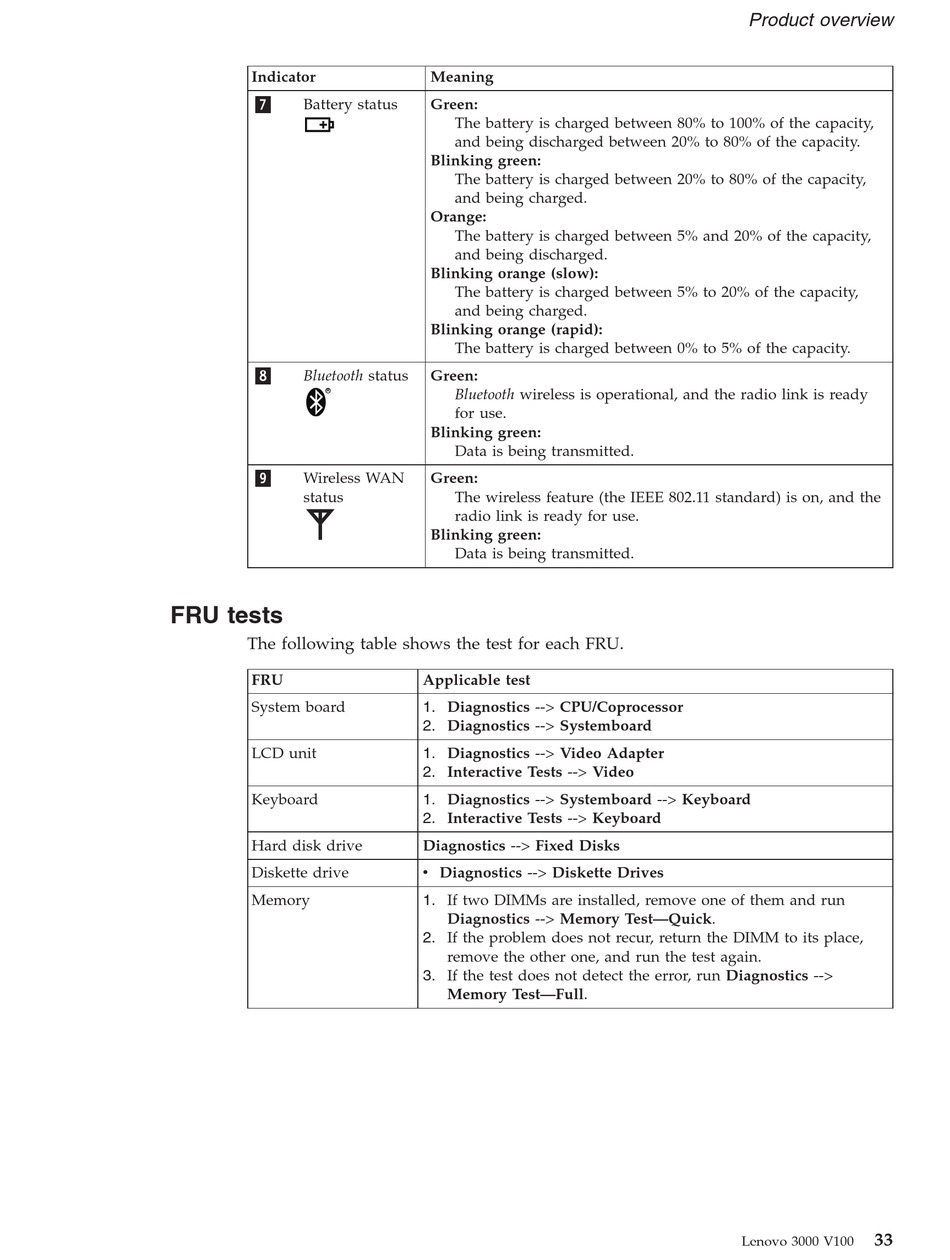

FRU tests

The following table shows the test for each FRU.
FRU
System board
LCD unit
Keyboard
Hard disk drive
Diskette drive
Memory
Meaning
Green:
The battery is charged between 80% to 100% of the capacity,
and being discharged between 20% to 80% of the capacity.
Blinking green:
The battery is charged between 20% to 80% of the capacity,
and being charged.
Orange:
The battery is charged between 5% and 20% of the capacity,
and being discharged.
Blinking orange (slow):
The battery is charged between 5% to 20% of the capacity,
and being charged.
Blinking orange (rapid):
The battery is charged between 0% to 5% of the capacity.
Green:
Bluetooth wireless is operational, and the radio link is ready
for use.
Blinking green:
Data is being transmitted.
Green:
The wireless feature (the IEEE 802.11 standard) is on, and the
radio link is ready for use.
Blinking green:
Data is being transmitted.
Applicable test
1. Diagnostics --> CPU/Coprocessor
2. Diagnostics --> Systemboard
1. Diagnostics --> Video Adapter
2. Interactive Tests --> Video
1. Diagnostics --> Systemboard --> Keyboard
2. Interactive Tests --> Keyboard
Diagnostics --> Fixed Disks
v Diagnostics --> Diskette Drives
1. If two DIMMs are installed, remove one of them and run
Diagnostics --> Memory Test—Quick.
2. If the problem does not recur, return the DIMM to its place,
remove the other one, and run the test again.
3. If the test does not detect the error, run Diagnostics -->
Memory Test—Full.
Product overview
33
Lenovo 3000 V100
