Controls, Indicators And Connectors - JVC 0199MNV*UN*SW Instructions Manual

10

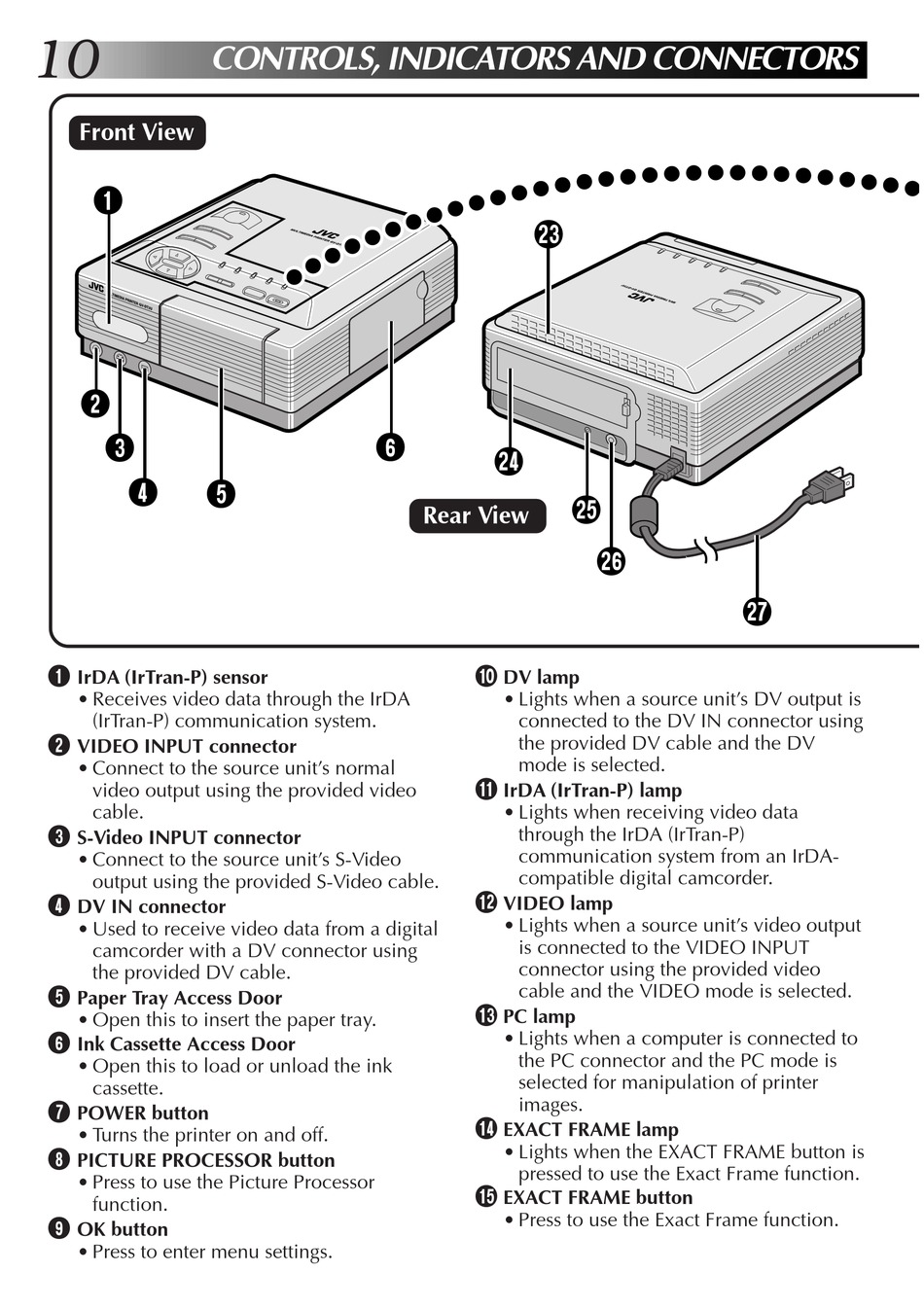

Front View
1
2
3
4
1
IrDA (IrTran-P) sensor
• Receives video data through the IrDA
(IrTran-P) communication system.
2
VIDEO INPUT connector
• Connect to the source unit's normal
video output using the provided video
cable.
3
S-Video INPUT connector
• Connect to the source unit's S-Video
output using the provided S-Video cable.
4
DV IN connector
• Used to receive video data from a digital
camcorder with a DV connector using
the provided DV cable.
5
Paper Tray Access Door
• Open this to insert the paper tray.
6
Ink Cassette Access Door
• Open this to load or unload the ink
cassette.
7
POWER button
• Turns the printer on and off.
8
PICTURE PROCESSOR button
• Press to use the Picture Processor
function.
9
OK button
• Press to enter menu settings.

CONTROLS, INDICATORS AND CONNECTORS

6
5
e
r
t
Rear View
0
DV lamp
• Lights when a source unit's DV output is
connected to the DV IN connector using
the provided DV cable and the DV
mode is selected.
!
IrDA (IrTran-P) lamp
• Lights when receiving video data
through the IrDA (IrTran-P)
communication system from an IrDA-
compatible digital camcorder.
@
VIDEO lamp
• Lights when a source unit's video output
is connected to the VIDEO INPUT
connector using the provided video
cable and the VIDEO mode is selected.
#
PC lamp
• Lights when a computer is connected to
the PC connector and the PC mode is
selected for manipulation of printer
images.
$
EXACT FRAME lamp
• Lights when the EXACT FRAME button is
pressed to use the Exact Frame function.
%
EXACT FRAME button
• Press to use the Exact Frame function.
y
u
