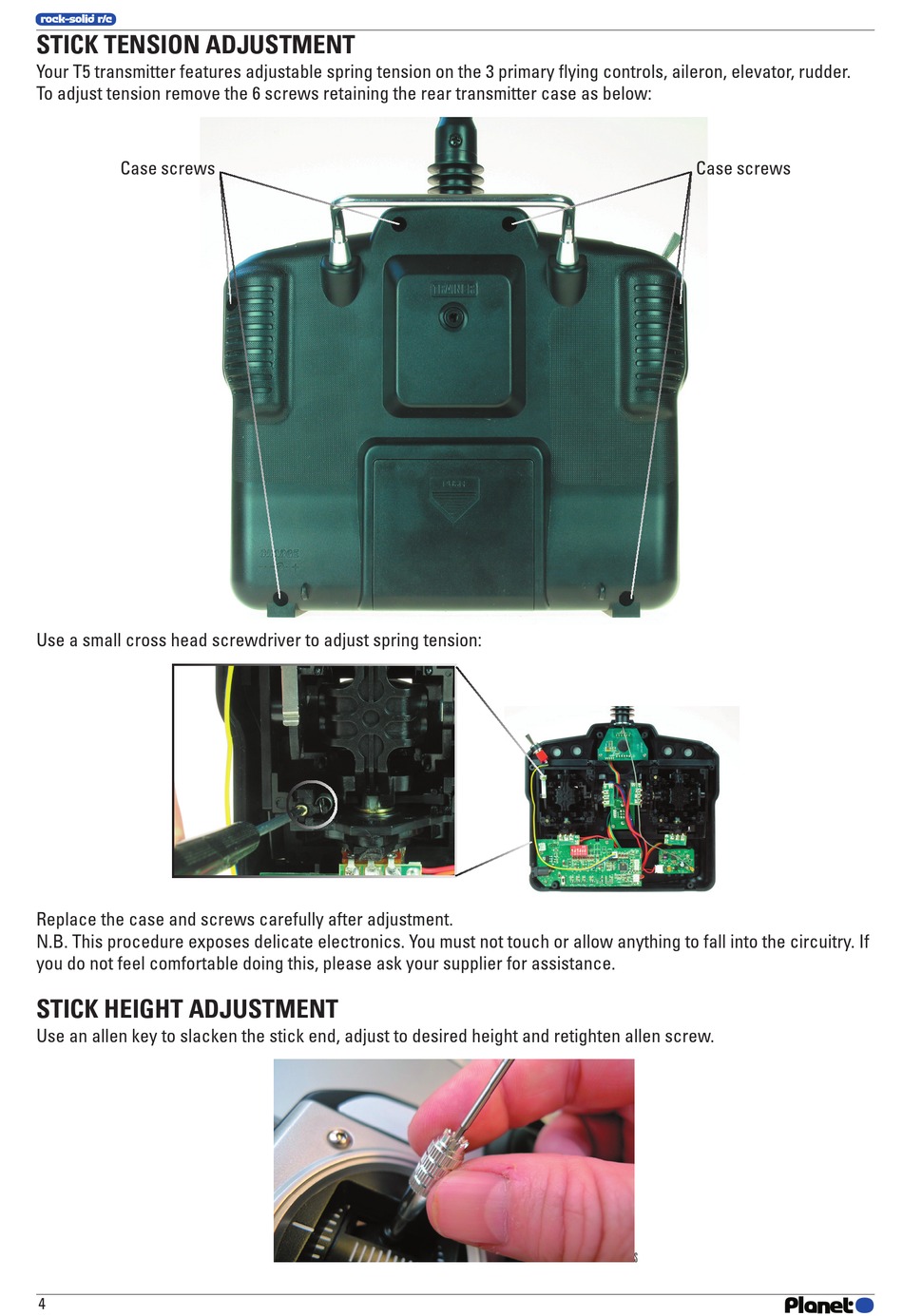

STICK TENSION ADJUSTMENT

Your T5 transmitter features adjustable spring tension on the 3 primary flying controls, aileron, elevator, rudder.
To adjust tension remove the 6 screws retaining the rear transmitter case as below:
Case screws Case screws
Use a small cross head screwdriver to adjust spring tension:
Replace the case and screws carefully after adjustment.
N.B. This procedure exposes delicate electronics. You must not touch or allow anything to fall into the circuitry. If
you do not feel comfortable doing this, please ask your supplier for assistance.

STICK HEIGHT ADJUSTMENT

Use an allen key to slacken the stick end, adjust to desired height and retighten allen screw.
