Transmitter Features; Control Trims; Channel 5 Switch; Battery Status Lcd - Planet 2.4GHZ DIGITALREMOTE CONTROL SYSTEM Instruction Manual

rock-solid r/c

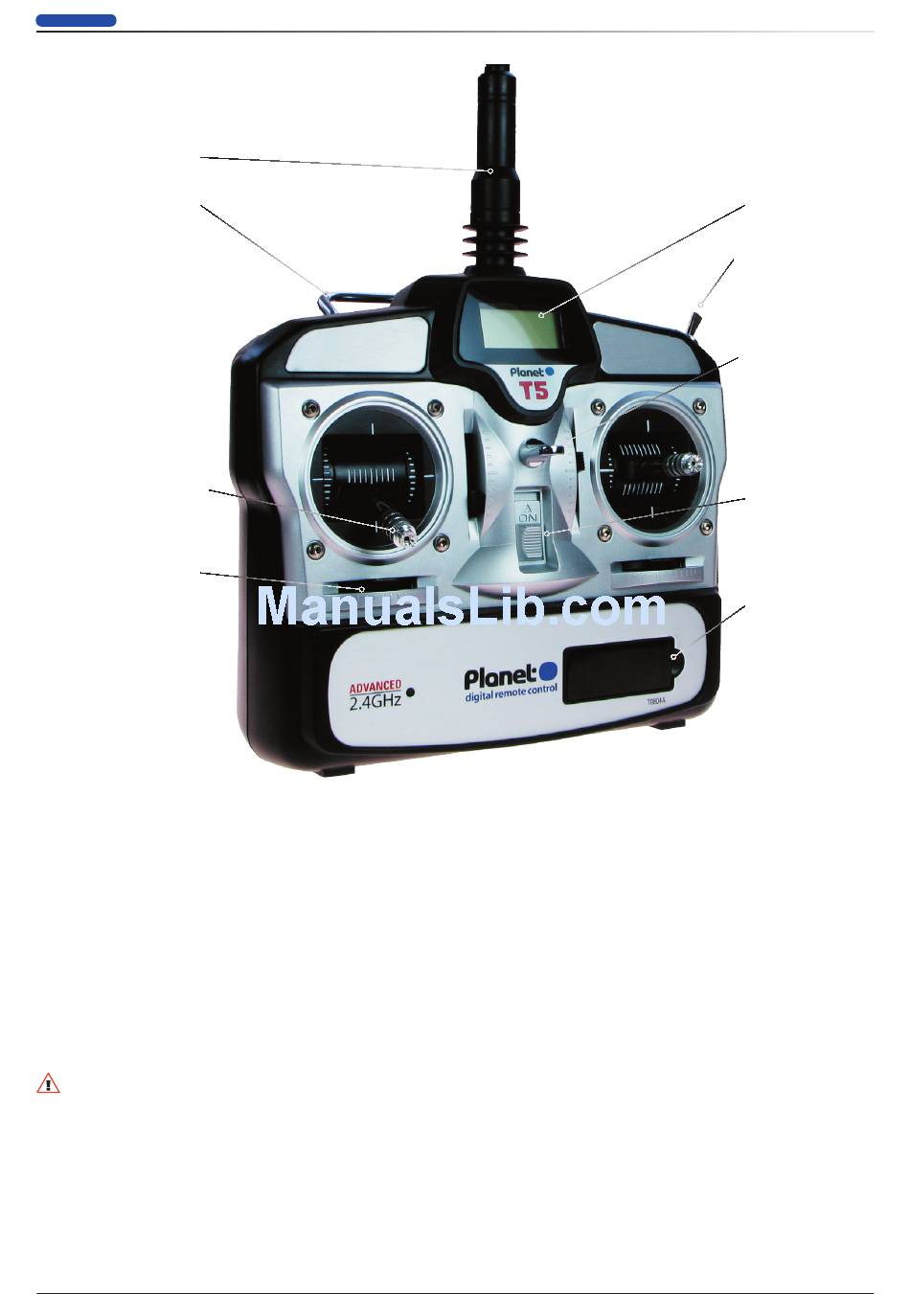

TRANSMITTER FEATURES

Aerial
Carry handle
Dual axis control
stick with adjustable
height/spring tension
Control trim

CONTROL TRIMS

These are used to fine trim the position of the servos.

CHANNEL 5 SWITCH

The 5th channel retract switch on the upper case operates a servo at a slow rate allowing for more realistic
deployment of spoilers, retractable undercarriage or flaps.

BATTERY STATUS LCD

This display provides a digital readout of Transmitter voltage. Stop flying and replace the batteries when voltage
display falls to 4.4V.
WARNING!
Failure to stop flying immediately when the display reads 4.4V or less may lead to loss of control!

REVERSING SWITCHES

Reversing switches are used to reverse the direction of aileron, elevator, throttle and rudder functions.
The reversing switches are located beneath a removable cover on the front panel of the transmitter. See below:
2
Battery status LCD
5th channel switch
Neck strap hang point
ON/OFF switch
Reversing switches
