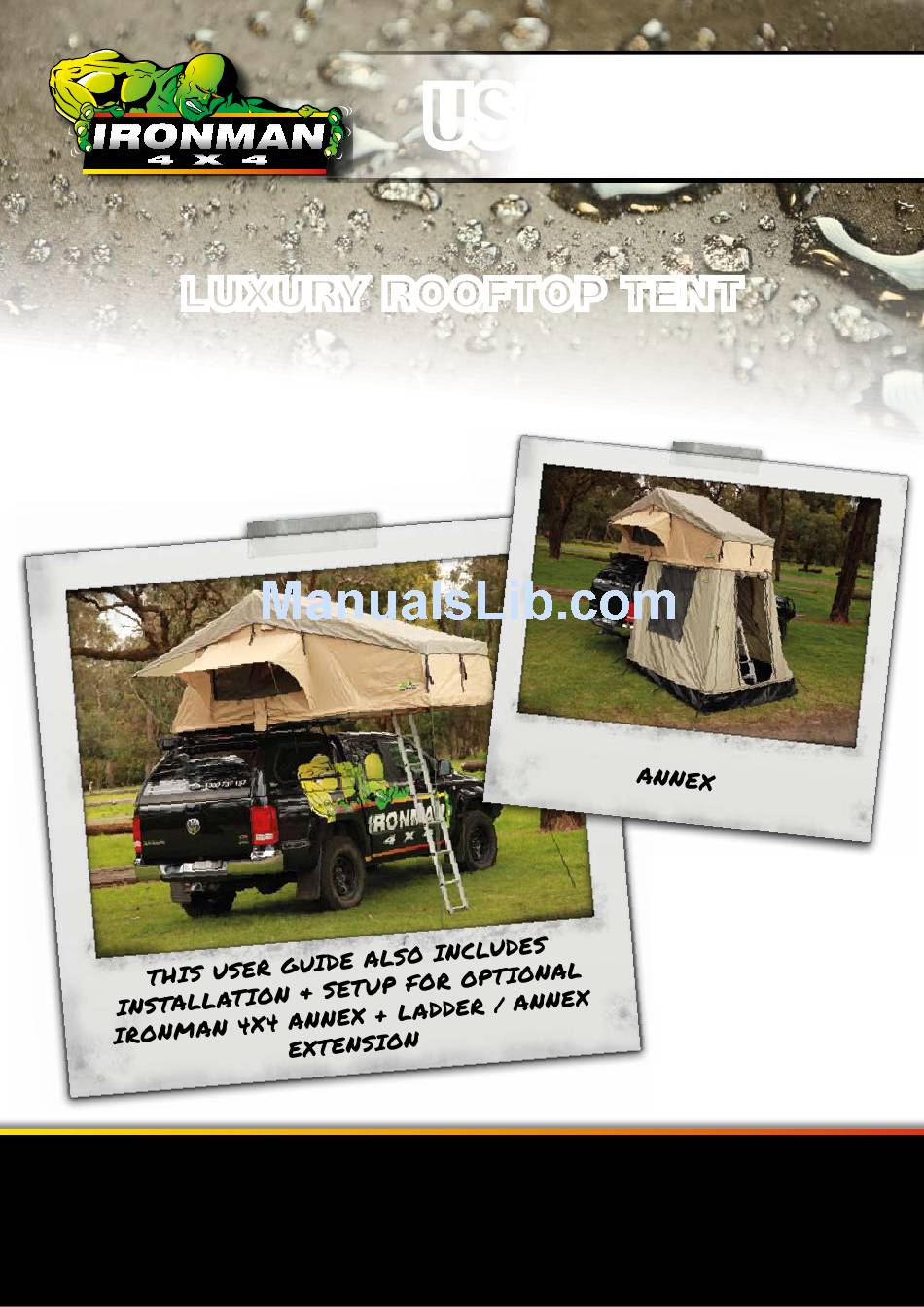

USER GUIDE
LUXURY ROOFTOP TENT
Luxury Rooftop Tent With Annex (Optional)
Ladder / Annex Extension (Optional)
IMPORTANT: Please read all procedures and precautions before installing and
using the Ironman 4x4 Luxury Rooftop Tent. If you have any questions please
contact our customer service department listed in the back of the user guide.

Advertisement

loading
Need help?

Need help?

Do you have a question about the luxury rooftop tent and is the answer not in the manual?

Questions and answers

Related Manuals for Ironman4x4 luxury rooftop tent

Summary of Contents for Ironman4x4 luxury rooftop tent

  • Page 1 Ladder / Annex Extension (Optional) IMPORTANT: Please read all procedures and precautions before installing and using the Ironman 4x4 Luxury Rooftop Tent. If you have any questions please contact our customer service department listed in the back of the user guide.

  • Page 2: Pre-Installation

    Thank you for purchasing an Ironman 4x4 Luxury Rooftop Tent Your Ironman 4x4 Luxury Rooftop Tent is designed to fit a variety of different roof rack styles. The following User Guide will help you adapt your new Luxury Rooftop Tent to suit your application.
  • Page 3 PRE-INSTALLATION 5. The Ironman 4x4 Rooftop Tent can be installed to the vehicle so that it opens to the rear or either side. This will determine which way the mounting rails are fitted to the tent floor. The mounting rails need to be running at right angles to the roof bars on the vehicle.
  • Page 4 PRE-INSTALLATION 8. Attach the mounting rails to the tent floor using the M6 bolts and tighten firmly. 9. Secure the ends of the mounting rails using the self drilling screws provided through the pre-drilled holes as shown. 10. Attach hooks for bungee cord into pre-drilled holes using self-tapping screws provided.

  • Page 5: Installation Hints

    • In some cases, 6.5mm holes will need to be drilled through roof bars to secure tent. The manner in which your Luxury Rooftop Tent can be attached depends on the type of roof rack / roof bars fitted to your vehicle.
  • Page 6 ROOFTOP TENT SETUP 1. Undo velcro securing straps. 2. Unhook all bungee cords from tent base. 3. Undo velcro corner straps. 4. Unzip tent cover. Care must be taken not to catch tent material in zip. 6 - 15...
  • Page 7 ROOFTOP TENT SETUP 5. Remove tent cover. 6. Undo both velcro securing straps. 7. The two ladder locking pins require spring pressure to engage them into the locked position. To do this, twist locking pins in an anti-clockwise direction. 8. Slide ladder out until locking pins lock ladder into place. 7 - 15...
  • Page 8 ROOFTOP TENT SETUP 9. Whilst pulling down on the end of the ladder, walk backwards away from the vehicle allowing the tent to unfold. 10. When tent is fully unfolded the end of the ladder should touch the ground. Note: if your vehicle is too tall to allow the ladder to touch the ground, a ladder extension will be required.
  • Page 9 ROOFTOP TENT SETUP 13. Push bow away from the tent and insert ends into bow brackets on corners of tent base. 14. Although the tent is self-supporting, we recommend the use of pegs and guy ropes in case of potentially windy conditions.
  • Page 10 ROOFTOP TENT SETUP 16. Repeat step 15 using short support rods for window awnings. 17. Remove all four bungee cords from inside of tent. These should be refitted when packing up the tent. 18. Rooftop Tent complete. 10 - 15...
  • Page 11 ANNEX SETUP 1. Slightly raise the ladder off the ground to allow easier access to sail track on base of tent. 2. Slide material of annex into sail track as shown. 3. Attach the annex to the base of the tent via the zipper. 4.
  • Page 12 / annex extension will be required. See Pages 13 - 14. PACKING UP YOUR LUXURY ROOFTOP TENT • Pack tent up in reverse order to setup. • Reattached the elastic cords to the inside of the tent. This is to pull the sides of the tent in making it much easier to pack up.
  • Page 13 To attach the annex extension, simply connect it between the bottom of the annex and the floor via the zippers. 1. With the Luxury Rooftop Tent pre-fitted to the vehicle and parked on level ground, slide the ladder extension into channels on tent ladder.

  • Page 14: Care And Maintenance

    CARE & MAINTENANCE • If your Luxury Rooftop Tent has been packed up wet or has become damp, we recommend that it be aired out to prevent staining of the material. • If your Luxury Rooftop Tent requires cleaning, we recommend to use luke warm soapy water and a clean sponge to wipe down the material.

  • Page 15: Warranty Terms And Conditions

    IRONMAN 4X4 RESERVES THE RIGHT TO CHANGE PRODUCT DESIGN WITHOUT NOTICE. IN SITUATIONS IN WHICH IRONMAN 4X4 HAS CHANGED A PRODUCT DESIGN, IRONMAN 4X4 SHALL HAVE NO OBLIGATION TO UPGRADE OR OTHERWISE MODIFY PREVIOUS MANUFACTURED PRODUCTS. Sales & service world wide www.ironman4x4.com LOCAL CALL 1300 731 137 15 - 15...
