Summary of Contents for Ironman4x4 Orion 1400

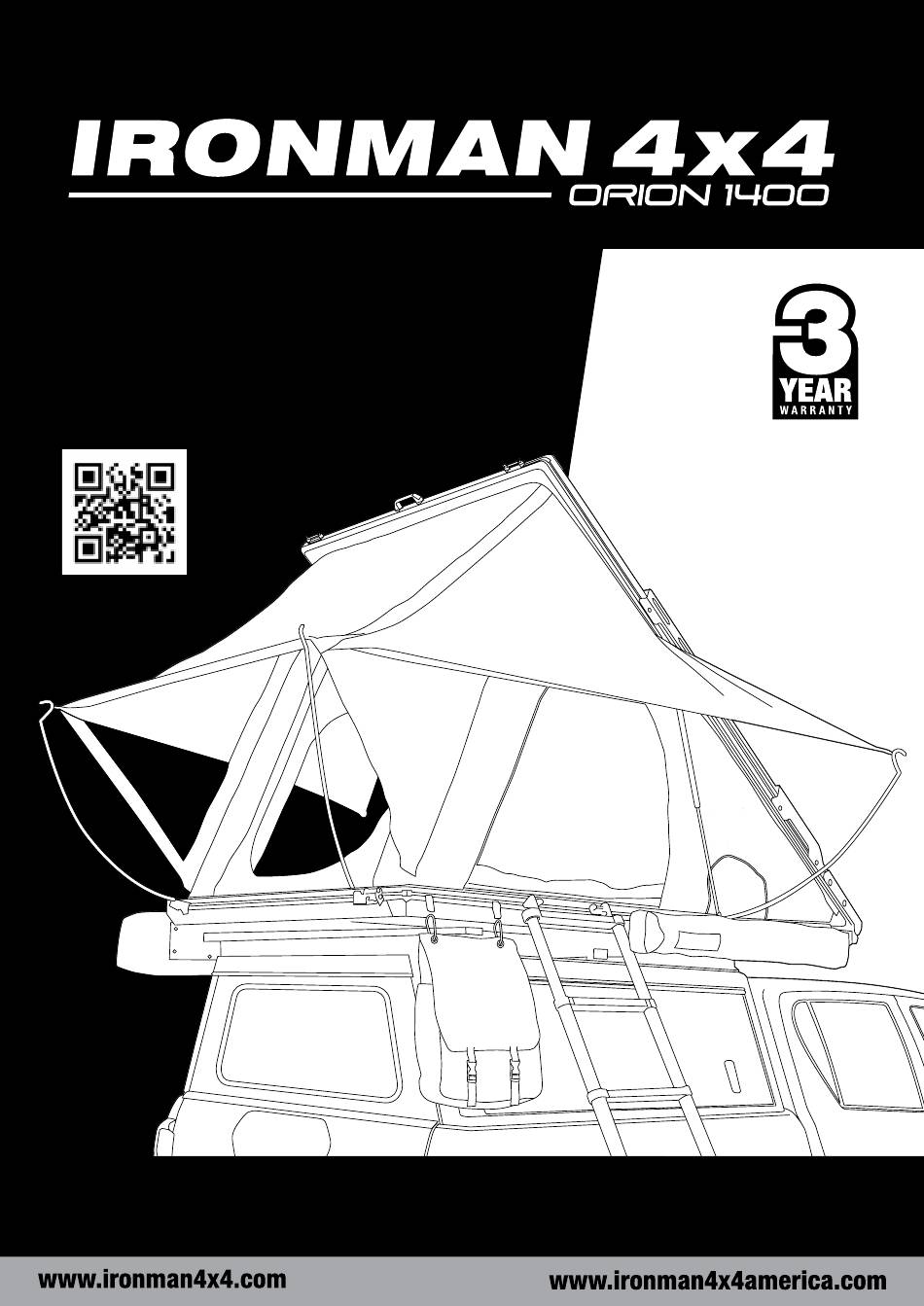

- Page 1 Orion 1400 Rooftop Tent Owner’s Manual PART NO IMPORTANT: Please read all procedures and precautions before using this Ironman 4x4 Product. If you have any questions please contact our customer service department. 1 of 8...
-
Page 2: Safety Warning
fitted at the time of installation. WARNING Incorrect installation or use of your Orion 1400 could result in serious injury or death. Please follow these instructions carefully to ensure proper installation on your vehicle and correct operation. -
Page 3: Cleaning And Storage
Notes and Parts NOTES • Be aware of change in vehicle height (side- wind sensitivity, cornering and braking). Dependent on roof bars, the vehicle height can increase by up to 90cm, be aware of low entrances or hanging branches, etc. •... - Page 4 1200mm to allow the rooftop tent to be supported correctly, and weight is evenly distributed. Your Ironman 4x4 Orion 1400 Rooftop Tent should be installed so it will open to the rear of the vehicle. The tent hinges should face toward the front of the vehicle.
- Page 5 first time. Roof Panels The Orion 1400 is supplied with two (2) roof panels that are fitted to the side channels on the roof lid (fig. 5). Fig. 5 Assemble the roof panels and leave loose.
- Page 6 Repeat the process for the remaining three (3) brackets. Again, check the tent is centralised to the vehicle and roof rails, then fully tighten all nuts. Fit plastic caps to each end of the tent mounting channel (fig. 4). 6 of 8 www.ironman4x4.com...
- Page 7 Setting up Your Tent Step 1: Fig. 1 Lift the lower part of the latch securing the lid to disengage the hook clasp and pull the upper part of the latch down to unlock (fig.1). Push the lid upwards, the integrated struts will assist with lifting the lid into its final open position.
-
Page 8: Warranty
The warnings, cautions and instructions for use contained in this document cannot cover every possible situation, so it is understood by the operator that common sense and caution must be applied. It is your responsibility to pass these instructions on to any third party who uses this product, including second-hand sales. www.ironman4x4america.com www.ironman4x4.com...
