Summary of Contents for Ironman4x4 URSA 1300

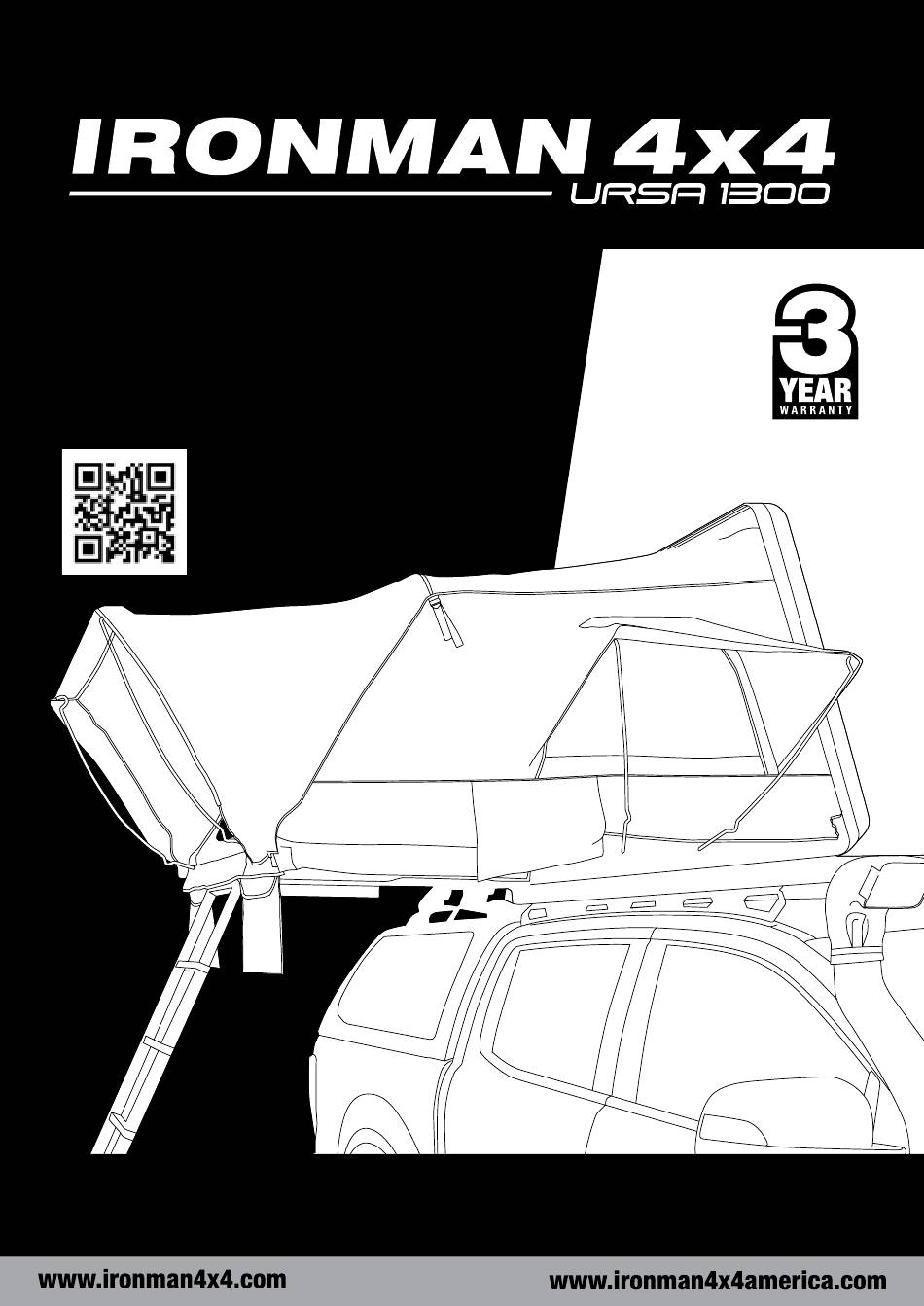

- Page 1 Ursa 1300 Rooftop Tent Owner’s Manual IMPORTANT: Please read all procedures and precautions before using this Ironman 4x4 Product. If you have any questions please contact our customer service department. 1 of 8...
-
Page 2: Safety Warning
WARNING Incorrect installation or use of your Ursa 1300 could result in serious injury or death. Please follow these instructions carefully to ensure proper installation on your vehicle and correct operation. We recommend contacting your vehicle or accessory manufacturer for specified load capacity of your roof and roof rack. -
Page 3: Cleaning And Storage
Notes and Parts NOTES • Be aware of change in vehicle height (side- wind sensitivity, cornering and braking). Dependent on roof bars, the vehicle height can increase by up to 90cm, be aware of low entrances or hanging branches, etc. •... - Page 4 900mm to allow the rooftop tent to be supported correctly, and weight is evenly distributed. Your Ironman 4x4 Ursa 1300 Rooftop Tent should be installed so it will open to the right-hand side of the vehicle. The taper of the ABS cover should face toward the front of the vehicle.
- Page 5 Installing Tent on Your Vehicle Step 1: Place the tent central to the roof rails and positioned in the centre of the vehicle from left to right. Ensure the rear door can be Fig. 2 Fig. 3 opened and closed, and is free from any obstructions.
- Page 6 60º (fig 4). Check the ladder is secure and stable before climbing into tent. All treads must be locked in place. Please read and understand the instructions supplied with your ladder. 6 of 8 www.ironman4x4.com...
- Page 7 Setting up Your Tent Step 5: Fig. 5 Position the flexible stays for front and side window awnings, locking the legs in the allocated mounting holes in the base section. The hooked end slots into the eyelets in the fabric (fig 5). In the event of rain, we recommend inserting the flexible roof rail into the roof to form a peak.
-
Page 8: Warranty
The warnings, cautions and instructions for use contained in this document cannot cover every possible situation, so it is understood by the operator that common sense and caution must be applied. It is your responsibility to pass these instructions on to any third party who uses this product, including second-hand sales. www.ironman4x4america.com www.ironman4x4.com...
