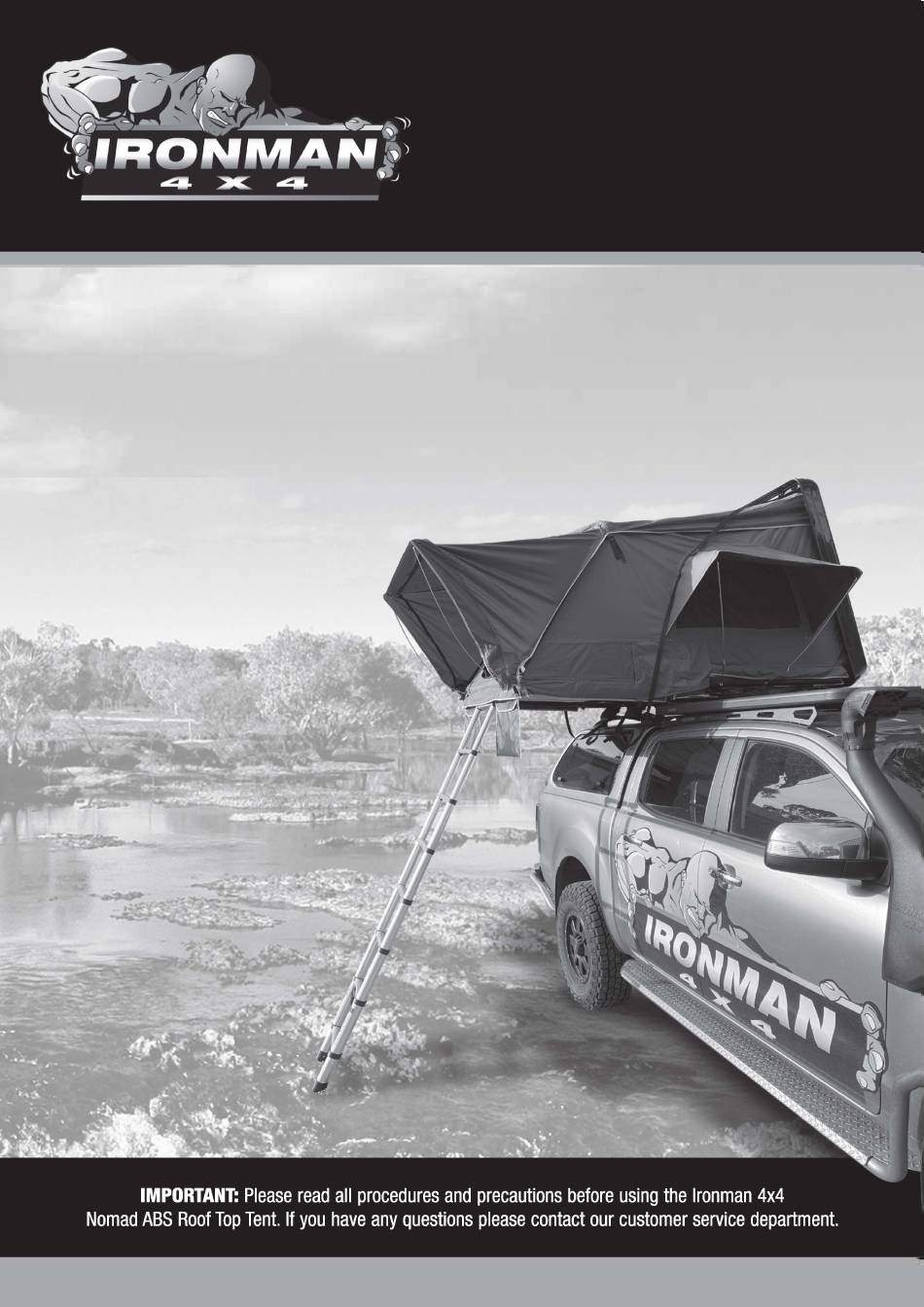

- Page 1 IRTI0023 Nomad ABS Roof Top Tent Owner's Manual www. i ronman 4 x 4 .com www. i ronman 4 x 4 amer i ca.com...
- Page 2 TENT Congratulations on your purchase of the lronman 4x4 Nomad ABS Hard Top Roof Top Tent. Your Roof Top Tent mounts directly to your roof rack or after market roof bars. The tent opens and is fully setup in just a few minutes.
- Page 3 Tent Front Flexible Awning Stays x 2 Spanners x 2 Window Flexible Awning Stays x 4 Mounting Rail End Caps x 4 Flexible Roof Stay x 1 Mounting Hardware & Slide Plates x 8 sets Ladder Mounting Plate x 4 Locating Tent on your Vehicle Your Nomad Roof Top Tent is to be located so it will open to the Right-hand side of the vehicle, the taper on the ABS top is to face forward of the vehicle.
- Page 4 Locate the mounting plate on to the bolts and secure with the Nylock nuts. Once all are assembled and the tent is in the correct position tighten all bolts. Step 4: Position the plastic end caps to the mounting channel. 4 of 7 www.ironman4x4.com...
- Page 5 Step 1: Release the Lid Securing Straps and push the lid upwards, the integrated struts will locate the lid in the open position. Step 2: Extend the telescopic ladder and rotate the floor section to the horizontal position - Position and secure the ladder, ensuring it is stable and on an angle of approx 60 degrees.
- Page 6 Step 1: Remove all flexible stays and store. Step 2: Remove any unnecessary bedding and articles from the tent before folding as this may impede the tent being packed away correctly. Step 3: Storage Strap Leaving the door unzipped to release any trapped air, fold the floor &...
- Page 7 Step 1: Connect and fix to the tent with the zipper of the canopy. Roof Top Tent Awning Awning Step 2: Support the awning with the aluminium tent poles, guy ropes Awning & pegs - Do not over tension. Tent Poles Step 3: Fix 4 wind proof ropes to the ground with pegs.
