ECO-SOL INK MODEL

SETUP GUIDE

Read this first.

This describes the setup tasks and important conditions about the installation location that must
be met in order to enable use of this machine.

Advertisement

Table of Contents
loading

Related Manuals for Roland VersaCamm SP-540V

Summary of Contents for Roland VersaCamm SP-540V

  • Page 1: Setup Guide

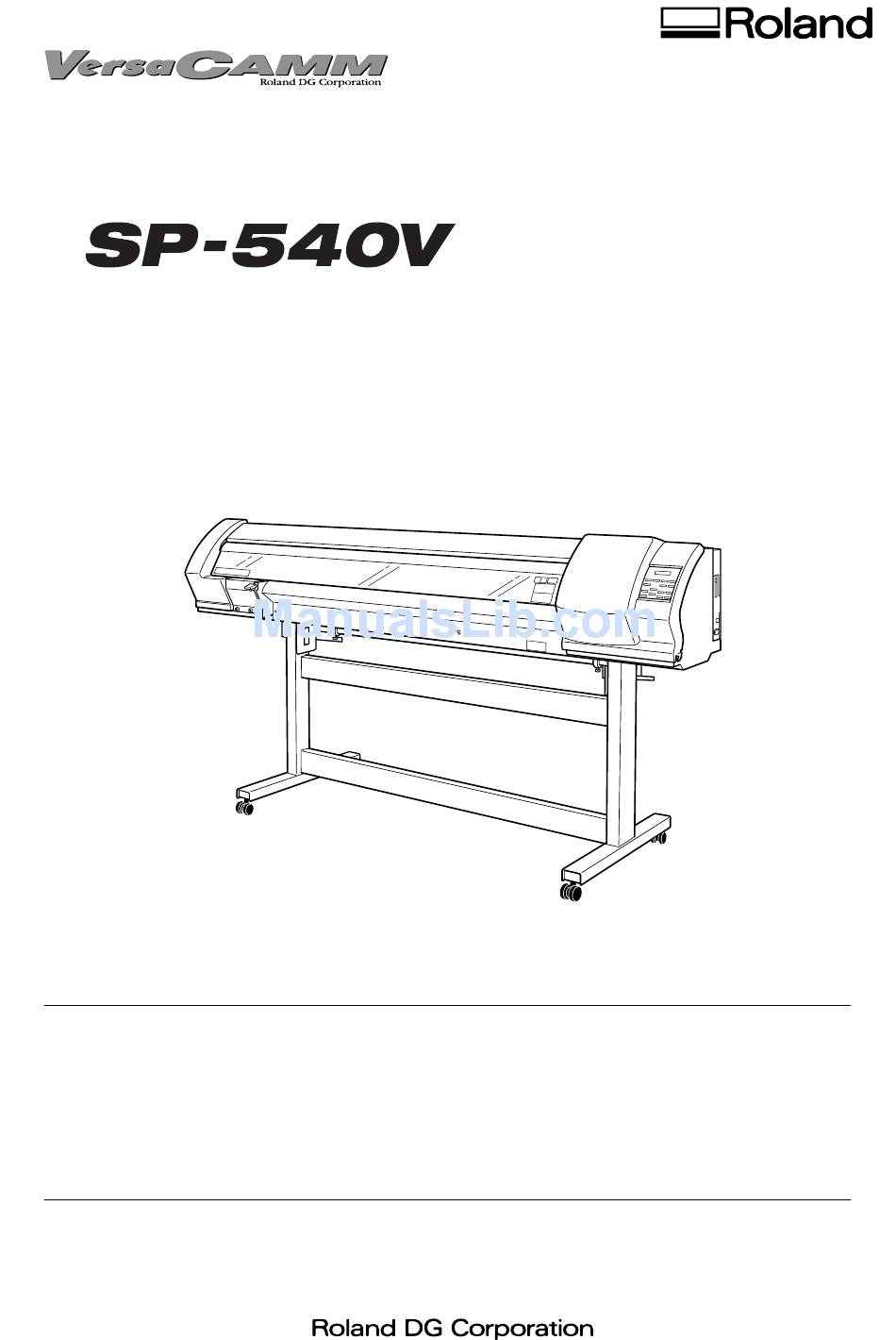

    ECO-SOL INK MODEL SETUP GUIDE Read this first. This describes the setup tasks and important conditions about the installation location that must be met in order to enable use of this machine.
  • Page 2 Roland DG Corp. assumes no responsibility for any direct or indirect loss or damage which may occur through use of this product, regardless of any failure to perform on the part of this product.

  • Page 3: Table Of Contents

    Alarm Feature ..........................33 9. When Moving the Unit ............................34 Procedures from Preparing to Move Through Reinstalling ............. 34 Company names and product names are trademarks or registered trademarks of their respective holders. http://www.rolanddg.com/ Copyright© 2004 Roland DG Corporation...

  • Page 4: To Ensure Safe Use

    To Ensure Safe Use Improper handling or operation of this machine may result in injury or damage to property. Points which must be observed to prevent such injury or damage are described as follows. About WARNING and CAUTION Notices Used for instructions intended to alert the user to the risk of death or severe WARNING injury should the unit be used improperly.
  • Page 5 To Ensure Safe Use Incorrect operation may cause injury WARNING Be sure to follow the operation proce- Install in a level and stable location. dures described in this manual. Failure to do so may result in the unit tipping Failure to follow the procedures may cause sud- over, leading to injury.
  • Page 6 Never damage the power cord or pull it shock, or electrocution. Immediately disconnect with force. the power cord and contact your Roland DG Doing so may tear the cord's insulation, causing Corp. service center. an electrical short and resulting in electrical...
  • Page 7 To Ensure Safe Use Ink, cleaning liquid, and discharged fluid are flammable and toxic WARNING CAUTION If you're using a model that uses ECO-SOL Ensure adequate ventilation for the work INK, never operate in locations such as area. those near an open flame or heater, or Odor from ink and the like may cause physical where sparking or static electricity may distress, or may cause to fire.

  • Page 8: Warning Labels

    To Ensure Safe Use Warning Labels Warning labels are affixed to make areas of danger immediately clear. The meanings of these labels are as follows. Be sure to heed their warnings. Also, never remove the labels or allow them to become obscured. Front Caution: Moving Carriages The print-heads carriage and the cutting car-...

  • Page 9: Pour Utiliser En Toute Sécurité

    Pour utiliser en toute sécurité La manipulation ou l'utilisation inadéquates de cet appareil peuvent causer des blessures ou des dommages matériels. Les précautions à prendre pour prévenir les blessures ou les dommages sont décrites ci-dessous. Avis sur les avertissements Utilisé pour avertir l'utilisateur d'un risque de décès ou de blessure grave en ATTENTION cas de mauvaise utilisation de l'appareil.
  • Page 10 Pour utiliser en toute sécurité L'utilisation incorrecte peut causer des blessures ATTENTION S'assurer de suivre les procédures Installer sur une surface stable et de d'utilisation décrites dans ce manuel. niveau. Si les procédures indiquées ne sont pas suivies, Sinon, l'appareil risque de se renverser et de le fonctionnement de l'appareil peut être causer des blessures.
  • Page 11 Pour utiliser en toute sécurité Risque d'incendie, de brûlures ou d'émissions de gaz toxiq ATTENTION Des surfaces de cet appareil atteignent des Ne jamais utiliser un support qui ne peut températures élevées (éléments de pas supporter la chaleur. chauffage et tablier). Prendre des L'utilisation de supports qui ne supportent pas précautions pour éviter un incendie ou des la chaleur peut causer un incendie, provoquer...
  • Page 12 Pour utiliser en toute sécurité Risque de décharge ou de choc électrique, d'électrocution ou d'incendie Cet appareil transmet une tension élevée (maximum d'environ 9 ampères). Cela peut créer des situations qui ne se produisent pas avec de l'équipement à basse tension. La prudence est de mise.
  • Page 13 électrique ou l'électrocution. Débrancher immédiatement câble d'alimentation et communiquer avec le Centre de services Roland DG. L'encre, les liquides nettoyants et les liquides usées sont inflammables et toxiques ATTENTION PRUDENCE Si l'appareil est un modèle qui utilise ECO- S'assurer que le lieu de travail est bien SOL INK, ne pas l'utiliser près d'une...
  • Page 14 Pour utiliser en toute sécurité Vignettes d'avertissement Des vignettes d'avertissement sont apposées pour qu'il soit facile de repérer les zones dangereuses. La signification des vignettes est donnée ci-dessous. Respecter les avertissements. Ne jamais retirer les vignettes et ne pas les laisser s'encrasser. Avant Attention : Chariots mobiles Le chariot des têtes d'impression et le...

  • Page 15: Setup Guide

    Setup Guide...

  • Page 16: Included Items

    Blade holder: 1 Replacement blade for SOL INK cleaning Drain bottles: 2 Software RIP: 1 set Pin:1 separating knife: 1 cartridges: 2 Roland Cut Driver Roland-PrintServer Setup Guide: 1 Roland-PrintServer User's Manual: 1 CD-ROM: 1 CD-ROM: 1 (this document) Network Setup Guide:1...

  • Page 17: Installation Environment

    2. Installation Environment Deciding On an Installation Site Install in a quiet, stable location offering good operating conditions. An unsuitable location can cause accident, fire, faulty operation, or breakdown. WARNING never operate in locations such as those near an open flame or heater, or where sparking or static electricity may occur.

  • Page 18: Temperature And Humidity

    2. Installation Environment Temperature and Humidity Maintain the specified temperature and humidity even when the machine is not in use. Temperatures that are too high may degrade the ink and cause malfunction. Temperatures that are too low may cause the ink to freeze and damage the heads.

  • Page 19: Assembling And Installing

    3. Assembling and Installing Assemble the Stand First assemble the stand, then mount the machine on top of the stand. Unpacking and installation must be carried out by four or more persons. CAUTION Otherwise the machine or the stand may fall, resulting in injury. CAUTION Use the joining bolts to secure the machine to the stand.
  • Page 20 3. Assembling and Installing Set the stand upright, and place the machine on the stand. Line up with the fixtur on the stand. Use the bolts to secure the machine to the stand. Tighten the bolts securely. Loose bolts may cause the stand to wobble. 3 pcs.

  • Page 21: Install The Arms And Shafts

    3. Assembling and Installing Install the Arms and Shafts Procedure Attach the arms. Bolts Bolts Arm (left) Arm (right) Attach the stoppers onto both ends of the shafts. Loosen the scr ew Pass onto the shaft. Tighten loosel y. Shaft Stopper...
  • Page 22 3. Assembling and Installing Attach the two shafts to the arms. Shafts Engage the brake. Using the machine with the brake disengaged may result in unstable media feed, leading to poor image quality. Brak e...

  • Page 23: Install The Drain Bottle

    3. Assembling and Installing Install the Drain Bottle Remove the bottom plug. Use caution, because discharged fluid used in inspection may remain. Bottom plug It is needed when mo ving the machine , so do not discar d it. Install the drain bottle. Drain bottle Turn the bottle without a ppl ying...

  • Page 24: Remove The Packing Materials

    3. Assembling and Installing Remove the Packing Materials Tape and packing materials are attached to the machine to protect it from vibration during transportation. When installation is complete, remove these. Remove all packing materials. Any that remain may cause faulty operation or breakdown when the power is switched on.

  • Page 25: Connect The Cables

    4. Connect the Cables Set the Voltage Switches Before switching on the power, set the voltage switches to match the voltage of WARNING the region where the unit is used. When set incorrectly, the machine may fail to operate normally. The temperature of the print heater and dryer may rise to undue levels, which may result in fire, or the tempera- ture may fail to rise at the correct speed.

  • Page 26: Connect The Cables

    4. Connect the Cables Connect the Cables Do not use with any electrical power supply that does not meet the ratings dis- WARNING played on the unit. Use with any other power supply may lead to fire or electrocution. Ground the unit with the ground wire. WARNING Failure to do so may result in risk of electrocution in the event of a mechanical problem.
  • Page 27 4. Connect the Cables Important Notes on the Power Cord This machine carries a high current of a maximum of approximately 9 amperes. Failure to observe the following requirements in particular may lead to an accident that could not occur with low-power equipment. WARNING Never damage the power cord or pull it with force.

  • Page 28: Install The Ink Cartridges

    5. Install the Ink Cartridges Filling with Ink for the First Time Special procedures are required when installing ink cartridges for the first time. These are required only once, when installing ink cartridges for the first time after shipment from the factory. You first clean the print heads using cleaning fluid, then fill with the inks of the various colors.
  • Page 29 5. Installing the Ink Cartridges Switch on the power and make the initial settings. Close the front cover. Switch on the main power switch. Hold down and press the sub power switch. to select the language you want. MENU LANGUAGE ENGLISH Press to select the unit of measurement...
  • Page 30 5. Installing the Ink Cartridges Clean the heads using the cleaning cartridges. Make sure the ink type matches the ink cartridges. SELECT INK TYPE ECO-SOL 4 COLOR Press Make sure the drain bottle is installed. INSTALL DRAIN BOTTLE Press Insert cleaning cartridges into slots 1 and 2. SET SOL CL-LIQUID Flashing FILLING INK...
  • Page 31 5. Installing the Ink Cartridges Insert the ink cartridges for the respective colors. Before you insert the ink cartridge for each color, gently shake the cartridge. Insert the ink cartridge for each color. SET SOL CRT. Flashing FILLING INK... Insert into the slot of the matching color. When the screen in the figure appears, ink filling ends.

  • Page 32: Match The Machine To The Environment

    6. Match the Machine to the Environment Never insert your hand or fingers into the opening of the front cover. CAUTION The print heads move at high speed inside the cover. Contact may cause injury. The machine performs adjustment to optimize its state to the environment where it is used. Procedure Press MENU...

  • Page 33: Install The Blade

    7. Install the Blade Be sure to perform operations as specified by these instructions, and never touch CAUTION any area not specified in the instructions. Sudden movement of the machine may cause injury. CAUTION Never touch the tip of the blade with your fingers. Doing so may result in injury, and the cutting performance of the blade will be impaired.
  • Page 34 7. Install the Blade Install the blade holder. Loosen the screw shown in the figure. Cutting carriage Support the screw from below and insert the blade holder. If installed without supporting the screw in this way, cutting quality may become poor. Insert until the collar is flush with the surface.

  • Page 35: When Not In Use For A Prolonged Period

    8. When Not in Use for a Prolonged Period Keep Performing Maintenance Switch On the Power Once a Month Switch on the sub power once a month. When you turn on the power, the machine automatically performs some operations such as those to keep the print heads from drying out. Allowing the machine to stand completely unused for a prolonged period may damage the print heads, so be sure to switch on the power to perform these automatic operations.

  • Page 36: When Moving The Unit

    9. When Moving the Unit Procedures from Preparing to Move Through Reinstalling To move the machine, you must completely drain all ink inside the machine and secure the print heads in place with retainers to protect them. Attempting to move the machine without first doing this may result in damage to internal components due to leaking ink or damage to the heads.
  • Page 37 9. When Moving the Unit When this screen appears, insert the four cleaning car- SET SOL CL-LIQUID tridges. Thereafter, follow the on-screen instructions to in- Flashing sert and remove the cartridges several times. Internal washing is performed over the course of several minutes. When the process ends, the sub power is switched off.
  • Page 39 R2-040910...
