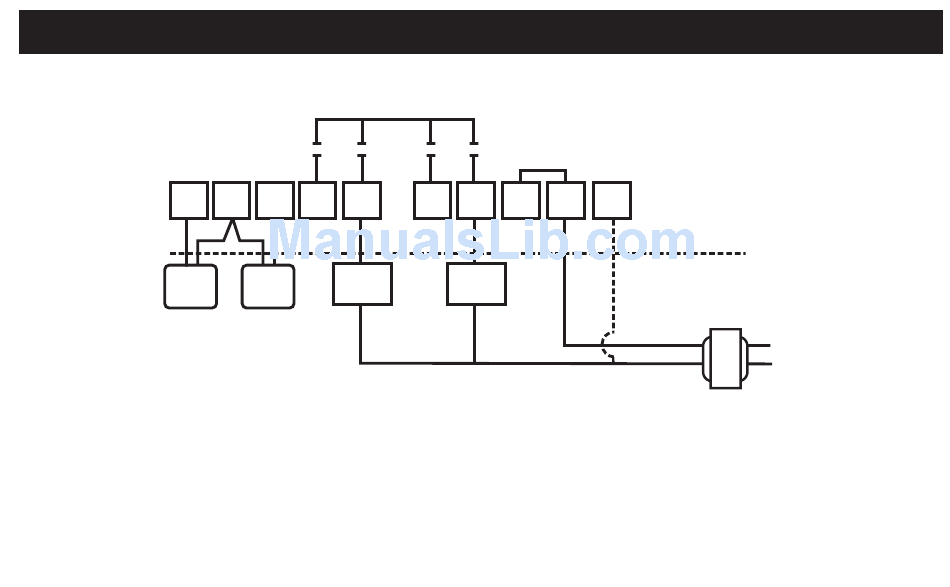

TYPICAL SYSTEM WIRING DIAGRAMS
HEAT ONLY (Electric)
REMOTE SENSOR
Out
OUTDOOR
SENSOR
Switch Settings
Sw1 = OFF
Sw2 = ON
Sw3 = OFF
Sw4 = OFF
In Installer Menu, set 4 Fn = H (Heat Only)
OPTIONAL
TERMINALS
W
A
In
SC
HEAT 1
INDOOR
SENSOR
RELAY
(Heat / Cool)
(Thermostat controls fan)
(No affect on setup)
(Leave OFF)
Factory Link
24C Optional
Y
G
Com
R
FAN 1
RELAY
C
THERMOSTAT
EQUIPMENT
24 V
LINE
