Jig No : GGV1322

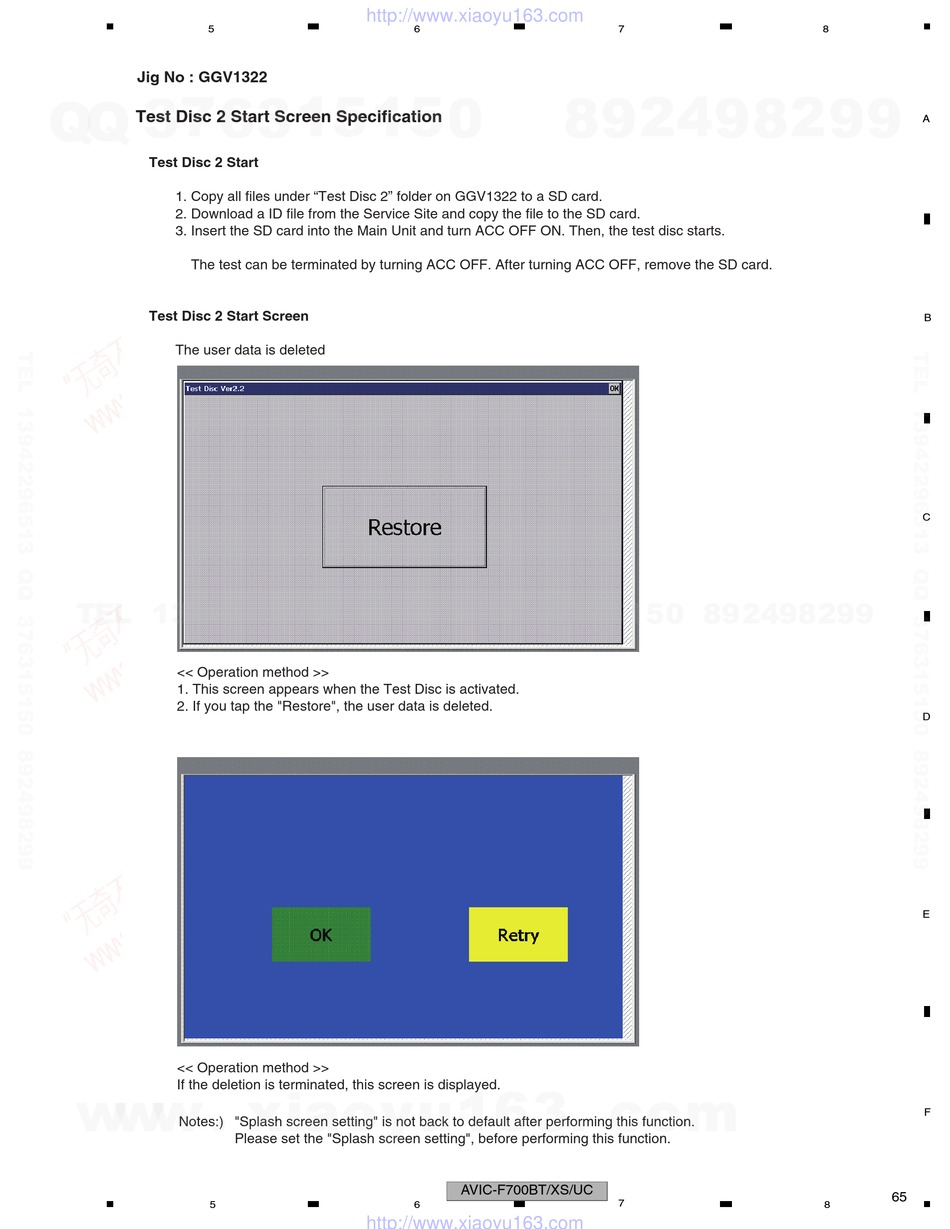

Test Disc 2 Start Screen Specification

Test Disc 2 Start
1. Copy all files under "Test Disc 2" folder on GGV1322 to a SD card.
2. Download a ID file from the Service Site and copy the file to the SD card.
3. Insert the SD card into the Main Unit and turn ACC OFF ON. Then, the test disc starts.
The test can be terminated by turning ACC OFF. After turning ACC OFF, remove the SD card.
Test Disc 2 Start Screen
The user data is deleted
TE
L 13942296513
<< Operation method >>
1. This screen appears when the Test Disc is activated.
2. If you tap the "Restore", the user data is deleted.
www
<< Operation method >>
If the deletion is terminated, this screen is displayed.
.
Notes:) "Splash screen setting" is not back to default after performing this function.
5
http://www.xiaoyu163.com
x ao
y
i
Please set the "Splash screen setting", before performing this function.
