Pioneer AVIC-F700BT Service Manual page 67

5
QQ

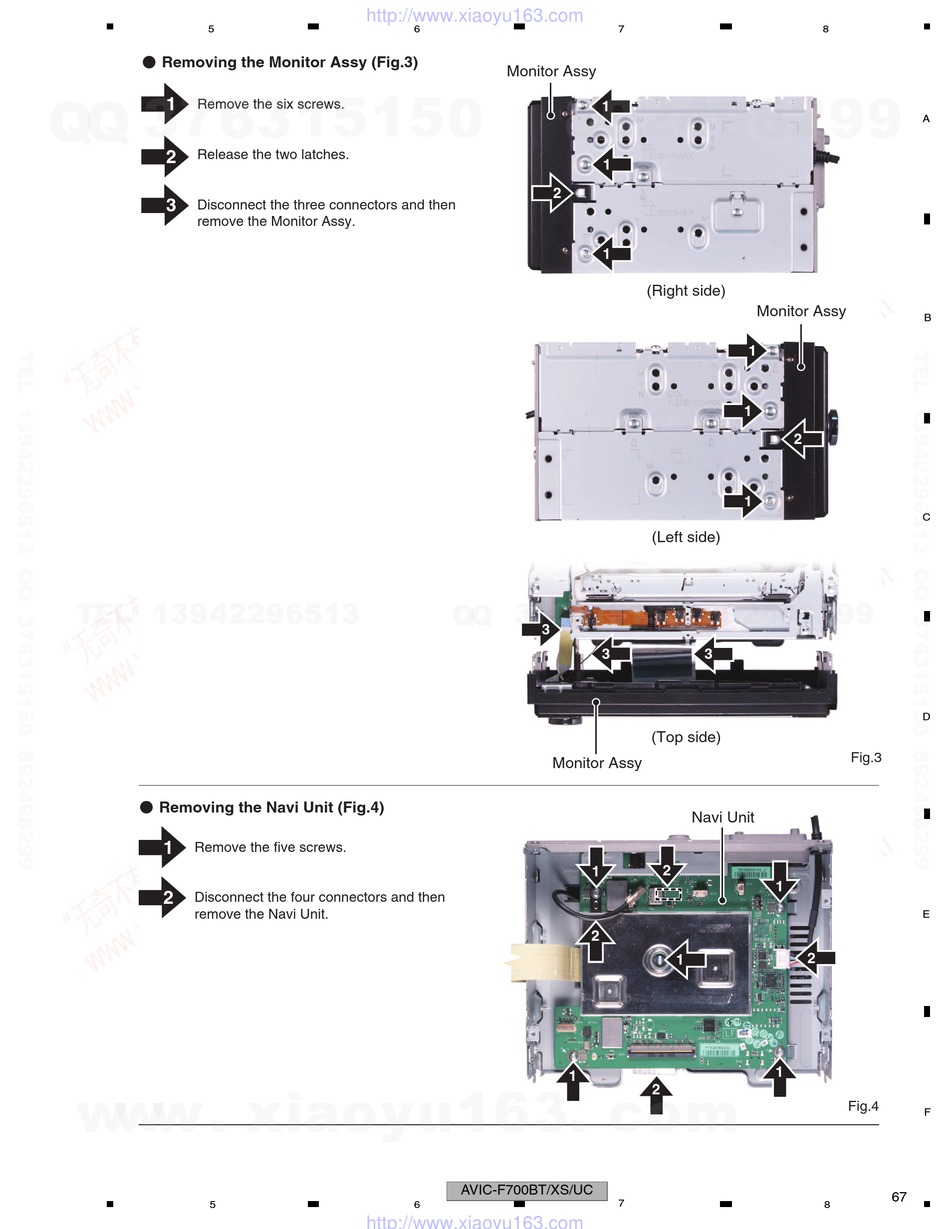

Removing the Monitor Assy (Fig.3)
3 7 63 1515 0
1
Remove the six screws.
Release the two latches.
2
3
Disconnect the three connectors and then
remove the Monitor Assy.
TE
L 13942296513
Removing the Navi Unit (Fig.4)
1
Remove the five screws.
2
Disconnect the four connectors and then
remove the Navi Unit.
