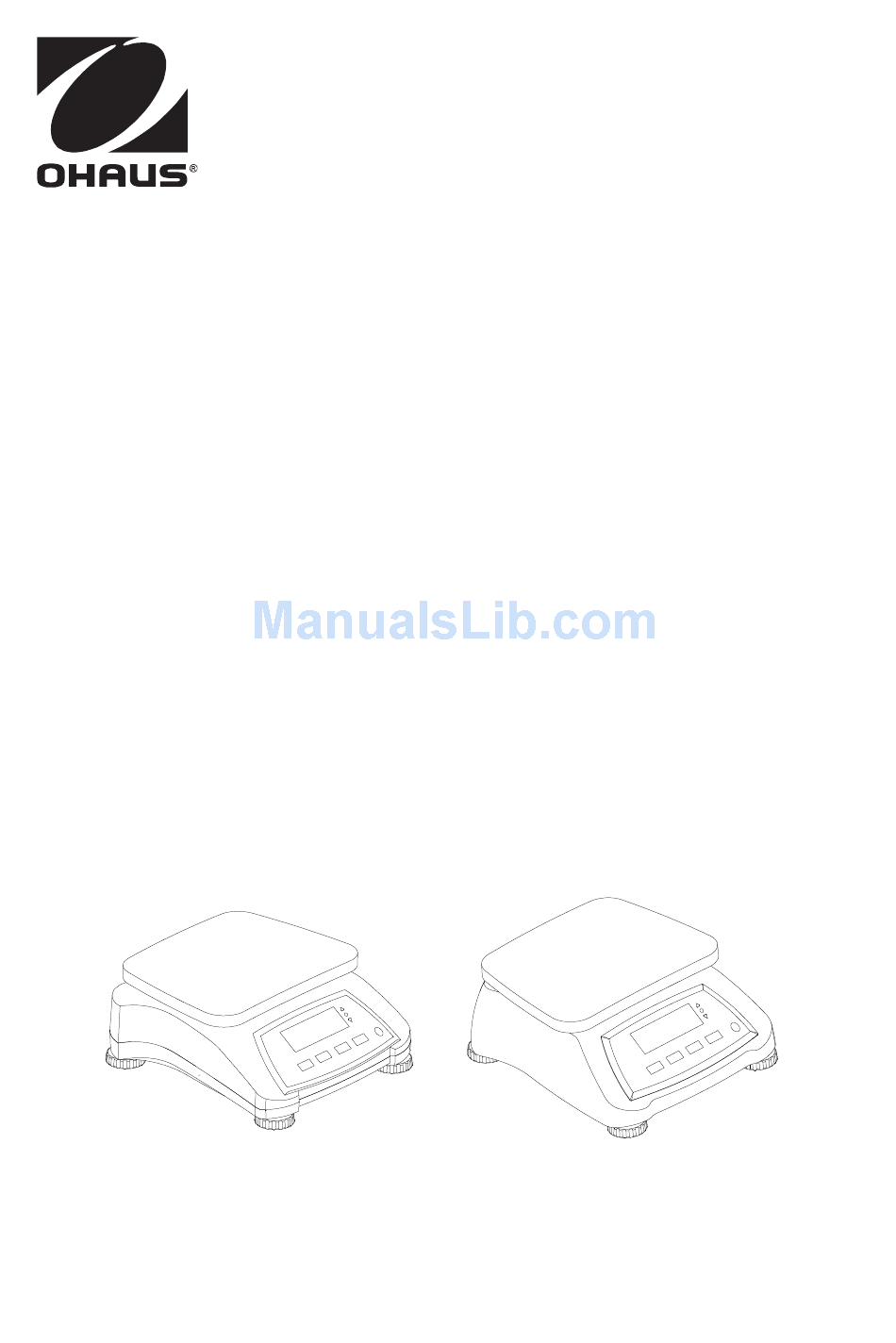

  • Page 1 Valor™ 4000W Series Instruction Manual...

  • Page 3: Installation

    EN-1 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Valor™ 4000W Series. Please read the manual completely before using the scale. 1.1 Safety Precautions Please follow these safety precautions:  Verify that the AC Adapter input voltage matches the local AC power supply.

  • Page 4: Selecting The Location

    EN-2 Valor™ 4000W Series 2.3 Selecting the Location Use the scale on a clean, firm and flat surface. Avoid locations with excessive air current, vibrations, heat sources, or rapid temperature changes. 2.4 Leveling the Equipment Adjust the leveling feet so the bubble is centered in the circle. Be sure the equipment is level each time its location is changed.
  • Page 5 Charging the scale must be performed in a dry environment. CAUTION: Battery is to be replaced only by an authorized OHAUS service dealer. Risk of explosion can occur if the rechargeable battery is replaced with the wrong type or if it is not properly connected.

  • Page 6: Operation

    EN-4 Valor™ 4000W Series 3. OPERATION 3.1 Controls Figure 3-1. Front Control Panel Valor 4000W with display TABLE 3-1 Button Functions Short Press (when on): Sets display to zero Short Press (when off): Turns scale on Long Press (when on): Turns the scale off...
  • Page 7 Valor™ 4000W Series EN-5 Display Figure 3-2. Valor 4000W Display TABLE 3-2 Display Symbols Item Description Item Description NET symbol Calibration / Menu Mode symbol Center of Zero symbol Dynamic symbol* Negative symbol Battery charge symbol Stable weight symbol Pound, Ounce, Pound:Ounce symbol...

  • Page 8: Turning Scale On/Off

    EN-6 Valor™ 4000W Series 3.2 Turning Scale On/Off To turn the scale on, press the On/Zero Off button. The scale performs a display test, momentarily displays the software version, and then enters the active weighing mode. To turn the scale off, press and hold the On/Zero Off button until OFF is displayed.

  • Page 9: Checkweigh Mode

    Valor™ 4000W Series EN-7 3.5 Percent Mode This mode measures the weight of a sample as a percentage of a reference weight. 1. Press and hold Mode until [PerCNt] is displayed. [Clr.ref] (clear reference) will then display. Notes: Press Function to view the current reference weight.
  • Page 10 EN-8 Valor™ 4000W Series 3.7 Accumulation Accumulation works together with each application mode. This function allows the user to store the total of a series of weight measurements. 1. Press the M+ key to add the weight to the accumulation data. The Σ icon will keep flashing until the weight is removed.

  • Page 11: Menu Settings

    Valor™ 4000W Series EN-9 4. MENU SETTINGS The User Menu allows the customizing of scale settings. 4.1 Menu Navigation User Menu: Menu: C.A.L S.E.t.U.P r.E.A.d M.O.d.E U.n.i.t L.O.C.k E.n.d Span Reset Reset Reset Reset Pwr.Un Stable Percnt L.Cal Menu A.Tare...

  • Page 12: Setup Menu

    EN-10 Valor™ 4000W Series 4.3 Setup Menu Enter this menu to set scale parameters.  Reset [reset] (no, yes) Reset the Setup menu to factory defaults.  Power on unit [pwWr.UN] (auto, kg, g, lb, oz, lb:oz) Set the unit of measure displayed at startup ...

  • Page 13: Mode Menu

    Valor™ 4000W Series EN-11 4.5 Mode Menu Enter this menu to activate modes so they will be available for use with the Mode button. Weigh mode is always active by default.  Reset [reset] (no, yes) Reset the Mode menu to factory defaults.
  • Page 14 EN-12 Valor™ 4000W Series TABLE 4-1. GEO CODES Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400 7460 8530 9600 10660 1060...

  • Page 15: Legal For Trade

    Valor™ 4000W Series EN-13 4.9 Legal For Trade When the scale is used in trade or a legally controlled application it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met.
  • Page 16 EN-14 Valor™ 4000W Series 4.9.3 Verification and Sealing The local weights and measures official or authorized service agent must perform the verification procedure. 4.9.3.1 Physical Seals For jurisdictions that use the physical sealing method, the local weights and measures official or authorized service agent must apply a security seal to prevent tampering with the settings.

  • Page 17: Maintenance

    Valor™ 4000W Series EN-15 The audit trail information is displayed in the format CFGxxx and CALxxx. The scale then returns to normal operation. 5. MAINTENANCE 5.1 Cleaning The housing may be cleaned with a cloth dampened with a mild detergent if necessary.

  • Page 18: Troubleshooting

    If the troubleshooting section does not resolve or describe your problem, contact your authorized OHAUS service agent. Please visit our web site, www.ohaus.com to locate the OHAUS office nearest you. An OHAUS product service specialist will be available to provide assistance.

  • Page 19: Drawings And Dimensions

    Valor™ 4000W Series EN-17 6.1 Specifications TABLE 6-1 V41PWE1501T V41PWE3T V41PWE6T V41PWE15T MODEL V41XWE1501T V41XWE3T V41XWE6T V41XWE15T 1.5 kg x 0.0002 kg 3 kg x 0.0005 kg 6 kg x 0.001 kg 15 kg x 0.002 kg Capacity x Readability 1500 g x 0.2 g...
  • Page 20 EN-18 Valor™ 4000W Series 6.3 Compliance Compliance to the following standards is indicated by the corresponding mark on the product. Mark Standard This product conforms to the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC and the Non-Automatic Weighing Instrument Directive 2009/23/EC. The Declaration of Conformity is available online at europe.ohaus.com/europe/en/home/support/compliance.aspx.
  • Page 21 This Class B digital apparatus complies with Canadian ICES-003. ISO 9001 Registration In 1994, OHAUS Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritus Quality International (BVQI), confirming that the OHAUS quality management system is compliant with the ISO 9001 standard’s requirements.

  • Page 22: Limited Warranty

    During the warranty period OHAUS will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to OHAUS.
