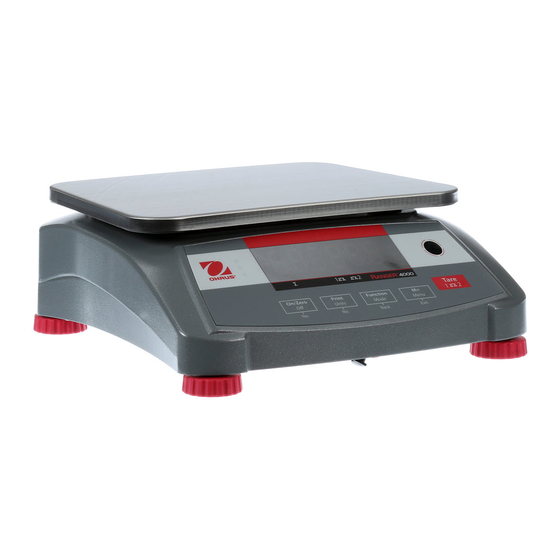

Ranger™ 4000 Series
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RANGER 4000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for OHAUS RANGER 4000 Series

Summary of Contents for OHAUS RANGER 4000 Series

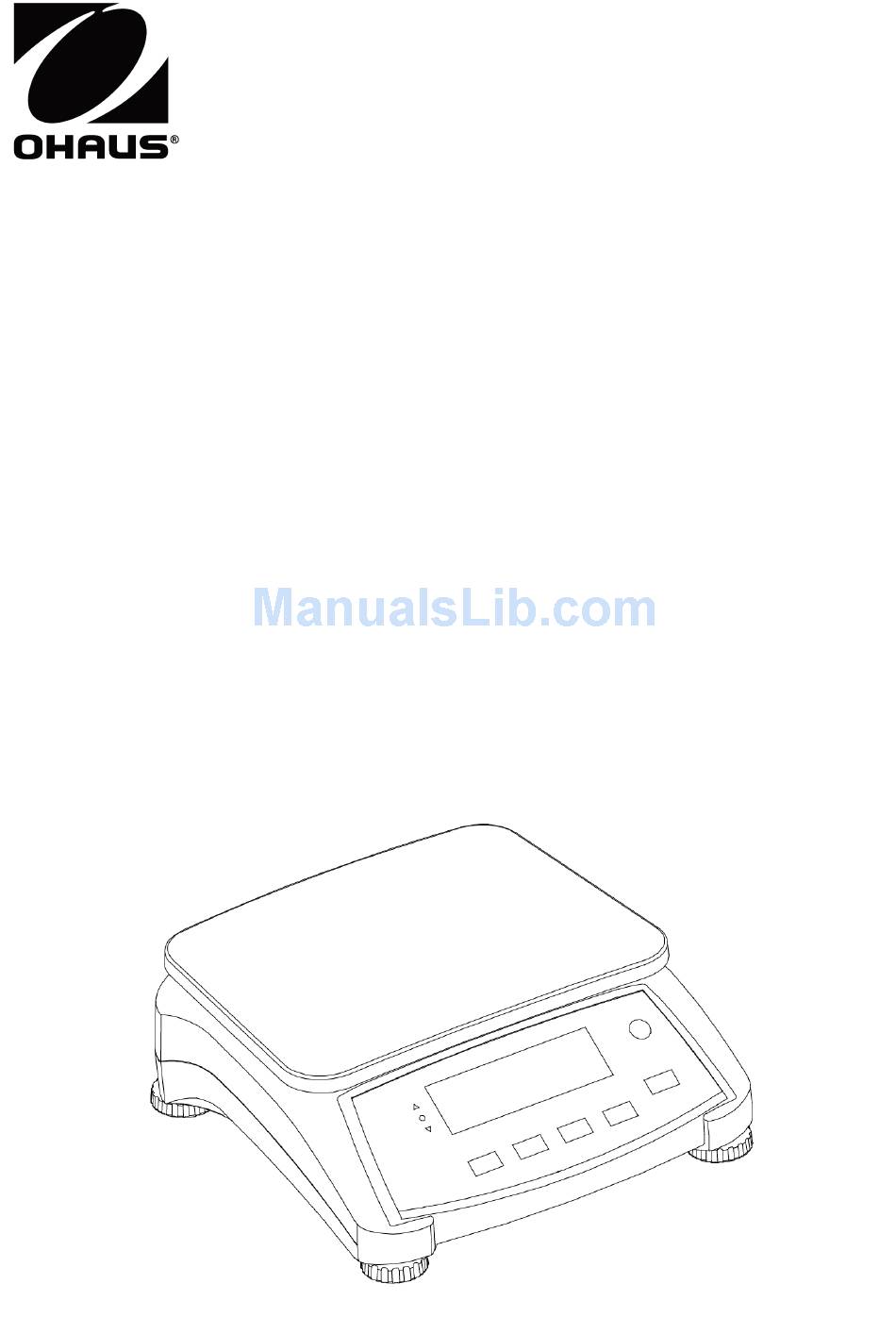

  • Page 1 Ranger™ 4000 Series Instruction Manual...

  • Page 3: Installation

    EN 1 Ranger™ 4000 Series 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Ranger™ 4000 Series. Please read the manual completely before using the scale. Definition of Signal Warnings and Symbols Safety notes are marked with signal words and warning symbols. These show safety issues and warnings.

  • Page 4: Installing Components

    Ranger™ 4000 Series EN 2 2.2 Installing Components Install the sub-platform and metal pan as shown below. Press to lock the sub-platform into place. Figure 2-1. Installing sub-platform and metal pan 2.3 Selecting the Location Use the scale on a firm, steady surface. Avoid locations with excessive air current, vibrations, heat sources or rapid temperature changes.
  • Page 5 When [lo.bat] is displayed, the scale will shut off. Charging the scale must be performed in a dry environment. CAUTION: Battery is to be replaced only by an authorized Ohaus service dealer. Risk of explosion can occur if the rechargeable battery is replaced with the wrong type or if it is not properly connected.

  • Page 6: Operation

    Ranger™ 4000 Series EN 4 3. OPERATION 3.1 Controls Figure 3-1. Ranger 4000 Control Panel with LCD display TABLE 3-1. Button Functions Button Primary Function On/Zero Print Function Tare Accumulates (Short Press) Turns the Sends the current Initiates an Enter/clear a the weight or scale on value to the...
  • Page 7 EN 5 Ranger™ 4000 Series Figure 3-1. LED Display TABLE 3-2. LED Symbols Item Description Item Description NET symbol Base symbol Center of Zero symbol Dynamic symbol Negative symbol Battery charge symbol Stable weight symbol Pound, Ounce, Pound:Ounce symbols Preset Tare, Tare symbols Kilogram, gram symbols Pointer symbols Pieces symbol...

  • Page 8: Turning Scale On/Off

    Ranger™ 4000 Series EN 6 Power Input Weigh Below Battery Access Chamber RS232 and Option Interface Port (below cover) Lock Switch Figure 3-4. Below view of Ranger 4000 3.2 Turning Scale On/Off To turn the scale on, press and hold the On/Zero Off button for 1 second. The scale performs a display test, momentarily displays the software version, and then enters the active weighing mode.

  • Page 9: Counting Mode

    EN 7 Ranger™ 4000 Series 4. Press Yes to establish a new reference. Scale will now display [Put.ref]. 5. Add the desired reference material to the pan or container. Press Yes to store the reference weight. The display shows 100%. 6.
  • Page 10 Ranger™ 4000 Series EN 8 4. Repeat the same procedure to accept or edit the “high” value. 5. If required, place an empty container on the pan and press Tare. 6. Place sample material on the pan or in the container. If the sample weight is under the target weight range, the yellow LED will light.

  • Page 11: Dynamic Mode

    EN 9 Ranger™ 4000 Series 5. The scale will display [CL.lImM] (clear Check limits). 6. Press No to use the stored check limits and proceed to step 9. 7. Press Yes to establish new check limits. The scale will then display [Set. Lo]. Press Yes to view the “Low”...
  • Page 12 Ranger™ 4000 Series EN 10 Manually reset the countdown timer by pressing the Function key. [rEAdY] (Ready) will then be displayed. Note: If Set0 has been selected, the countdown timer is not displayed. The first weight larger than 5d will be displayed and held. Semi-automatic operation (DYNAMIC is set to SEMI in the Mode menu): 1.
  • Page 13 EN 11 Ranger™ 4000 Series Notes: The item must be removed from the pan before the next item can be accumulated. Only stable weights are stored to accumulation data. Changing the mode will clear the accumulation data. Example: In weighing mode; sub menu ACCUmM setting, select mMaNU: If required, place an empty container on the pan and press Tare.

  • Page 14: Menu Settings

    Ranger™ 4000 Series EN 12 4. MENU SETTINGS The User Menu allows the customizing of scale settings. Note: Additional Sub-Menus may be available if Interface Options are installed. See Interface User Manual for the additional setting information. 4.1 Menu Navigation User Menu: Menu: C.A.L...
  • Page 15 EN 13 Ranger™ 4000 Series Units are locked at their current settings. Stable Only is locked On. Auto Print/ Continuous is disabled. Lb:oz is locked Off. Summary of button navigation functions in menu mode: -- Yes Allows entry into the displayed menu. - Accepts the displayed setting and advances to the next item.

  • Page 16: Setup Menu

    Ranger™ 4000 Series EN 14 calibration mass on the pan. Press Yes to accept the weight or No to select an alternate weight. [--C--] will be displayed while the reading is stored. The display will show [done] if the calibration was successful.
  • Page 17 EN 15 Ranger™ 4000 Series Reset [reset] Reset the Setup menu to factory defaults. = not reset = reset Power on unit [pwWr.UN] Set the unit of measure displayed at startup. AUTO = last unit in use when turned off = kilograms = grams = pounds...

  • Page 18: Readout Menu

    Ranger™ 4000 Series EN 16 End Setup [End] Advance to the next menu or return to the top of the current menu. 4.4 Readout Menu Enter this menu to set user preferences. The LCD and LED displays will have different menu items or settings based on the functionality.

  • Page 19: Mode Menu

    EN 17 Ranger™ 4000 Series LCD models: Sets backlight functionality. = always off = always on AUTO = turns on when a button is pressed or the displayed weight changes. LED models: Set the light intensity. = low light intensity = medium light intensity = high light intensity Sleep [SLEEP...
  • Page 20 Ranger™ 4000 Series EN 18 Set the status. = disabled = enabled Count [COUNt] Set the status. = disabled = enabled Check [CHECk] Set the sub-mode = disabled WEIGH = weight mode PERCNT = percent mode COUTN = count mode Dynamic [DYNAmM] Set the status.
  • Page 21 EN 19 Ranger™ 4000 Series Reset [reset] Reset the Print menu to factory defaults. = no reset = reset Stable Only [Stable] Set the printing criteria. = values are printed immediately = values are only printed when the stability criteria are met Auto Print [A.Print] Set the automatic printing functionality.
  • Page 22 Ranger™ 4000 Series EN 20 Gross Set the status. OFF = disabled = the gross weight is printed Set the status. OFF = disabled = the net weight is printed Tare Set the status. OFF = disabled = the Tare weight is printed Header Set the status.
  • Page 23 Notes: For Windows 7 setup, contact Ohaus. If the weighing value is a negative number, set the target cell in TEXT format. Otherwise, Excel will not distinguish it as a negative number.
  • Page 24 Ranger™ 4000 Series EN 22 Baud Rate [BAUD] Set the baud rate. = 300 bps = 600 bps 1200 = 1200 bps 2400 = 2400 bps 4800 = 4800 bps 9600 = 9600 bps 19200 = 19200 bps Parity [paritY] Set the data bits and parity.
  • Page 25 EN 23 Ranger™ 4000 Series Reset: no, yes Lock Cal: off, on Lock Setup: off, on Lock Read: off, on Lock Mode: off, on Lock Unit: off, on Lock Print: off, on Lock COM: off, on End Menu Lock: Exit menu Reset [reset] Reset the Lock menu to factory defaults.

  • Page 26: Additional Features

    Ranger™ 4000 Series EN 24 Set the status. = COM menu is not locked = COM menu is locked – Advance to the next menu or return to the top of the current menu. End Lock [End] 4.10 End Menu Press ‘Yes’...
  • Page 27 EN 25 Ranger™ 4000 Series TABLE 4-2. GEO CODES Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400 7460 8530 9600 10660 1060 2130 3200...

  • Page 28: Legal For Trade

    Ranger™ 4000 Series EN 26 5. LEGAL FOR TRADE When the scale is used in trade or a legally controlled application it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met.
  • Page 29 EN 27 Ranger™ 4000 Series Paper Seal Lock Switch Wire Seal Unlocked Locked with Paper Seal Locked with Wire Seal Figure 5-2. Sealing...

  • Page 30: Maintenance

    Attention: Do not use solvents, chemicals, alcohol, ammonia or abrasives to clean the housing or control panel. 6.2 Troubleshooting The following table lists common problems and possible causes and remedies. If the problem persists, contact OHAUS or your authorized dealer. TABLE 6-1 Symptom Possible Cause...

  • Page 31: Service Information

    OHAUS service agent. For service assistance or technical support in the United States call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM EST. An OHAUS product service specialist will be available to provide assistance. Outside the USA, please visit our web site, www.ohaus.com to locate the OHAUS office nearest you.

  • Page 32: Technical Data

    Ranger™ 4000 Series EN 30 7. TECHNICAL DATA The technical data is valid under the following ambient conditions: Indoor use only Operating temperature: -10° C to 40° C Relative humidity: maximum relative humidity 80 % for temperatures up to 30 ° C decreasing linearly to 50 % relative humidity at 40 °...
  • Page 33 7.3.1 Interface Commands The scale supports both MT-SICS and OHAUS commands. Commands listed in the following tables will be acknowledged by the scale. To use the MT-SICS commands, send the command PSI. To return to the OHAUS commands, send the command POH...
  • Page 34 Ranger™ 4000 Series EN 32 Command Function Enter Footer line, where x = line number 1 to 2, “text” = rear text up to 24 F x “text” alphanumeric characters. Global reset to reset all menu settings to the original factory defaults \EscR (Escape key + ‘R’...
  • Page 35 EN 33 Ranger™ 4000 Series 7.4 Printouts The following sample print outs are generated by the Print button, “P” Command or alternate print command. The content of the printout is defined in the Print Content menu item. A maximum of 24 characters can be printed on each line. Weigh Mode Printout Description Comment...
  • Page 36 Ranger™ 4000 Series EN 34 7.5 Output Format Weight string print format: Field Weight space Unit space Stability space G/N Space Term. Char(s) Length 9 Each field is followed by a single delimiting space (ASCII: 32) Definitions: Weight - Up to 9 characters, right justified, - at immediate left of most significant character (if negative).
  • Page 37 This product conforms to the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC and the Non-Automatic Weighing Instrument Directive 2009/23/EC. The Declaration of Conformity is available online at http://europe.ohaus.com/europe/en/home/support/compliance.aspx AS/NZS CISPR 11 UL Std. No. 60950-1 (2nd edition) CAN/CSA-C22.2 No. 61010-1-04...
  • Page 38 This Class B digital apparatus complies with Canadian ICES-003. ISO 9001 Registration In 1994, OHAUS Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritus Quality International (BVQI), confirming that the OHAUS quality management system is compliant with the ISO 9001 standard’s requirements. On June 21, 2012, OHAUS...
  • Page 39 OHAUS. This warranty does not apply if the product has been damaged by accident or misuse, exposed to radioactive or corrosive materials, has foreign material penetrating to the inside of the product, or as a result of service or modification by other than OHAUS.
  • Page 40 Ranger™ 4000 Series EN 38...
  • Page 41 *30240427* P/N 30240427A © 2015 OHAUS Corporation, all rights reserved / todos los derechos reservados / tous droits réservés / Alle Rechte vorbehalten / tutti i diritti riservati. Printed in China / Impreso en la China / Imprimé en Chine / Gedruckt in China / Stampato in...
