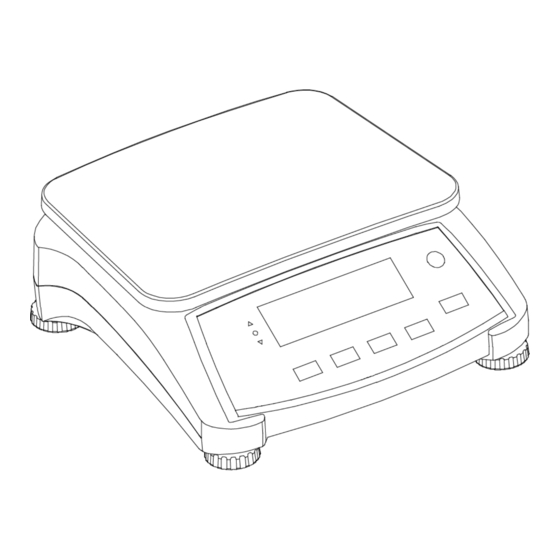

Ranger™ 4000 Series
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ranger R41MEB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for OHAUS Ranger R41MEB

Summary of Contents for OHAUS Ranger R41MEB

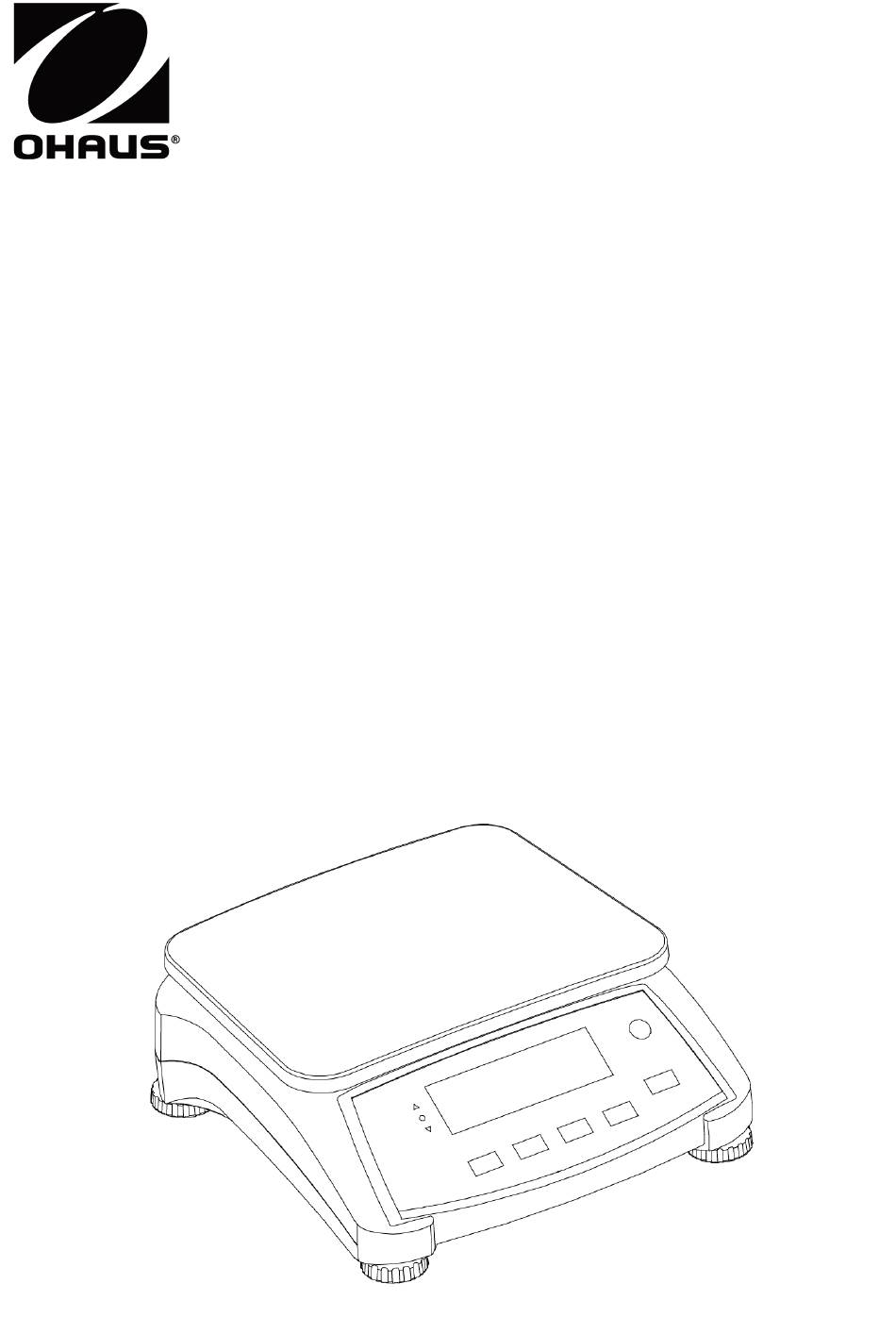

  • Page 1 Ranger™ 4000 Series Instruction Manual...
  • Page 3 EN 1 Ranger™ 4000 Series 1. INTRODUCTION This manual contains installation, operation and maintenance instructions for the Ranger™ 4000 Series. Please read the manual completely before using the scale. Definition of Signal Warnings and Symbols Safety notes are marked with signal words and warning symbols. These show safety issues and warnings.
  • Page 4 Ranger™ 4000 Series EN 2 2.2 Installing Components Install the sub-platform and metal pan as shown below. Press to lock the sub-platform into place. Figure 2-1. Installing sub-platform and metal pan 2.3 Selecting the Location Use the scale on a firm, steady surface. Avoid locations with excessive air current, vibrations, heat sources or rapid temperature changes.
  • Page 5 When [lo.bat] is displayed, the scale will shut off. Charging the scale must be performed in a dry environment. CAUTION: Battery is to be replaced only by an authorized Ohaus service dealer. Risk of explosion can occur if the rechargeable battery is replaced with the wrong type or if it is not properly connected.
  • Page 6 Ranger™ 4000 Series EN 4 3. OPERATION 3.1 Controls Figure 3-1. Ranger 4000 Control Panel with LCD display TABLE 3-1. Button Functions Button Primary Function On/Zero Print Function Tare Accumulates (Short Press) Turns the Sends the current Initiates an Enter/clear a the weight or scale on value to the...
  • Page 7 EN 5 Ranger™ 4000 Series Figure 3-1. LED Display TABLE 3-2. LED Symbols Item Description Item Description NET symbol Base symbol Center of Zero symbol Dynamic symbol Negative symbol Battery charge symbol Stable weight symbol Pound, Ounce, Pound:Ounce symbols Preset Tare, Tare symbols Kilogram, gram symbols Pointer symbols Pieces symbol...
  • Page 8 Ranger™ 4000 Series EN 6 Power Input Weigh Below Battery Access Chamber RS232 and Option Interface Port (below cover) Lock Switch Figure 3-4. Below view of Ranger 4000 3.2 Turning Scale On/Off To turn the scale on, press and hold the On/Zero Off button for 1 second. The scale performs a display test, momentarily displays the software version, and then enters the active weighing mode.
  • Page 9 EN 7 Ranger™ 4000 Series 4. Press Yes to establish a new reference. Scale will now display [Put.ref]. 5. Add the desired reference material to the pan or container. Press Yes to store the reference weight. The display shows 100%. 6.
  • Page 10 Ranger™ 4000 Series EN 8 4. Repeat the same procedure to accept or edit the “high” value. 5. If required, place an empty container on the pan and press Tare. 6. Place sample material on the pan or in the container. If the sample weight is under the target weight range, the yellow LED will light.
  • Page 11 EN 9 Ranger™ 4000 Series 5. The scale will display [CL.lImM] (clear Check limits). 6. Press No to use the stored check limits and proceed to step 9. 7. Press Yes to establish new check limits. The scale will then display [Set. Lo]. Press Yes to view the “Low”...
  • Page 12 Ranger™ 4000 Series EN 10 Manually reset the countdown timer by pressing the Function key. [rEAdY] (Ready) will then be displayed. Note: If Set0 has been selected, the countdown timer is not displayed. The first weight larger than 5d will be displayed and held. Semi-automatic operation (DYNAMIC is set to SEMI in the Mode menu): 1.
  • Page 13 EN 11 Ranger™ 4000 Series Notes: The item must be removed from the pan before the next item can be accumulated. Only stable weights are stored to accumulation data. Changing the mode will clear the accumulation data. Example: In weighing mode; sub menu ACCUmM setting, select mMaNU: If required, place an empty container on the pan and press Tare.
  • Page 14 Ranger™ 4000 Series EN 12 4. MENU SETTINGS The User Menu allows the customizing of scale settings. Note: Additional Sub-Menus may be available if Interface Options are installed. See Interface User Manual for the additional setting information. 4.1 Menu Navigation User Menu: Menu: C.A.L...
  • Page 15 EN 13 Ranger™ 4000 Series For menu items with numeric settings such as Capacity, the current setting is displayed with all digits flashing. Press the No button to begin editing. The first digit is displayed flashing. Press the No button to increment the digit or press the Yes button to accept the digit and move to the next digit.
  • Page 16 Ranger™ 4000 Series EN 14 Span: Perform Linearity: Perform Geographic Set 0…12…31* Adjustment: End Calibration: Exit menu *Bold always represents factory default value. Span [SpaN] Initiates a span calibration procedure (zero and span) Lin [LIN] Initiates a linearity calibration procedure (zero, mid-point and span). GEO [GEO] Geographical Adjustment Factor (GEO) is used to adjust the calibration based on the current location.
  • Page 17 EN 15 Ranger™ 4000 Series Zero Range [ZErO] Set the percentage of scale capacity that may be zeroed. = zero up to 2 percent of capacity = zero up to 10 percent of capacity Auto Tare [A.tArE] Set the automatic tare functionality. = Automatic Tare is disabled = the first stable gross weight is tared ON-ACC = stable gross loads within the accept limits are tared (in Check weighing mode)
  • Page 18 Ranger™ 4000 Series EN 16 Reset the Read menu to factory defaults. = not reset = reset Stable Range [Stable] Set the amount the reading can vary while the stability symbol remains on. 0.5d = 0.5 scale division = 1 scale division = 2 scale division = 5 scale division Filter [FILtEr]...
  • Page 19 EN 17 Ranger™ 4000 Series End Readout [End] Advance to the next menu or return to the top of the current menu. 4.5 Mode Menu This menu activates modes so they will be available for use with the Mode button. Reset: no, yes Weigh:...
  • Page 20 Ranger™ 4000 Series EN 18 End Mode [End] Advance to the next menu or return to the top of the current menu. 4.6 Unit Menu This menu activates units so they will be accessible with the Units button. The units in the menu must be turned “on”...
  • Page 21 EN 19 Ranger™ 4000 Series range and stability criteria are met. When ON.STAB is selected, set the condition for printing, where: LOAD = printing occurs when the load is stable and greater than zero LOAD.ZR = printing occurs when any load is stable and equal to or greater than zero.
  • Page 22 Notes: For Windows 7 setup, contact Ohaus. If the weighing value is a negative number, set the target cell in TEXT format. Otherwise, Excel will not distinguish it as a negative number.
  • Page 23 EN 21 Ranger™ 4000 Series Reset: no, yes 300…9600…19200 Baud Rate: Parity: 7 even, 7 odd, 7 none, 8 none Stop bit: 1, 2 Handshake: none, On-Off Alternate command: Print (A…P…Z), Tare (A…T…Z), Zero (A…Z) End COM: Exit menu Note: The COM2 menu is only displayed if a second interface is installed. Reset [reset] Reset the COM menu to factory defaults.
  • Page 24 Ranger™ 4000 Series EN 22 Print Set the alternate command character for Print A to Z. Tare Set the alternate command character for Tare A to Z. Zero Set the alternate command character for Zero. A to Z. End COM1, End COM2 [End] Advance to the next menu or return to the top of the current menu.
  • Page 25 EN 23 Ranger™ 4000 Series Lock Mode [l.mMod] Set the status. = Mode menu is not locked = Mode menu is locked Lock Unit [l.Unit] Set the status. = Unit menu is not locked = Unit menu is locked Lock Print Set the status.
  • Page 26 Ranger™ 4000 Series EN 24 TABLE 4-2. GEO CODES Elevation in meters 1300 1625 1950 2275 2600 2925 3250 1300 1625 1950 2275 2600 2925 3250 3575 Elevation in feet 1060 2130 3200 4260 5330 6400 7460 8530 9600 10660 1060 2130 3200...
  • Page 27 EN 25 Ranger™ 4000 Series 5. LEGAL FOR TRADE When the scale is used in trade or a legally controlled application it must be set up, verified and sealed in accordance with local weights and measures regulations. It is the responsibility of the purchaser to ensure that all pertinent legal requirements are met.
  • Page 28 Ranger™ 4000 Series EN 26 Paper Seal Lock Switch Wire Seal Unlocked Locked with Paper Seal Locked with Wire Seal Figure 5-2. Sealing...
  • Page 29 Attention: Do not use solvents, chemicals, alcohol, ammonia or abrasives to clean the housing or control panel. 6.2 Troubleshooting The following table lists common problems and possible causes and remedies. If the problem persists, contact OHAUS or your authorized dealer. TABLE 6-1 Symptom Possible Cause...
  • Page 30 OHAUS service agent. For service assistance or technical support in the United States call toll-free 1-800-526-0659 between 8:00 AM and 5:00 PM EST. An OHAUS product service specialist will be available to provide assistance. Outside the USA, please visit our web site, www.ohaus.com to locate the OHAUS office nearest you.
  • Page 31 EN 29 Ranger™ 4000 Series 7. TECHNICAL DATA The technical data is valid under the following ambient conditions: Indoor use only Operating temperature: -10° C to 40° C Relative humidity: maximum relative humidity 80 % for temperatures up to 31 ° C decreasing linearly to 50 % relative humidity at 40 °...
  • Page 32 7.3.1 Interface Commands The scale supports both MT-SICS and OHAUS commands. Commands listed in the following tables will be acknowledged by the scale. To use the MT-SICS commands, send the command PSI. To return to the OHAUS commands, send the command POH...
  • Page 33 EN 31 Ranger™ 4000 Series Command Function Enter Footer line, where x = line number 1 to 2, “text” = rear text up to 24 F x “text” alphanumeric characters. Global reset to reset all menu settings to the original factory defaults \EscR (Escape key + ‘R’...
  • Page 34 Ranger™ 4000 Series EN 32 7.4 Printouts The following sample print outs are generated by the Print button, “P” Command or alternate print command. The content of the printout is defined in the Print Content menu item. A maximum of 24 characters can be printed on each line. Weigh Mode Printout Description Comment...
  • Page 35 EN 33 Ranger™ 4000 Series 7.5 Output Format Weight string print format: Field Weight space Unit space Stability space G/N Space Term. Char(s) Length 9 Each field is followed by a single delimiting space (ASCII: 32) Definitions: Weight - Up to 9 characters, right justified, - at immediate left of most significant character (if negative).
  • Page 36 This product conforms to the EMC Directive 2004/108/EC, the Low Voltage Directive 2006/95/EC and the Non-Automatic Weighing Instrument Directive 2009/23/EC. The Declaration of Conformity is available online at http://europe.ohaus.com/europe/en/home/support/compliance.aspx AS/NZS 61000.6.1, AS/NZS 61000.6.3 UL Std. No. 61010-1 CAN/CSA-C22.2 No. 61010-1...
  • Page 37 This Class B digital apparatus complies with Canadian ICES-003. ISO 9001 Registration In 1994, OHAUS Corporation, USA, was awarded a certificate of registration to ISO 9001 by Bureau Veritus Quality International (BVQI), confirming that the OHAUS quality management system is compliant with the ISO 9001 standard’s requirements. On June 21, 2012, OHAUS...
  • Page 38 OHAUS. This warranty does not apply if the product has been damaged by accident or misuse, exposed to radioactive or corrosive materials, has foreign material penetrating to the inside of the product, or as a result of service or modification by other than OHAUS.
  • Page 39 *30240427* P/N 30240427 © 2020 OHAUS Corporation, all rights reserved / todos los derechos reservados / tous droits réservés / Alle Rechte vorbehalten / tutti i diritti riservati. Printed in China / Impreso en la China / Imprimé en Chine / Gedruckt in China / Stampato in...
