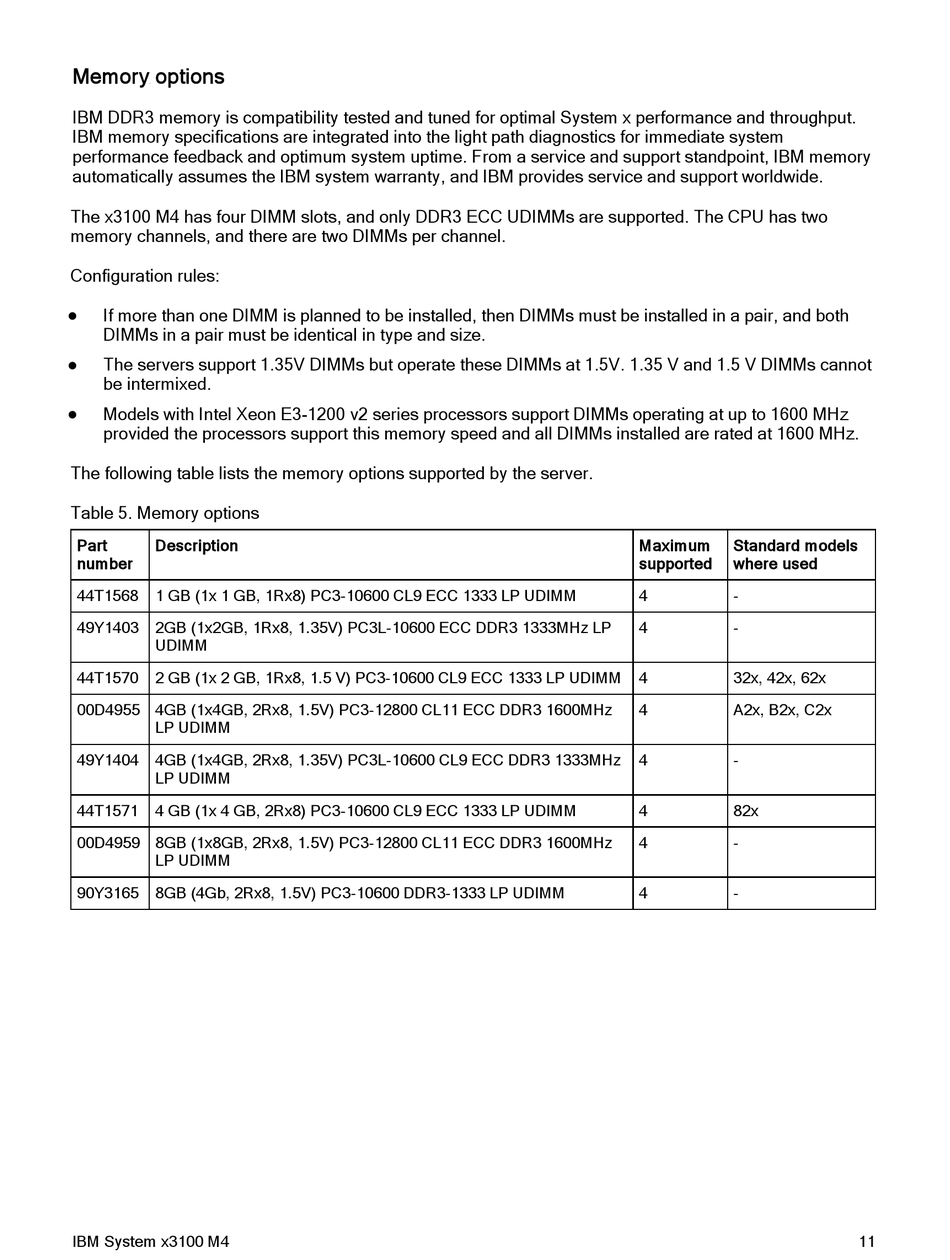

Memory options

IBM DDR3 memory is compatibility tested and tuned for optimal System x performance and throughput.
IBM memory specifications are integrated into the light path diagnostics for immediate system
performance feedback and optimum system uptime. From a service and support standpoint, IBM memory
automatically assumes the IBM system warranty, and IBM provides service and support worldwide.
The x3100 M4 has four DIMM slots, and only DDR3 ECC UDIMMs are supported. The CPU has two
memory channels, and there are two DIMMs per channel.
Configuration rules:
If more than one DIMM is planned to be installed, then DIMMs must be installed in a pair, and both

DIMMs in a pair must be identical in type and size.
The servers support 1.35V DIMMs but operate these DIMMs at 1.5V. 1.35 V and 1.5 V DIMMs cannot

be intermixed.
Models with Intel Xeon E3-1200 v2 series processors support DIMMs operating at up to 1600 MHz

provided the processors support this memory speed and all DIMMs installed are rated at 1600 MHz.
The following table lists the memory options supported by the server.
Table 5. Memory options
Part Description
number
44T1568 1 GB (1x 1 GB, 1Rx8) PC3-10600 CL9 ECC 1333 LP UDIMM
49Y1403 2GB (1x2GB, 1Rx8, 1.35V) PC3L-10600 ECC DDR3 1333MHz LP
UDIMM
44T1570 2 GB (1x 2 GB, 1Rx8, 1.5 V) PC3-10600 CL9 ECC 1333 LP UDIMM
00D4955 4GB (1x4GB, 2Rx8, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz
LP UDIMM
49Y1404 4GB (1x4GB, 2Rx8, 1.35V) PC3L-10600 CL9 ECC DDR3 1333MHz
LP UDIMM
44T1571 4 GB (1x 4 GB, 2Rx8) PC3-10600 CL9 ECC 1333 LP UDIMM
00D4959 8GB (1x8GB, 2Rx8, 1.5V) PC3-12800 CL11 ECC DDR3 1600MHz
LP UDIMM
90Y3165 8GB (4Gb, 2Rx8, 1.5V) PC3-10600 DDR3-1333 LP UDIMM
IBM System x3100 M4
Maximum Standard models
supported where used
4 -
4 -
4 32x, 42x, 62x
4 A2x, B2x, C2x
4 -
4 82x
4 -
4 -
