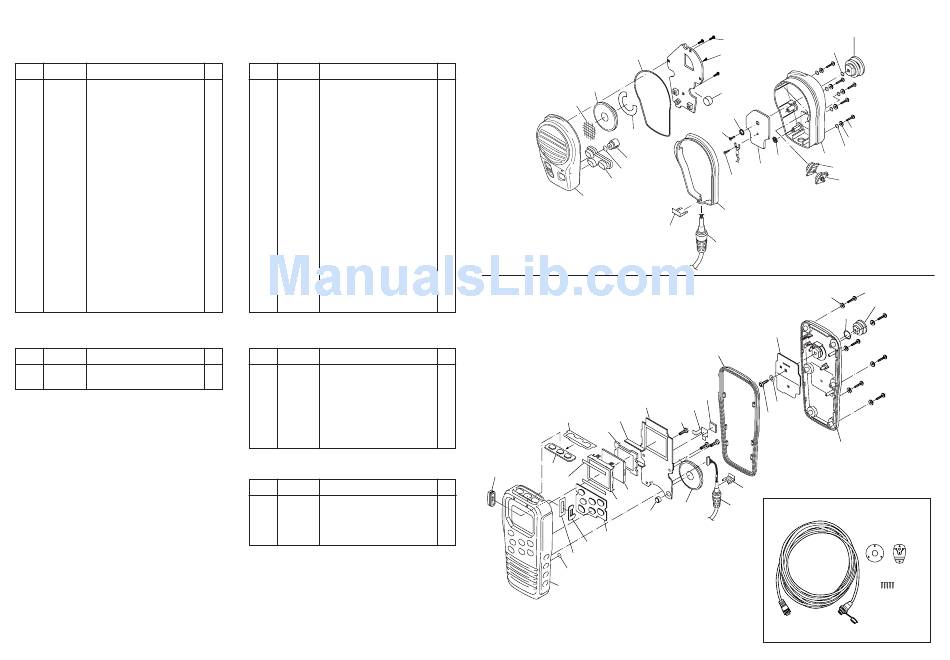

Icom IC-M602 Service Manual page 33

7-2 HM-136
[CHASSIS PARTS]
REF. ORDER
DESCRIPTION
NO. NO.
W1 8900011480 Cable OPC-1180 [BLACK]
8900011490 Cable OPC-1181 [WHITE]
MP1 8210017670 2352 front panel (B)-1 [BLACK]
8210019241 2352 front panel (G)-1 [WHITE]
MP2 8210016851 2352 rear panel-1 [BLACK]
8210019221 2352 rear panel (B)-1 [WHITE]
MP3 8930052160 2352 key
MP4 8930052150 2352 PTT rubber
MP5 8930052140 2352 PTT holder
MP6 8930052690 2352 mic rubber
MP7 8930052120 2352 rubber
MP8 8930052110 2352 main seal
MP9 8610010870 2352 hanger knob
MP10 8310048760 2352 R-plate
MP11 8310048780 2352 mic plate
MP12 8820001150 2352 screw
MP13 8850001850 ICOM washer (Y)
MP14 8930052340 O ring (AE)
MP15 8930052350 O ring (AF)
MP16 8930053870 2352 sheet (A)
MP17 8930053040 2352 SP net
MP18 8850001610 Spring washer M4 SUS
Screw PH BT 2 × 6 NI
MP19 8810009260
Screw PH M3 × 6 NI
MP20 8810008900
Screw M4 × 10 ZK
MP21 8810009240
MP23 8930053850 2352 SP rubber
MP24 8930058590 2589 A-mic sheet
[MAIN UNIT]
REF. ORDER
DESCRIPTION
NO. NO.
MC1 7700002120 Microphone KUC2123-030245
SP1 2510001092 Speaker 036D0801B
Screw abbreviations BT: Self-tapping PH: Pan head
FH: Flat head ZK: Black
SUS: Stainless NI: Nickel
NI-ZU: Nickel-Zinc
7-3 HM-127 (OPTIONAL UNIT)
[CHASSIS PARTS]
REF. ORDER
QTY. DESCRIPTION
NO. NO.
1 W3 8900010220 Cable OPC-997
1 8900010230 Cable OPC-998
1 SP1 2510001090 Speaker 036D0801
1
1 MP1 8210017360 2417 front panel assembly
1 8210017390 2417 front panel (A) assembly
1 MP3 8930053510 2417 key board
1 MP4 8930053540 2417 PTT rubber
1 MP5 8930053990 2417 PTT sheet
1 MP6 8930053550 2417 PTT holder
1 MP7 8930053520 2417 top key
1 MP8 8930053760 2417 key plate
1 MP10 8930039000 1757 sheet
Screw FH BT M2 × 5 NI-ZU
1 MP11 8810009180
1 MP12 8930053750 2417 plate
5 MP13 8210017250 2417 rear panel
5 8210017300 2417 rear panel (A)
5 MP14 8310049970 2417 R-plate
1 MP15 8610010980 2417 hanger knob
1 MP16 8930053740 O ring (AJ)
Screw M4 × 8 ZK
1 MP17 8810008450
1 MP18 8850000490 Spring washer M4 SUS
3 MP19 8930053530 2417 rubber
2417 screw 2.6 × 16
1 MP20 8820001180
1 MP21 8930053730 O ring (AI)
1 MP23 8930054430 Film tape (C)
1 MP24 8930054440 Film tape (D)
[MAIN UNIT]
REF. ORDER
QTY. DESCRIPTION
NO. NO.
LCD A0119 (LCD 36 × 28.5)
1 DS1 5030001900
1 EP2 8930051120 LCD contact SRCN-2320-SP-N-W
MC1 7700002480 Microphone SKB-2746 LPC
MP1 8930053780 2417 LCD holder
MP2 8210017240 2417 reflector
MP3 8310050200 2417 H-plate
MP4 8930039610 Thermally sheet (C)
MP5 8930054120 Insulate sheet (J)
[ACCESSORIES]
REF. ORDER
DESCRIPTION
NO. NO.
W1 8900010280 Cable OPC-1000
MP1 8950005110 2289 mic hanger
Screw PH A M3 × 16 SUS
MP2 8810004700
MP3 8310050320 2417 C-plate
Screw PH A M3 × 16 SUS
MP4 8810004700
HM-136
QTY.
[BLACK] 1
SP1 (M)
[WHITE] 1
MP17 (C)
1
[BLACK] 1
[WHITE] 1
1
1
1
1
1
1
1
MP1 (C)
3
1
[BLACK] 1
[WHITE] 1
1
1
1
1
1
1
6
HM-127
6
1
2
QTY.
1
2
1
1
MP8 (C)
1
1
1
2
MP7 (C)
MP4 (C)
MP5 (M)
QTY.
1
1
2
1
3
MP6 (C)
MP5 (C)
MP10 (C)
MP1 (C)
MP19 (C)
MAIN UNIT
MP8 (C)
MC1 (M)
MP18 (C)
MP21 (C)
MP23 (C)
MP16 (C)
MP6 (C)
MP10 (C)
MP24 (C)
MP20 (C)
MP3 (C)
MP7 (C)
MP11 (C)
W1 (C)
MP14 (C)
MP19 (C)
MP4 (M)
MAIN UNIT
MP18 (C)
MP3 (M)
EP2 (M) MP17 (C)
MP11 (C)
MP2 (M)
MP12 (C)
DS1 (M)
MP1 (M)
W3 (C)
SP1 (C)
MC1 (M)
MP3 (C)
Unit abbreviations (C): CHASSIS PARTS
(M): MAIN UNIT
7 - 3
MP9 (C)
MP15 (C)
MP12 (C)
MP13 (C)
MP14 (C)
MP2 (C)
MP4 (C)
MP5 (C)
MP21 (C)
MP20 (C)
MP15 (C)
MP16 (C)
MP13 (C)
W1
MP3 MP1
MP2, MP4
HM-127 ACCESSORIES
