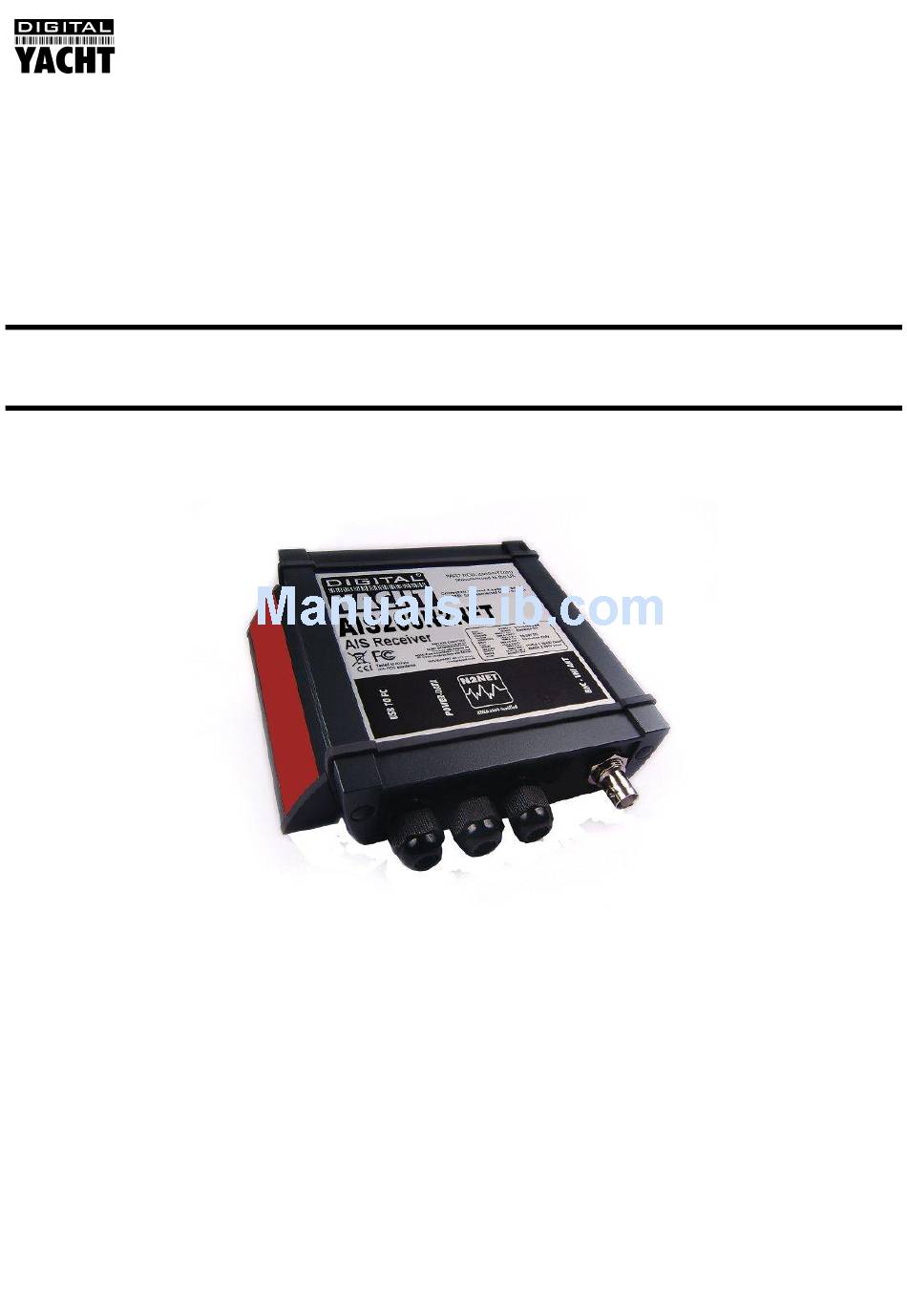

- Page 1 Installation & Quick Start Guide AIS200N2NET Tri-Output AIS Receiver QUICK START AIS200N2NET-01-VR1...
-
Page 2: Before You Start
AIS200N2NET Quick Start Guide DIGITAL YACHT LTD 1. Introduction Congratulations on the purchase of your AIS200N2NET AIS Receiver. It is recommended that your receiver is installed by a professional installer. Before operating the unit you should familiarise yourself with the complete user manual supplied with the product. - Page 3 The most common connection to a dedicated chart plotter is to take the NMEA Output 1 (Orange+ and Brown –) from the AIS200N2Net and to connect it to a free NMEA Input on the plotter. You must then tell the chart plotter that AIS data is connected to this port and set the baud rate to 38,400 Baud –...
- Page 4 CD. Run the setup.exe program, which installs the proAIS2 software and the drivers. Once the installation is completed, you can plug in the USB lead of the AIS200N2Net in to an available USB port on your PC and the Windows “Found New Hardware Wizard” will be triggered and the correct drivers loaded. Make a note of the COM port number that Windows allocates to the AIS200N2Net, which can be found in the Windows Device Manager program under the “Ports (COM&LPT)”...
- Page 5 Windows Vista and Windows 7 (not Windows XP) will automatically find the correct driver and download it from the Microsoft website. This is useful if you try to install the AIS200N2Net and you do not have the supplied CD-Rom with you. When using this automatic method of installing the drivers from the internet, the proAIS2 software is not installed.
- Page 6 Every time that the unit receives an AIS Target, the Yellow “DATA” LED will flash. Assuming that the Yellow LED is flashing and you are receiving AIS targets, ensure that any equipment connected to the AIS200N2Net on the NMEA0183, NMEA2000 and/or USB interfaces are receiving and displaying AIS targets. ...
