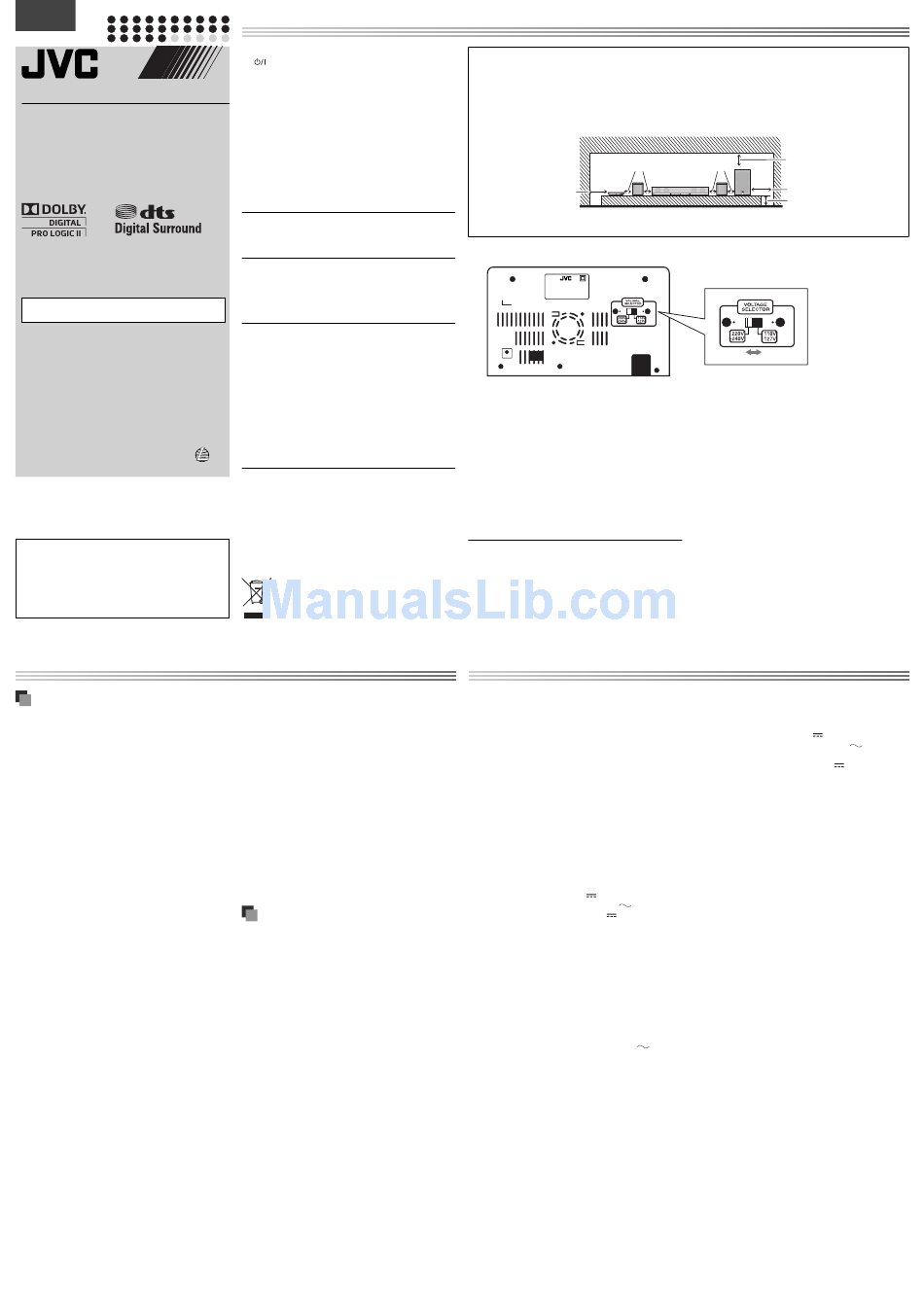

ENGLISH
HOME THEATER SOUND SYSTEM
TH-BA3
—Consists of SP-THBA3F, RX-THBA3,
SP-THBA3S and SP-THBA3W
Thank you for purchasing a JVC product.
Before operation, please read the instructions carefully.
INSTRUCTIONS
GVT0289-025A[UJ]
0710WMKMDWJMM
© 2010 Victor Company of Japan, Limited
Manufactured under license under U.S. Patent numbers: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,487,535 and other U.S. and
worldwide patents issued and pending. DTS and DTS Digital Surround
are registered trademarks and the DTS logos and Symbol are trademarks
of DTS, Inc. © 1996-2008 DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic,
and the double-D symbol are trademarks of Dolby Laboratories.
I
ntroduction
Notes on handling
Important cautions
Installation of the System
Select a place which is level, dry, and neither too hot nor too cold; between
5°C and 35°C.
Leave sufficient distance between the System and the TV.
Do not use the System in a location near heat sources, or in a place subject to
direct sunlight, excessive dust, or vibration.
Install the System in a location with adequate ventilation to prevent internal
heat buildup.
Power cord
Do not handle the power cord with wet hands.
A small amount of power is always consumed while the power cord is
connected to the wall outlet.
Do not pull on the cord to unplug the power cord. When unplugging the
power cord, always grasp and pull the plug so as not to damage the cord.
To prevent malfunctions of the System
There are no user-serviceable parts inside. If anything goes wrong, unplug
the power cord and consult your dealer.
Do not insert any metallic objects or liquids into the System.
Safety precautions
Avoid moisture, water, and dust
Do not place the System in moist or dusty places.
Avoid high temperatures
Do not expose the System to direct sunlight and do not place it near any
heating devices.
When you are away
When away on holiday or for other reasons for an extended period of time,
disconnect the power cord from the wall outlet.
Do not block the vents
Blocking the vents may damage the System.
W
arnings, Cautions and Others
CAUTION (SP-THBA3F)
The
button in any position does not disconnect the mains line.
Disconnect the mains plug to shut the power off completely (the STANDBY
lamp goes off). The MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily operable.
When the System is on standby, the STANDBY lamp lights red.
When the System is turned on, the STANDBY lamp goes off.
The power can be remote controlled.
CAUTION (SP-THBA3W/RX-THBA3)
The power supply to the subwoofer is linked to the center unit. Disconnect the
mains plug to shut the power off completely (the POWER ON lamp goes off).
The MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
When the System is on standby, the STANDBY/ON lamp lights red.
When the System is turned on, the STANDBY/ON lamp lights blue.
CAUTION
Battery shall not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
To reduce the risk of electrical shocks, fire, etc.:
1.
Do not remove screws, covers or cabinet.
2.
Do not expose this appliance to rain or moisture.
CAUTION
Do not block the ventilation openings or holes. (If the ventilation openings
or holes are blocked by a newspaper or cloth, etc., the heat may not be able
to get out.)
Do not place any naked flame sources, such as lighted candles, on the
apparatus.
When discarding batteries, environmental problems must be considered
and local rules or laws governing the disposal of these batteries must be
followed strictly.
Do not expose this apparatus to rain, moisture, dripping or splashing and
that no objects filled with liquids, such as vases, shall be placed on the
apparatus.
EN
Do not use another AC adaptor to connect this model.
[European Union only]
[Union européenne seulement]
Care of the cabinet
Stains on the System should be wiped off with a soft cloth. If the System
is heavily stained, wipe it with a cloth soaked in water diluted neutral
detergent and wrung well, then wipe clean with a dry cloth.
Since the System may deteriorate in quality, become damaged or get its
paint peeled off, be careful about the following:
DO NOT wipe it forcefully.
DO NOT wipe it with thinners, benzines or other organic solvents including
disinfectants.
DO NOT apply any volatile substances such as insecticides to it.
DO NOT allow any rubber or plastic to remain in contact with it for a long
time.
Do not place anything on top of the System. Doing so may cause the System
to fall, causing malfunctioning and/or injury.
The manufacturer accepts absolutely no liability for any accidents or damage
resulting from inadequate assembly or mounting, insufficient strength of
attachment, misuse or abuse, or natural disasters.
If water gets inside the System
Turn the System off and disconnect the power cord from the wall outlet,
then call the store where you purchased this System. Using the System in this
condition may cause a fire or electrical shock.
Supplied accessories
Check to make sure you have all of the supplied accessories.
If anything is missing, contact your dealer immediately.
Remote control RM-STHBA3A (× 1)
AC adaptor (AA-R1902) (× 2)
AC plug adaptor (× 3)
AC power cord (× 2)
Lithium coin battery CR2025 (× 1)
The battery has been installed in the remote control when shipped from
the factory.
Core filter (large) (× 3)
For the DC power cord and external components cords
Core filter (small) (× 1)
For surround speaker cords
CAUTION: Proper Ventilation
To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows:
1.
Front: No obstructions and open spacing.
2.
Sides/Top/Back: No obstructions should be placed in the areas shown by the dimensions below.
3.
Bottom: Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.
TH-BA3
Front
2 cm
15 cm
RX-THBA3 SP-THBA3S
Mains (AC) Line Instruction
CAUTION for mains (AC) line
BEFORE PLUGGING IN, do check that your mains (AC) line voltage corresponds
with the position of the voltage selector switch provided on the outside of this
equipment and, if different, reset the voltage selector switch, to prevent from a
damage or risk of fire/electric
shock.
For SP-THBA3F, RX-THBA3, SP-THBA3S and SP-THBA3W
This device compiles with RSS-210 of Industry Canada Rules. Operation
is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
For SP-THBA3F, RX-THBA3, SP-THBA3S and SP-THBA3W
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the manufacturer for
compliance could void the user's authority to operate the equipment.
S
pecifications
Center unit (SP-THBA3F)
Output power
120 W (30 W × 4), at 4 Ω (THD 10 %)
Center/ Front Surround:
Audio section
Analog Input
ANALOG: 1 Vrms/50 kΩ
Digital Input*
DIGITAL 1, DIGITAL 2: –21 dBm to –15 dBm
(660 nm ±30 nm)
Speaker section
Type:
Full-Range Bass-Reflex Type (Magnetically-
Shielded Type)
Speaker:
8 cm cone × 4
Power Handling Capacity:
30 W
Impedance:
4 Ω
Frequency Range:
Center Speakers: 84 Hz to 22 kHz
Front Speakers: 84 Hz to 22 kHz
Sound Pressure Level:
Center Speakers: 82 dB/W•m
Front Speakers: 82 dB/W•m
General
Power Source (DC IN):
DC19 V
3.37 A
AC adaptor (AA-R1902):
Input: AC 110-240 V
1.5-0.9 A, 50/60 Hz
Output: DC19 V
3.37 A
Dimensions (W × H × D):
900 mm ×125 mm × 85 mm
Mass:
3.5 kg
Powered subwoofer (SP-THBA3W)
100 W, RMS at 3 Ω at 45 Hz, with 10%
Output power
total harmonic distortion
Type:
1-Way Bass-Reflex Type
Speaker:
16 cm cone × 1
Power Handling Capacity:
100 W
Impedance:
3 Ω
Frequency Range:
45 Hz to 5 kHz
Sound Pressure Level:
82 dB/W•m
Power Requirements:
AC 110 - 127 V/220 - 240 V
with the voltage selector
50/60 Hz
Power Consumption:
30 W (during operation)
1.00 W or less (in Standby mode)
Dimensions (W × H × D):
215 mm × 352 mm × 254 mm
Mass:
5 kg
15 cm
2 cm
15 cm
10 cm
SP-THBA3F
SP-THBA3S SP-THBA3W
Wireless receiver unit (RX-THBA3)
Output power:
30 W per channel, RMS at 4 Ω at
1 kHz, with 10% total harmonic
distortion
Power Source (DC IN):
DC19 V
3.37 A
AC adaptor (AA-R1902):
Input: AC 110 – 240 V
50/60 Hz
Output: DC 19 V
Dimensions (W × H × D):
186 mm × 30.8 mm × 300 mm
Mass:
0.53 kg
Surround speaker (SP-THBA3S)
Type:
Full-Range Bass-Reflex Type
Speaker:
8 cm cone × 1
Power Handling Capacity:
30 W
Impedance:
4 Ω
Frequency Range:
84 Hz to 22 kHz
Sound Pressure Level:
82 dB/W•m
Dimensions (W × H × D):
105 mm × 118 mm × 98 mm
Mass:
0.46 kg each
* Corresponding to Linear PCM, Dolby Digital, and DTS (with sampling frequency
— 32 kHz, 44.1 kHz, 48 kHz)
Designs & specifications are subject to change without notice.
, adjustable
1.5-0.9 A,
3.37 A
