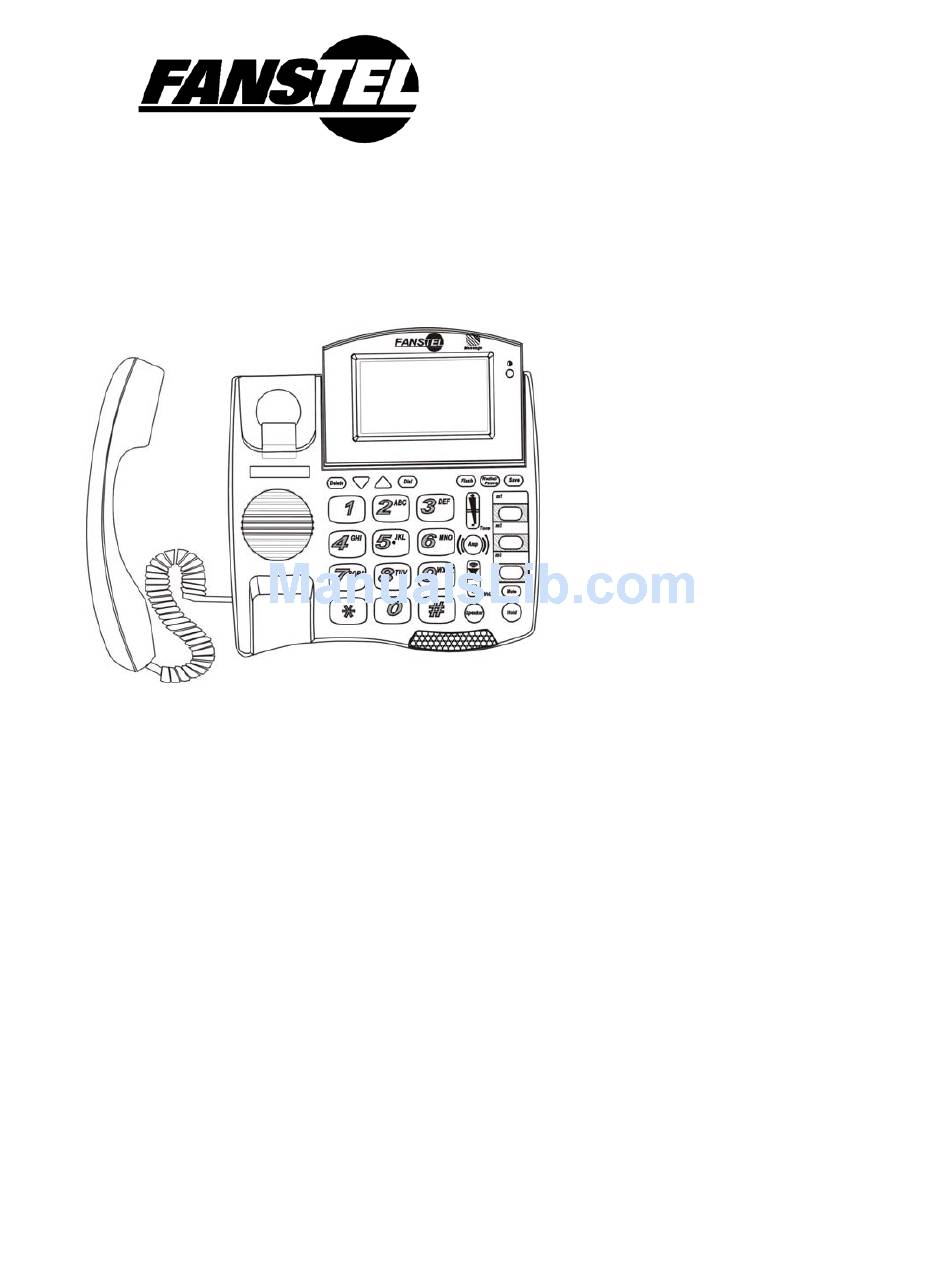

- Page 1 Call Waiting ID Speakerphone Model ST45, ST50 Installation Guide & User Manual 910-1xx...
-
Page 2: Table Of Contents
Table of Contents SETTING UP AND INSTALLING YOUR PHONE ..........1 Introduction ......................1 Important Safety Instructions ................1 Parts Checklist ....................2 Installation ......................4 Wall Mounting ..................... 5 Adjusting the Display Angle ................6 ... - Page 3 UNAVAILABLE, PRIVATE CALL and ERROR Messages ....... 15 IN CASE OF DIFFICULTY ................... 16 Resetting Your Telephone's Programming ............16 Maintenance Information .................. 16 Troubleshooting ....................17 LIMITED WARRANTY ..................17 Warranty Limitation ................... 18 ...
-
Page 4: Setting Up And Installing Your Phone
Setting Up and Installing Your Phone Introduction Congratulations on the purchase of your new telephone. It has been manufactured to very high quality standards for convenient and reliable service. This telephone can be used with "Call Identification (CALLER ID) Service" and/or "Call Waiting CALLER ID Service" that is provided by your local telephone company. -
Page 5: Parts Checklist
Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: (a) When the power supply cord or plug is damaged or frayed. (b) If liquid has been spilled into the product. (c) If the product has been exposed to rain or water. - Page 6 Controls and Functions LCD display Message light - Visual message waiting indicator. ◑ button – to adjust LCD contrast. Flash button – during a call, to access telco’s calling features. Redial/Pause button – to redial last number, or to insert 3 seconds delay during memory button programming.
-
Page 7: Installation
14. Vol. Button – to adjust receiver volume for handset and audio output. 15. Hold button – to put a call on hold. 16. Speaker button – to activate or deactivate speakerphone. 17. Visual ringer and Amplify (retaining amplification) indicators 18. -
Page 8: Wall Mounting
Then, press the Dial button to confirm the selection. _ _ _ Program your area code ENTER AREA CODE (A) After selecting the language, the display flashes 7 DIGITS DIAL "ENTER AREA CODE" and “7 DIGITS DIAL”. (B) If you dial your local calls using 7 digits (e.g., 555- 1212), then enter your local area code, press the Dial button, and go to Step C. -
Page 9: Adjusting The Display Angle
the phone should then have two round plastic holes that can be used to hang your phone on the wall. 4. Use the two round holes to hang the phone on the wall plate on your wall. Important Note: If you do not wish to mount your phone on the wall, the Wall Mount Bracket can be reversed to raise the angle of the phone's display when sitting on a table or desk. -
Page 10: Adjusting The Ringer Volume
Adjusting the Ringer Volume The "RINGER" switch on the back of the phone controls the volume. You can set the "RINGER" switch to "Hi" for a high volume ring, "Md" for a middle volume ring or "Off" to turn the ringer off. The Visual ringer flashes for all incoming calls regardless of the ringer setting. -
Page 11: Adjusting Audio Output Volume
This set of volume and frequency specific tone amplification settings are saved automatically when you replace the handset. Note: If you adjust volume and/or tone amplification settings during a phone call, the new settings are saved automatically. Adjusting Audio Output Volume You can plug in an external speaker with 3.5 mm plug to amplify receiver volume. -
Page 12: Using The Telephone
Using the Telephone Making a Call Pick up the Handset or press the Speaker button, and listen for a dial tone. Using the Keypad, dial the desired telephone number. The number you are dialing will appear on the display as you dial. Editing Telephone Number before Dialing You can enter the telephone number you wish to dial before lifting handset or pressing the Speaker button. -
Page 13: Enabling Amplification For Handset Receiver
While talking on the handset, press the Speaker button to activate the speakerphone. The call can now be heard from the speakerphone. While talking on the speakerphone, simply lift up the handset and the call will be transferred to the handset and will no longer be heard on the speakerphone. Hang up the handset. -
Page 14: Storing A New Number In The Memory Buttons
Copying the Caller’s Number to a Memory Button When the caller’s number you wish to store in a memory 480-948-4928 button is displayed during CALLER ID review, press the FANSTEL CORP Save button. The 3 line of the display indicates “SAVE TO?”. -
Page 15: Caller Id
15 letters) as shown. 480-948-4928 The date and time information is received from your FANSTEL CORP telephone company. If the call came from a different time zone, it will still show the time in your area. The total number of calls that are saved in the Call Memory is displayed after the “#”... -
Page 16: Viewing The Caller Id List
Viewing the CALLER ID List This CALLER ID telephone automatically stores in the Call Memory the CALLER ID information of the last 99 calls received. It keeps track of all calls received, END OF RECORD whether they were answered or not. The oldest call in the Call Memory is always call #1. -
Page 17: Deleting All Calls From The Caller Id List
"hold" and to answer the incoming 480-948-4928 call. To switch back and forth between the two calls, FANSTEL CORP press and release the Flash button. When a Call Waiting call comes in, you may also hang up the current call in order to pick up the waiting call. -
Page 18: Unavailable, Private Call And Error Messages
listen to your new message, the message waiting indicators will turn off automatically after a short delay. If these indicators remain on even after you have listened to all your messages, you can manually clear the indicators by pressing the Delete button when “MESSAGES”... -
Page 19: In Case Of Difficulty
In Case of Difficulty Resetting Your Telephone's Programming Electrostatic or power surge (e.g., from lightning) may cause the phone to lock up. There are two ways to reset this phone. Basic reset • Disconnect the telephone line cord from the phone. •... -
Page 20: Troubleshooting
To receive a caller's information, turn off the Call Forwarding feature. Important Note: Make sure you have followed all the instructions in this booklet. If you continue to have problems, call Fanstel Customer Service at (480) 948-4928. Limited Warranty This warranty applies only to products purchased and used in the United States. -
Page 21: Warranty Limitation
Scottsdale, AZ 85260 Warranty Limitation Implied warranties, including those of fitness for a particular purpose and merchantability (an unwritten warranty that the product is fit for ordinary use), are limited to one year from date of purchase. We will not pay for loss of time, inconvenience, loss of use of your product, or property damage caused by your product or its failure to work, or any other incidental or consequential damages. -
Page 22: Repair Instructions
(that is, your phone number), and b) The telephone equipment’s FCC registration number and ringer equivalence number (REN). These numbers are on the back or bottom of your telephone equipment. The REN is used to determine how many devices you may connect to your telephone line and still have them ring when your telephone line is called.
