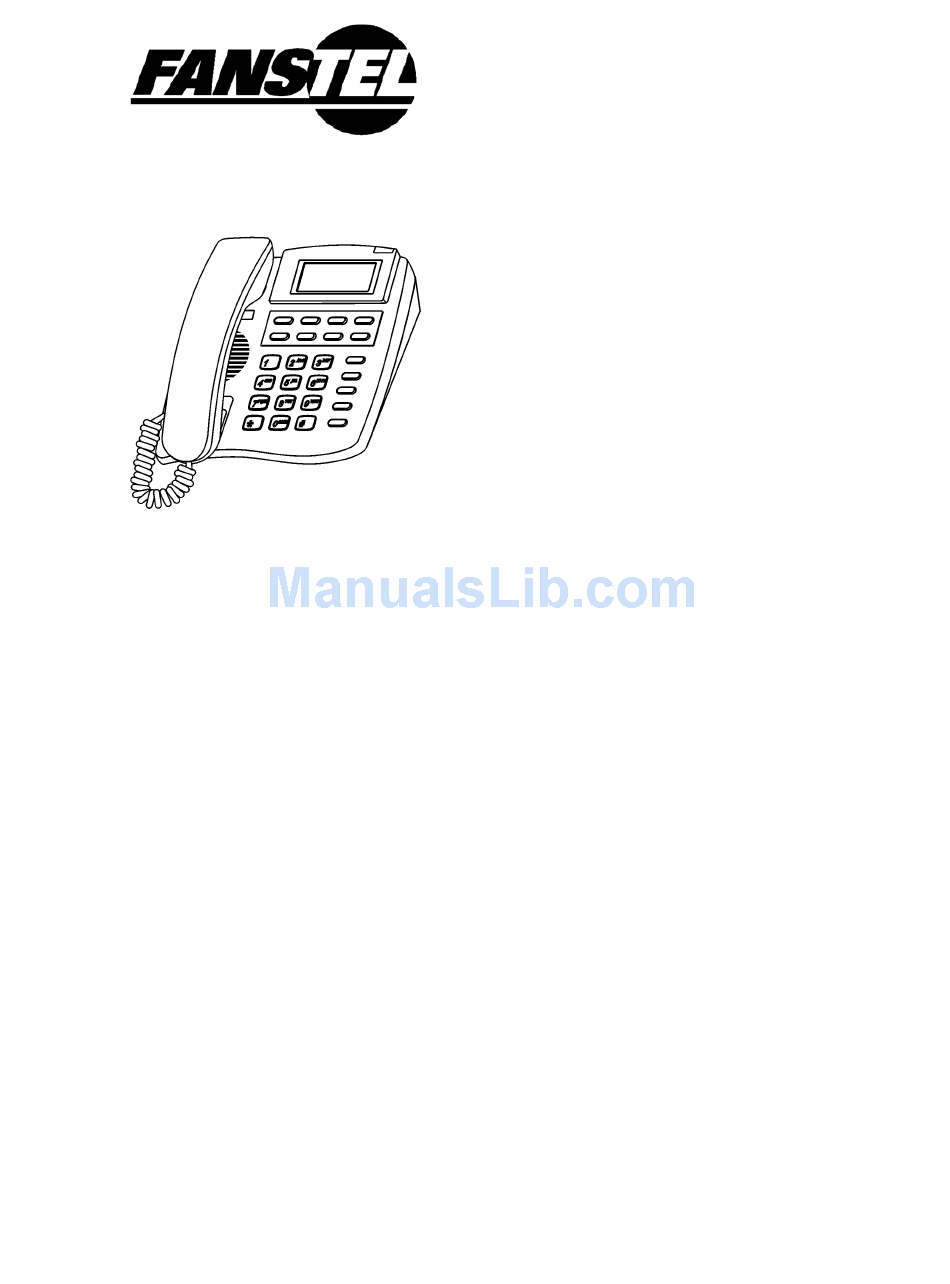

- Page 1 Call Waiting ID Telephone OWNER’S MANUAL MODEL BT118 1107...
-
Page 2: Table Of Contents
Table of Contents SETTING UP AND INSTALLING YOUR PHONE ........1 Introduction .................... 1 Important Safety Instructions ..............1 Parts Checklist ..................2 Controls and Functions ................. 3 Installation ..................... 4 Wall Mounting ..................6 ... - Page 3 UNAVAILABLE, PRIVATE CALL and ERROR Messages ....15 IN CASE OF DIFFICULTY ..............16 Resetting Your Telephone's Programming ......... 16 Maintenance Information ..............17 Troubleshooting ................... 17 LIMITED WARRANTY ................18 Warranty Limitation ................18 ...
-
Page 4: Setting Up And Installing Your Phone
Setting Up and Installing Your Phone Introduction Congratulations on the purchase of your new telephone. It has been manufactured to very high quality standards for convenient and reliable service. This telephone can be used with "Call Identification (Caller ID) Service" and/or "Call Waiting Caller ID Service"... -
Page 5: Parts Checklist
Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. Do not attach the power cord to building surfaces. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. -
Page 6: Controls And Functions
Controls and Functions Caller ID and buttons: Press to review caller ID records. Delete button: Press to delete one record; or press and hold to delete all caller ID records. Save button: Press to begin programming of a memory button. Redial/Pause button: Press to redial the last number dialed. -
Page 7: Installation
Menu button: Press to begin or to end display language selection and area code programming. Flash button: Press during a call to access calling features by the telephone company. Memory buttons: These memory buttons can be pre-programmed with number and name for one-touch dialing. Hold button: Press to put a call on hold. - Page 8 Selecting a language When the phone is powered up for the first time, the display flashes “SELECT LANUGAGE” and “>ENG ESP”. To select English, press the “1” button. To select Spanish, press the “2” button. SELECT LANGUAGE To select French, press the “3” button. >ENG Then, press the Dial/Enter button to confirm the selection.
-
Page 9: Wall Mounting
Press the Menu or Save button to save these operating settings and to exit the menu mode. After installation, lift the telephone's Handset and listen for the dial tone. If there is no dial tone, check to make sure all cords are firmly plugged into their jacks. -
Page 10: Adjusting The Display Angle
the wall plate on your wall. Important Note: If you do not wish to mount your phone on the wall, the Wall Mount Bracket can be reversed to raise the angle of the phone's display when sitting on a table or desk. Adjusting the Display Angle You can optimize the LCD display by adjusting the viewing angle. -
Page 11: Using The Telephone
Using the Telephone Making a Call Pick up the Handset and listen for a dial tone. Using the Keypad, dial the desired telephone number. The number you are dialing will appear on the display as you dial. Receiving a Call When you hear the phone ring, simply pick up the handset from the handset cradle. -
Page 12: Redialing
Redialing You can redial the last number you called with just one touch of the Redial button. This lets you easily redial the same number again if the line was busy. Pick up the handset and listen for a dial tone. Press the Redial button and the last number you dialed will be shown on the display and will be automatically dialed. -
Page 13: Copying The Caller's Number And Name To A Memory Button
Caller 480-948-4928 ID review, press the Save button. The 3 line of the FANSTEL CORP display indicates “SAVE TO?”. You can save this caller’s number and name into a memory button by pressing the desired memory button (e.g., M1). -
Page 14: Caller Id
If your Caller ID service includes the caller's 10:30am 8/16 #60 name, then the caller’s name also appears on 480-948-4928 the display (up to 15 letters) as shown. FANSTEL CORP The date and time information is received from Page 11... -
Page 15: New Calls And Total Calls
your telephone company. If the call came from a different time zone, it will still show the time in your area. There is a synchronized real-time clock on the display when the telephone is not in use. The total number of calls that are saved in the Call Memory is displayed after the “#”... -
Page 16: Calling Back A Number From The Caller Id List
OF RECORD", press the ▲ button and the screen will display the first record in the Call Memory. If you press the ▼ button, the screen will display the last record in the Call Memory. Important Note: The telephone's buttons will not work while the phone is ringing, or for a few seconds afterward. -
Page 17: Deleting All Calls From The Caller Id List
Deleting All Calls from the Caller ID List To delete all the calls stored in Call Memory at once, press and hold the Delete button for 5 seconds. The entire list of calls will be completely cleared and the display shows "DEL DEL ALL! ALL!”. -
Page 18: Unavailable, Private Call And Error Messages
UNAVAILABLE, PRIVATE CALL and ERROR Messages Certain messages may appear instead of a caller's name and/or number: The screen will display "UNAVAILABLE" if a call is made through a telephone 2:00pm 8/15 #42 company which does not offer the Caller ID _ _ _ _ _ _ _ _ _ _ _ _ service. -
Page 19: In Case Of Difficulty
In Case of Difficulty Resetting Your Telephone's Programming Electrostatic or power surge (e.g., from lightning) may cause the phone to lock up. There are two ways to reset this phone. Basic reset Disconnect the telephone line cord from the phone. ... -
Page 20: Maintenance Information
To receive a caller's information, turn off the Call Forwarding feature. Important Note: Make sure you have followed all the instructions in this booklet. If you continue to have problems, call the FANSTEL Product Service Center at (480) 948-4928 or (800) 556-0007. -
Page 21: Limited Warranty
Send all of this to: FANSTEL, ATTN: WARRANTY REPAIR 7466 E. MONTE CRISTO AVE SCOTTSDALE, AZ 85260... -
Page 22: What This Warranty Does Not Cover
inconvenience, loss of use of your product, or property damage caused by your product or its failure to work, or any other incidental or consequential damages. Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above exclusions or limitations may not apply to you. -
Page 23: Connection And Use With The Nationwide Telephone Network
Connection and Use with the Nationwide Telephone Network The FCC requires that you connect your product to the nationwide telephone network through a modular telephone outlet or jack. The modular telephone outlet or jack to which the telephone must be connected is a USOC RJ-11C or RJ-11W. -
Page 24: Interference Information: Part 15 Of Fcc Rules
opportunity to correct the problem, and you will be informed of your right to file a complaint with the FCC notified as soon as possible. Your telephone company may make changes in its facilities, equipment, operations, or procedures that could affect the proper functioning of your product. If such changes are planned, you will be notified. -
Page 25: Save These Instructions
Terminal Equipment Technical Requirements documents(s). The Department does not guarantee the equipment will operate to the user’s satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection.
