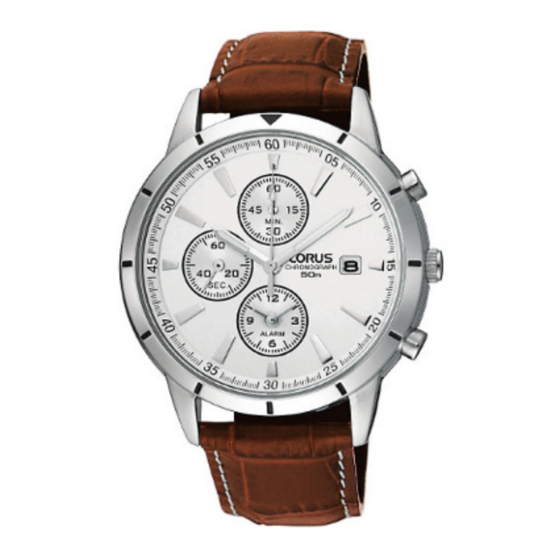

LORUS RF3 SERIES Instruction Manual

NRE7T62
I
NSTRUCTION
C H A R A C T E R I S T I C S
1 . T i m e : Indicated by the hour, minute and
small second hands.
2 . D a t e :
3 . S t o p w a t c h : Measures up to 60 minutes
in 1/5 second increments.
• S p l i t t i m e m e a s u r e m e n t
4 . S i n g l e - t i m e a l a r m :
only once at a designated time within the
coming 12 hours.

DISPLAY AND CROWN OPERATION

Stopwatch minute hand
Hour hand
Small
second hand
Alarm hour hand
C r o w n
a . Normal position : Free
b . First click
c . Second click
SETTING THE TIME AND ADJUSTING
THE STOPWATCH HAND POSITION
• T h i s w a t c h i s s o d e s i g n e d t h a t
1 ) m a i n t i m e s e t t i n g ,
2 ) a l a r m h a n d a d j u s t m e n t a n d
3 ) s t o p w a t c h h a n d p o s i t i o n a d j u s t m e n t
a r e a l l m a d e w i t h t h e c r o w n a t t h e s e c o n d
c l i c k p o s i t i o n . O n c e t h e c r o w n i s p u l l e d
out to the second click, be sure to make all
t h e a b o v e a d j u s t m e n t s a t t h e s a m e t i m e .
1 ) M a i n t i m e s e t t i n g
Hour hand
Small
second hand
1 . P u l l o u t t h e c r o w n t o t h e s e c o n d c l i c k
w h e n t h e s m a l l s e c o n d h a n d i s a t t h e 1 2
o'clock position.
* If the stopwatch is measuring or stopped, it is
a u t o m a t i c a l l y r e s e t t o " 0 " .
* If the alarm has been set, the alarm hands will
t u r n t o i n d i c a t e t h e c u r r e n t t i m e .
2 . Turn the crown to set the hour and minute
hands.
* I t i s r e c o m m e n d e d t h a t t h e h a n d s b e s e t t o
t h e t i m e a f e w m i n u t e s a h e a d o f t h e c u r r e n t
time, taking into consideration the time required
to set the alarm hands and to adjust the stopwatch
h a n d p o s i t i o n i f n e c e s s a r y .
N o t e s :
1 . W h e n s e t t i n g t h e h o u r h a n d , b e s u r e t o
c h e c k t h a t A M / P M i s c o r r e c t l y s e t . T h e
watch is so designed that the date changes
o n c e i n 2 4 h o u r s .
2 . When setting the minute hand, first advance
i t 4 t o 5 m i n u t e s a h e a d o f t h e d e s i r e d
t i m e a n d t h e n t u r n i t b a c k t o t h e e x a c t
m i n u t e .
2 ) A l a r m h a n d a d j u s t m e n t
• S e t t h e a l a r m h a n d s t o t h e t i m e t h e m a i n
t i m e h a n d s i n d i c a t e .
Hour hand
Alarm hour hand
Press button "B" repeatedly to set the alarm
h a n d s t o t h e t i m e i n d i c a t e d b y t h e m a i n
time hands.
* T h e h a n d s m o v e q u i c k l y i f b u t t o n " B " i s k e p t
p r e s s e d .
3) Stopwatch hand position adjustment
• I f t h e s t o p w a t c h h a n d s a r e n o t i n t h e " 0 "
position, follow the procedure below to set
t h e m t o t h e " 0 " p o s i t i o n .
Sto p watch
1 /5 -s econ d
hand
1. Press button "A" for 2 seconds.
* The stopwatch minute hand turns a full circle.
2 . P r e s s b u t t o n " B " r e p e a t e d l y t o s e t t h e
stopwatch minute hand to the "0" position.
* T h e h a n d m o v e s q u i c k l y i f b u t t o n " B " i s k e p t
p r e s s e d .
3. Press button "A" for 2 seconds.
* T h e s t o p w a t c h 1 / 5 - s e c o n d h a n d t u r n s a f u l l
c i r c l e .
4 . P r e s s b u t t o n " B " r e p e a t e d l y t o s e t t h e
s t o p w a t c h 1 / 5 - s e c o n d h a n d t o t h e " 0 "
p o s i t i o n .
* T h e h a n d m o v e s q u i c k l y i f b u t t o n " B " i s k e p t
p r e s s e d .
• T h e a l a r m a n d s t o p w a t c h h a n d s c a n b e r e -
adjusted in the following order by pressing
b u t t o n " A " f o r 2 s e c o n d s .
A larm
han ds
↑
* For the adjustment method, see the steps above.
A f t e r a l l t h e a d j u s t m e n t s a r e c o m p l e t e d ,
push the crown back in to the normal position
in accordance with a time signal, checking
that the main time and alarm hands indicate
the same time.
S E T T I N G T H E D A T E
• B e f o r e s e t t i n g t h e d a t e , b e s u r e t o s e t t h e
m a i n t i m e .
• It is necessary to adjust the date at the end
o f F e b r u a r y a n d 3 0 - d a y m o n t h s .
1 . Pull out the crown to the first click.
2 . Turn the crown clockwise until the desired
date appears.
3 . Push the crown back in to the normal position.
N o t e s :
1 . D o n o t s e t t h e d a t e b e t w e e n 9 : 0 0 p . m .
a n d 1 : 0 0 a . m . O t h e r w i s e , t h e d a t e m a y
n o t c h a n g e p r o p e r l y .
2 . D o n o t p r e s s b u t t o n " B " w h e n t h e c r o w n
i s a t t h e f i r s t c l i c k p o s i t i o n , a s t h i s w i l l
m o v e t h e a l a r m h a n d s .
S T O P W A T C H
• The stopwatch can measure up to 60 minutes
i n 1 / 5 s e c o n d i n c r e m e n t s .
• After 60 minutes, it will start counting again
f r o m " 0 " r e p e a t e d l y u p t o 1 2 h o u r s .
S to pwat ch
minute hand
Stopwatch 1/5-second hand
B e f o r e u s i n g t h e s t o p w a t c h , b e s u r e t o
c h e c k t h a t t h e c r o w n i s s e t a t t h e n o r m a l
position and that the stopwatch hands are
r e s e t t o t h e " 0 " p o s i t i o n .
* I f t h e h a n d s d o n o t r e t u r n t o t h e " 0 " p o s i t i o n ,
follow the procedure in "
A N D A D J U S T I N G T H E S T O P W A T C H H A N D
P O S I T I O N " .
S t o p w a t c h o p e r a t i o n
S t a n d a r d m e a s u r e m e n t
A
S t a r t
CAL. 7T62 (RF3 SERIES)
Displayed in numerals.
: • Date setting
: • Main time setting
Stopw a tc h
→
minute hand
A
S t o p
M
ANUAL
Can be set to ring
6
Alarm minute hand
• Alarm time setting
• A d j u s t i n g t h e a l a r m
hands to the current
ti m e
• Adjusting the stopwatch
hand position
Minute hand
6
Minute hand
6
B
Alarm minute hand
S to pw at ch
minute hand
A
6
B
→
1/5-second hand
6
B
A : S t a r t /
6
B : S p l i t /
SETTING THE TIME
B
R e s e t
06-2001
Minute hand
A
D a t e
a b c
Crown
B
S to pwat ch
1/5-s econ d
h and
S to pwat ch
D a t e
S t o p
S p l i t
r e l e a s e /
R e s e t
