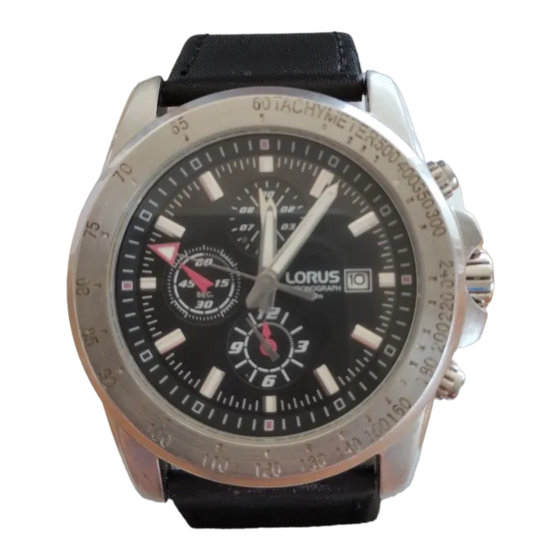

LORUS RF8 Series Instruction Manual

NRE7T92
I
NSTRUCTION
CAL. 7T92 (RF8 SERIES)
C H A R A C T E R I S T I C S
1 . T i m e : Indicated by the hour, minute and
small second hands.
2 . D a t e : Displayed in numerals.
3 . S t o p w a t c h : Measures up to 12 hours in
1/20 second increments.
• S p l i t t i m e m e a s u r e m e n t

DISPLAY AND CROWN OPERATION

Stopwatch
1/20-second hand
Hour hand
Small
second hand
Stopwatch hour hand
C r o w n
a . Normal position : Free
b . First click : Date setting
c . Second click : • Time setting
• Adjusting the stopwatch
SETTING THE TIME AND ADJUSTING
THE STOPWATCH HAND POSITION
• T h i s w a t c h i s s o d e s i g n e d t h a t
1 ) t i m e s e t t i n g a n d
2 ) s t o p w a t c h h a n d p o s i t i o n a d j u s t m e n t
are both made with the crown at the second
c l i c k p o s i t i o n . O n c e t h e c r o w n i s p u l l e d
o u t t o t h e s e c o n d c l i c k , b e s u r e t o m a k e
t h e a b o v e a d j u s t m e n t s a t t h e s a m e t i m e .
1 ) T i m e s e t t i n g
Hour hand
Small
second hand
1 . P u l l o u t t h e c r o w n t o t h e s e c o n d c l i c k
w h e n t h e s m a l l s e c o n d h a n d i s a t t h e 1 2
o'clock position.
06-2001
M
ANUAL
Minute hand
A
D a t e
a b c
Crown
B
Stopwatch
second hand
Stopwatch minute hand
hand position
Minute hand
* If the stopwatch is measuring or stopped, it is
a u t o m a t i c a l l y r e s e t t o " 0 " .
2. Turn the crown to set the hour and minute
h a n d s .
* I t i s r e c o m m e n d e d t h a t t h e h a n d s b e s e t t o
t h e t i m e a f e w m i n u t e s a h e a d o f t h e c u r r e n t
time, taking into consideration the time required
to adjust the stopwatch hand position if necessary.
N o t e s :
1 . W h e n s e t t i n g t h e h o u r h a n d , b e s u r e t o
c h e c k t h a t A M / P M i s c o r r e c t l y s e t . T h e
watch is so designed that the date changes
o n c e i n 2 4 h o u r s .
2 . When setting the minute hand, first advance
i t 4 t o 5 m i n u t e s a h e a d o f t h e d e s i r e d
t i m e a n d t h e n t u r n i t b a c k t o t h e e x a c t
m i n u t e .
2) Stopwatch hand position adjustment
• I f t h e s t o p w a t c h h a n d s a r e n o t i n t h e " 0 "
position, follow the procedure below to set
t h e m t o t h e " 0 " p o s i t i o n .
Stopwatch
second hand
Stopwatch
hour hand
1. P r e s s b u t t o n " A " f o r 2 s e c o n d s t o s e l e c t
the stopwatch hand(s) to be adjusted. The
s e l e c t i o n o f t h e h a n d ( s ) t o b e a j u s t e d i s
m a d e i n t h e f o l l o w i n g o r d e r b y p r e s s i n g
button "A" for 2 seconds.
Stopwatch Stopwatch
→
1/20-second s e c o n d
hand hand
↑
* T h e s e l e c t e d h a n d ( s ) t u r n ( s ) a f u l l c i r c l e .
2 . P r e s s b u t t o n " B " r e p e a t e d l y t o s e t t h e
s e l e c t e d s t o p w a t c h h a n d ( s ) t o t h e " 0 "
p o s i t i o n .
* T h e h a n d m o v e s q u i c k l y i f b u t t o n " B " i s k e p t
p r e s s e d .
3. A f t e r a l l t h e a d j u s t m e n t s a r e c o m p l e t e d ,
push the crown back in to the normal position
in accordance with a time signal, checking
t h a t t h e h o u r a n d m i n u t e h a n d s f o r t i m e
display indicate the current time.
S E T T I N G T H E D A T E
• B e f o r e s e t t i n g t h e d a t e , b e s u r e t o s e t t h e
t i m e .
• It is necessary to adjust the date at the end
o f F e b r u a r y a n d 3 0 - d a y m o n t h s .
1. Pull out the crown to the first click.
2. Turn the crown clockwise until the desired
date appears.
3 . Push the crown back in to the normal position.
N o t e : D o n o t s e t t h e d a t e b e t w e e n 9 : 0 0
p . m . a n d 1 : 0 0 a . m . O t h e r w i s e , t h e
d a t e m a y n o t c h a n g e p r o p e r l y .
Stopwatch
1/20-second hand
A
B
Stopwatch
minute hand
Stopwatch
→
hour and minute
h a n d s
D a t e
B
