Brooks 8600 Quick Installation Manual

Startup the Compressor in Local Mode

See 8040707, 8600 Compressor Installation, Operation, and Maintenance Instructions, for details.
1. Ensure that the power is connected to the compressor. Turn it on and start cryopump operation.
2. Use the allen wrench provided with the compressor (part number 7024020P001) to press the RST switch.
The indicator lights cycle from STS 1 through STS 8 continuously.
3. When the STS 4 indicator lights, press the RST switch.
This switches the compressor to Local mode. You can now control it manually.
The PWR LED and RDY LED indicators light up (Figure 2) and the alarm buzzer stops, indicating the
compressor is ready for operation.

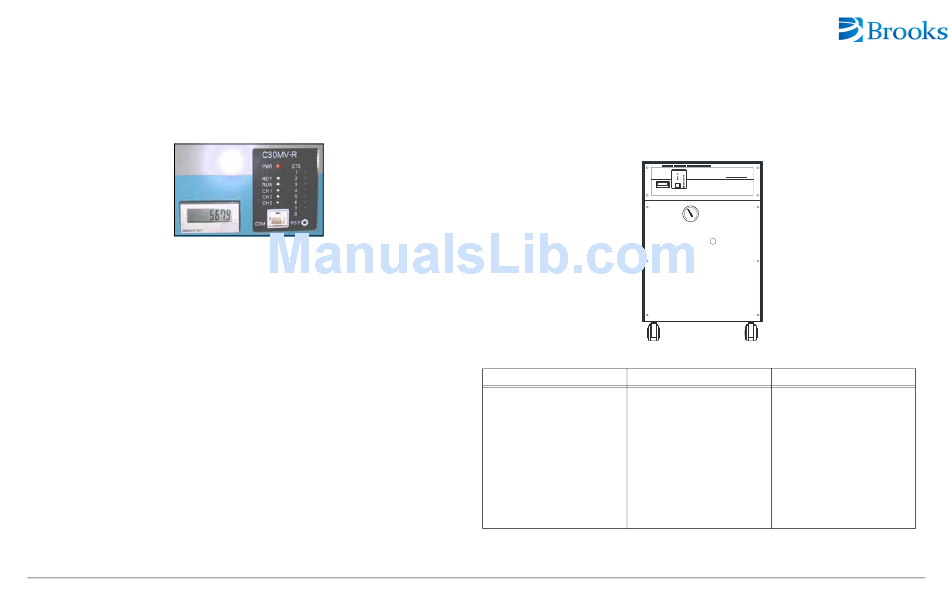

Figure 2: Operation Ready
NOTE: If the alarm does not stop and all STS indicators (8) light up, you might be using the reverse phase of input power
cable. In this case, rewiring of the input power cable is required. See 8040707 for troubleshooting information.
4. After the second stage temperature for the cryopumps is below 17K, record the compressor pressure gauge
reading as the normal system operating pressure.
Product Information and Technical Support
Please visit the Brooks Automation website at www.brooks.com or email to tscallcenter@brooks.com.
4 Copyright 2013, Brooks Automation Inc Part Number 8040743, Revision A, 01/11/2013
8600 Compressor
Quick Installation Guide
Part Number 8040743, Revision A, 01/11/2013
ECO Number 63723
Cooling Water
Maximum Inlet Temperature: < 101 psig
(0.7MPA (gauge)
Minimum Inlet Temperature: 40º F (5º C)
Flow Rate: 1.0~3.3 gpm (5~15L/min)
Pressure Drop (Inlet-to-outlet): 2.9 - 24.6
psi (0.02~0.17MPa). Refer to Water Flow
Rate chart in product manual, 8040707.
Maximum Inlet Pressure: < 101 psig (< 0.7
MPa (gauge))
ECO Number 63723 Brooks Automation
C30PVRT
PWR STS
1
RDY 2 CTI-CRYOGENICS
RUN 3
HELI X TECHNOLOGY CORPORATI O N
Ch1 4
5
6
7
8 8600
COM RST
Compressor

8600 Compressor Specifications

General
Part Number: 8175001G003 Power Source: 190 - 220 VAC 50Hz and
Input Power Cable: Supplied 200 - 230 VAC 60Hz
Static Helium Pressure: 200 psig ± 6 psi Phase: 3
(1.4 ± 0.04MPa) Power (Normal Operation): 5.2kW @ 50 Hz
Interface: Cryopump power receptacle and 6.8kW@60 Hz
mates with CTI-Cryogenics-supplied Minimum Electrical Service: 30 AMPS
cryopump power cable for single pump use.
Gas Supply And Return Connectors: 1/2-
inch Aeroquip® Self-sealing Couplings
Remote Control Receptacle: Supplied
Adsorber Service Schedule: 24,000 Hours
Inclination Angle: < 5º
Ambient Operating Temperature: 50 - 100º
F (10 ~ 38º C)
Must be installed in a dust-free and moisture-
free area
www.brooks.com
800-367-4887 USA
978-262-2400 International
Electrical
