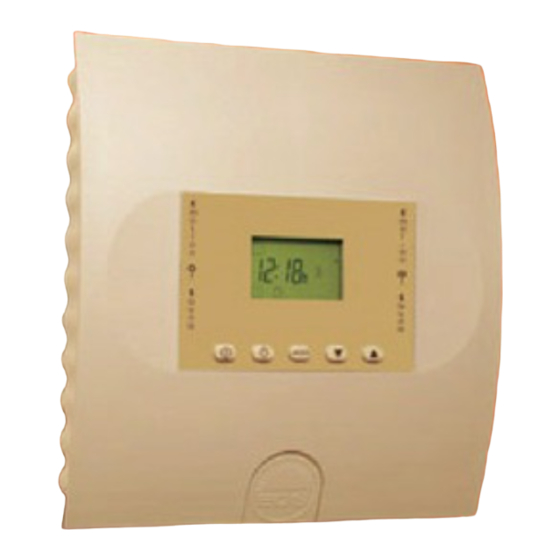

EMOTEC B6000
Assembly and operating instruction
GB
Made in Germany
IPX4
Druck Nr. 29342340en
10.12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMOTEC B6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for EOS EMOTEC B6000

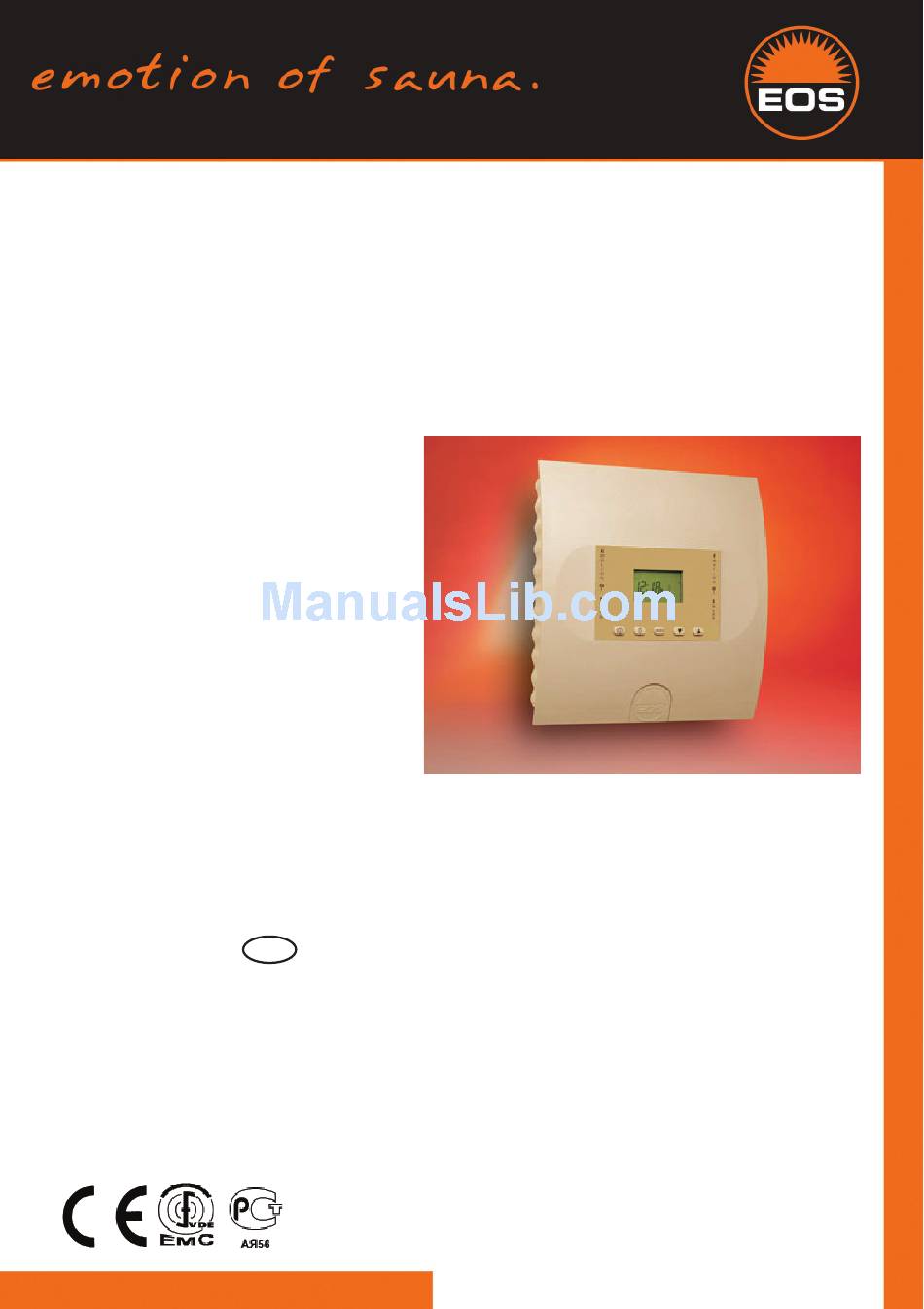

  • Page 1 EMOTEC B6000 Assembly and operating instruction Made in Germany IPX4 Druck Nr. 29342340en 10.12...
  • Page 2: Table Of Contents

    English Table of Contents Package contents ....................3 Technical data ......................3 General information concerning sauna bathing ............4 General safety precautions ..................5 Assembly of the control unit ..................6 Wall mounting....................6 Electrical connection ....................7 Connecting the sauna oven ..................7 Connecting the sauna lamp ..................7 Installation diagram ...................8 Connection of the sauna heater ................8 Connecting the sensor lines ................9...
  • Page 3: Package Contents

    Package contents (subject to change) Included with the control unit are: 1. An heater-sensor board with overheat shutoff protection, KTY-sensors with sensor housing , two 3x25 mm fastening screws and a 2,0 m long sensor cable, red and white. 2. A plastic bag with three 4 x 20 mm fastening screws. 3.
  • Page 4: General Information Concerning Sauna Bathing

    General information concerning sauna bathing Dear customer, with purchase of this sauna control unit you For the cabin light use only light bulbs. Do opted for a superior quality, high-tech elec- not use fl uorescent lamps, energy saving tronic device which was developed and lamps and gas discharge lamps.
  • Page 5: General Safety Precautions

    General safety precautions • his device has not been designed for being • Please note the safety and installation in- used by persons (including children) that formation from the sauna oven manufac- are physically or mentally handicapped turer. or have sensory disabilities. Moreover, it •...
  • Page 6: Assembly Of The Control Unit

    Assembly of the control unit Wall mounting Mount the control unit outside the sauna cabin only. The most practical mounting point would be the wall area onto which the sauna oven is mounted on the inside, except on the outside of the cabin. If elec- trical conduits are present, mount the con- trol unit accordingly.
  • Page 7: Electrical Connection

    Electrical connection Connecting the sauna oven The electrical connection may only be done by a qualifi ed electrical technician under authority of the regulations of the Assemble the sauna oven according to the local power supply company and those instructions provided by the manufacturer in of the VDE.
  • Page 8: Installation Diagram

    Installation diagram = alternativ Emotec 400 V 3 N AC 50 Hz Connection of the sauna heater AC 400 V 3N DC 12 V / 24 V 142°C KTY 11/5 S1 light fan max. 100 W max. 100 W P max. 9 kW 400 V 3N AC 50 Hz...
  • Page 9: Connecting The Sensor Lines

    Connecting the sensor lines 2. Drill a hole to lead the cable through, pre- ferably through the middle of one of the ou should not install sensor and power sup- wooden boards. ply lines together, or lead them through the 3.
  • Page 10: Operation

    Operation Button Functions Mode Operating Lamp Program button Selection switch on - off on - off buttons Symbol description Time Heating (dry) Pre-selected time Ventilation function Heating time If the control box does not pick off voltage after closure, please check the position of the control box switch (Switch-Off).
  • Page 11: Unit Initialization

    Unit initialization After checking all connections once more, connect the unit to the power supply by swit- ching on the fuse and the main switch. On the display appears 12:00 and the clock symbol begins to blink. After a short time (30 seconds) you can start with programming.
  • Page 12: Finnish Sauna Operation

    Turn on the unit by pressing the left but- ton. Simultaneously, this turns on the cabin lighting and the backlit display. 20:00 Finnish sauna operation After switching on the unit, the display al- ternates between the time of day and the remaining heating time.
  • Page 13: Important Notes When Programming

    Important notes when programming Every modifi cation of the preset parameters must be confi rmed by pressing the „MODE“ button. If you do not press the „MODE“ button, the unit will automatically default back to the pre- vious parameters. If you do not touch the unit for a longer period of time during programming, the display will default back to standard and the illumination will cease after a short time.
  • Page 14: Deactivating The Preset Time

    After a short time, the display alternates between current time and startup time. The display illumination goes out. 20:00 When the pre-selected start-up time is reached, the sauna switches itself on. After the designated heating time it then shuts itself back off automatically. 17:10 Deactivating the preset time To deactivate the preset time, press the...
  • Page 15: Changing The Default Temperature

    Afterwards P2 shortly appears, then the dis- play returns to default readout. The maximum heating time now matches the entered value 20:00 until changed again (re-start required). Changing the default temperatu- By default the temperature for Finnish opera- tion is set to 95°C. To change this parameter, press the „MODE“...
  • Page 16: Programming Fan Operation

    Programming fan ope- ration This control unit lets you operate a fan. By factory default, „no fan operation“ is specifi ed. To program the fan function, fi rst press the „MODE“ button to reach the programming mode. Px then appears on the display. Press the button repeatedly to reach the program level P4.
  • Page 17: Programming Current Time

    Programming current time To reach this program level, press the „MODE“ button and the button simul- taneously until F1 is displayed, as well as the clock symbol. You can change the time with function F1. Confi rm with the „MODE“ button and the previously set time begins to blink with the 20:00 clock symbol.
  • Page 18: The Control Unit Switch

    The control unit switch The control unit switch can be found on the Control unit switch top end of the unit. Using this switch, you can isolate the electronics from the mains supply in case of a breakdown. = unit swit- ched on Please note that operating the control unit switch returns all settings to the factory...
  • Page 19: Service Address

    Service Address: Outside of Germany please contact your EOS Saunatechnik GmbH specialist dealer in case of warranty claims. Adolf-Weiß-Straße 43 Direct warranty processing with our service 35759 Driedorf-Mademühlen, Germany department is in this case not possible.
  • Page 20: Handling Procedures For Return Shipments (Rma) - Details For All Returns

    Handling procedures for return shipments (RMA) - Details for all returns ! Dear customer we hope that you will rejoice in the ordered articles. Just in case that you are not entirely contented as an exeption, please follow the procedures specified below.This enabling us to ensure a quick and smooth handling of the return shipment.
