DMP Electronics 1114 Installation Manual

Description

The 1114 Wireless Four-Zone Expander increases the number of reporting zones available on DMP Panels. Use the
four zones with burglary or other non-powered devices. The 1114 is designed to operate on one CR123A battery or
connect to an optional 12 VDC power supply.

Compatibility

All DMP 1100 Series Wireless Receivers and Panels

What is included

The 1114 includes the following:
• One 1114 Wireless Four-Zone Expander
• One 3.0V Lithium CR123A battery
• Hardware pack with 470k EOL Resistors
• Serial number label
Optional items available:
• Model 376L DC Power Supply
• Model 505-12 12 VDC Power Supply

Serial Number

For your convenience, an additional pre-printed serial number label is included. Prior to installing the zone
expander, record the serial number or place the pre-printed serial number label on the panel programming sheet.
This number is required during programming.

Programming the 1114 in the Panel

Program the 1114 Wireless Four-Zone Expander as a zone in Zone Information. At the Serial Number: prompt, enter
the eight-digit serial number. Continue to program the zone as directed in the panel programming guide. Refer to
the XR500 Series Programming Guide (LT-0679), the XR100 Series Programming Guide (LT-0896), the XT30/XT50 Series
Programming Guide (LT-0981), the XTL Programming Guide (LT-1108), or the XTLN Programming Guide (LT-1221) as
needed.
Note: When a receiver is installed, powered down and powered up, the panel is reset, or programming is complete,
the supervision time is reset. If the receiver has been powered down for more than one hour, the 1114 may take
up to an additional hour to send a supervision message unless tripped, tampered, or powered up. This operation
extends battery life. A missing message may display on the keypad until the supervision message is sent.

Selecting the Proper Location (LED Survey Operation)

The 1114 provides a survey capability to allow one person to confirm communication with the receiver while the
cover is removed. The 1114 PCB Red Survey LED (See Figure 2) turns on whenever data is sent to the receiver then
immediately turns off when the receiver acknowledgement is received. Pressing the tamper switch is a convenient
way to send data to the receiver to confirm operation. When the 1114 does not receive an acknowledgement from
the receiver the survey LED remains on for about 8 seconds to let you know communication is not established.
Communication is also faulty when the LED flashes multiple times in quick succession. Relocate the 1114 or
receiver until the LED immediately turns off indicating the 1114 and receiver are communicating properly. Proper
communication between the 1114 and receiver is verified when for each press or release of the tamper switch, the
LED blinks immediately on and immediately off.
1114 Wireless Four-Zone Expander
Inst alla tIon GuIde
Squeeze to
Remove Cover

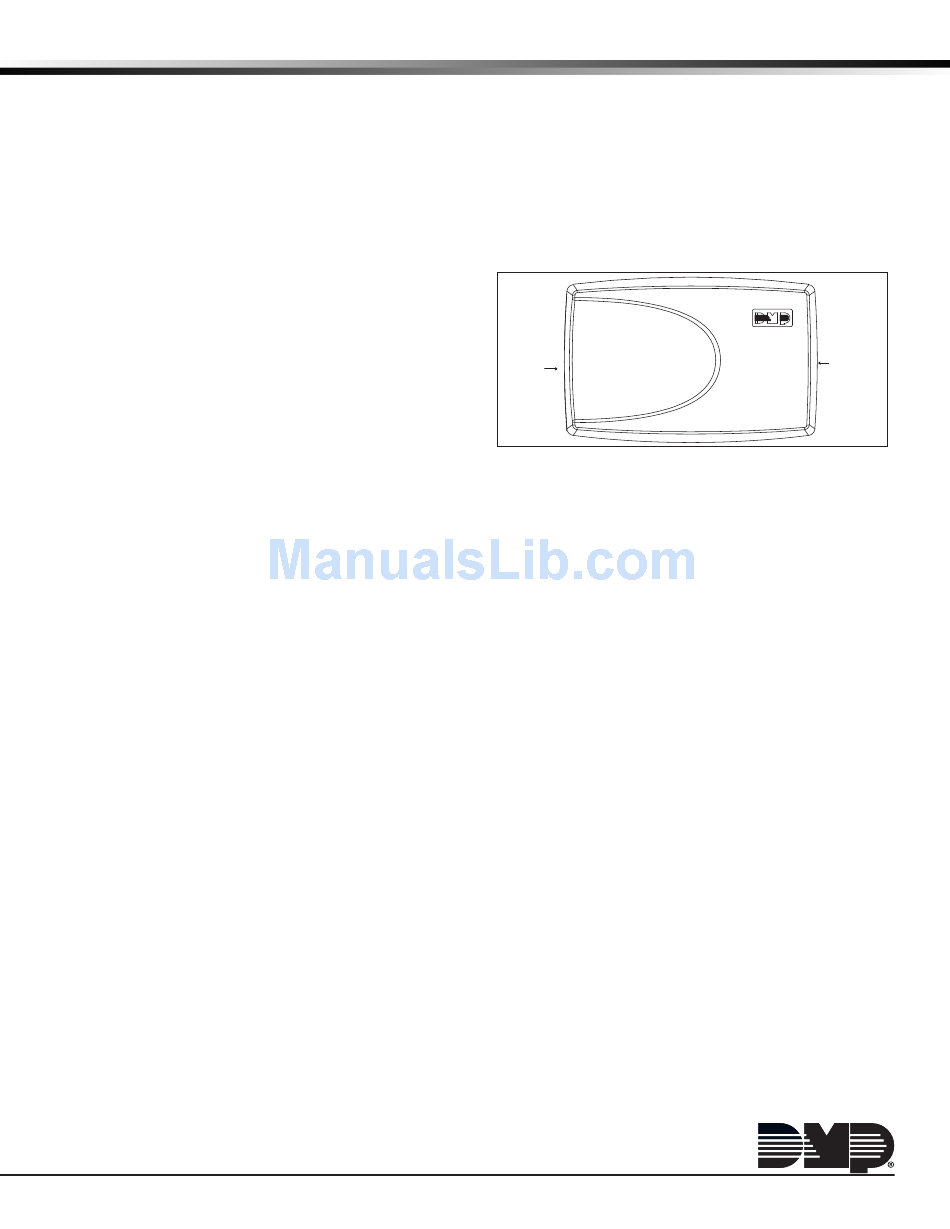

Figure 1: 1114 Wireless Four-Zone Expander
Squeeze to
Remove Cover
