DMP Electronics 1114 Installation Manual

1114 WIRELESS FOUR-ZONE
EXPANDER

Installation Guide

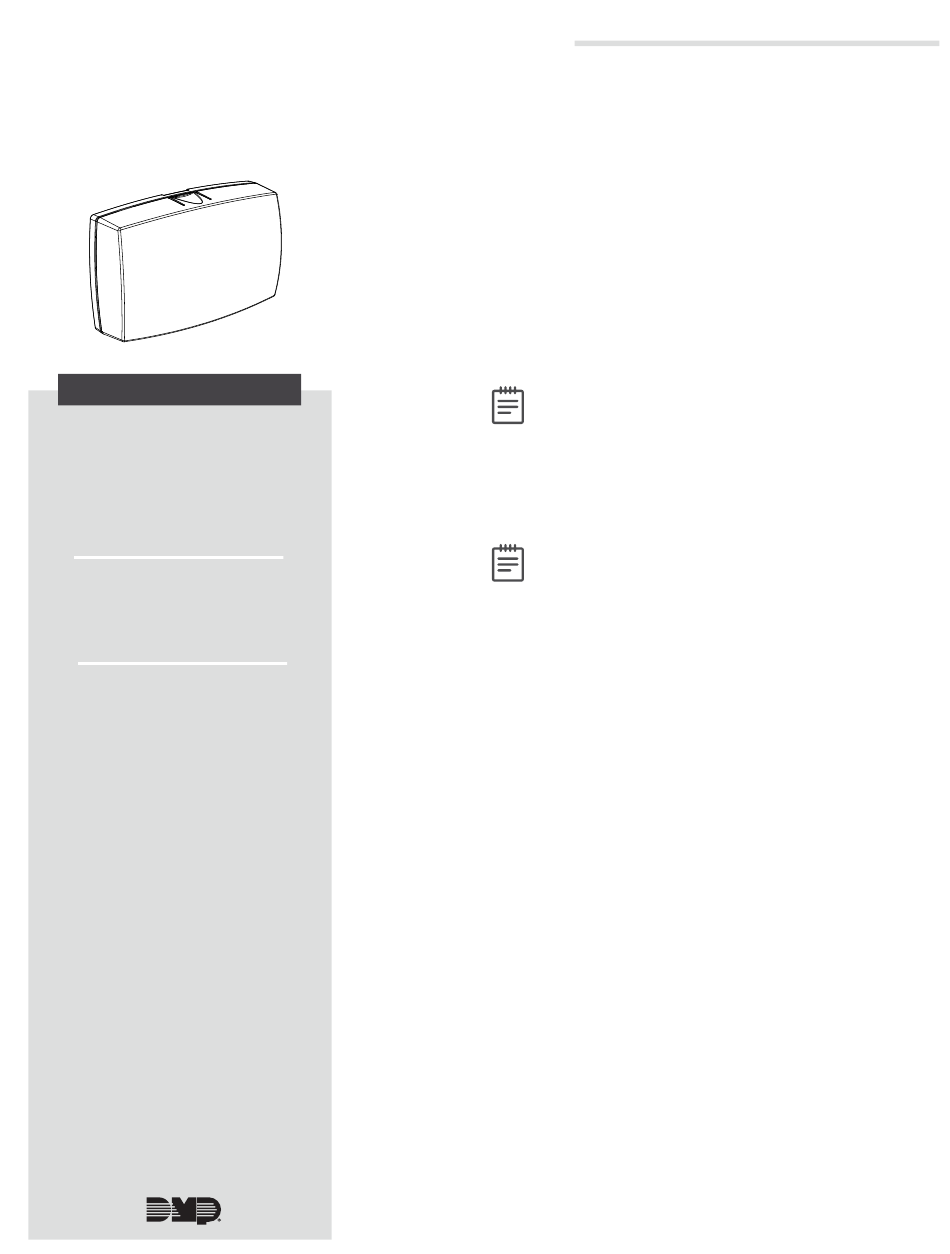

Figure 1: 1114 Wireless Expander
DESCRIPTION
The 1114 Wireless Four-Zone Expander
allows up to 4 additional hardwired
zones to report wirelessly to the control
panel. Use the four zones with burglary
or other non-powered devices. The
expander is designed to operate on
one CR123A battery or connect to an
optional 12 VDC power supply.
Compatibility
• All DMP 1100 Series Panels
• Wireless Receivers v104 and higher
What is Included?
• 1114 Wireless Four-Zone Expander
• 3 V Lithium CR123A battery
• Hardware pack with 470k EOL
Resistors
1
PROGRAM THE PANEL
Refer to the panel programming guide as needed.
In ZONE INFORMATION, enter the wireless
1.
ZONE NO: and press CMD.
2. Enter the ZONE NAME and press CMD.
3. Select the ZONE TYPE and press CMD.
4. At NEXT ZN?, select NO.
5. Select YES when WIRELESS? displays.
6. Enter the eight-digit SERIAL# and press CMD.
Enter the CONTACT number being used.
7.
Note: The 1114 Tamper reports on Contact 1 only.
If Contact 1 is not programmed into the panel
as a zone, the 1114 cannot report tamper to the
control panel.
8. Enter the SUPRVSN TIME and press CMD.
9. At the NEXT ZN? prompt, select YES and
continue to program up to three more zones.
Note: Zones must be entered sequentially. For
example, if you program zone 71, you need to
program zone 72 as the next contact. Use the
same serial number for each contact.
2
POWER THE DEVICE
Power the device with a 3 V lithium battery or a
12 VDC power supply. Do not install a battery if the
device is being powered by a power supply. The
power supply does not charge the battery.
CR123A 3 V Lithium Battery
Observe polarity when installing the included CR123A
battery.
1. Remove the housing cover.
2. Install the supplied jumper on the two pins next
to BAT on the power source header.
3. Place the battery in the holder and press it into
place.
4. Snap the cover back into place.
