LC-XSP2600
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-XSP2600 and is the answer not in the manual?

Questions and answers

Related Manuals for Eiki LC-XSP2600

Summary of Contents for Eiki LC-XSP2600

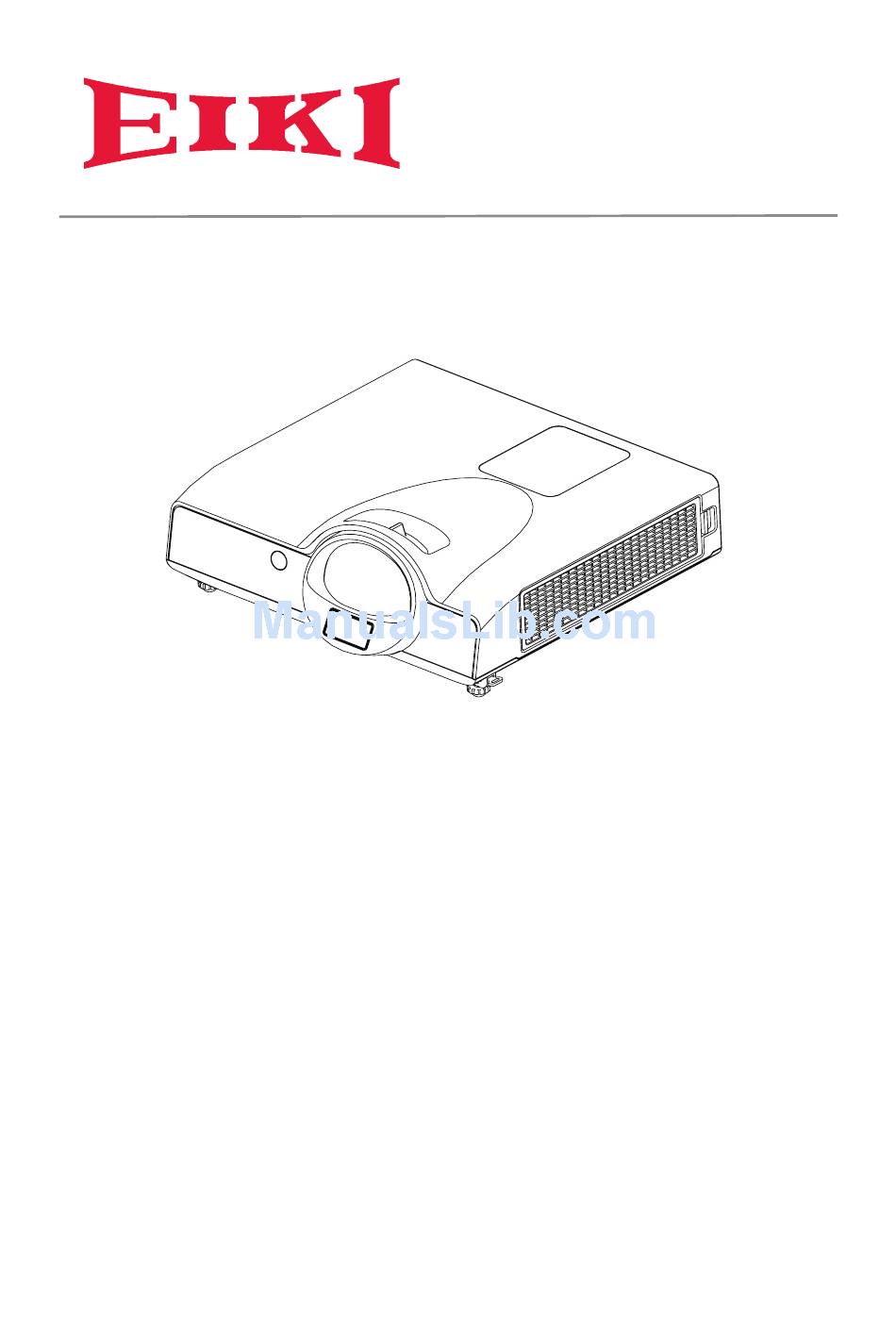

  • Page 1 LC-XSP2600 OWNER'S MANUAL...
  • Page 2 Projector About the Owner’s Manual Please read the owner’s manual thoroughly to ensure correct usage of the projector and its features. After reading, store the owner’s manual in a safe place for future reference. Features 1. Short Throw 2. Dress up Design 3.

  • Page 3: Table Of Contents

    Contents Contents About Owner’s Manual Contents .............................1 Contents of Your Box ........................3 Safety Instructions ..........................4 Safety Labels............................8 Part Names ............................9 Projector ......................... 9 Touch Keypad....................... 10 Rear ..........................11 Setting Up ............................12 Arrangement ........................12 Power ON / OFF ......................13 Setting Up The Projector ....................
  • Page 4 Contents Network Control Software Application-Browser Control ............40 Auto IP address setting....................40 Item Setting description....................41 Status ..........................42 Control........................... 43 Network ......................... 44 Alert ..........................45 Schedule ........................46 Network Control Software Application-Software Control............47 Activate Network Control Software................47 Projector Auto Search....................48 Modify The Projector Setting.

  • Page 5: Contents Of Your Box

    Contents of Your Box Safety Instructions Contents of Your Box Please make sure that following items are included in the box. If any items are missing, contact your dealer please.. 1. Projector 2. Remote control 4. Quick Start Guide 3. Owner’s Manual CD 5.

  • Page 6: Safety Instructions

    Safety Instructions The projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product. This symbol indicates information that, if ignored, could possibly WARNING result in personal injury or even death.
  • Page 7 Safety Instructions WARNING If a problem should occur If smoke or strange odors arise, continued use could result in fire or electrical shock. In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer for repairs. Never attempt to make repairs yourself because this is dangerous. Do not use this projector if there is no image or sound, or if the sound is distorted.
  • Page 8 Safety Instructions WARNING Do not look through the lens when the lamp is on. Never look through the lens when the lamp is on. The powerful light could adversely affect vision. Use special caution in households where children are present. Avoid shock or impact on the projector.
  • Page 9 Safety Instructions CAUTION Placing heavy objects on top of this projector could result in loss of balance or falling and cause personal injury or damage the projector. Do not block the ventilation openings of this projector. Blocking ventilation could lead to internal overheating which could result in fire. Do not place this projector on its side during use or push it into a small, poorly ventilated location.

  • Page 10: Safety Labels

    Safety Labels Safety Labels Safety labels are used on or within the projector to alert you to items or areas requiring your attention. WARNING LABEL EMI Label LAMP DOOR WARNING LABEL...

  • Page 11: Part Names

    Part Names Part Names Projector Touch Keypad Operating system. Filter cover Prevents dust and other foreign particles from being drawn into projector. Remove the filter cover to clean the air Front filter. IR receiver Foot adjust button Lock / unlock the adjustable foot. Front adjustable foot Extend and retract to adjust the projection angle.

  • Page 12: Touch Keypad

    Part Names Touch Keypad INPUT 1 13 VOLUME + / - Select input source: Sound louder or lower. RGB 1 RGB 2 DVI-I MENU S-Video Video Y,Pb,Pr Display or hide the OSD main menu Note : AUTO 1 10 If the projector can not be captured the Automatically adjust the setting to match signals within 15 minutes, it will be shut the current input.

  • Page 13: Rear

    Part Names Rear REAR IR RECEIVER Please see page 37 Network Control Application for details. Connect a USB mouse cable to a computer SPEAKER to control computer mouse functions. RS232 AUDIO IN 3, R / L RCA type corresponds to video input. Serial data port for controlling the projector with a computer or other RS-232 control VIDEO...

  • Page 14: Setting Up

    Setting Up Setting Up Arrangement 1. Before installation, make sure that the projector is turned off and the power cord is disconnected. 2. Do not set up and move the projector, while it is hot. 3. The distance between the projector and screen determines the actual image size. Refer to the table below to determine the screen size at a given distance.

  • Page 15: Power On / Off

    Setting Up Turning On The Power Power ON / OFF 1. Make sure that power cord is firmly and correctly connected to the projector. 2. The green Power indicator blinks slowly. 3. Remove the lens cover. 4. Press POWER button on the Touch Keypad or the remote control to turn on the projector.

  • Page 16: Setting Up The Projector

    Setting Up Setting Up The Projector The projector supports the following four different projection methods. 1. Front projection 3. Rear ceiling projection 2. Rear projection 4. Front ceiling projection 90˚ The projector can be installed pitched by any 0˚ 180˚ angle (360 degree) without any setting in fan mode.

  • Page 17: Ceiling Mounted Installation Guide

    Setting Up Ceiling Mounted Installation Guide Attach ceiling mount at four-suspension bracket fixing points when suspending from a ceiling. Special installation is required in order to suspend the projector from the ceiling. Please ask your dealer for details. MAX M4x8 mm For Mounting Security Anchor The product is equipped with security anchor and PIN LOCK (See page 33 for detials) functions to help prevent unauthorized removal of the projector.

  • Page 18: Adjusting The Projector's Elevation

    Setting Up Adjusting The Projector’s Elevation Use the adjustable foot at the front of the projector to set the image height. Holding the projector, push the foot adjust CAUTION buttons to loosen the front adjustable foot. Position the front side of the projector to the * The adjustment range of front adjustable desired height.

  • Page 19: How To Connect

    Setting Up How To Connect Laptop or desktop computer MOUSE RS-232 AUDIO OUT DVI OUT AUDIO OUT VGA OUT VGA OUT RGB IN Speaker or DVD Player S-VIDEO OUT Pb/Cb Pr/Cr AUDIO IN VIDEO OUT AUDIO OUT (L)&(R) Before starting, make sure that the projector and computer are both turned off. Connect the computer Connect the computer cable from the computer to the projector's RGB IN or DVI-I IN.
  • Page 20 Setting Up How To Connect Laptop or desktop computer Connect the audio cable if necessary 1. Please connect the audio cable to the AUDIO IN 1 if the computer cable is connected to the projector's RGB IN. 2. Please connect the audio cable to the AUDIO IN 2 if the computer cable is connected to the projector's DVI-I IN.

  • Page 21: Remote Control

    Remote Control Remote Control Batteries Installation 1. Remove the battery cover. 2. Load the batteries. Make sure the poles are correctly oriented. 3. Close the battery cover. Caution ►Avoid excessive heat and humidity. ►Do not drop the remote control. ► I f the remote control will not be used for an extended period, remove the batteries. ► D o not expose the remote control to water or moisture. This could result in malfunction. ► R eplace the battery when remote control operation becomes sluggish or unresponsive. ► D o not place the remote control close to the exhaust ventilation opening of the projector, because the exhaust air is hot.

  • Page 22: Usb Cable

    Remote Control (Optional) Remote Control POWER Power on / operation mode, Standby mode, Cool down mode. INPUT Select input source : RGB 1 RGB 2 DVI-I S-Video Y,Pb,Pr Video MENU Display or hide the On-Screen Display main menu page. Press to select On-Screen Display menu item.

  • Page 23: Menu Operation

    Menu Operation How To Operate On-Screen Display 1. Press "Menu" button. Following menu will appear. 2. Press up / down / left / right button on touch keypad or remote control to select item or adjust value. Up / Down / Right / Left button Menu button...

  • Page 24: Menu (Pc Mode)

    MENU (PC Mode) MENU (PC Mode) Picture Menu Step: 1. U se the ▲ /▼ buttons to select an item. 2. U se the ◄ / ► cursor buttons to select an item or adjust the value. Item Selection Description BRIGHTNESS 000/100 Adjust the image brightness level. CONTRAST 000/100 Adjust the image contrast level.

  • Page 25: Audio Menu (Pc Mode)

    MENU (PC Mode) Audio Menu Step: 1. U se the ▲ /▼ buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description VOLUME 00/40 Adjust the volume. MUTE OFF/ON Mute the volume OFF / ON.

  • Page 26: Setting Menu (Pc Mode)

    MENU (PC Mode) Setting Menu Step: 1. U se the ▲ /▼buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description Move the image position horizontally. H POSITION 000/100 This function can be used under computer signal input only. Move the image position vertically.

  • Page 27: Menu (Video Mode)

    MENU (Video Mode) MENU (Video Mode) Picture Menu Step: 1. U se the ▲ /▼ buttons to select an item. 2. U se the ◄ / ► cursor buttons to select an item or adjust the value. Item Selection Description BRIGHTNESS 000/100 Adjust the image brightness level. CONTRAST 000/100 Adjust the image contrast level.

  • Page 28: Audio Menu (Video Mode)

    MENU (Video Mode) Audio Menu Step: 1. U se the ▲ /▼ buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description VOLUME 00/40 Adjust the volume. MUTE OFF/ON Mute the volume OFF / ON.

  • Page 29: Setting Menu (Video Mode)

    MENU (Video Mode) Setting Menu Step: 1. U se the ▲ /▼buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description AUTO KEYSTONE OFF/ON Automatically Correct keystone distortion in image. V KEYSTONE -70/+70 Correct vertical keystone distortion in image manually.

  • Page 30: Menu

    MENU Advanced Menu Step: 1. U se the ▲ /▼buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description ZOOM / PAN EXECUTE Execute digital zoom and pan function. FREEZE OFF/ON Freeze the current image on the screen.
  • Page 31 MENU Advanced Menu LOGO SETTING This function allows you to customize the start-up logo. In order to access this page PIN code is required. Item Selection Description Select Mode( ► cursor button) DEFAULT The factory logo. LOGO MODE USER The image you captured. The blank image. You can select color with background function.

  • Page 32: Logo Capture

    MENU Advanced Menu Logo Capture How to use this function?   S elect Logo Capture item in the logo setting menu, then press ► button.  R ed frame will appear to select captures area. Image  U se 4 direction buttons to adjust the position of the frame.

  • Page 33: Presentation Menu

    MENU Presentation Menu Step: 1. U se the ▲ /▼buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description Automatically invert the image when the projector is turned AUTO CEILING OFF / ON upside down, i.e.

  • Page 34: Reset Lamp Timer

    MENU Presentation Menu Reset Lamp Timer The lamp timer is the time counted after the last resetting. The usage time of the lamp is shown in the PRESENTATION Menu. Select the “RESET LAMP TIMER” if the lamp timer is required to reset. The dialog of “Reset Lamp Timer ?” is shown on the screen as below.

  • Page 35: Security Menu

    MENU Security Menu Step: 1. U se the ▲ /▼buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description OFF: Turn off PIN lock protection. ON 1: After plugging in AC power, you need to key in PIN code at the first time of use. If the AC power stays unplugged, you do not need to key in PIN code next time when you use the projector.
  • Page 36 MENU Security Menu Step: 1. U se the ▲ /▼buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description FILTER TIMER Show the filter use time. RESET FILTER EXECUTE Reset the filter timer after cleaning / changing filter. TIMER 500 hours Select (500 / 800 / 1000 hours) depending on the FILTER COUNTER 800 hours environment.(default : 500 hours).
  • Page 37 MENU Security Menu Step: 1. U se the ▲ /▼buttons to select an item. 2. U se the ◄ / ► buttons to select an item or adjust the value. Item Selection Description PROJECTOR Default is Projector network setting display which shows bits that can NAME Projector be recognized by ASCII.

  • Page 38: Auto Filter Alert

    MENU Auto Filter Alert Auto Filter Alert in SECURITY category shows the air filter use time and alerts user to change filter. When the operating time reaches the set time, a warning message will appear on the screen to remind user of filter cleaning /replacing. Filter Replace... Filter has been used for more than 500 hours. NOTE ► Please reset the Filter time only when you replace the filter.

  • Page 39: Pin Key In Operation

    MENU PIN Key In Operation When the projector is turned on and the PIN LOCK PROTECTION is set to [ON], the image will show as on the right side. 1. Press the MENU button on the projector or remote control. Enter PIN code by keypad or remote control.

  • Page 40: Network Control Software Application

    Network Control Software Application Network Control Software Application Procedure to utilize this function Network Control is provided in visual interface, it can help user to monitor and manage the projector(s) status in the local area network. 1. Register the projector(s) which needs to be controlled. "...

  • Page 41: Before Using Network Control Software

    Network Control Software Application Before Using Network Control Software 1. If the system is Windows 2000, XP or Vista, the PC should be started by the Administrator. 2. Before starting the Network Control software, please check the following. (2-1) The computer must have Network Control software installed. (2-2) The projector should be powered on and the LAN wire is well connected to projector.

  • Page 42: Network Control Software Application-Browser Control

    Network Control Software Application-Browser Control There are two ways to connect to the network control: Browser Control and Software control. Browser Control Auto IP address setting (DHCP setting is "ON"): (1) Enable DHCP from the projector on-screen-display menu, under "SECURITY \ LAN SETTING". (2) Please wait for the PC server to release IP address to the projector.

  • Page 43: Item Setting Description

    Network Control Software Application-Browser Control Item Setting description: ITEM SETTING DESCRIPTION Status Show current projector status and network configuration settings. Control Select projector’s detailed setting from this page. Network Set up network configuration and password from this page. Alert Show and setup Alert configurations. Schedule Show and set up Schedule, including Weekly Schedule and Specific Day. If the Administrative & User password is enabled, select your User Name and enter password to login. ADMINISTRATOR MODE adminstrator name: admin default password: 0000...

  • Page 44: Status

    Network Control Software Application-Browser Control Status : Show current projector status and network configuration settings. ITEM SETTING DESCRIPTION IP Address Show current IP address. System Status Show if projector is Power On or Inactive *. Projector Name Show projector name. Group Name Show group name. Lamp Hours Show lamp used hours on current projector.

  • Page 45: Control

    Network Control Software Application-Browser Control Control: Select projector’s detailed setting from this page. ITEM SETTING DESCRIPTION Basic Projector Name Show projector name on the current projector. System Status how if projector is Power On or Inactive . Power Switch Power On or Power Off the projector via network. Input Source Select input source.

  • Page 46: Network

    Network Control Software Application-Browser Control Network : Set up network configuration and password from this page. ITEM SETTING DESCRIPTION Network DHCP Assign an IP address to the projector from the DHCP server automatically. IP Address Set up IP Address when DHCP is disabled. Subnet Mask Set up Subnet Mask when DHCP is disabled. Gateway Set up Gateway when DHCP is disabled.

  • Page 47: Alert

    Network Control Software Application-Browser Control Alert: Show and setup Alert configurations. When problem occurs to the projector, it will automatically send e-mail to remind user. How to opearte: 1. Enter Email Setting columns. 2. Enter SMTP Setting columns. 3. Select Alert Condition. Multiple choices are fine. 4. Press Submit to confirm. 5. A fter completing Alert Setting for the first time, it is recommended that you press Issue Test Mail to see if the attendees can receive the e-mail. If the attendees cannot receive the e-mail, please check if the setting is correct or not.

  • Page 48: Schedule

    Network Control Software Application-Browser Control Schedule : Show and set up Schedule, including Weekly Schedule and Specific Day. Weekly Schedule To power on and power off projector based on Weekly Schedule. How to set up: 1. Choose week days. 2. Set up power-on or power-off time. ( Please be sure that the interval between power-on and off setting is more than 5 minutes.) 3.

  • Page 49: Network Control Software Application-Software Control

    Network Control Software Application-Software Control Software Control Activate Network Control Software Execute the Network Control Software.  M onitor window below appears.  <Graph 1>...

  • Page 50: Projector Auto Search

    Network Control Software Application-Software Control Projector Auto Search. C lick the (Projector search), then the Search Window below appears.  <Graph 2> NOTE If the security warning window appears, please select "Unblock" to allow the Network Control software to work. C lick (search again), then the target projectors will be listed as follows.

  • Page 51: Modify The Projector Setting

    Network Control Software Application-Software Control Modify The Projector Setting I f you need to modify the projector’s setting, please move mouse cursor to the table  on the left and press button on the column. The contents of the setting will appear on the right side table.

  • Page 52: Sorting The Projector

    Network Control Software Application-Software Control Sorting the projectors P rojector can be sorted easily by clicking the monitor window title (Group Name) or  (Projector Name). <Graph > A fter registering, you can click button (Data single capture) in the tool bar or ...

  • Page 53: Delete

    Network Control Software Application-Software Control Delete S elect the registered projector in monitor window. Click mouse right key and select  "Delete" to erase the registered projector data. < Graph 6 > : Register Table.

  • Page 54: Projector Setting

    Network Control Software Application-Software Control Projector Setting (Setting for individual projector) S elect the registered projector in monitor window. Click mouse right key and select  " projector setting" to modify the registered projector data. After finishing the setting, you can save by clicking button or cancel by clicking button. < Graph 7 > : Register table. <...

  • Page 55: System Setting

    Network Control Software Application-Software Control System Setting (Setting for all projectors) Click button (system setting) to modify system alert setting.  Saving the setting < Graph 9 > <Graph 10> Note: Alert setting in System Setting vs Projector Setting Whenever the " "...

  • Page 56: Monitor / Default Setting / Auto Scan Timer

    Network Control Software Application-Software Control System Setting Monitor Item Description Lamp Timer Read lamp use time from projector. Air Filter Alert Read Air Filter Timer from projector. System Status/ Read System Status and Temperature from projector in Power On Tempeture Level status.

  • Page 57: Saving The Project File

    Network Control Software Application-Software Control Saving the Project File Save the Configuration above as Project File by clicking the save button in the Tool bar in the Monitor window before closing Network Control Software. If it is not saved, all the configuration above will be lost. From next time after starting this Network Control Software the configuration can be recovered easily by opening the Project File.

  • Page 58: Link

    Network Control Software Application-Software Control Link(Controlling Projector) S elect the registered projector in monitor window. Click mouse right key and select  "Link" to show the control panel table and the projector connecting status. < Graph 12 > : The control panel table...

  • Page 59: Power Control / Input Source / Function Key

    Network Control Software Application-Software Control P ower Control  Icon Name Power on Power off I nput Source  Icon Name Video S-Video Y, Pb, Pr / Y, Cb, Cr DVI-I RGB 1 Change Input Source F unction Key  Icon Name Icon...

  • Page 60: Function Key / Projector Status

    Network Control Software Application-Software Control Function Key  Icon Name Lower Contrast Zoom In Zoom Out Volume Up Volume Down Projector Status  Icon Name System Status Input Source Status Lamp Timer Air Filter Timer...

  • Page 61: Network Control Window Introduction

    Network Control Software Application-Software Control Network Control Window introduction  Icon Name Description Capture the all registered projectors’ information one Scan all time only. According to the system setting, get the projector Start Auto Scan information automatically. Stop Auto Capture Stop scanning the projector information.

  • Page 62: Maintenance Of Projector

    Maintenance of Projector Filter When a warning message appears to remind you to clean the air filter, please replace a new one as soon as possible. Please check and clean the air filter periodically. How to clean or replace the filters Turn off the projector, and unplug the power cord. Wait to allow the projector to cool down sufficiently. 1. Push up the white stopper of the Filter cover and remove it from the side of projector as shown below.

  • Page 63: Lamp / Replacing New Lamp

    Maintenance of Projector Lamp Please turn off the projector and unplug the AC power cord. And then, let the projector cool down at least 60 minutes. Replacing New Lamp(Part Number:23040035) 1. Remove the lamp door. 2. Loosen 2 screws of the lamp holder. Hold the handle on the top of the lamp, pull out the lamp straight off the projector.
  • Page 64 Maintenance of Projector WARNING The projector uses a high-pressure mercury lamp. The explosion of lamp with a loud bang or burn out could possibly cause injury or a fire. When the bulb bursts, it is possible for shards of glass to fly into the lamp housing; and for gas containing mercury to escape from the projector’s vent holes. If the lamp has broken, do not check the inside of the projector. Please ventilate the room immediately.

  • Page 65: Additional

    Maintenance of Projector Additional - In order to ensure the safe use of your projector, please contact your dealer to inspect about once a year. - Before maintenance, make sure the power cable is unplugged, allow the projector to cool sufficiently. The high temperature state of the projector could cause a burn in and/ or malfunction to the projector.

  • Page 66: Troubleshooting

    Troubleshooting Indicator The power and lamp indicators show the status of the projector. Before requesting repair, check the projector status using the chart below. If the problem cannot be resolved, contact your dealer. In normal status~~~ POWER LAMP CONDITIONS DESCRIPTION Blinking In Projector is ready to be turned Stand by mode...

  • Page 67: Error For Machine Defects

    Troubleshooting Error For Machine Defects The following problems may be confused with a machine defect. Check and follow the table. If it couldn’t be improved, contact your dealer. Symptom Cause / Remedy The power cord is disconnected. Plug the power cord into an AC outlet. Intending to turn on the projector again during the cool down mode.
  • Page 68 Troubleshooting Error For Machine Defects Symptom Cause / Remedy The projector is not connected correctly. Check audio cable if connect correctly. The volume is set to minimum. No audio Adjust the volume. Mute is turned on. Press the MUTE button. No battery.

  • Page 69: List Of Supported Monitor Displays

    Troubleshooting List of Supported Monitor Displays Computer mode / DVI-I mode Signal Refresh Rate (Hz) Resolution (dots) 640x480 VESA 60 / 72 / 75 / 85 640x480 SVGA 56 / 60 / 72 / 75 /85 800x600 60 / 70 / 75 / 85 1024x768 SXGA 70 / 75...

  • Page 70: Appendix

    Appendix Technical Specifications Mechanical Information Projector Type Short-Throw Multimedia Projector Dimensions(WxHxD) 360 x 348 x 132 mm Net Weight 4.1 kg Feet Adjustment up to 7° Panel Resolution LCD Panel System 0.63" TFT LCD Panel, 3 panels Panel Resolution 1,024 x 768 dots Number of Pixels 2,359,296 (1,024 x 768 x 3 panels) Signal Compatibility...
  • Page 71 Appendix Appendix Menu Tree (PC Mode) Brightness Contrast PICTURE Sharpness Natural Display Mode Cinema Daylight Green Board White Board Black Board User Front Auto Ceiling Ceiling Rear Volume AUDIO Ceiling And Rear PRESENTATION Lamp Mode Mute Lamp H Position Reset Lamp Timer V Position Phase Frequency...
  • Page 72 Appendix Menu Tree (Video Mode) Brightness Front Contrast Ceiling PICTURE Auto Ceiling Rear Sharpness Ceiling And Rear PRESENTATION Lamp Mode Color Lamp Tint Natural Reset Lamp Timer Cinema Display Mode Daylight Green Board White Board Black Board PIN Lock Protection On 1 User On 2...
  • Page 73 Appendix Appearance Screw for Ceiling Mounted M4x8mm 4pcs...
  • Page 74 Appendix Configurations of Terminal Analog RGB Input/Output (1) Connections(15P HD-Sub) (2) Pin Number Define Pin NO. Signal Name Connection R signal Input G signal Input G/Sync. On G B signal Input N.C. N.C. R return(GND) G return(GND) B return(GND) N.C. N.C. N.C. Signal return(GND) N.C.
  • Page 75 Appendix Digital Visual Intergace(DVI-I) (1) Connections (2) Pin Number Define Signal Name Signal Name T.M.D.S. Data2- 9 T.M.D.S. Data1- 17 T.M.D.S. Data0- T.M.D.S. Data2+ 10 T.M.D.S. Data1+ 18 T.M.D.S. Data0+ T.M.D.S. Data2/4 11 T.M.D.S. Data1/3 19 T. M . D . S . D a t a 0 / 5 Shield Shield Shield...
  • Page 76 Appendix Component(Y,Pb,Pr/Y,Cb,Cr) (1) Connections Y / Y Pb /Cb Pr / Cr (2) Pin Number Define Pb/Cb Pr/Cr Pin NO. Signal Name Connection Pb/Cb Pr/Cr Signal return(GND) Signal return(GND) Signal return(GND) (3) Connector:RCA Jack...
  • Page 77 Appendix Composite Video Signal (1) Connections Video (2) Pin Number Define Pin2 Pin1 Pin NO. Signal Name Connection Video Signal(GND) Video Input (3) Connector:RCA jack (4) Input signal polarity: Composite signal, Sync:Negative (5) Input level:Video signal: 1.0V ±0.2V p-p 75Ω terminate, NRZ...
  • Page 78 Appendix S-Video Signal (1) S-Video Connections and Connector (2) Pin Number Define Pin NO. Signal Name Connection Y Signal(GND) C Signal(GND) Y Signal Input C Signal Input (3) Input signal polarity ●Composite signal sync: Negative (4)Input level ●Y Signal:1.0V ±0.2V p-p 75Ω terminate, NRZ ●Sync:0.286V ±0.1V p-p ●Chromatic:75Ω terminate, NRZ ●Burst:0.286V ±20%...
  • Page 79 Appendix RS232 Control Communication Protocol Items Specification Standard Baud rate 9600 bps Data length 8 bits Parity None Stop bit 1 bit Flow Control None RS232 Cable Define PC Side Projector side with D-Sub Pin RX 2 RX 3 TX 3 TX 2 GND 5 GND 5 USB Connector...
  • Page 80 U.S.A. Canada EIKI International, Inc. EIKI CANADA - Eiki International, Inc. 30251 Esperanza P.O. Box 156, 310 First St. - Unit 2, Rancho Santa Margarita Midland, ON, L4R 4K8, Canada CA 92688-2132 Tel: 800-563-3454 (705)-527-4084 U.S.A. Fax: 800-567-4069 (705)-527-4087 Tel: 800-242-3454 (949)-457-0200 E-Mail: canada@eiki.com...
