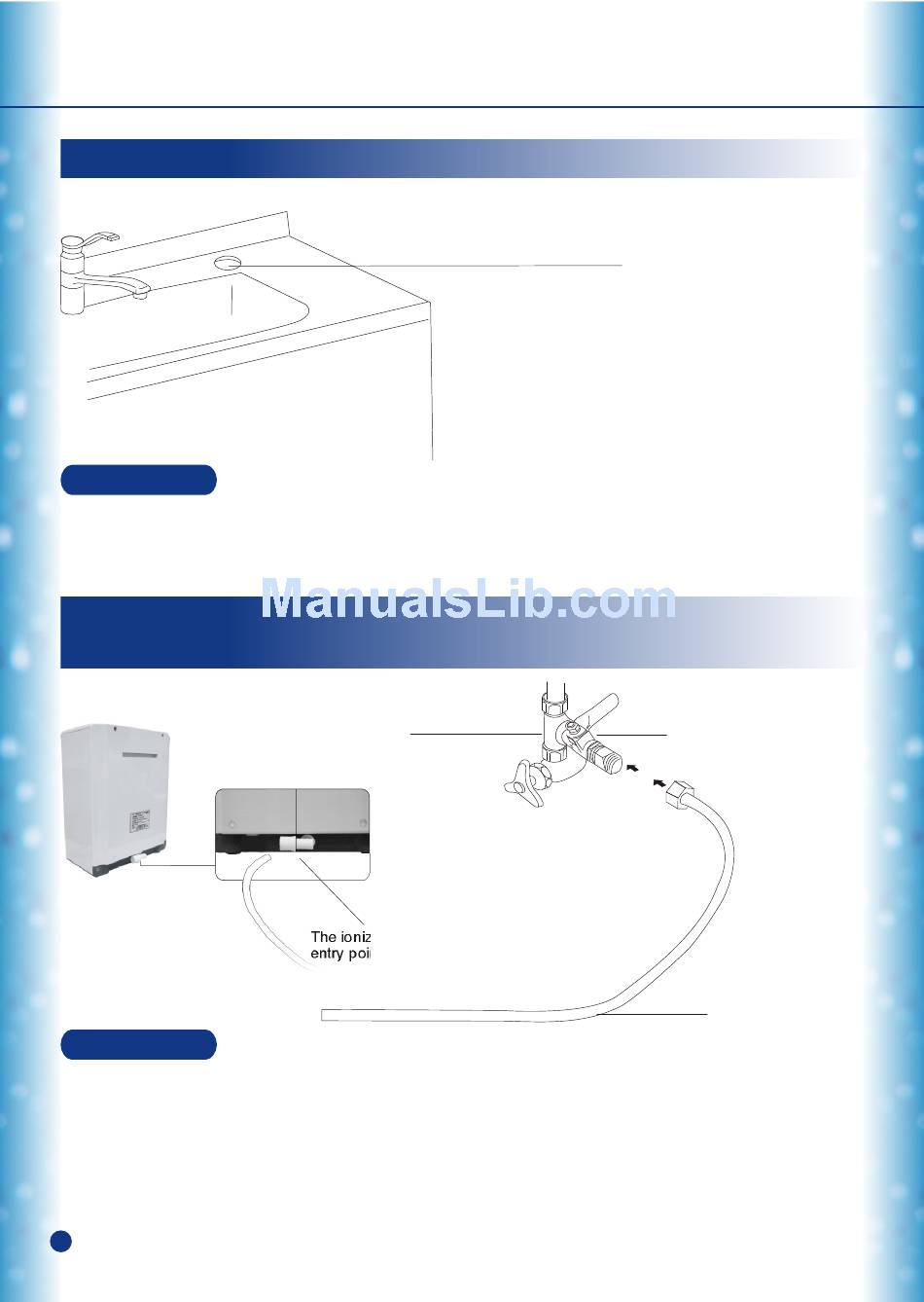

Installment Explanation
I. Hole-drilling For Faucet Installment
Procedures
1.Select the area needed for the drilled hole and mark it.
2.Use the handhold drill and install the 35mm cyclone drill head.
3.Proceed with drilling at the selected location
II. The Connection Between The
Water Source And The Ionizer
Procedures
1.Turn the water off.
2.Connect the quartile hexagonal union tee and the water supply diverter together
according to the correct order.
3.Cut the 150cm hard tube into suitable size, and then connect one end to the
ionizer (if a pre-filter is installed, the water entry point.
Should be installed first at the pre-filter) as the other end is connected to the
water supply diverter..
6
Quartile
hexagonal union tee
The ionizers water
entry point
Hole size
Water supply diverter
150cm hard tube
