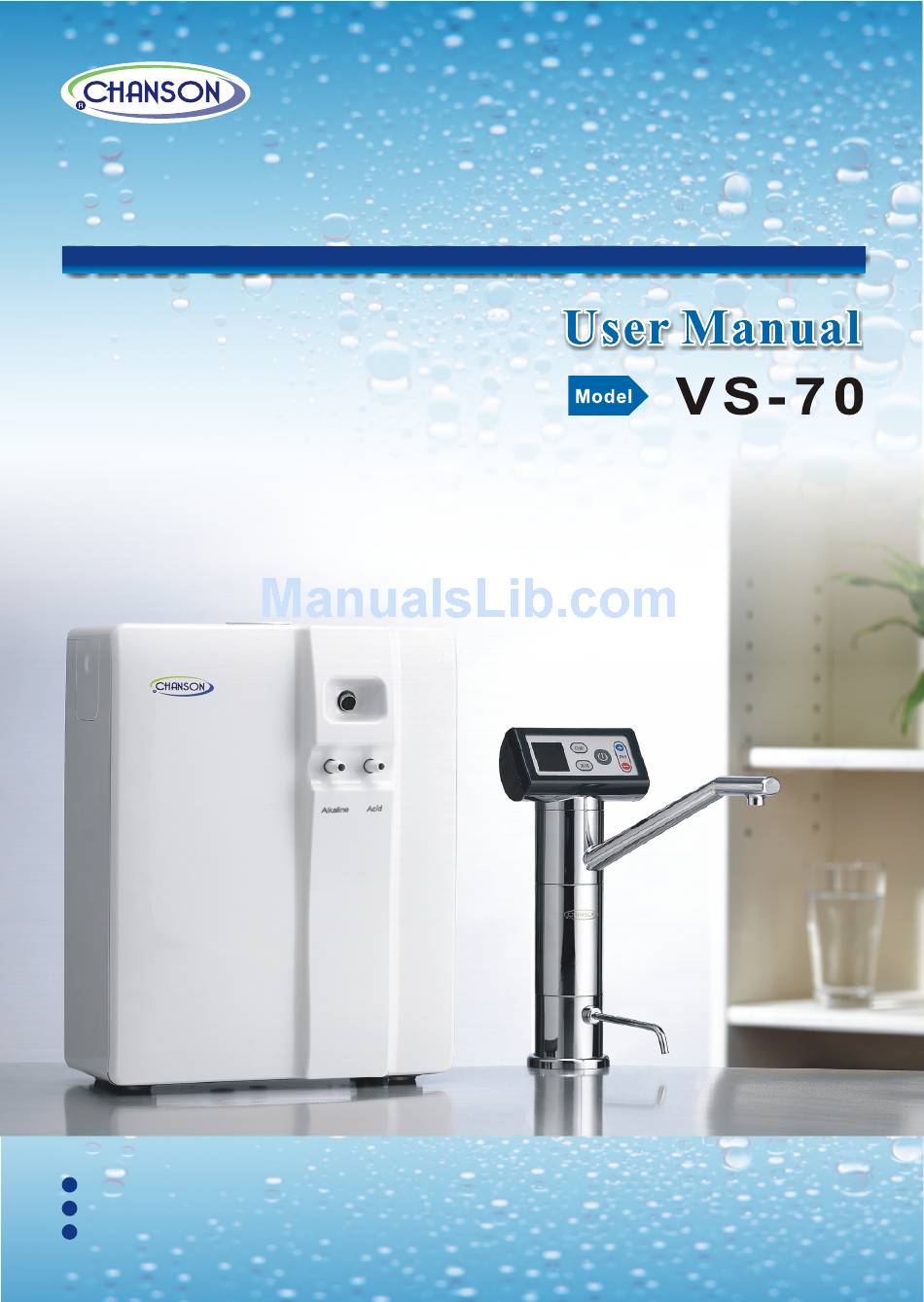

Life - Health - Happiness
Under-Counter Alkaline Water Ionizer
Under-Counter Alkaline Water Ionizer
Under-Counter Alkaline Water Ionizer
Before using the instrument, please be sure to carefully read through this manual.
The pH-value mentioned in this manual and panels might vary given different tap-water quality.
Chanson shall not be liable for any malfunctions or accidents occurred from users' misuses during installation.
Advertisement
Table of Contents
Related Manuals for Chanson Water Under-Counter Alcaline Water Ionizer
Summary of Contents for Chanson Water Under-Counter Alcaline Water Ionizer
- Page 1 Life - Health - Happiness Under-Counter Alkaline Water Ionizer Under-Counter Alkaline Water Ionizer Under-Counter Alkaline Water Ionizer Before using the instrument, please be sure to carefully read through this manual. The pH-value mentioned in this manual and panels might vary given different tap-water quality. Chanson shall not be liable for any malfunctions or accidents occurred from users' misuses during installation.
- Page 2 Basic Information Of Water Ionizer The benefits of alkaline water ionizer 1.Alkaline-ionized water helps to treat the acidic body conditions to prevent chronic diseases, and improve health. 2.Alkaline-water functions as an antioxidant and seeks out free radicals to prevent from ill and chronic diseases, and improve health. 3.Alkaline-water ionizer increases the Lactobacillus counts and improves fermentation.
-
Page 3: Table Of Contents
Contents Safety and misuse warnings Page Accessories and required tools Page Product overview after installment Page Installment explanation Page The instruction of measuring pH The instruction of replacing filters Using the insert for calcium powder Page VS-70 water faucet directions Page VS-70 functions Page... -
Page 4: Safety And Misuse Warnings Page 2~3
MUST follow Safety Precautions the instructions. Read carefully the instructions contained in this manual. Please follow the instructions below to prevent the misuse and avoid injury to people as well as damage to property. Please follow the instructions below. This symbol ( ) means that the indicated Warning action must not be performed. - Page 5 MUST follow Safety Precautions the instructions. Caution Do not drink the water with pH-value is over 10. Before the first use each day, please let the That will creates the risk of injury. The water water flow freely for about 15 seconds and whose pH-value is around 9.5 is recommended.
-
Page 6: Accessories And Required Tools
Accessories Before you use them, please match the accessories you have with the pictures below. If there is any accessory missing, please ask your dealer for it. Each kind of machine gets different kinds of accessories, please match and confirm. The accessories for this machine. -
Page 7: Product Overview After Installment
Product Overview After Installment Product Components Faucet Ionizer control panel Alkaline Water Exit (Not included in the product package) Acid Water, Water Drain Acid Water Hose Alkaline Water Hose Three-stages Pre-filters Black Electric Plug Water supply pipe (purchased Separately) Power Line Electric Socket Ionizer... -
Page 8: Installment Explanation Page 6~8
Installment Explanation I. Hole-drilling For Faucet Installment Hole size Procedures 1.Select the area needed for the drilled hole and mark it. 2.Use the handhold drill and install the 35mm cyclone drill head. 3.Proceed with drilling at the selected location II. The Connection Between The Water Source And The Ionizer Quartile Water supply diverter... - Page 9 Installment Explanation III. Faucet And Machine faucet washer base nut nut tool Black electric plug alkaline water tube acid water tube soft hose clip electric plug Procedures 1.Place the faucet and the washer into the drilled hole according to the required sequence, and pull the water tubes and the black electric plug under the basin.
- Page 10 Instruction Of The Back Of Device The back hole Loudspeaker Fuse Terminal Mark of the specification The foots of Power cord the bottom Inlet How To Mount The Device On Wall The back hole for hanging purpose Wall Nalls Frame Installation instruction 1.Locate the hole positions of frame on the wall.
-
Page 11: The Instruction Of Measuring Ph
The Instruction Of Measuring pH 1. Find the bottle of pH indicator dye in accessory package. Caution Two drops of the dye is added to a test tube. Do not splash in eyes, taste, or swallow 2. Let the generated water flow If swallowed. -
Page 12: Water Faucet Directions
VS-70 Water Faucet Directions Using The Control Panel "+" increase for pH value/ pH value micro adjustment/ Power (Water on/off button) time, language and voice, etc Menu "-" decrease for pH value/ pH value micro adjustment/ LCD display time, language and voice, etc Confirm button The outlet of alkaline water The outlet of acidic water... -
Page 13: Functions Page 11~13
VS-70 Functions Operation Guidelines 1.Power Saving and Sleeping Mode Functions In order to save power When one finishes the operation (i.e. turning off faucet), the power indicating lamp and LCD screen will automatically switch off after one minute. Resetting to Clock Display When one is resetting the system to the standby mode (Clock Display Mode), please press the "Power"... - Page 14 VS-70 Functions Hot-Key Operation Instructions to Lock Water Level Functional directions The "Lock" function can hold the water level you want. For example : If you want to drink "mid alkaline" water for a long period of time, after you apply the LOCK function, you are able to get "mid alkaline"...
- Page 15 VS-70 Functions The Machine shuts off after ongoing 15-minute Electrolyzing Operation as a safety measure 1.Automatic water shut-off protection mechanism after ongoing 15-minute water flow If it operates for 15-minute at one tine for any water levels, the system will automatically shut off the water source and LCD screen will return to standby mode (i.e.
-
Page 16: Lcd Functions Guideline Page 14~17
VS-70 LCD Function Guideline Operation Guideline Liquid Crystal Display Setting items operating without connecting water Example Example for setting the time to 3:58pm wanting to set the lock on the water quality 1. Press "MENU" button to enter. 2. Press "+-" button to adjust the setting and press the"OK"... - Page 17 VS-70 LCD Function Guideline Liquid Crystal Display Example Example Example The water level is set at "alkaline 3" Reset the filter life to zero Adjust the voice volume We want to adjust the pH level from 9.5 to 9.8. Return immediately to the waiting screen (+) increase (-) decrease shown below: Return to waiting screen...
- Page 18 VS-70 LCD Function Guideline Operation Guideline Liquid Crystal Display Operation items operating without connecting water Example Example Set the language to "English" Set the voice to music 1. Press "menu" button to enter. 2. Press "+-" button to adjust the setting and press the "OK"...
- Page 19 VS-70 LCD Function Guideline Liquid Crystal Display Example Exit the setting Return immediately to the waiting screen shown below waiting screen Automatically turns off after 60 seconds (power saving mode).
-
Page 20: Lcd Display Directions Page 18~20
VS-70 LCD Display Directions LCD Display Directions Star-up images startup image Scenic View Water level display Water level picture pH value display Filter lifetime display time display Self cleaning of electrode plate Please refer to page 13 for the self clean procedures. Electrolytic Cell Sequence Cycle animation... - Page 21 VS-70 LCD Display Directions Water Quality Level And Screen Display Guidelines (only for VS-70) preparation image preparation image preparation image preparation image opening image, opening image, opening image, opening image, on for 5 seconds (random) on for 5 seconds (random) on for 5 seconds (random) on for 5 seconds (random) cycles every2seconds...
- Page 22 VS-70 LCD Display Directions Water Quality Level And Screen Display Guidelines (only for VS-70) preparation image preparation image preparation image opening image, opening image, opening image, on for 5 seconds (random) on for 5 seconds (random) on for 5 seconds (random) cycles every2seconds cycles every2seconds cycles every2seconds...
-
Page 23: Specification
VS-70 Specification Under Counter Alkaline Water Ionizer Item VS-70 Model Black Color 8.86(L) 4.72(W) 13(H)inch Main Unit Dimensions 8.27(L) 3.54(W) 11(H)inch Faucet 16.5 lb Weight 13.3 x 9.8 x 11.8 inch Dimension 20000L (approx: 6-12 months use) Filter Life Temperature 5-40 0.8-6.0 kg/cm Water Pressure... -
Page 24: The Process During Blackout And Water Suspension
The Process During Blackout And Water Suspension During blackout 1.When blackout occurs during operation, please first turn off the water faucet. 2.After the electricity resumes, please begin operation according to the normal procedure. 3.When blackout occurs, your settings (not including time setting), filter life is still saved in the machine's memory. -
Page 25: Simple Trouble Shooting Guidelines
VS-70 Simple Trouble Shooting Guidelines Malfunction, The cause for malfunction and trouble warning image shooting method The water temperature from the water input is too high. Turn the water off immediately, and make sure the water from the intake is below 40 degrees C before using. -
Page 26: Filter Maintenance Record Page 24~25
Filter Maintenance Record Items Maintenance (Pre-filter) (Pre-filter) (Pre-filter) The first The second The third Inner filter filter filter filter Electrolytic cell Date... - Page 27 Filter Maintenance Record Items Maintenance (Pre-filter) (Pre-filter) (Pre-filter) The first The second The third Inner filter filter filter filter Electrolytic cell Date...
- Page 28 Reverse Osmosis Water System Ozone Air Cleaners Ozone Air Cleaners Water Purifiers Water Purifiers Mineral Reverse Osmosis Water System Mineral Reverse Osmosis Water System Life - Health - Happiness Life - Health - Happiness CHANSON WATER Co., LTD CHANSON WATER Co., LTD DEALER...
