S-Nano User Guide

Connecting S-Nano to SBOOST Boosters

Example 1

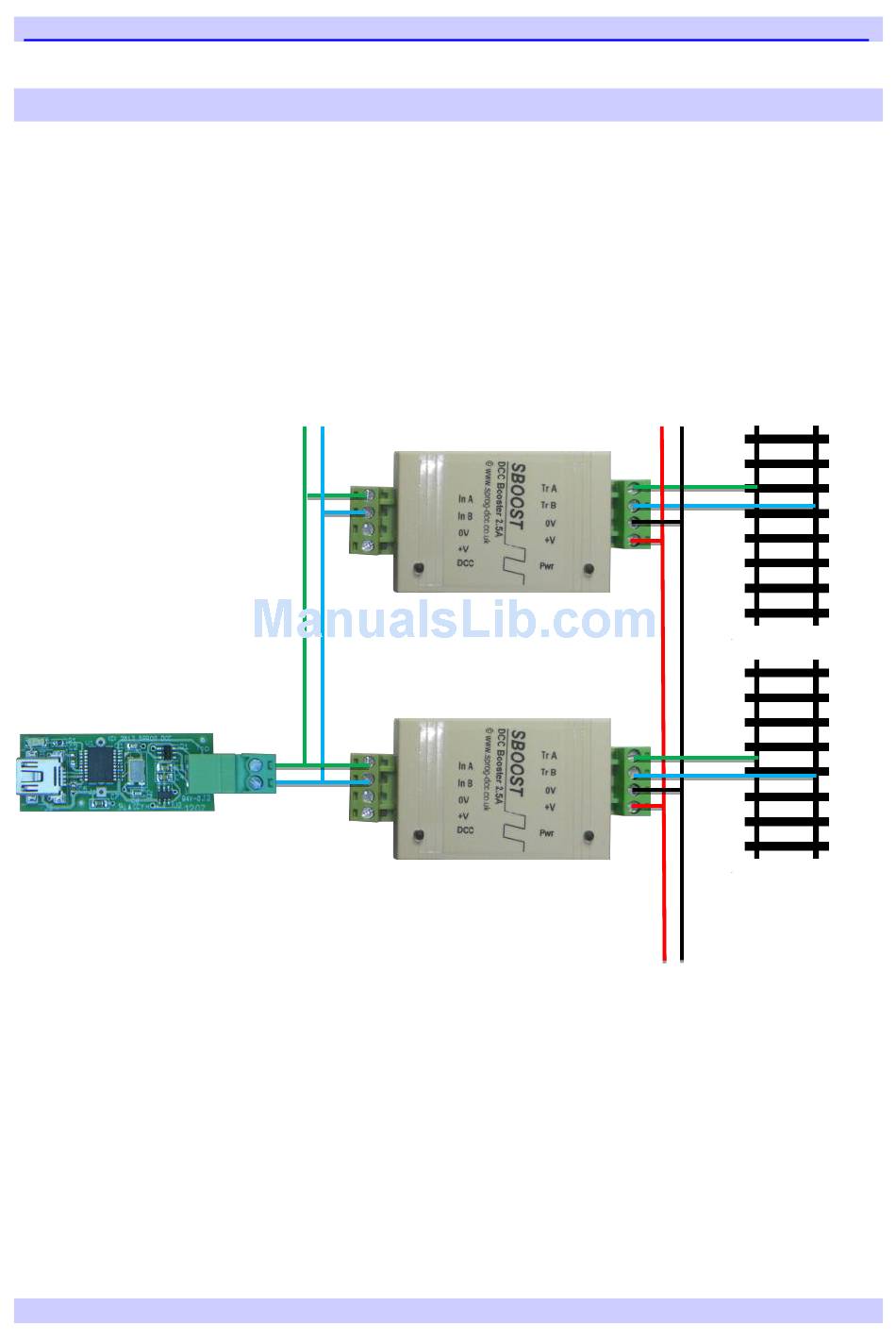

S-Nano driving multiple SBOOST with common power supply.
The power supply must be able to supply the full rated current (e.g., at least 5
Amp for 2 x SBOOST).
Power districts must be separated by isolation gaps in both rails.
Version 1.0 Oct 2012
To further SBOOST
Power
© Copyright 2012 SPROG DCC
32
Isolation Gap
