S-Nano User Guide

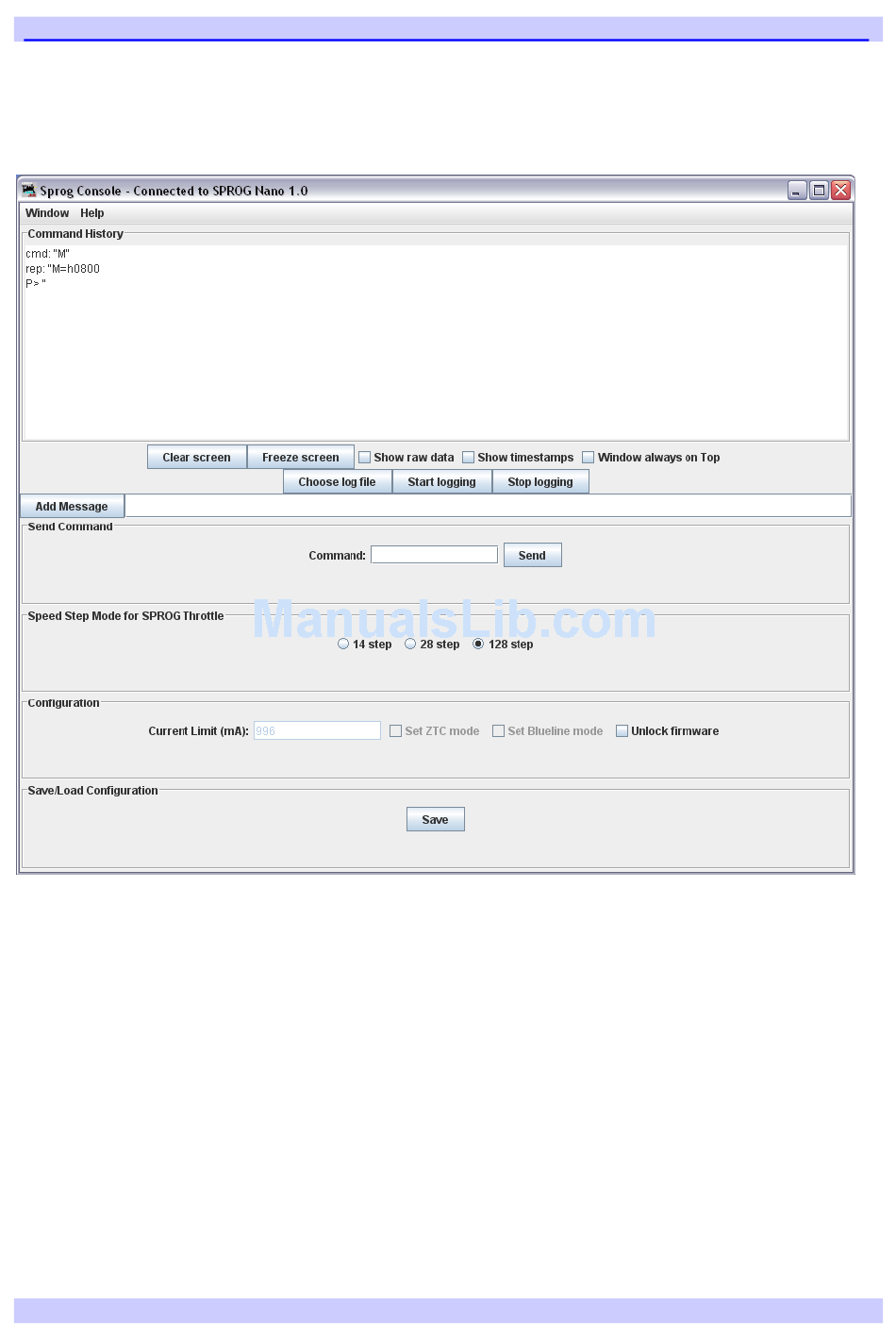

A typical console display is shown below. Some features may not be
available, depending upon the firmware version of the S-Nano.
Title Bar
The title bar includes the type and firmware version of the connected S-Nano,
e.g SPROG Nano v1.0.
Command History
The command history pane provides the same functionality as the basic
Command Monitor (available on the SPROG menu) and captures commands
to and replies from the S-Nano. The history may be saved to a file on the
computer by first choosing a log file and then selecting "Start logging". The
command history can be useful in diagnosing problems encountered in using
the S-Nano.
Version 1.0 Oct 2012
© Copyright 2012 SPROG DCC
26
