O W N E R ' S M A N U A L
DSP 256
18-bit Digital Sound Processor

Advertisement

Table of Contents
loading

Related Manuals for Nady Audio DSP 256

Summary of Contents for Nady Audio DSP 256

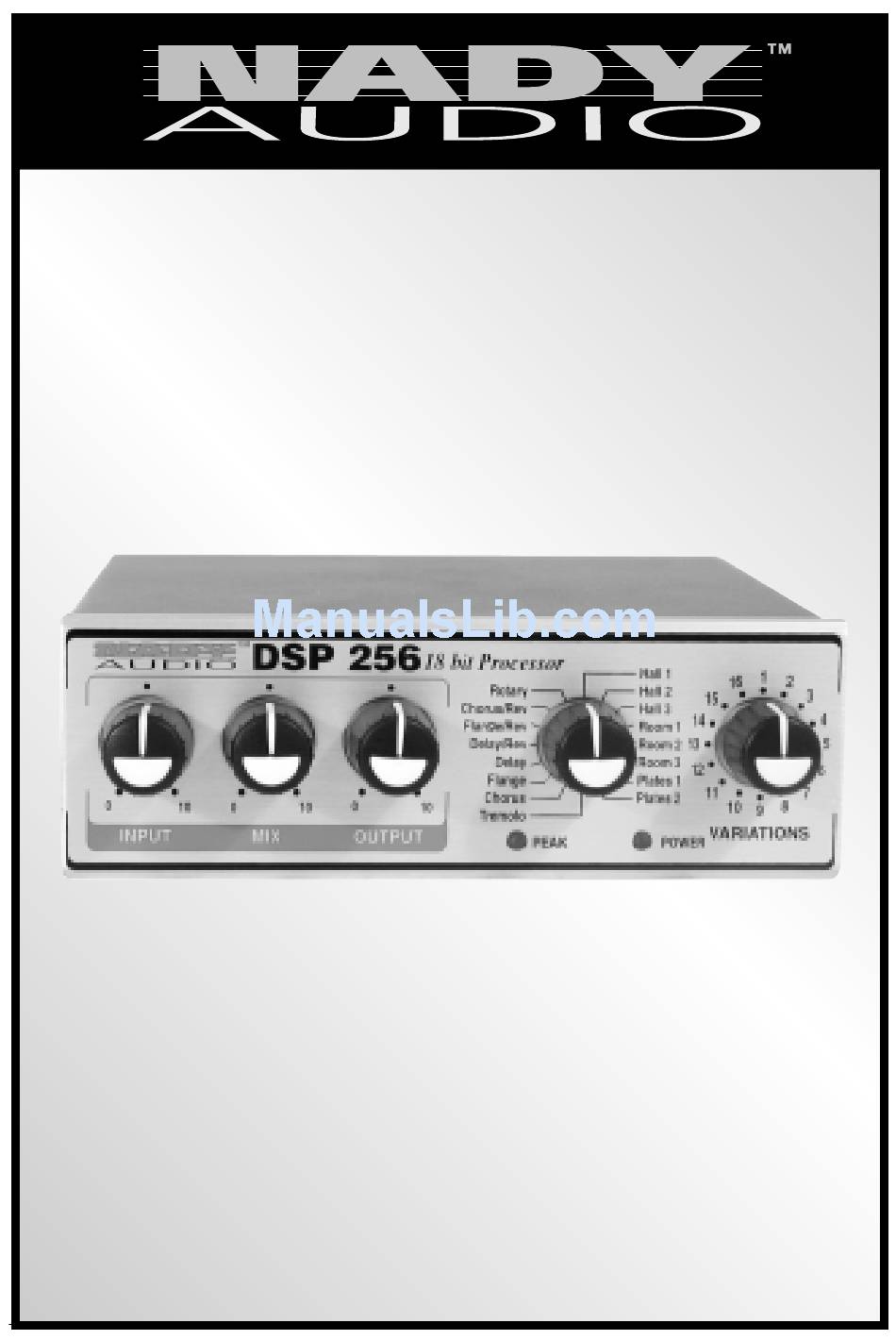

  • Page 1 O W N E R ’ S M A N U A L DSP 256 18-bit Digital Sound Processor...

  • Page 2: Table Of Contents

    Peak Level LED ............7 Delay Variations Adjust ........17 Congratulations on your purchase of the DSP 256 - you have purchased one of the Program Select Control ..........7 finest compact sound processors on the market today. This unit was developed using the Variations Select Control ........7...

  • Page 3: Inspection

    DESKTOP USE The DSP 256 may be placed anywhere safely as needed where it will not fall or be pos- The product should be positioned so that proper ventilation is maintained. sibly damaged. Attach the rubber feet provided to the bottom of the unit if the unit is The product should be located away from heat sources such as radiators, heat vents, or other placed on a surface you wish to protect from damage.

  • Page 4: Controls, Connections, And Operation

    This sets the balance between the direct signal coming into the input and the effects generated by the DSP 256. Turn the control to the right to hear more effects; turn it to the left to hear more of the source signal. Keeping this control somewhere in the center will result in a blend of dry and wet signal.

  • Page 5: Rear Panel Connections And Use

    (5) Power Jack This is a plug for connecting the Nady 9VAC power supply adapter (supplied). The DSP 256 comes with a power adapter suitable for the voltage of the country it is shipped to (either 110 or 220V, 50 or 60Hz).
  • Page 6 DSP256manual 11/9/01 11:09 AM Page 2...

  • Page 7: Stereo

    (and EQ on some mixers) and before its fader. 9VAC (5) input on the rear panel of the DSP 256 and plug the adapter into an AC outlet. Consult your mixer manual for understanding the proper way to utilize your DSP256 in The Power On LED (11) will illuminate, and the unit is ready for operation.

  • Page 8: Program Descriptions

    • Hall 1 - A large, bright hall program specially suited for vocals, guitars or drums The DSP 256 can produce layered sounds that are far more complex than the input sig- • Hall 2 - A warmer hall program. Select a long delay for added depth and character with nal by altering its pitch and delay characteristics in several different ways.

  • Page 9: Rotary

    “Lezlie” sound, characterized by • Tremolo - This program is normally used 100% “wet” so that the direct sound does not multi-layered tonal timbre changes. The rotary effect produced by the DSP 256 sounds “cover” the amplitude modulation of the tremolo.

  • Page 10: Troubleshooting Guide

    SYSTEM PERFORMANCE Frequency Response................±2dB from 20 Hz to 20 KHz If you experience problems while operating the DSP 256, please use the following Signal-to-Noise Ratio ................>82dB linear, 20 Hz - 22 KHz table to locate possible causes and solutions before contacting Nady Service Distortion....................
  • Page 11 SERVICE FOR YOUR NADY AUDIO PRODUCT (U.S.) Should your NADY AUDIO product require service, please contact the Nady Service Department via telephone at (510) 652-2411, or e-mail at service@nadywireless.com. (International) For service, please contact the NADY AUDIO distributor in your country through the dealer from whom you purchased this product.
