Nady Audio MSE-100A Owner's Manual

Multiband sound enhancement processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

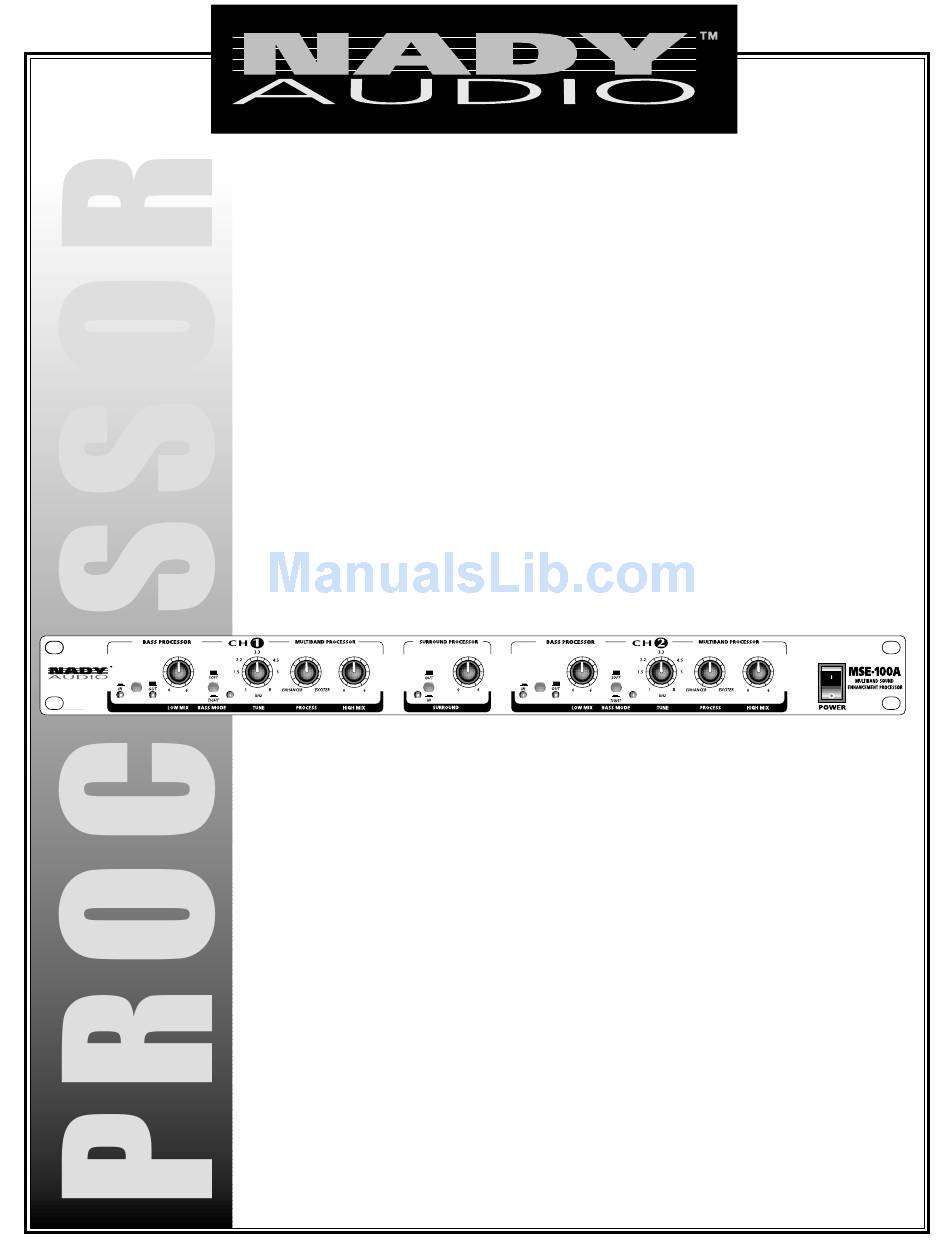

O W N E R ' S M A N U A L
MSE-100A
MULTIBAND SOUND ENHANCEMENT PROCESSOR

Advertisement

Table of Contents
loading

Related Manuals for Nady Audio MSE-100A

Summary of Contents for Nady Audio MSE-100A

  • Page 1 O W N E R ’ S M A N U A L MSE-100A MULTIBAND SOUND ENHANCEMENT PROCESSOR...

  • Page 2: Table Of Contents

    This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new NADY AUDIO MSE-100A has superior performance and greater flexibility than any other enhancer/exicter in its price range. Please read this man- ual carefully to get the most out of your new unit.

  • Page 3: Warning

    ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR IMPORTANT SAFETY INSTRUCTIONS When using this electronic device, basic precautions should always be taken, including the following: Read all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.).

  • Page 4: Introduction

    Exciter. The new VSP (Variable Sound Processing) circuit used in the MSE-100A, allows for variable fading over from enhancer to exciter mode. With the PROCESS control clockwise, the Exciter circuit increasingly provides a variable and carefully adjusted processing of high frequencies.

  • Page 5: Front Panel Controls And Connections

    LED will light to indicate power ON. Note: In order to avoid possible undesired noise transients in a live sound reinforcement application, switch on the power to your MSE-100A before switching on the amplifi- cation system. IN/OUT Buttons and LED Indicators The IN/OUT button activates the corresponding channel into operation.

  • Page 6: Rear Panel Controls And Connections

    REAR PANEL CONTROLS AND CONNECTIONS INPUTS The MSE-100A is equipped with both 1/4” (6.3mm) TRS and XLR audio input jacks. These can be used for either bal- anced or unbalanced operation as follows: • Unbalanced use of mono 1/4” plugs: Tip = Signal, Sleeve = Ground / Shield.

  • Page 7: Application

    This will give you a better idea of the switch and control functions: Set the MSE-100A channel (1 or 2) to bypass mode (the mode switch OUT and the red LED lit). Set the LOW Mix and the TUNE center position and the PROCESS controls fully counterclock wise.

  • Page 8: Enhancing The Sound Of Tape Duplications

    With the MSE-100A, even tiny details within the sound of acoustic musical instruments such as guitars, etc., can be emphasized without affecting the overall sound of the instrument.

  • Page 9: Enhancing The Sound Of Monitor Systems

    SOUND ENHANCEMENT IN HI FI AND VIDEO Of course, the MSE-100A can also be used in Hi Fi and video applications. The unit is simply placed between the signal source (cassette recorder, tuner, VCR, etc.) and the power amplifier.
  • Page 10 DO NOT ATTEMPT TO SERVICE THIS UNIT YOURSELF AS IT CAN BE DANGEROUS AND WILL ALSO VOID THE WARRANTY. NADY SYSTEMS, INC. • 6701 SHELLMOUND STREET, EMERYVILLE, CA 94608 Tel: 510.652.2411 • Fax: 510.652.5075 • www.nady.com...
