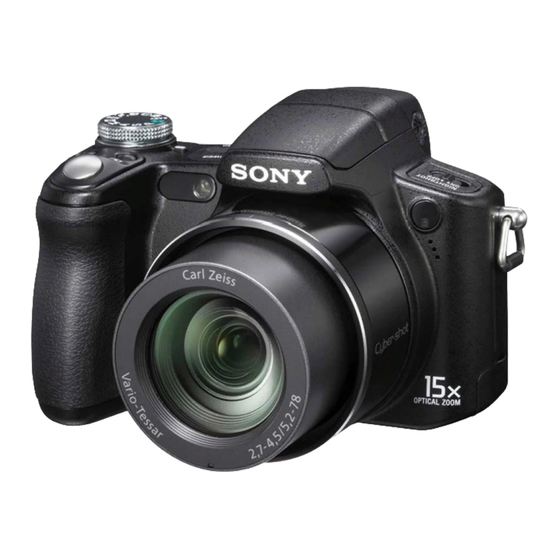

Sony DSC-H50 Service Manual

Hide thumbs Also See for DSC-H50:
Table of Contents

Advertisement

Quick Links

See also: Handbook , Instruction Manual
SERVICE MANUAL
Ver. 1.2 2008. 09
DSC-H50_L2
9-852-286-81
SUPPLEMENT-1
File this supplement with the service manual previously issued.
• Change of Repair Parts
Sony EMCS Co.
DSC-H50
Canadian Model
AEP Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model
Thai Model
Japanese Model
Tourist Model
(DI08-234)
Published by Kohda TEC
RMT-DSC2
2
LEVEL
US Model
UK Model
E Model
2008I0800-1
©2008.09

Advertisement

Table of Contents
loading

Related Manuals for Sony DSC-H50

Summary of Contents for Sony DSC-H50

  • Page 1 Chinese Model Korea Model Argentine Model Brazilian Model Thai Model SUPPLEMENT-1 Japanese Model Tourist Model File this supplement with the service manual previously issued. (DI08-234) • Change of Repair Parts 2008I0800-1 DSC-H50_L2 ©2008.09 Sony EMCS Co. Published by Kohda TEC 9-852-286-81...
  • Page 2 2. DISASSEMBLY 2-2. DISASSEMBLY : Changed portion. Page Before change After change 2-2-6. LCD SECTION 2-2-6. LCD SECTION 1-4 (Claw) 1-4 (Claw) 2 CK-198 Board 2 CK-198 Board 2 CK-198 Board HELP11 HELP11 (#1/#14) (#1/#14) (#14) (#1) (#1) 5. REPAIR PARTS LIST 5-1.
  • Page 3 C 2 0 5 C 2 0 9 C 2 0 5 0 . 1 u R E G _ G N D R E G _ G N D 2009F0800-1 DSC-H50_L3 © 2009.06 Sony EMCS Co. 9-852-286-83 Published by Kohda TEC...
  • Page 4 : Points changed portion Before Change After Change Page SY-201 BOARD (3/10) (Location: A-2 to B-3) SY-201 BOARD (3/10) (Location: A-2 to B-3) I C 2 1 1 ( 1 / 5 ) I C 2 1 1 ( 1 / 5 ) P R X 5 1 5 1 0 3 P R X 5 1 5 1 0 3 C P U , C A M E R A D S P , A V S I G...
  • Page 5 : Points changed portion Before Change After Change Page SY-201 BOARD (6/10) (Location: A-6 to B-7) SY-201 BOARD (6/10) (Location: A-6 to B-7) C 3 8 9 C 3 9 0 0 . 1 u 0 . 1 u C 3 8 9 C 3 9 0 0 .
  • Page 6 : Points changed portion Before Change After Change Page SY-201 BOARD (8/10) (Location: F-2 to F-3) SY-201 BOARD (8/10) (Location: F-2 to F-3) 3 . 1 3 . 1 A _ 3 . 1 V A _ 3 . 1 V 2 .

  • Page 7: Repair Parts List

    : Points changed portion Before Change After Change Page SY-201 BOARD (9/10) (Location: C-2 to C-3) SY-201 BOARD (9/10) (Location: C-2 to C-3) V D D V D D G N D V O U T G N D V O U T I C 6 0 4 I C 6 0 4 C 6 1 9...
  • Page 8 : Points changed portion : Points deleted portion Page Before change After change SY-201 BOARD SY-201 BOARD Ref. No. Part No. Description Ref. No. Part No. Description < CAPACITOR > C387 1-125-777-11 CERAMIC CHIP 0.1uF C389 1-125-777-11 CERAMIC CHIP 0.1uF C395 1-100-611-91 CERAMIC CHIP 22uF...
  • Page 9 0 are critical for safety. sécurité. Replace only with part num- Ne les remplacer que par une pièce ber specified. portant le numéro spécifié. DIGITAL STILL CAMERA 2009H0800-1 DSC-H50_L2 © 2009.08 Sony EMCS Co. 9-852-286-34 Published by Tokai TEC...
  • Page 10 SPECIFICATIONS Camera [Power, general] Power: Rechargeable battery pack [System] NP-BG1, 3.6V NP-FG1 (not supplied), 3.6V Image device: 7.70 mm (1/2.3 type) color CCD, Primary color filter AC-LS5K AC Adaptor (not supplied), 4.2V • Only 7.30mm (1/2.5type equivalent) area is used in the camera. Power consumption (during shooting, LCD screen on): 1.1 W Total pixel number of camera: Approx.
  • Page 11 CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.

  • Page 12: Service Note

    ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE 1-1. PRECAUTION ON REPLACING THE SY-201 BOARD DESTINATION DATA When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting. Refer to Service Manual ADJ, and perform “DESTINATION DATA WRITE”. USB SERIAL No.
  • Page 13 ENGLISH JAPANESE ENGLISH JAPANESE 1-2-3. Self-diagnosis Code Table Self-diagnosis Code Block Detailed Symptom/State Correction Function Code The internal memory has experienced a Format the internal memory. format error. “Memory Stick Duo” is unformatted. Format the “Memory Stick Duo”. “Memory Stick Duo” is broken. Insert a new “Memory Stick Duo”.

  • Page 14: Process After Fixing Flash Error

    ENGLISH JAPANESE ENGLISH JAPANESE 1-3. PROCESS AFTER FIXING FLASH ERROR When “FLASH error” (Self-diagnosis Code E : 91 : 01) occurs, to prevent any abnormal situation caused by high voltage, setting of the flash is changed automatically to disabling charge and flash setting. After fixing, this setting needs to be deactivated.

  • Page 15: How To Write Data To Internal Memory

    To change the setting, use the write enable tool “WriteEnableTool.exe”. Data writing method Connect the PC to the camera (USB mode: Mass Storage), and switch the driver to the “Sony Seus USB Driver”. Start the Write Enable Tool and the SeusEX.
  • Page 16 ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE     4 :   ,X¦õÌw«™ “²ZÔ» 4.;,Xq¦õb”Ì|4.;,Xt{T•oM”“²ZÔ»xiwƒq§loM”ÔùUK“‡b{ " % + $ › € ° ` o | ® % & 4 5 */ " 5 *0 / % " 5 " 8 3 * 5 & ¯ › æ l o X i ^ M { 6 4 # ³...
  • Page 17 ENGLISH JAPANESE ENGLISH JAPANESE       ×~ …¯”ů ×~ …¯”Å Òé¿« ÄI ±Ý—Ý6 0 —MO ;ó ¯”Å ºÝÞætÑ¥”ڿĤå”U ºÝÞæ›Ñ¥”Ú¿Äb”{ Klh{ Ñ¥”Ú¿Ä`oMsM ÝÞæ”  ÝÞ攵Ÿ¿«  à ᦡ›Ñ¥”Ú¿Äb”{ µÂŸ¿«  à ᦡ›Ö•h{  ÝÞ攵Ÿ¿«  à ᦡU ý`M ÝÞ攵Ÿ¿«  à ᦡt¦õb”{ u•oM”{  ÝÞ攵Ÿ¿«...
  • Page 18 ENGLISH JAPANESE ENGLISH JAPANESE     Ñ忳á¤å”C\Ìw0rO Š;xÑ忳á¤å”¢×~ …¯”Å &       £UC\`hÔù|ô?yt‘”Ÿ×›w­b”hŠt׈$tÑ忳á F?S‘|C«Ð­wƒts“‡b{ Ñ忳á¤å”C\™x¤å”wr†›æOžAUK“‡b{¤å”wr†x×”ÜhØT’s8=â^›îæb”\qt‘ “æM‡b{ ƒæ·¿Ä SMÍ[Ìwƒtí`‡b{ ¦ƒ淿ħ ›îæ`o‹z ºÝÞæ”tGå^•oM”hþx_†^•‡dœ{ 1 ¯ïÄé”çØ»ïw p ¦ƒ淿ħ ›¬|z ¤w ›!b{ ®¶owƒº0›æ·¿Ä`‡b¯ qMOÝ¿·”´U¯Ô^•”{ p ¦îæ§ ›¬|z ¤w ›!b{ ƒæ·¿ÄUîæ^•”{ ƒæ·¿Ä›¤­b”tx q 2 pz ¦©ßï·ç§...
  • Page 19 ENGLISH JAPANESE ENGLISH JAPANESE     ºÝÞæÃ”»›{VíbMO è×x| 1 $ T ’§ÝåwºÝÞæÃ”»›{V‰\qxpVsMƒtsloM‡b{ ,X¦õ™srt|ºÝÞæÃ”»›{VíbÔùtx|\wƒ›°Ì$t!Ëb”žAUK“‡b{ ƒ  w ! Ë t x | { V  ˆ  D À ” ç ¢ 8 S J U F &O BC M F 5P P M  FY F £ › – ; ` ‡ b { {Ví`MO  §Ýåq 1 $ ›...

  • Page 20: Note For Repair

    2. DISASSEMBLY NOTE FOR REPAIR • Make sure that the flat cable and flexible board are not cracked of bent at the terminal. Cut and remove the part of gilt Do not insert the cable insufficiently nor crookedly. which comes off at the point. (Be careful or some •...
  • Page 21 2-1. IDENTIFYING PARTS Cabinet (Front) Block Stroboscope Block Battery Holder Block SI-115 Flexible Board LE-042 Flexible Board ST-195 Flexible Board ST-194 Board PL-051 Board DC-111 Flexible Board Lens Block CCD Block Eye Cup (CD-737 Flexible Board) Assy (470) EVF Block Cabinet (Rear) Section SW-532 Board...
  • Page 22 HELP HELP 2-2. DISASSEMBLY EXPLODED VIEW HARDWARE LIST 2-2-1. OVERALL SECTION Follow the disassembly in the numerical order given. 1 Cabinet (Rear) Section (1-1 to 1-10) 2 Retainer SW (2-1) 3 Side Cabinet (R) Block (3-1 to 3-2) Front Panel Section-1 (See Page 2-4) (#2/10) 2 Retainer SW...
  • Page 23 2-2-2. FRONT PANEL SECTION-1 EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 Loudspeaker (1.3cm) (1-1 to 1-3) 2 SY-201 Board (2-1 to 2-16) 3 Lens Block (3-1 to 3-3) 2-12 (Claw) 2-14 Note: On installation of the lens block, adjust the position of the night shot switch.

  • Page 24: Battery Holder

    2-2-3. FRONT PANEL SECTION-2 EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 Battery Holder/Stroboscope Block (1-1 to 1-5) 2 Battery Holder Block (2-1 to 2-4) 3 ST-195 Flexible Board (3-1 to 3-8) DC Lid HELP06 3 ST-195 Flexible Board (Claw)

  • Page 25: Control Switch Block

    2-2-4. FRONT PANEL SECTION-3 EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 Control Switch Block (1-1 to 1-4) 2 Front Panel Block (2-1 to 2-5) 2 Front Panel Block 1 Control Switch Block (Claw) (#76) (#76) HELP03 (#76)
  • Page 26 2-2-5. CABINET (REAR) SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 SW-532 Board (1-1 to 1-5) 2 LCD Section (2-1 to 2-4) 1-1 (#5) 1 SW-532 Board HELP09 (Claw) (#12) (Claw) (#12) 2 LCD Section (See Page 2-8) How to diassemble the Hinge Part Pass it through this point of...
  • Page 27 2-2-6. LCD SECTION EXPLODED VIEW HARDWARE LIST Follow the disassembly in the numerical order given. 1 P Cabinet (C) Assy (470) (1-1 to 1-9) 2 CK-198 Board (2-1 to 2-8) HELP12 1-4 (Claw) 2 CK-198 Board (Claw) HELP11 (#1/#14) HELP11 (#14) (#1/#14) 1 P Cabinet (C)
  • Page 28 HELP Sheet attachment positions and procedures of processing the flexible boards/harnesses are shown. HELP01 In case of assembling the cabinet (rear) assy, attach it after turning fully counterclockwise the visibility dial. Be careful about the lever inside of the eye cup assy doesn't go over the EVF lever. Eye Cup Assy Lever Visibility Dial...
  • Page 29 HELP03 Microphone Holder Harness (Microphone Unit) Cutout Harness (Loudspeaker (1.3cm)) Cutout Loudspeaker (1.3cm) HELP04 Crease left point Attach covering the flexible board. Lens (Radiation) Sheet Lens Block Assy 0 to 1mm DSC-H50_L2 HELP...
  • Page 30 HELP05 INSTALLATION METHOD OF THE BATTERY TERMINAL BOARD 1 Insert the battery terminal board into a slit in the BT holder to install. The battery terminal holder are attached with the notch for installation. DC-111 Flexible Board BT holder Notch Battery Terminal Battery Terminal Board...
  • Page 31 HELP06 THE METHOD OF ATTACHMENT OF HARNESS (HN-042 to HN-044) Attach ST-195 flexible board to ST base assy and Solder three harnesses to ST-195 flexible board insert three harnesses to lib deeply. and ST-194 board. Note: Be careful about the overlaps of harnesses. Note: Be careful about the colors of harnesses.
  • Page 32 Pass three harnesses in lib. Pull up the popping up and straighten three Note: Be careful about the overlaps of harnesses. harnesses. Libs Blue White Pink Attach FL cover. Attach Cabinet (Upper). FL Cover Claw Cabinet (Upper) Claw Claw Claw DSC-H50_L2 HELP...
  • Page 33 Attach Capacitor holder and arrange three Attach ST cover. harnesses as shown in the figure. ST Cover Harnesses FP-900 Flexible Board Claw ST-194 Board Capacitor Holder Claw (C205) Aluminum Elect Assemble Capacitor holder and BT holder cover with ST-194 board to Battery holder block and Pull up the popping up and secure a screw.
  • Page 34 HELP07 THE METHOD OF ATTACHMENT OF PLUNGER SOLENOID Attach PL-051 board while positioning to two Attach Plunger solenoid to three pins while bosses and secure it with two screws. closing the popping up. Note : Be sure not to touch the copper leads or contacts.
  • Page 35 HELP08 Harness (HN-043) (White) Harness (HN-044) (Blue) Harness (HN-042) (Pink) Pink White Blue Libs HELP09 Flexible Adhesive Sheet DSC-H50_L2 HELP...
  • Page 36 HELP10 THE METHOD OF INSTALLATION OF LCD BLOCK Position hinge assy to two bosses and secure Pull out CK-199 flexible board from the underneath it with four screws. of hinge assy (470) and put it on the cabinet (rear). LCD Block Hinge Assy (470) CK-199 Flexible Board...
  • Page 37 HELP11 CK-199 FLEXIBLE BOARD ARRANGEMENT Hinge Cover (M) Assy CK-198 Board P Cabinet (C) Assy (470) CK-199 Flexible Board HELP12 Flexible Slider Sheet ± 1mm CK-199 Flexible Board DSC-H50_L2 HELP...

  • Page 38: Block Diagrams

    3. BLOCK DIAGRAMS Link Link OVERALL BLOCK DIAGRAM (1/2) POWER BLOCK DIAGRAM (1/2) OVERALL BLOCK DIAGRAM (2/2) POWER BLOCK DIAGRAM (2/2) DSC-H50_L2...

  • Page 44: Schematic Diagrams

    4-2. SCHEMATIC DIAGRAMS Link Link CK-198 BOARD FP-900 FLEXIBLE BOARD (LCD CONNECTION) (SY-ST CONNECTION) CK-199 FLEXIBLE BOARD FP-901 FLEXIBLE BOARD (SY-CK CONNECTION) (SY-SW CONNECTION) JK-371 FLEXIBLE BOARD SI-115 FLEXIBLE BOARD (MULTI CONNECTOR) (REMOTE CONTROL RECEIVER) ST-194 BOARD PB-052 FLEXIBLE BOARD (FLASH DRIVE) (PLAYBACK, SLIDESHOW SWITCH) ST-195 FLEXIBLE BOARD...
  • Page 45 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) (For schematic diagrams) 1. Connection • All capacitors are in μF unless otherwise noted. pF : μ Pattern box μF.
  • Page 46 Ver. 1.1 2008.05 The changed portions from Ver. 1.0 are shown in blue. ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS (JAPANESE) sÏ$žèÊ”Ä ¢tžAsÊ”Äx¤Òé¿«tGL`oK“‡b£ ²sÏ$ʔij  €$ ~­Û¯ï|»ï»ç›†X¯ïÃï±p|1y  7 Ž<w‹w xfw1y›²t{oxb‚o ' ¢ QxQ ' £ { ~½¿Ó Åp¦ÔwsM‹wx|—8Ž<{ For PTB-450: Pattern box PTB-450...

  • Page 55: Printed Wiring Boards

    4-3. PRINTED WIRING BOARDS Link Link CK-198 BOARD DC-111 FLEXIBLE BOARD CK-199 FLEXIBLE BOARD PL-051 BOARD JK-371 FLEXIBLE BOARD PB-052 FLEXIBLE BOARD ST-194 BOARD SI-115 FLEXIBLE BOARD ST-195 FLEXIBLE BOARD SW-532 BOARD LE-042 FLEXIBLE BOARD COMMON NOTE FOR PRINTED WIRING BOARDS DSC-H50_L2...
  • Page 56 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS (ENGLISH) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS • : Uses unleaded solder. • Chip parts. • : Circuit board Transistor Diode : Flexible board Pattern from the side which enables seeing. : pattern of the rear side (The other layers’...
  • Page 61 NOTE NOTE 5. REPAIR PARTS LIST NOTE: Characters A to Z of the electrical parts list indicate location of exploded views in which the desired part is shown. EXPLODED VIEWS Link EXPLODED VIEWS Link OVERALL SECTION FRONT PANEL SECTION-1 FRONT PANEL SECTION-2 FRONT PANEL SECTION-3 CABINET (REAR) SECTION LCD SECTION...
  • Page 62 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST (ENGLISH) When indicating parts by reference number, NOTE: please include the board name. • -XX, -X mean standardized parts, so they may have some differences from the original one. The components identified by mark 0 or •...

  • Page 63: Exploded Views

    5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1. EXPLODED VIEWS 5-1-1. OVERALL SECTION ns: not supplied Front panel section-1 (See page 5-3) Cabinet (rear) section (See page 5-6) Ref. No. Part No. Description Ref. No. Part No. Description 3-452-720-01 LID, MULTI (BLACK) 3-452-729-01 DRIVING, SY MECHANICAL (BLACK)
  • Page 64 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-2. FRONT PANEL SECTION-1 (including CD-737 flexible complete board and CCD imager (IC001)) (Note) Front panel section-2 (See page 5-4) - 2 0 SP901 Note: Be sure to read “Precuations for Replacement of Imager”...
  • Page 65 Ver. 1.1 2008.05 The changed portions from Ver. 1.0 are shown in blue. 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-3. FRONT PANEL SECTION-2 ns: not supplied «™ FL901 ?‘w¦õx|Y`Xæ˜sMq¾b”ª• UK“‡b{?‘›¦õb”Ôùtxžc‰a Êw?‘¢x‰s¼q¦õ`oXi^M{ CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
  • Page 66 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-4. FRONT PANEL SECTION-3 ns: not supplied #137 MIC901 Ref. No. Part No. Description Ref. No. Part No. Description A-1519-827-A SI-115 FLEXIBLE BOARD, COMPLETE 3-452-679-01 CABINET (UPPER (L)) (BLACK) * 152 3-452-682-01 HOLDER, MICROPHONE 3-452-679-11 CABINET (UPPER (L)) (SILVER)
  • Page 67 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-5. CABINET (REAR) SECTION ns: not supplied LCD section (See page 5-7) Ref. No. Part No. Description Ref. No. Part No. Description * 201 3-452-694-01 RETAINER, FL X-2190-271-1 CABINET (REAR) ASSY (470) (SILVER) 1-875-545-11 PB-052 FLEXIBLE BOARD * 207 3-106-615-01 BRACKET (350), STRAP...
  • Page 68 Ver. 1.4 2009.08 The changed portions from Ver. 1.3 are shown in blue. 5. REPAIR PARTS LIST 5. REPAIR PARTS LIST DISASSEMBLY HARDWARE LIST 5-1-6. LCD SECTION ns: not supplied (Note) LCD901 Note: Be sure to read “HELP11” when you install the CK-199 flexible board.
  • Page 69 Electrical parts list of the CD-737 flexible board is not shown. Page 5-8 is not shown. DSC-H50_L2...
  • Page 70 CK-198 CK-199 DC-111 FP-900 FP-901 JK-371 LE-042 5-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Ref. No. Part No. Description A-1519-818-A CK-198 BOARD, COMPLETE < JACK > ********************** 0 J001 1-817-331-11 DC JACK 5P (DC IN) < CAPACITOR > <...
  • Page 71 PB-052 PL-051 SI-115 ST-194 ST-195 SW-532 Ref. No. Part No. Description Ref. No. Part No. Description 1-875-545-11 PB-052 FLEXIBLE BOARD < DIODE > ******************** 0*D202 (S001 and S002 are not supplied, but there are included in PB-052 flexible board.) 6-502-219-01 DIODE FV02R80TP D204 6-500-619-01 DIODE RB520S-40TE61 <...
  • Page 72 SW-532 Ref. No. Part No. Description Ref. No. Part No. Description R102 1-218-957-11 RES-CHIP 2.2K 1/16W R103 1-218-957-11 RES-CHIP 2.2K 1/16W R104 1-218-959-11 RES-CHIP 3.3K 1/16W R105 1-218-961-11 RES-CHIP 4.7K 1/16W < SWITCH > * S101 1-798-136-11 SWITCH, TACTILE (W/ZOOM) * S102 1-798-136-11 SWITCH, TACTILE (T/ZOOM) * S103...

  • Page 73: Checking Supplied Accessories

    Ver. 1.3 2009.06 The changed portions from Ver. 1.2 are shown in blue. Checking supplied accessories. Note 1: This item is supplied with the unit as an accessory, but is not prepared as a service part. 3-106-733-01 3-106-734-01 Battery charger Battery charger Lens hood (BC-CSGB/BC-CSGC)
  • Page 74 HARDWARE LIST (1/7) #1: M1.7 X 2.5 #2: M1.7 X 4.0 #3: M1.7 X 2.5 #4: M1.4 X 2.5 (Tapping) (Black) (Black) (Red) (Dark Silver) 2-635-562-11 2-635-562-31 2-660-401-01 3-348-998-81 #5: M1.7 X 3.5 (Tapping) #6: M1.4 X 1.7 #7: M1.7 X 1.6 #8: M1.7 X 3.5 (Tapping) (Black) (Silver)
  • Page 75 HARDWARE LIST (2/7) #21: M1.4 X 3.0 #22: M1.7 X 5.0 (Tapping) #23: M1.7 X 4.0 (Tapping) #24: B1.7 X 5.5 (Tapping) (Black) (Silver) (Black) (Black) 2-662-396-21 3-083-261-01 3-080-204-11 4-679-805-11 #25: M1.7 X 3.0 #26: M1.4 X 2.0 #27: M1.4 X 2.0 #28: M1.4 X 4.0 (Tapping) (Black) (Silver)
  • Page 76 HARDWARE LIST (3/7) #41: M3.0 X 8.0 (Tapping) #42: M2.0 X 4.0 (Tapping) #43: M1.7 X 4.0 #44: M1.7 X 3.0 (Tapping) (Silver) (Silver) (Red) (Silver) 3-065-748-01 7-628-253-00 2-660-401-31 3-078-890-61 #45: M1.4 X 2.5 #46: M1.7 X 3.0 #47: M1.4 X 3.0 (Tapping) #48: M1.7 X 2.5 (Silver) (Red)
  • Page 77 HARDWARE LIST (4/7) #64: M1.7 X 5.0 (Tapping) #61: M3.0 X 10.0 #62: M2.0 X 3.0 #63: M5.0 X 12.5 (Silver) (Black) (Silver) (Black) 2-666-551-21 7-682-549-09 3-080-202-21 3-060-811-21 12.5 10.0 #65: M1.4 X 3.5 #66: M1.4 X 1.4 #67: M1.4 X 2.0 #68: M1.7 X 4.0 (Silver) (Silver)
  • Page 78 HARDWARE LIST (5/7) #81: M1.7 X 2.5 #82: M1.4 X 1.4 #83: M1.7 X 7.0 (Tapping) #84: M2.0 X 3.0 (Silver) (Silver) (Black) (Silver) 2-515-756-01 3-272-251-01 3-080-204-41 3-072-453-11 #85: M1.7 X 2.5 #86: M1.7 X 4.0 (Tapping) #87: M1.6 X 5.3 #88: M1.6 X 5.9 (Tapping) (Black) (Silver)
  • Page 79 HARDWARE LIST (6/7) #101: M2.0 X 5.0 #102: M2.6 X 8.0 #103: M2.6 X 10.0 #104: M3.0 X 8.0 (Silver) (Black) (Silver) (Black) 7-621-555-39 7-621-284-30 7-685-794-09 7-682-548-09 10.0 #105: M2.0 X 4.0 #106: M2.0 X 6.0 #107: M2.0 X 5.0 #108: M1.7 X 3.0 (Tapping) (Red) (Black)
  • Page 80 HARDWARE LIST (7/7) #121: M2.0 X 4.0 (Tapping) #122: M3.0 X 6.0 #123: M4.0 X 8.0 #124: M1.7 X 2.0 (Silver) (Black) (Black) (Silver) 3-080-205-11 7-682-547-09 7-682-561-09 2-599-475-01 #125: M1.4 X 3.0 #126: M2.9 X 3.5 #127: M3.0 X 25.0 #128: M4.0 X 12.0 (Black)
  • Page 81 Chinese Model Korea Model Argentine Model Brazilian Model Thai Model SUPPLEMENT-1 Japanese Model Tourist Model File this supplement with the service manual previously issued. (DI08-234) • Change of Repair Parts 2008I0800-1 DSC-H50_L2 ©2008.09 Sony EMCS Co. Published by Kohda TEC 9-852-286-81...
  • Page 82 2. DISASSEMBLY 2-2. DISASSEMBLY : Changed portion. Page Before change After change 2-2-6. LCD SECTION 2-2-6. LCD SECTION 1-4 (Claw) 1-4 (Claw) 2 CK-198 Board 2 CK-198 Board 2 CK-198 Board HELP11 HELP11 (#1/#14) (#1/#14) (#14) (#1) (#1) 5. REPAIR PARTS LIST 5-1.
  • Page 83 Reverse 985228635.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2008.04 Official Release — — 2008.05 Revised-1 • Correction of Note for Schematic Diagrams • Correction of EXPLODED VIEWS • Change of Service Classification S. M. Revised: Page 4-3, 5-4, 5-17 2008.09 Supplement-1 •...
  • Page 84 0 are critical for safety. sécurité. Replace only with part num- Ne les remplacer que par une pièce ber specified. portant le numéro spécifié. DIGITAL STILL CAMERA 2009F0800-1 DSC-H50_L3 © 2009.06 Sony EMCS Co. 9-852-286-13 Published by Kohda TEC...
  • Page 85 CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU PUBLISHED BY SONY.
  • Page 86 ENGLISH JAPANESE ENGLISH JAPANESE 1. SERVICE NOTE 1-4. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY The data can be copied/erased by the operations on the HOME screen. (When erasing the data, execute formatting the internal memory.) Note 1: When replacing the SY-201 board, erase the data in internal memory of the board before replacement. Note 2: When replacing the SY-201 board, execute formatting and initialize the internal memory after replacement.
  • Page 87 To change the setting, use the write enable tool “WriteEnableTool.exe”. Data writing method Connect the PC to the camera (USB mode: Mass Storage), and switch the driver to the “Sony Seus USB Driver”. Start the Write Enable Tool and the SeusEX.
  • Page 88 ENGLISH JAPANESE ENGLISH JAPANESE     ºÝÞæwÔ»¯Ð”S‘|«ˆMO ºÝÞæwÔ»¯Ð”‡hx«ˆx×”ÜhØwâ^T’îæDópb{¢«ˆb”ÔùxºÝÞæws8=›æM‡ b{£ / P U F  4 :   ,X¦õwMx|,X¦õ²tºÝÞæwÔ»›«ˆ`o<^M{ / P U F  4 :   ,X¦õwMx|,X¦õ™tºÝÞæwÑ¥”Ú¿ÄS‘|s8=›îæ`o<^M{ ºÝÞæw¯Ð”MO ¯Ð^ ºÝÞæ”tGå`hhþ›z  ÝÞ攵Ÿ¿« Ãᦡ t°Å¯Ð”`‡b{ 1 FüsíV0”wK”  ÝÞ攵Ÿ¿« Ãᦡ ›Š.tÖ•”{ 2 ¯ïÄé”çØ»ïw p ¦¯Ð”§...
  • Page 89 ENGLISH JAPANESE ENGLISH JAPANESE     ºÝÞæÃ”»›{VíbMO è×x| 1 $ T ’§ÝåwºÝÞæÃ”»›{V‰\qxpVsMƒtsloM‡b{ ,X¦õ™srt|ºÝÞæÃ”»›{VíbÔùtx|\wƒ›°Ì$t!Ëb”žAUK“‡b{ ƒ  w ! Ë t x | { V  ˆ  D À ” ç ¢ 8 S J U F &O BC M F 5P P M  FY F £ › – ; ` ‡ b { {Ví`MO  §Ýåq 1 $ ›...
  • Page 90 4-2. SCHEMATIC DIAGRAMS Link Link CD-737 FLEXIBLE BOARD SY-201 BOARD(6/10) (CCD IMAGER) (CCD SIGNAL PROCESS) SY-201 BOARD(1/10) SY-201 BOARD(7/10) (DC/DC CONVERTER) (LENS DRIVE) SY-201 BOARD(2/10) SY-201 BOARD(8/10) (BATTERY DETECTOR, CLOCK GENERATOR) (OIS DRIVE) SY-201 BOARD(3/10) SY-201 BOARD(9/10) (CPU, CAMERA DSP, AV SIGNAL PROCESS, LENS CONTROL, MODE CONTROL) (AUDIO/VIDEO AMP) SY-201 BOARD(4/10)

  • Page 91: Printed Wiring Boards And Schematic Diagrams

    4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS 4-2. SCHEMATIC DIAGRAMS THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) (For schematic diagrams) 1.
  • Page 92 Ver. 1.1 2008.05 The changed portions from Ver. 1.0 are shown in blue. ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS ENGLISH JAPANESE 4-2. SCHEMATIC DIAGRAMS (JAPANESE) sÏ$žèÊ”Ä ¢tžAsÊ”Äx¤Òé¿«tGL`oK“‡b£ ²sÏ$ʔij  €$ ~­Û¯ï|»ï»ç›†X¯ïÃï±p|1y  7 Ž<w‹w xfw1y›²t{oxb‚o ' ¢ QxQ ' £ { ~½¿Ó Åp¦ÔwsM‹wx|—8Ž<{ Pattern box PTB-450 For PTB-450:...
  • Page 104 4-3. PRINTED WIRING BOARDS Link Link CD-737 FLEXIBLE BOARD SY-201 BOARD (SIDE B) SY-201 BOARD (SIDE A) COMMON NOTE FOR PRINTED WIRING BOARDS DSC-H50_L3...
  • Page 105 4-3. PRINTED WIRING BOARDS 4-3. PRINTED WIRING BOARDS (ENGLISH) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS • : Uses unleaded solder. • Chip parts. • : Circuit board Transistor Diode : Flexible board Pattern from the side which enables seeing. : pattern of the rear side (The other layers’...
  • Page 109 5. REPAIR PARTS LIST (ENGLISH) When indicating parts by reference number, NOTE: please include the board name. • -XX, -X mean standardized parts, so they may have some differences from the original one. The components identified by mark 0 or •...
  • Page 110 CD-737 5-2. ELECTRICAL PARTS LIST Ref. No. Part No. Description Ref. No. Part No. Description A-1539-809-A CCD BLOCK ASSY (not supplied) CD-737 FLEXIBLE BOARD ******************** (IC001 (CCD imager) and CD-737 flexible complete board are not supplied, but there are included in CCD block assy.) <...
  • Page 111 SY-201 Ref. No. Part No. Description Ref. No. Part No. Description A-1519-829-A SY-201 BOARD, COMPLETE (SERVICE) C209 1-125-777-11 CERAMIC CHIP 0.1uF C211 1-125-777-11 CERAMIC CHIP 0.1uF ******************************* (IC211 is not supplied, but this is included in SY-201 complete board (SERVICE).) C213 1-125-777-11 CERAMIC CHIP 0.1uF...
  • Page 112 SY-201 Ref. No. Part No. Description Ref. No. Part No. Description * C368 1-114-582-11 CERAMIC CHIP 0.1uF C609 1-112-717-91 CERAMIC CHIP 6.3V C610 1-107-819-11 CERAMIC CHIP 0.022uF C371 1-100-670-11 CERAMIC CHIP 4.7uF C611 1-107-826-11 CERAMIC CHIP 0.1uF C612 1-100-567-81 CERAMIC CHIP 0.01uF C376 1-100-966-91 CERAMIC CHIP...
  • Page 113 SY-201 Ref. No. Part No. Description Ref. No. Part No. Description < FERRITE BEAD > L602 1-400-588-11 INDUCTOR 10uH L702 1-400-588-11 INDUCTOR 10uH FB002 1-469-580-21 INDUCTOR, FERRITE BEAD (1005) FB003 1-469-580-21 INDUCTOR, FERRITE BEAD (1005) < TRANSISTOR > FB004 1-469-580-21 INDUCTOR, FERRITE BEAD (1005) FB005 1-469-580-21 INDUCTOR, FERRITE BEAD (1005) Q001...
  • Page 114 SY-201 Ref. No. Part No. Description Ref. No. Part No. Description R266 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W R509 1-208-721-11 METAL CHIP 0.5% 1/16W R512 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R267 1-218-974-11 RES-CHIP 1/16W R513 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W R268...
  • Page 115 SY-201 Ref. No. Part No. Description Ref. No. Part No. Description < VARISTOR > * VDR701 1-802-279-11 VARISTOR (SMD) * VDR702 1-802-279-11 VARISTOR (SMD) < VIBRATOR > X001 1-781-525-11 VIBRATOR, CRYSTAL (32.768kHz) * X201 1-813-904-21 QUARTZ CRYSTAL OSCILLATOR (38MHz) ************************************************************ DSC-H50_L3 5-16...

  • Page 116: Revision History

    Reverse 985228614.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2008.04 Official Release — — 2008.05 Revised-1 • Correction of Note for Schematic Diagrams S. M. Revised: Page 2008.09 Supplement-1 • Change of Electrical Parts List (DI08-235) 2009.06 Supplement-2 •...
  • Page 117 DESTINATION DATA WRITE USB SERIAL No. INPUT VIDEO SYSTEM ADJUSTMENTS CAMERA SYSTEM ADJUSTMENTS LCD SYSTEM ADJUSTMENTS ERROR • Use this Service Manual together with the Automatic Adjustment Program (DSC-H50 Auto-Adj Ver_1.4r05.exe). 2009F0500-1 DSC-H50_ADJ © 2009.6 Sony EMCS Co. 9-852-286-55 Published by Kohda TEC...
  • Page 118 SECTION 6 ADJUSTMENTS Before starting adjustments 1-1. Adjusting items when replacing main parts and boards When replacing main parts and boards, adjust the items indicated by z in the following table. Note: When replacing the SY-201 board, erase the data in internal memory of the board before replacement. Replaced parts Block Mounted parts...

  • Page 119: List Of Service Tools

    Ver. 1.4 2009.06 1-2. List of service tools • Oscilloscope • Color monitor HASP key and application for adjustment (SeusEX) USB, A/V cable for Personal computer multi-use terminal (Note 1) Contact our service headquarters of each 1-834-813-11 area how to get the application for adjustment (SeusEX) and HASP key.

  • Page 120: Camera Section Adjustments

    Ver. 1.4 2009.06 6-1. CAMERA SECTION ADJUSTMENTS 1-1. PREPARATIONS BEFORE ADJUSTMENTS 1-1-1. Preparations 1) Connect the equipment for adjustments according to Fig. 6-1-2. 2) Start up the application for adjustment (SeusEX). AC power adaptor AC-LS5 (The SeusEX must be installed in the PC.) (1-479-284-51) OS: Windows 2000/XP/Vista RAM: 256 MB or more recommended...
  • Page 121 Ver. 1.4 2009.06 • Connection diagram when “Component out (Y, Pb, Pr) level adjustment” in “Video System Adjustment” is performed. To DC IN jack AC IN AC power adaptor Measurement Point: AC-LS5 Component Out Y Level (1-479-284-51) HD_Y Component Out Pr Level HD_Pb HD_Pr AUDIO...
  • Page 122 1-1-2. Precautions 1. Setting the Switch Unless otherwise specified, set the switches as follows and perform adjustments. 1. Mode dial ..............Auto Adjustment 2. W/T (Zoom) button ............WIDE end 3. Digital Zoom (Settings – Shooting Settings – Shooting Settings 1) ..Off 4.
  • Page 123 4. Precautions When Using Pattern Box 1) It takes about 30 minutes for pattern box to stabilize its brightness. Turn on the pattern box 30 minutes before the adjustment starts. 2) Make arrangement so that the outside light does not enter the chart surface in the pattern box. Also, place a board between chart and camera, and make a hole at the lens part of the board so that the camera is not reflected in the shot image screen.
  • Page 124 5. Preparing the Flash Adjustment Box A dark room is required to provide an accurate flash adjustment. If it is not available, prepare the flash adjustment box as given below; 1) Provide woody board A, B, C and D of 15 mm thickness. woody board A (2) woody board B (2) woody board C (1)
  • Page 125 3. Function of Each Button on Main Menu Screen When the Automatic Adjustment Program started, the Main Menu The DSC-H50 is adjusted by the Automatic Adjustment Program. screen in Fig. 6-1-11 will appear. On this screen, select each ad- The Automatic Adjustment Program enters automatically via the justment section.
  • Page 126 Ver. 1.3 2008.09 4. Setting of Adjustment Mode 5. Release of Adjustment Mode Before performing the adjustment, “Setting of Adjustment Mode” To finish the adjustment, be sure to perform “Release of Adjust- is required. ment Mode”. [Setting method] [Releasing method] 1) Click the [END] button on the Main Menu screen.
  • Page 127 Ver. 1.1 2008.05 1-3. DESTINATION DATA WRITE 2. Destination Data Write [Writing method] Note: The DESTINATION DATA WRITE cannot be set with other 1) Select the written destination with the Destination List. than the Service board. 1. Function of Each Button on Destination Data Write Screen Click the [DESTINATION DATA WRITE] button on the Main Menu screen, and the “DESTNATION DATA WRITE”...
  • Page 128 1-4. USB SERIAL No. INPUT 1. Function of Each Button on USB Serial No. Input Screen The set is shipped with a unique ID (USB Serial No.) written in it. Click the [USB SERIAL No. INPUT] button on the Main Menu This ID has not been written in a new board for service, and there- screen, and “USB SERIAL No.
  • Page 129 1-5. VIDEO SYSTEM ADJUSTMENTS 1-5-1. Function of Each Button on Video System Adjustment Screen Click the [VIDEO SYSTEM ADJUSTMENT] button on the Main Menu screen, and the “VIDEO SYSTEM ADJUSTMENT” screen in Fig. 6-1-14 will appear. Fig. 6-1-14 1 [To Menu] button Return to the main menu.
  • Page 130 4) If the [End] button is clicked, the following message and screen 1-5-3. Adjusting Method 1. Composite Video Level Adjustment are displayed. Check that the sync signal level and burst level [Automatic Adjustment Program execution items and of the video signals satisfies the specified value, and click the [OK] button in the message.
  • Page 131 2. Component Video Level Adjustment 5) After that, the following screen is displayed during the execu- tion of “4. Component Out Pr Level Adj.”. Using the [Up]/ [Automatic Adjustment Program execution items and [Down] button on the screen, adjust so that the Pr signal level sequence] 1.
  • Page 132 1-6. CAMERA SYSTEM ADJUSTMENTS 1-6-1. Function of Each Button on Camera System Adjustment Screen Click the [CAMERA SYSTEM ADJUSTMENT] button on the Main Menu screen, and the “CAMERA SYSTEM ADJUSTMENT” screen in Fig. 6-1-15 will appear. Fig. 6-1-15 1 [To Menu] button Return to the main menu.
  • Page 133 1-6-2. Adjustment Items of Camera System Adjust- ment The adjustment items of camera system adjustment are as listed in Table 6-1-4. The Automatic Adjustment Program divides the ad- justment items into tens, camera adjustment 1-10. Clicking either CAMERA Adjustment Start button allows the adjustment item which corresponds to that button to be executed.
  • Page 134 6) If the [OK] button is clicked, “3. Auto Orientation Adj.” and 1-6-3. Adjusting Method 1. CAMERA Adjustment 1 “4. Release of Data Setting during Camera Adj.” will be ex- Note: There is no magnetic substance within around 8 cm of the ecuted.
  • Page 135 2. CAMERA Adjustment 2 2-3. Wide Limit Adjustment Perform this adjustment only when replacing the lens block or [Adjusting method] 1) Click the [Start] button of Camera Adjustment 2, and the fol- SY-201 board. lowing screen will appear. Adjustment Block Adjustment Page Adjustment Address 0F18, 0F19...
  • Page 136 3. CAMERA Adjustment 3 Preparation of Flange Back Adj. [Automatic Adjustment Program execution items and (Using the flange back adjustment jig) sequence] (Illuminance: about 300 lux) Note 2: When using the flange back adjustment jig, take care of 1. Data Setting during Camera Adj. 2.
  • Page 137 4. CAMERA Adjustment 4 [Adjusting method] 1) If the [Start] button of the CAMERA Adjustment 3 is clicked, [Automatic Adjustment Program execution items and the following message is displayed. sequence] If “Wide Limit Adjustment” is necessary, click the [Cancel] 1. Data Setting during Camera Adj. button to interrupt the Adjustment Program, and perform “2- 2.
  • Page 138 5. CAMERA Adjustment 5 Note: Perform this adjustment only when the Lens Block or CCD Block Assy was replaced. [Automatic Adjustment Program execution items and sequence] 1. Light Falloff Balance Adj. [Adjusting method] 1) If the [Start] button of the CAMERA Adjustment 5 is clicked, the following message is displayed.
  • Page 139 6. Picture Frame Setting (Standard Picture Frame) 7. CAMERA Adjustment 6 In the “CAMERA Adjustment 6 and CAMERA Adjustment 7”, [Automatic Adjustment Program execution items and set the picture frame so as to attain the positions shown in the sequence] following figure when shooting the 9 colors chart.
  • Page 140 8. CAMERA Adjustment 7 At this time, the following message is displayed, and click the [Yes] button if the check result display at the upper right of [Automatic Adjustment Program execution items and Color Reproduction Check screen is OK, or the [No] button if sequence] 1.
  • Page 141 9. CAMERA Adjustment 8 10. CAMERA Adjustment 9 Note: “CAMERA Adjustment 8” is available only once after the [Automatic Adjustment Program execution items and power is turned on. If the adjustment is retried, turn off the sequence] power and turn on again. 1.
  • Page 142 11. CAMERA Adjustment 10 Preparation: Perform this adjustment only when replacing the angular velocity 1) Read the PITCH sensor (SY-201 board SE502) sensitivity writ- sensor or lens block. When the microprocessor, circuit etc. is dam- ten on repair parts, and named this as S aged, don’t perform this adjustment but check the operations only.
  • Page 143 11-3. Preparation when the lens is replaced 11-4. Angular Velocity Sensor Sensitivity Adjustment Note down the PITCH/YAW data on the replacement lens for repair. [Adjusting method] 1) Click the [Start] button of Camera Adjustment 9, and the fol- Adjustment Block lowing screen will appear.
  • Page 144 1-7. LCD SYSTEM ADJUSTMENTS 1-7-2. Adjustment Items of LCD System Adjustment The adjustment items of LCD system adjustment are as listed in Table 6-1-5. The Automatic Adjustment Program executes the ad- 1-7-1. Function of Each Button on LCD System justment items if the LCD Adjustment Start button is clicked. Adjustment Screen Click the [LCD SYSTEM ADJUSTMENT] button on the Main Menu Adjusting Address...
  • Page 145 1-7-3. Adjusting Method 5) Upon successful completion of all item the LCD Adjustment, the following message is displayed. Click the [OK] button. 1. LCD Adjustment [Automatic Adjustment Program execution items and sequence] 1. Data Setting during LCD Adj. 2. V-COM Adj. 3.
  • Page 146 1-8. ERROR 3. Adjustment Time Out In the case of an error during the execution of adjustment, the Automatic Adjustment Program interrupts the processing at that point, and displays an error message, and then terminates the pro- gram execution there. This part indicates the adjustment 1-8-1.
  • Page 147 5. Data Save Error 1-8-2. Precautions When an Error Occurred The Automatic Adjustment Program sets the data for adjustment before the adjustment starts. Accordingly, if the adjustment termi- nates by an error, the data during the adjustment may be left in the camera.

  • Page 148: Service Mode

    2. Operation 6-2. SERVICE MODE • Block change To change the block, click [Block] on the SeusEX screen and 2-1. APPLICATION FOR ADJUSTMENT (SeusEX) enter the block to be changed. The block is displayed in hexa- The adjustment software (SeusEX) can change operational coeffi- decimal notation.
  • Page 149 2. Switch Check 2-2. SERVICE MODE Click the [Switch Check] button on the SERVICE MODE screen, and the “SWITCH CHECK” screen will appear. 1. Function of Each Button on Service Mode Screen Click the [SERVICE MODE] button on the Main Menu screen, and the “SERVICE MODE”...
  • Page 150 3. LED Check 4. Record Data Click the [LED Check] button on the SERVICE MODE screen, and Click the [Record Data] button on the SERVICE MODE screen, the “LED CHECK” screen will appear. and the “RECORD DATA” screen will appear. The record data such as Lifetime counter is displayed.
  • Page 151 5. Aging (1) 10MODE On the AGING screen, various types of aging can be executed. In the 10MODE, perform continuous recording in accordance with Select the type of aging to be executed with the Aging Mode Se- the CIPA Standard. When the 10MODE starts, the following op- lect buttons.
  • Page 152 (2) AGING_REC 10MODE screen and functions of each item In the AGING_REC mode, still pictures are continuously recorded at the interval (sec.) set to the “Rec Interval”. At the start of AGING_REC, the counter in the camera is initial- ized. This counter counts the number of recording times during the execution of AGING_REC, and it holds the counts even dur- ing the power off.
  • Page 153 (3) AGING_MREC (4) AGING_PB In the AGING_MREC mode, motion pictures are continuously In the AGING_PB mode, pictures are continuously played back at recorded for the time (sec.) set to the “Rec Time” at the interval the interval (sec.) set to the “Play Back Interval”. (sec.) set to the “Rec Interval”.
  • Page 154 2-3. DATA BACKUP 1. Function of Each Button on Data Backup Screen Click the [DATA BACKUP] button on the Main Menu screen, and With the “DATA BACKUP”, the adjustment data in the camera the “DATA BACKUP” screen in Fig. 6-2-3 will appear. can be backed up in the PC as a file.
  • Page 155 Reverse 985228655.pdf Revision History S.M. Rev. Ver. Date History Contents issued 2008.04 Official Release — — 2008.05 Revised-1 Replacement of the previously issued SER- (A1 DI08-054) VICE MANUAL 9-852-286-51 with this Manual. • Change of Automatic Adjustment Program Version of Automatic Adjustment Program has been changed from Ver_1.0r01 to Ver_1.1r02.
