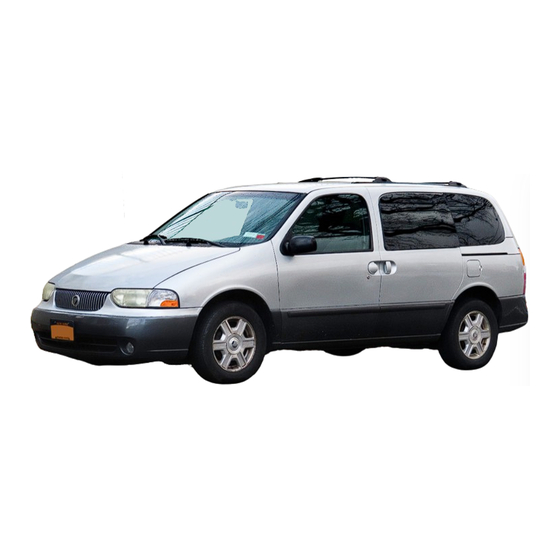

Mercury Villager 2001 Owner's Manual

Villager 2001

page of 257

/ 257
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

www.carburetor-manual.com

Would you like some Free Manuals?

http://carburetor-manual.com/free-shop-manual-club-t-13.html

Also visit

http://freeshopmanual.com

for more Free Manuals

Also Visit my website for 7 FREE Download Manuals starting

with this one.

"The ABC's of Carburetion"

Click Here Now

file:///C|/Documents%20and%20Settings/Tim/Desktop/carburetor-manual-welcome/index.htm[4/25/2009 11:42:20 AM]

Table of Contents

Summary of Contents for Mercury Villager 2001

Page 1 www.carburetor-manual.com Would you like some Free Manuals? http://carburetor-manual.com/free-shop-manual-club-t-13.html Also visit http://freeshopmanual.com for more Free Manuals Also Visit my website for 7 FREE Download Manuals starting with this one. "The ABC's of Carburetion" Click Here Now file:///C|/Documents%20and%20Settings/Tim/Desktop/carburetor-manual-welcome/index.htm[4/25/2009 11:42:20 AM]...
Page 2: Table Of Contents
Contents Before driving Introduction Instrumentation Controls and features Seating and safety restraints Starting and driving Starting Driving Roadside emergencies Servicing Maintenance and care Capacities and specifications Customer assistance Reporting safety defects Index All rights reserved. Reproduction by any means, electronic or mechanical including photocopying, recording or by any information storage and retrieval system or translation in whole or part is not permitted without written authorization from Ford Motor Company.
Page 3: Introduction
Introduction The following warning may be required by California law: CALIFORNIA Proposition 65 Warning WARNING: Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Page 4 Introduction WARNINGS Warnings provide information which may reduce the risk of personal injury and prevent possible damage to others, your vehicle and its equipment. BREAKING-IN YOUR VEHICLE There are no particular breaking-in rules for your vehicle. During the first 1 600 km (1 000 miles) of driving, vary speeds frequently. This is recommended to give the moving parts a chance to break in.
Page 5 Introduction These are some of the symbols you may see on your vehicle. Vehicle Symbol Glossary Safety Alert See Owner’s Guide Fasten Safety Belt Air Bag-Front Air Bag-Side Child Seat Child Seat Installation Child Seat Tether Warning Anchorage Brake System Anti-Lock Brake System Brake Fluid - Traction Control...
Page 6 Introduction Vehicle Symbol Glossary Interior Luggage Child Safety Door Compartment Release Lock/Unlock Symbol Panic Alarm Engine Oil Engine Coolant Engine Coolant Temperature Do Not Open When Hot Battery Avoid Smoking, Flames, Battery Acid or Sparks Explosive Gas Fan Warning Maintain Correct Fluid Power Steering Fluid Level Emission System...
Page 7: Instrumentation
Instrumentation Instrument panel Instrument cluster dimmer control (pg. 8) (pg. 22) Headlamp control (pg. 22) 50 60 80 100 RPM x 1000 SERVICE ENGINE SOON km/h TRIP A AUTO AUTO PUSH INTERIOR Turn signal lever (pg. 87) Windshield wiper/washer control (pg.
Page 8 Instrumentation Rear wiper/washer Gearshift (including (pg. 88) overdrive button) Hazard flasher (pg. 157) (pg. 167) Rear defroster (pg. 42) Auxiliary power point (pg. 81) Audio system (pg. 42) VOL - PUSH ON BASS TREB FADE TAPE SEEK SIDE 1 - 2 Climate control system SCAN TUNE...
Page 9 Instrumentation WARNING LIGHTS AND CHIMES Standard analog instrument cluster 50 60 80 100 RPM x 1000 km/h TRIP A Optional electronic instrument cluster CRUISE ˚F ˚C MILES/BAL L/100 km OUTSIDE TEMP INST ECONOMY km/h AVG. ECONOMY X 1000 TRIP 1 TO EMPTY TRIP 2 FUEL DOOR...
Page 10 Instrumentation Momentarily illuminates when the ignition is turned ON. If the light fails to illuminate, continues to flash or remains on, have the system serviced immediately. Safety belt Momentarily illuminates when the ignition is turned to the ON position to remind you to fasten your safety belts.
Page 11 Instrumentation Door ajar • Standard analog instrument cluster • Optional electronic instrument cluster Illuminates when the ignition is in the ON or START position and any door is open. High beams Illuminates when the high beam headlamps are turned on. Turn signal Illuminates when the left or right turn signal or the hazard lights are...
Page 12 Instrumentation • Optional electronic instrument CRUISE cluster This light comes on when either the COAST/SET or RES/ACCEL controls are pressed. It turns off when the cruise cancel control is pressed, the brake is applied or the ignition is turned to the OFF position. Low fuel Illuminates as an early reminder of a low fuel condition indicated on the...
Page 13 Instrumentation The Service Engine Soon indicator light illuminates when the ignition is first turned to the ON position to check the bulb. If it comes on after the engine is started, one of the engine’s emission control systems may be malfunctioning.
Page 14: Controls And Features
Instrumentation O/D off Illuminates when the Transmission Control Switch (TCS), refer to Overdrive control in the Controls and Features chapter, has been pushed turning the transmission overdrive function OFF. When the light is on, the transmission does not operate in the overdrive mode, refer to the Driving chapter for transmission function and operation.
Page 15 Instrumentation GAUGES Standard analog instrument cluster gauges 50 60 80 100 RPM x 1000 km/h TRIP A Optional electronic instrument cluster gauges CRUISE ˚F ˚C MILES/BAL L/100 km OUTSIDE TEMP INST ECONOMY km/h AVG. ECONOMY X 1000 TRIP 1 TO EMPTY TRIP 2 FUEL DOOR UNLEADED FUEL ONLY...
Page 16 Instrumentation • Optional electronic instrument cluster CRUISE km/h X 1000 TRIP 1 TRIP 2 Speedometer Indicates the current vehicle speed. • Standard analog instrument cluster 50 60 80 100 km/h TRIP A • Optional electronic instrument cluster CRUISE km/h X 1000 TRIP 1 TRIP 2 Odometer...
Page 17 Instrumentation • Optional electronic instrument cluster CRUISE km/h X 1000 TRIP 1 TRIP 2 Refer to Electronic Message Center for information on how to switch the display from metric to English measurements. Trip odometer Registers the kilometers (miles) of individual journeys. •...
Page 18 Instrumentation • Standard analog instrument cluster • Optional electronic instrument cluster Engine coolant temperature gauge Indicates the temperature of the engine coolant. At normal operating temperature, the needle remains within the normal area (the area between the “H” and “C”). If it enters the red section, the engine is overheating.
Page 19 Instrumentation • Optional electronic instrument cluster ELECTRONIC MESSAGE CENTER (IF EQUIPPED) The electronic message center only works when the ignition is in the ON position. The message center allows you to: • display the outside temperature. • change your gauges from English to metric units.
Page 20 Instrumentation • OUTSIDE TEMP • INST ECONOMY ˚F ˚C • AVG ECONOMY MILES/GAL L/100 km • TO EMPTY MILES km OUTSIDE TEMP INST ECONOMY AVG ECONOMY TO EMPTY RESET Press this control to reset the average fuel economy calculation. ENG/MET Press this control to change your instrument cluster gauges from English to metric.
Page 21 Instrumentation INST ECONOMY Press SELECT until the menu displays INST ECONOMY. This will display your fuel economy in ˚F ˚C MILES/GAL liters/100 km or miles/gallon based L/100 km MILES km on the type of traffic you are in. OUTSIDE TEMP INST ECONOMY Your vehicle must be moving to AVG ECONOMY...
Page 22 Instrumentation 2. Select AVG ECONOMY. 3. Press the RESET control to clear the system memory. RESET ENG / MET TRIP / RST • Actual highway fuel economy is now displayed. This current SELECT OD / TRIP average measure will change as the speed control system changes the engine speed to maintain a constant vehicle speed.
Page 23: Controls And Features
Controls and features PANEL DIMMER CONTROL Use to adjust the brightness of the instrument panel. • Push and hold top of control to brighten. • Push and hold bottom of control to dim. The dome lamp will not illuminate if the control switch is in the OFF position.
Page 24 Controls and features Foglamp control Turn on the low-beam headlamps and press the foglamp control to activate the foglamps. The foglamp control will illuminate when the foglamps are on. Press the foglamp control a second time to deactivate the foglamps. AUTOLAMP CONTROL (IF EQUIPPED) The autolamp system provides light AUTO...
Page 25 Controls and features CLIMATE CONTROL SYSTEM Manual heating and air conditioning system CLIMATE CONTROL SYSTEM Fan speed control Controls the volume of air circulated in the vehicle. Temperature control Controls the temperature of the airflow inside the vehicle. Mode selector control Controls the direction of the airflow to the inside of the vehicle.
Page 26 Controls and features The air conditioning operates in MAX A/C and when the A/C control is depressed. However, the air conditioning will only function if the outside temperature is about 4°C (40°F) or higher. Since the air conditioner removes considerable moisture from the air during operation, it is normal if clear water drips on the ground under the air conditioner drain while the system is working and even after you have stopped the vehicle.
Page 27 Controls and features • (Floor and defrost)-Distributes outside air through the windshield defroster ducts and the front and rear floor ducts. Heating and air conditioning capabilities are provided in this mode. Push to cool the vehicle below the outside temperature. For added customer comfort, when the temperature control knob is anywhere in between the full hot and full cold positions, the air distributed through the front and rear floor ducts will be slightly warmer than the air sent...
Page 28 Controls and features Rear seat heating Rear seat heating is provided through the floor ducts located under the front seats. Airflow and temperature to the rear seating are regulated by the main climate control system. The rear passenger compartment air conditioning system (if equipped) should be set to OFF, if rear heating is desired.
Page 29 Controls and features • Under normal weather conditions, your vehicle’s climate control system should be left in any position other than MAX A/C or OFF when the vehicle is parked. This allows the vehicle to “breathe” through the outside air inlet duct. •...
Page 30 Controls and features To aid in side window defogging/demisting in cold weather conditions: 1. Select 2. Set the temperature control to full heat 3. Set the fan speed to 4 (High) 4. Direct the outer panel vents towards the side windows To increase the airflow to the outer panel vents, close the central panel vents.
Page 31 Controls and features The rear seat A/C system is controlled from the main climate control system on the instrument panel. Ensure that the control is set to REAR A/C to engage the rear passenger compartment air conditioning system. OFF REAR A/C 1 Turning the Rear A/C on 1.
Page 32 Controls and features Turning the Rear A/C off: There are two ways to turn the rear air conditioning system off. The first way is to turn the Rear Fan Control on the main climate control system to OFF. OFF REAR A/C 1 You can also turn the Rear Fan Control on the main climate control system to Rear A/C and turn the Rear A/C Fan Control to 0.
Page 33 Controls and features Turning the EATC on OFF REAR 1 TEMP AUTOMATIC Press AUTOMATIC, any of the override controls or the fan speed control. The EATC will only operate when the engine is running. Turning the EATC off Press OFF. OFF REAR 1 TEMP AUTOMATIC...
Page 34 Controls and features If unusual conditions exist (i.e. window fogging, etc.), the manual override controls allow you to adjust the mode selector and fan speed controls as necessary. Temperature selection The display window indicates the ˚ selected temperature, function AUTO (AUTO or one of the override controls) and manual control of fan speed (...
Page 35 Controls and features Temperature conversion OFF REAR 1 TEMP AUTOMATIC Press simultaneously for one second while turning the fan speed dial upward until it stops moving, to switch between Fahrenheit and Celsius. Fan speed ( When AUTOMATIC is pressed, fan speed is adjusted automatically for existing conditions.
Page 36 Controls and features Manual override controls OFF REAR 1 TEMP AUTOMATIC The override controls allow you to: • manually control where the airflow is directed • manually control the air conditioning operation • manually select between outside or recirculated air during air conditioning operation The air conditioning can operate in all modes except OFF.
Page 37 Controls and features • (Panel)-Distributes outside air through the instrument panel registers. Heating and air conditioning capabilities are provided in this mode. Push to cool the vehicle below the outside temperature. • (Panel and floor)-Distributes outside air through the instrument panel registers and the front and rear floor ducts.
Page 38 Controls and features Rear seat heating Rear seat heating is provided through the floor ducts located under the front seats. Airflow and temperature to the rear seating are regulated by the main climate control system. The rear passenger compartment air conditioning system (if equipped) should be set to OFF, if rear heating is desired.
Page 39 Controls and features • Under snowy or dirty weather conditions, your vehicle’s climate control system should be left in the OFF position when the vehicle is parked. This allows the climate control system to be free from contamination of outside pollutants. •...
Page 40 Controls and features Do not place objects on top of the instrument panel, as these objects may become projectiles in a collision or sudden stop. Rear passenger air conditioning system — EATC systems On vehicles equipped with front passenger EATC systems, the vehicle will also have rear passenger compartment climate controls, which allow the rear seat occupants to adjust their air conditioning level.
Page 41 Controls and features The rear seat A/C system is controlled from the main climate control system on the instrument panel. Ensure that the control is set to REAR A/C to engage the rear passenger compartment air conditioning system. OFF REAR 1 TEMP AUTOMATIC Turning the Rear A/C on...
Page 42 Controls and features Turning the Rear A/C off: There are two ways to turn the rear air conditioning system off. The first way is to turn the Rear Fan Control on the main climate control system to OFF. OFF REAR 1 You can also turn the Rear Fan Control on the main climate control system to Rear A/C and turn the Rear A/C Fan Control to 0.
Page 43 Controls and features REAR WINDOW DEFROSTER The rear defroster control is located on the instrument panel. HAZARD Press the rear defroster control to clear the rear window of thin ice and fog. • The small LED will illuminate RR WASH RR WIPER when the rear defroster is activated.
Page 44 Controls and features Volume/power control Press the control to turn the audio VOL - PUSH ON system on or off. Turn the control to raise or lower volume. VOL - PUSH ON If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal”...
Page 45 Controls and features Tune adjust in radio mode • Press to move to the next SEEK frequency down the band (whether or not a listenable TUNE station is located there). Hold the DISCS control to move through the frequencies quickly. •...
Page 46 Controls and features • Press to seek forward to the next track of the current disc. After the last track has been completed, the first track of the current disc will automatically replay. Scan function The scan function works in radio or CD changer mode (if equipped).
Page 47 Controls and features Bass adjust The bass adjust control allows you to increase or decrease the audio system’s bass output. BASS Treble adjust The treble adjust control allows you to increase or decrease the audio system’s treble output. TREB Speaker balance adjust Speaker sound distribution can be adjusted between the right and left speakers.
Page 48 Controls and features Tape select • To enter tape mode while in radio or CD changer mode, press the TAPE control. • If no tape is found, NO TAPE TAPE appears in the display. Automatic Music Search The Automatic Music Search feature allows you to quickly locate the beginning of the tape selection being played or to skip to the next...
Page 49 Controls and features Press the 1–2/FF control to stop SIDE 1 - 2 rewinding the tape. To rewind in CD changer mode, press the CD control (preset 1). Press the control again to deactivate rewind mode. Fast forward The fast forward control works in tape and CD changer modes. To fast forward in tape mode, press SIDE 1 - 2...
Page 50 Controls and features Press the SHUFFLE control to start this feature. Random order play will continue until the SHUFFLE control is pressed again. Tape direction select Press SIDE and 1–2 at the same SIDE 1 - 2 time to play the alternate side of a tape.
Page 51 Controls and features • to decrease hours and • to increase hours. SEEK SEEK TUNE TUNE To set the minute, press and hold the CLK control and press the TUNE control: TAPE • to decrease minutes and SEEK SEEK • to increase minutes.
Page 52 Controls and features COMP SHUFFLE To turn on the rear seat controls, press the memory preset controls 3 and 5 at the same time. The will appear in the radio display. Pressing 3 and 5 at the same time again will turn the rear seat controls off.
Page 53 Controls and features Media select Push the MEDIA control to toggle between AM, FM1, FM2, tape, or CD VOLUME MEDIA SEEK changer (if equipped). Memory preset control Push the MEM control successively to allow rear sear passengers to VOLUME MEDIA SEEK scroll through the six memory presets in AM, FM1, or FM2.
Page 54 Controls and features Premium AM/FM Cassette (CD changer compatible) BASS TREB FADE PUSH ON TAPE RDS / CLK TUNE SEEK SCAN AUTO MUTE SIDE 1 . 2 COMP SHUFF Your audio system is equipped with selective lighting, a unique lighting strategy.
Page 55 Controls and features If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on. AM/FM select The AM/FM select control works in radio, tape and CD changer modes (if equipped).
Page 56 Controls and features Seek function The seek function control works in radio, tape or CD changer mode (if equipped). Seek function in radio mode • Press to find the next SEEK listenable station down the frequency band. • Press to find the next listenable station up the frequency band. Seek function in tape mode •...
Page 57 Controls and features Scan function in CD changer mode (if equipped) Press the SCAN control to hear a short sampling of all selections on the CD (The CD scans in a forward direction, wrapping back to the first track at the end of the CD.). To stop on a particular selection, press the control again.
Page 58 Controls and features Bass adjust The bass adjust control allows you to increase or decrease the audio BASS system’s bass output. TREB Treble adjust The treble adjust control allows you to increase or decrease the audio BASS system’s treble output. TREB Speaker balance adjust Speaker sound distribution can be...
Page 59 Controls and features • To begin CD play (if CD[s] are TAPE loaded), press the CD control. The first track of the disc will begin playing. After that, CD play will begin where it stopped last. Do not insert any promotional (odd shaped or sized) discs, or discs with removable labels into the CD player as jamming may occur.
Page 60 Controls and features Dolby noise reduction Dolby noise reduction operates only in tape mode. Dolby noise reduction reduces the amount of hiss and static during tape playback. Press the control to activate (and deactivate) Dolby noise reduction. Dolby noise reduction is manufactured under license from Dolby Laboratories Licensing Corporation.
Page 61 Controls and features Press the RDS/CLK control until RDS OFF is displayed. • Use the SEL control to select ON or OFF. Traffic • Press the RDS control until TRAFFIC is displayed. RDS / CLK • Use the SEL control to select ON or OFF.
Page 62 Controls and features • Religious • Rock • Soft • Top 40 Show • With RDS activated, press the RDS control until SHOW is RDS / CLK displayed. • Use the SEL control to select the program TYPE, station NAME or NONE (no text displayed).
Page 63 Controls and features Rear seat controls (if equipped) The Rear Seat Controls (RSC) allow VOLUME MEDIA SEEK the rear seat passengers to operate the radio, tape, or CD changer (if equipped). SIDE 1 . 2 COMP SHUFF To turn on the rear seat controls, press the memory preset controls 3 and 5 at the same time.
Page 64 Controls and features Plug a 3.6 mm headphone (not VOLUME MEDIA SEEK included) into either one of the two jacks. Press the control to operate the headphones. DUAL PLAY will appear in the digital display of the audio system, signaling that your Personal Audio System has been activated.
Page 65 Controls and features In tape mode, use the SEEK function to access the next previous selection. Super Sound AM/FM Stereo/Cassette/Single CD Player (CD Changer Compatible) DISC VOL - PUSH ON MUTE TAPE DOLBY B NR AUTO SEEK TUNE SCAN BASS TREB FADE SIDE 1-2...
Page 66 Controls and features Turn control to raise or lower volume. VOL - PUSH ON If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” listening level when the ignition switch is turned back on.
Page 67 Controls and features Tune adjust for CD changer (if equipped) • Press to select the previous SEEK SEEK disc in the CD changer. (Play will begin on the first track of the TUNE TUNE disc unless the CD changer is in shuffle mode.
Page 68 Controls and features Scan function The scan function works in radio, SCAN tape or CD mode. Scan function in radio mode Press the SCAN control to hear a brief sampling of all listenable stations on the frequency band. Press the control again to stop the scan mode. Scan function in tape mode Press the SCAN control to hear a short sampling of all selections on the tape.
Page 69 Controls and features Starting autoset memory preset 1. Select a frequency using the AM/FM select controls. 2. Press the AUTO control. AUTO 3. When the first six strong stations are filled, the station stored in memory preset control 1 will start playing.
Page 70 Controls and features Speaker balance adjust Speaker sound distribution can be FADE adjusted between the right and left speakers. Press the BAL control then press: • to shift sound to the left and • to shift sound to the right. Speaker fade adjust Speaker sound can be adjusted FADE...
Page 71 Controls and features Rewind The rewind control works in tape and CD modes. • In tape mode, radio play will continue until rewind is stopped (with the TAPE control) or the beginning of the tape is reached. • In CD mode, pressing the REW control for less than three seconds results in slow rewind.
Page 72 Controls and features Dolby noise reduction Dolby noise reduction operates only in tape mode. Dolby noise reduction reduces the amount of hiss and static during tape playback. Press the control to activate (and deactivate) Dolby noise reduction. The Dolby noise reduction system is manufactured under license from Dolby Laboratories Licensing Corporation.
Page 73 Controls and features To set the minute, press the AUTO RDS/CLK control until SELECT MIN is displayed and press: • to decrease minutes and • to increase minutes. Radio Data System (RDS) feature When selected, the RDS (Radio AUTO Data System) function performs the following: •...
Page 74 Controls and features To see if any stations in your area are capable of broadcasting an RDS traffic alert, press SCAN or SEEK while TRAFFIC ON is displayed. The radio will then SCAN or SEEK only to traffic capable stations. RDS select program type •...
Page 75 Controls and features will be displayed along with the frequency. Press SEL in order to scroll through the text messages. Mute mode Press the control to mute the playing media. Press the control again to return to the playing media. MUTE Rear seat controls (if equipped) The Rear Seat Controls (RSC) allow...
Page 76 Controls and features Adjusting the volume Press the + control to increase volume. VOLUME MEDIA SEEK Press the — control to decrease volume. From the RSC controls, the speaker volume can not be set higher than the current volume radio setting. Once in headphone mode, the RSC volume controls will only change volume in the headphones to a desired level and will have no effect on the front speakers (muting the speakers will not mute the headphones).
Page 77 Controls and features Memory preset control Push the MEM control successively to allow rear seat passengers to VOLUME MEDIA SEEK scroll through the six memory presets in AM, FM1, or FM2. Push the MEM control in CD changer mode (if equipped) to advance to the next disc.
Page 78 Controls and features 2. Press EJECT to eject the magazine. 3. Turn the magazine (A) over. 4. Using the disc holder release knob (C), pull the disc holder (B) out of the magazine. If you pull too hard on the disc holder, the disc holder may come completely out of the magazine.
Page 79 Controls and features 5. Line up the CD with the groove of the disc holder. Ensure that the label on the CD faces downwards. 6. Press in on the disc holder until it locks securely into the magazine. If the disc holders are not fully locked into the magazine, the unit will not operate.
Page 80 Controls and features If your changer does not work, it may be that: • A disc is already loaded where you want to insert a disc. • The disc is inserted with the label surface downward. • The disc is dusty or defective. •...
Page 81 Controls and features • Do not leave tapes in the cassette player for a long time when not being played. Radio frequency information The Federal Communications Commission (FCC) and the Canadian Radio and Telecommunications Commission(CRTC) establish the frequencies AM and FM stations may use for their broadcasts. Allowable frequencies are: AM 530, 540–1600, 1610 kHz FM 87.7, 87.9–107.7, 107.9 MHz...
Page 82 Controls and features AUXILIARY POWER POINT Power outlets are designed for accessory plugs only. Do not hang any type of accessory or accessory bracket from the plug. Improper use of the power outlet can cause damage not covered by your warranty. The power point is an additional power source for electrical accessories.
Page 83 Controls and features POSITIONS OF THE IGNITION 1. OFF/LOCK, shuts off the engine and all accessories/locks the steering wheel, gearshift lever and allows key removal. 2. ACC, allows the electrical accessories such as the radio to operate while the engine is not running.
Page 84 Controls and features To turn speed control off • Press OFF. ACCEL CANCEL COAST Once speed control is switched off, the previously programmed set speed will be erased. To set a speed • Press COAST/ SET. For speed control to operate, the speed control must be ON and the ACCEL vehicle speed must be greater...
Page 85 Controls and features To set a higher set speed • Press and hold RES/ACCEL. Release the control when the desired vehicle speed is reached ACCEL • Press and release RES/ACCEL to CANCEL operate the Tap-Up function. Each press will increase the set speed by 1.6 km/h (1 mph) or COAST •...
Page 86 Controls and features To disengage speed control • Depress the brake pedal. • Press CANCEL. Disengaging the speed control will ACCEL not erase the previously programmed set speed. CANCEL COAST • Press OFF. Pressing OFF will erase the ACCEL previously programmed set speed. CANCEL COAST...
Page 87 Controls and features To return to a previously set speed • Press RES/ACCEL. For RES/ACCEL to operate, the vehicle speed must be faster than ACCEL 48 km/h (30 mph). CANCEL COAST Indicator light • Standard analog instrument CRUISE cluster The “CRUISE” light comes on when the ON control is pressed.
Page 88 Controls and features Audio control features In Radio mode: • Press NEXT to select the next preset station within the current radio band. In Tape mode: NEXT • Press NEXT to listen to the next selection on the tape. In CD mode: •...
Page 89 Controls and features WINDSHIELD WIPER/WASHER CONTROLS Rotate the windshield wiper control to the desired interval, low or high speed position. The bars of varying length are for intermittent wipers. When in this position rotate the control upward for fast intervals and downward for slow intervals.
Page 90: Roadside Emergencies
Controls and features Press the washer control to activate the rear washer. The wiper will HAZARD come on when the washer control is pressed, if it is not already on. RR WASH RR WIPER RR DEFOG SECURITY HAZARD FLASHER For information on the hazard flasher control, refer to Hazard flasher in the Roadside emergencies chapter.
Page 91 Controls and features For additional information about the gearshift lever and the transmission control switch operation refer to the Automatic Transaxle Operation section of the Driving chapter. TILT STEERING WHEEL Push the tilt steering wheel lever downward to move the steering wheel up or down.
Page 92 Controls and features Power vent windows (if equipped) Your vehicle may be equipped with rear power vent windows which are operated the same as the front power windows. AUTO L VENT R One touch down • Press AUTO completely down and release quickly.
Page 93 Controls and features POWER DOOR LOCKS Push control forward to unlock all UNLOCK doors and pull backward to lock all doors. Anti-lockout This feature prevents the front doors from being locked while the key is in the ignition and the driver’s door is open. Remove the key from the ignition before exiting the vehicle.
Page 94 Controls and features Pull lock control out to engage the lock. Push control in to disengage childproof locks. POWER SIDE VIEW MIRRORS The ignition must be in ACC or ON position to adjust the power side view mirrors. To adjust your mirrors: 1.
Page 95 Controls and features 2. Move the control in the direction you wish to tilt the mirror. MIRRORS 3. Return to the center position to lock mirrors in place. Heated outside mirrors (if equipped) Both mirrors are heated automatically to remove ice, mist and fog when the rear window defrost is activated.
Page 96 Controls and features Programming Do not program the HomeLink Universal Transceiver with the vehicle parked in the garage. 1. Prepare for programming the HomeLink Universal Transceiver by erasing the three factory default codes by holding down the two outside buttons until the red light begins to flash after 20 seconds.
Page 97 Controls and features To program your hand-held transmitters: • continue to hold the button on the HomeLink Universal Transceiver. • press and re-press the hand-held transmitter button every two seconds until the red light changes from a slow to a fast flash. Operating the HomeLink Universal Transceiver Once programmed, the HomeLink Universal Transceiver can be used in...
Page 98 Controls and features 3. Press and release the programmed HomeLink button. Press and release the HomeLink button a second time to complete the training process. (Some garage door openers may require this procedure to be done a third time to complete the training). The 2nd or 3rd press from step 3 will activate the door.
Page 99 Controls and features ILLUMINATED VISOR MIRROR To turn on the visor mirror lamps, lift the mirror cover. OVERHEAD CONSOLE (IF EQUIPPED) The appearance of your vehicle’s overhead console will vary according to your option package. Conversation mirror (if equipped) The conversation mirror allows the driver to view the rear seating area.
Page 100 Controls and features The dome lamp will stay on if the control is moved to the ON position. When the control is in the middle position, the lamp will only come on when a door is opened. If the control is moved to the OFF position, the lamp will not come on at all.
Page 101 Controls and features If the battery is disconnected, discharged, or a new battery is installed, the moon roof needs to be opened to the vent position to reset the moon roof positions. If you open and close the moon roof repeatedly, the moon roof motor may overheat and shut down for 45 seconds while the motor cools.
Page 102 Controls and features REMOTE ENTRY SYSTEM This device complies with part 15 of the FCC rules and with RS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 103 Controls and features Locking the doors Press this control to lock all doors. To confirm all doors are closed and locked, the horn will chirp and the lamps will flash. The horn chirp feature can be turned on/off by holding the LOCK and UNLOCK controls on the transmitter simultaneously for two seconds.
Page 104 Controls and features The battery saver will shut off the interior lamps after 30 minutes if the front door is left open or after 60 minutes if the liftgate is left open. Replacing the battery The transmitter is powered by one coin type three-volt lithium battery. Typical operating range will allow you to be up to 10 meters (33 feet) away from your vehicle.
Page 105 Controls and features Re-insert the key and turn to the ON position. Press any control on the first transmitter. The park lamps will flash twice to confirm the programming. To program additional (up to four) transmitters yourself: • Unlock, then lock the driver’s door using the power door lock switch. •...
Page 106 Controls and features If a door is open, the system is prearmed and is waiting for the door HAZARD to close. Once all the doors are closed, the security indicator lamp on the instrument panel will illuminate continuously when the system is prearmed.
Page 107 Controls and features Disarming a triggered anti-theft system You can disarm the system by any of the following actions: • Press the unlock control using your remote entry transmitter. • Unlock the doors with a key. LIFTGATE To open the liftgate window (if equipped), insert key into lock and turn clockwise.
Page 108 Controls and features Cargo Area Features Rear Cargo net The cargo net helps stabilize lightweight objects in the cargo area. Attach the net to the anchors provided. The cargo restrained in the net must not exceed 22 kg (50 lbs.) or the net may not stay secured. The cargo net is not designed to restrain objects during a collision or heavy braking.
Page 109 Controls and features Parcel Shelf (if equipped) Your vehicle may be equipped with a 14 kg (30 lbs.) maximum capacity parcel shelf located behind the rear seat of your vehicle which can be positioned to three different heights. To remove the shelf: 1.
Page 110 Controls and features Make sure the rear seat back is in the rearmost/upright position when parcel shelf is loaded. Do not load any objects on the parcel shelf that may obstruct your vision or strike occupants of the vehicle in the case of a sudden stop or collision.
Page 111: Seating And Safety Restraints
Seating and safety restraints SEATING Adjustable head restraints (if equipped) Your vehicle’s seats may be equipped with head restraints which are vertically adjustable. The purpose of these head restraints is to help limit head motion in the event of a rear collision. To properly adjust your head restraints, lift the head restraint so that it is located directly behind your head or as close to that position as possible.
Page 112 Seating and safety restraints Always drive and ride with your seatback upright and the lap belt snug and low across the hips. Reclining the seatback can reduce the effectiveness of the seat’s safety belt in the event of a collision. Lift handle to move seat forward or backward.
Page 113 Seating and safety restraints Always drive and ride with your seatback upright and the lap belt snug and low across the hips. Reclining the seatback can reduce the effectiveness of the seat’s safety belt in the event of a collision. Move the control up or down to move the seat up and down.
Page 114 Seating and safety restraints Using the manual lumbar support The lumbar control is located on the inboard side of the driver’s seat. Move the control up or down to adjust lumbar support. Memory seats and mirrors (if equipped) Some vehicles may only have the memory feature available for the seats.
Page 115 Seating and safety restraints 2. Press and hold the desired memory position button. Within ten seconds, press the unlock button on the transmitter while the memory button is pressed. 3. When the transmitter has been programmed, the indicator will flash five times.
Page 116 Seating and safety restraints • 4 passenger vehicle (with third row seat in storage position) A. Cargo mat B. Narrow mats C. Sliding door mats, LH/RH • 5 passenger vehicle (second row seats removed) A. Cargo mat B. Narrow mats C.
Page 117 Seating and safety restraints • 5 passenger vehicle (second row seats removed and third row bench seat moved forward to limousine seating position) A. Cargo mat B. Narrow mats • Two passenger vehicle (second row seats removed and third row seat stored in full forward position —...
Page 118 Seating and safety restraints Stowed cupholders The vehicle is equipped with cupholders that pull out from the 2nd row seat: • Bench seat - below center of the seat cushion • Bucket seat (driver’s side only) - inboard side of seat base Use only soft cups in the cupholder.
Page 119 Seating and safety restraints 2nd row bucket seats (if equipped) • Adjusting the left side bucket seat Pull control up to recline the seatback or fold the seatback flat. • Adjusting the right side (E-Z Entry Tip Slide) bucket seat The E-Z Entry Tip Slide seat allows for easier entry and exit to and from the 3rd row seat.
Page 120 Seating and safety restraints To exit the third row seat, pull up on the 3rd row access control. To return the seat to a seating position, move the seat rearward until the seat track locks. Then readjust the seatback. Lift handle to move the seat forward or backward.
Page 121 Seating and safety restraints Pull control up to flip seatback to a forward flat position. Adjusting 3rd row bench Pull control up to adjust seatback position. This control will also allow the seatback to be put in the forward flat position.
Page 122 Seating and safety restraints The entire seat can be moved to four seating positions and two storage positions. Before rearranging the seats, remove any floor mats that might be in the way, see Removable floor mats in this chapter for instructions on placement of floor mats.
Page 123 Seating and safety restraints To move the seat to another seating or storage position: 1. Lift control (A) to release the seat cushion and flip the cushion up. The seat cushion must be moved to the storage position before the seat can be moved along the track.
Page 124 Seating and safety restraints After sliding the seat, check to ensure that both sides of the seat are locked in position. This must be done before the vehicle is put into motion in order to prevent unintended movement of the seat. Every time you adjust any seat, check to be sure that it is properly latched in the lock position of both seat tracks.
Page 125 Seating and safety restraints To install the seat: The bucket seats are not interchangeable due to the locations of the seat anchors on the floor of the vehicle. Each seat must be installed in its original position. 1. Position the seat in the vehicle. 2.
Page 126 Seating and safety restraints It is extremely dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. Do not allow people to ride in any area of your vehicle that is not equipped with seats and safety belts.
Page 127 Seating and safety restraints 2. To unfasten, push the release button and remove the tongue from the buckle. The front and rear outboard safety restraints in the vehicle are combination lap and shoulder belts. The front passenger and rear seat outboard safety belts have two types of locking modes described below: Vehicle sensitive mode The vehicle sensitive mode is the normal retractor mode, allowing free...
Page 128 Seating and safety restraints How to use the automatic locking mode • Buckle the combination lap and shoulder belt. • Grasp the shoulder portion and pull downward until the entire belt is extracted. • Allow the belt to retract. As the belt retracts, you will hear a clicking sound.
Page 129 Seating and safety restraints Disconnect the combination lap/shoulder belt and allow it to retract completely to disengage the automatic locking mode and activate the vehicle sensitive (emergency) locking mode. After any vehicle collision, the front passenger outboard seat belt system must be checked by a qualified technician to verify that the “automatic locking retractor”...
Page 130 Seating and safety restraints Front safety belt height adjustment Your vehicle has safety belt height adjustments for the driver and front passenger. Adjust the height of the shoulder belt so the belt rests across the middle of your shoulder. To lower the shoulder belt height, push the button and slide the height adjuster down.
Page 131 Seating and safety restraints Shorten and fasten the belt when not in use. Safety belt extension assembly If the safety belt assembly is too short for you, even when fully extended, 20 cm (8 inches) can be added to the safety belt assembly by adding a safety belt extension assembly (part number 611C22).
Page 132 Seating and safety restraints Safety belt maintenance Inspect the safety belt systems periodically to make sure they work properly and are not damaged. Inspect the safety belts to make sure there are no nicks, wears or cuts, replacing if necessary. All safety belt assemblies, including retractors, buckles, front seat belt buckle assemblies, buckle support assemblies (slide bar-if equipped), shoulder belt height adjusters (if equipped), shoulder belt guide on seatback (if...
Page 133 Seating and safety restraints Your vehicle is equipped with a crash sensing and diagnostic module which records information about the air bag and sensor systems. In the event of a collision this module may save information related to the collision including information about the air bag system and impact severity.
Page 134 Do not attempt to service, repair, or modify the Air Bag Supplemental Restraint System or its fuses. See your Ford or Lincoln Mercury dealer. Modifications to the front end of the vehicle, including frame, bumper, front end body structure and tow hooks may effect the performance of the air bag sensors increasing the risk of injury.
Page 135 Seating and safety restraints Air bags can kill or injure a child in a child seat. NEVER place a rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.
Page 136 Seating and safety restraints facial and eye injuries or internal injuries, particularly to occupants who are not properly restrained or are otherwise out of position at the time of air bag deployment. Thus, it is extremely important that occupants be properly restrained as far away from the air bag module as possible while maintaining vehicle control.
Page 137 Seating and safety restraints If any of these things happen, even intermittently, have the SRS serviced at your dealership or by a qualified technician immediately. Unless serviced, the system may not function properly in the event of a collision. Disposal of air bags and air bag equipped vehicles (including pretensioners) For disposal of air bags or air bag equipped vehicles, see your local dealership or qualified technician.
Page 138 Seating and safety restraints Follow all the important safety restraint and air bag precautions that apply to adult passengers in your vehicle. If the shoulder belt portion of a combination lap and shoulder belt can be positioned so it does not cross or rest in front of the child’s face or neck, the child should wear the lap and shoulder belt.
Page 139 Seating and safety restraints When installing a child safety seat: • Review and follow the information presented in the Air Bag Supplemental Restraint System section in this chapter. • Use the correct safety belt buckle for that seating position. • Insert the belt tongue into the proper buckle until you hear a snap and feel it latch.
Page 140 Seating and safety restraints Installing child safety seats in combination lap and shoulder belt seating positions Air bags can kill or injure a child in a child seat. NEVER place a rear-facing child seat in front of an active air bag. If you must use a forward-facing child seat in the front seat, move the seat all the way back.
Page 141 Seating and safety restraints 3. While holding the shoulder and lap belt portions together, route the tongue through the child seat according to the child seat manufacturer’s instructions. Be sure the belt webbing is not twisted. 4. Insert the belt tongue into the proper buckle (the buckle closest to the direction the tongue is coming from) for that seating position until...
Page 142 Seating and safety restraints 7. Pull the lap belt portion across the child seat toward the buckle and pull up on the shoulder belt while pushing down with your knee on the child seat. 8. Allow the safety belt to retract to remove any slack in the belt.
Page 143 Seating and safety restraints 5. Push down on the child seat while pulling on the loose end of the lap belt webbing to tighten the belt. 6. Before placing the child into the child seat, forcibly tilt the child seat from side to side and in forward direction to make sure that the seat is held securely in place.
Page 144 Seating and safety restraints Second row seats 1. Position the child safety seat on the seat cushion. 2. Route the child safety seat tether strap over the back of the seat. 3. Grasp the tether strap and position it to the seat frame.
Page 145 Seating and safety restraints 4. Rotate the tether strap. 5. Clip the tether strap to the seat tether slot bracket at the lower rear portion of the seatback. If the tether strap is clipped incorrectly (as shown) the child safety seat may not be retained properly in the event of a collision.
Page 146 Seating and safety restraints 6. Rotate the tether strap clip. 7. Refer to the instructions in this section under Installing child safety seats in combination lap and shoulder belt seating positions to secure the child safety seat. 8. Tighten the child safety seat tether strap according to the manufacturer’s instructions.
Page 147 Seating and safety restraints Attaching child safety seats with Lower Anchor and Tethers for Children (LATCH) attachments Some child safety seats are labeled as LATCH or LATCH-compatible child seats. These seats include two rigid or webbing mounted attachments that connect to two anchors at specific seating positions in your vehicle. This type of child seat eliminates the need to use seat belts to attach the child seat.
Page 148 Seating and safety restraints The lower anchors for child seat installation are located at the rear section of the rear seat between the cushion and seat back. Each lower anchor for child seat installation is located 2–3 inches below the locator symbols.
Page 149: Starting
Starting PREPARING TO START YOUR VEHICLE Engine starting is controlled by the powertrain control system. This system meets all Canadian Interference-Causing Equipment standard requirements regulating the impulse electrical field strength of radio noise. When starting a fuel-injected engine, avoid pressing the accelerator before or during starting.
Page 150 Starting 3. Make sure the parking brake is set. PUSH RELEASE 4. Make sure the gearshift is in P R N D 2 1 (Park). 5. Turn the key to 3 (ON) without turning the key to 4 (START). If there is difficulty in turning the key, firmly rotate the steering wheel left and right until the key turns freely.
Page 151: Starting The Engine
Starting CRUISE ˚F ˚C MILES/BAL L/100 km OUTSIDE TEMP km/h INST ECONOMY AVG. ECONOMY X 1000 TRIP 1 TO EMPTY TRIP 2 FUEL DOOR UNLEADED FUEL ONLY SERVICE R N D 2 1 BRAKE ENGINE SOON Make sure the corresponding lights illuminate or illuminate briefly. If a light fails to illuminate, have the vehicle serviced.
Page 152 Starting system to respond quickly. Use of an engine block heater is strongly recommended if you live in a region where temperatures reach -23°C (-10°F) or below. For best results, plug the heater in at least three hours before starting the vehicle.
Page 153: Driving
Driving BRAKES Your service brakes are self-adjusting. Refer to the scheduled maintenance guide for scheduled maintenance. Occasional brake noise is normal and often does not indicate a performance concern with the vehicle’s brake system. In normal operation, automotive brake systems may emit occasional or intermittent squeal or groan noises when the brakes are applied.
Page 154 Driving ABS warning lamp warning lamp in the instrument cluster momentarily illuminates when the ignition is turned to the ON position. If the light does not illuminate momentarily at start up, remains on or continues to flash, the ABS needs to be serviced. With the ABS light on, the anti-lock brake system is disabled and normal braking is still effective unless the...
Page 155 Driving The BRAKE warning lamp in the instrument cluster illuminates and remains illuminated (when the BRAKE ignition is turned ON) until the parking brake is released. Always set the parking brake fully and make sure that the gearshift is securely latched in P (Park). The parking brake is not recommended to stop a moving vehicle.
Page 156 Driving • uneven vehicle loading • high crown in center of road • high crosswinds • wheels out of alignment • loose or worn suspension components AUTOMATIC TRANSAXLE OPERATION Brake-shift interlock This vehicle is equipped with a brake-shift interlock feature that prevents the gearshift lever from being moved from P (Park) when the ignition is in the ON position unless brake pedal is depressed.
Page 157 Driving If the parking brake is fully released, but the brake warning lamp remains illuminated, the brakes may not be working properly. See your dealer or a qualified service technician. Understanding gearshift positions Your automatic transaxle electronically controls the shift feel by using an adaptive learning strategy.
Page 158 Driving Overdrive — column mounted gearshift with O/D off switch The Overdrive position with the O/D R N D 2 1 OFF switch not depressed is the normal driving position for this automatic overdrive transaxle. When your vehicle cruises at a constant speed for any length of time, this fourth gear will increase your fuel economy.
Page 159 Driving When to use D (Drive) or press the O/D OFF switch You will notice that there is only one R N D 2 1 drive position on your gearshift indicator (instead of Drive and Overdrive). However, you will find a control labeled OVERDRIVE located OVERDRIVE OFF/ON...
Page 160 Driving When parking, do not use the gearshift in place of the parking brake. Always set the parking brake fully and make sure that the gearshift is securely latched in Park (P). Turn off the ignition whenever you leave your vehicle. Never leave your vehicle unattended while it is running.
Page 161 Driving Once through the water, always try the brakes. Wet brakes do not stop the vehicle as effectively as dry brakes. Drying can be improved by moving your vehicle slowly while applying light pressure on the brake pedal. Driving through deep water where the transaxle is submerged may allow water into the transaxle and cause internal damage.
Page 162 Driving • Trailer Weight Range: Specified weight range that the trailer must fall within that ranges from zero to the maximum trailer weight rating. Do not exceed the GVWR or the GAWR specified on the certification label. Do not use replacement tires with lower load carrying capacities than the originals because they may lower the vehicle’s GVWR and GAWR limitations.
Page 163 Driving TRAILER TOWING The trailer towing table shows the maximum allowable maximum GCWR and trailer weight. Trailer weight range Maximum GCWR - kg (lbs.) (0 - maximum) - kg (lbs.) 3 628 ( 8 000) 0-1 588 (0-3 500) Do not exceed the GVWR or the GAWR specified on the certification label.
Page 164 Driving Trailer Tow Prep Package (if equipped) The trailer tow prep package on your vehicle (if equipped) includes: • Heavy duty battery • Conventional size spare tire • Trailer tow module and jumper harness Using the jumper harness (if equipped) •...
Page 165 Driving If you use a rental trailer, follow the instructions that the rental agency gives to you. Do not attach safety chains to the bumper. Trailer brakes Electric brakes and manual, automatic or surge-type trailer brakes are safe if installed properly and adjusted to the manufacturer’s specifications.
Page 166 Driving Trailer towing tips • Practice turning, stopping and backing up before starting on a trip to get the feel of the vehicle trailer combination. When turning, make wider turns so the trailer wheels will clear curbs and other obstacles. •...
Page 167: Roadside Emergencies
In the United States, this card is found in the Owner Guide portfolio in the glove compartment in Ford vehicles and is mailed to you if you own a Mercury or Lincoln. In Canada, the card is found in the Roadside Assistance book in the glove compartment.
Page 168 In the United States, you may purchase additional roadside assistance coverage beyond this period through the Ford Auto Club by contacting your Ford or Lincoln Mercury dealer. Similarly in Canada, you may purchase additional coverage beyond the basic coverage period by consulting the Ford Roadside Assistance Club brochure or by calling 1–877–294–CLUB (1–877–294–2582).
Page 169 Roadside emergencies The fuel pump shut-off switch is located in the driver’s foot well, behind the kick panel. The reset button (RED) for the fuel pump shut-off switch is accessible through an opening in the kick panel. Use the following procedure to reset the fuel pump shut-off switch. 1.
Page 170 — Natural — Black For fuses greater than 80A, please see your Ford or Lincoln Mercury Dealer. Passenger compartment fuse panel The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
Page 171 Roadside emergencies The fuses are coded as follows. Fuse/Relay Fuse Amp Passenger Compartment Location Rating Fuse Panel Description Corner Front Exterior Lamps Lamps Heated Seat 7.5A Heated Seats I/P Illum 7.5A Interior Panel Illumination Lamps Electron Transaxle Control Module (TCM), Electronic Automatic Temperature Control (EATC) Module, Instrument Cluster, Rear Wiper Motor Assembly...
Page 172 Roadside emergencies Fuse/Relay Fuse Amp Passenger Compartment Location Rating Fuse Panel Description Cigar Cigar Lighter Lighter Hazard Hazard Warning Flasher Switch, Anti-Theft Indicator RR Pwr Rear Powerpoint Plug Rear Blower Rear Blower Motor Relay, Rear Blower Motor Front Wiper Front Wiper/Washer Assembly Rear Blower Rear Blower Motor Relay, Rear Blower Motor Rear Wiper...
Page 173 Roadside emergencies Power distribution box The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads. Always disconnect the battery before servicing high current fuses. Always replace the cover to the Power Distribution Box before reconnecting the battery or refilling fluid reservoirs.
Page 174 Roadside emergencies The high-current fuses are coded as follows. Fuse/Relay Fuse Amp Power Distribution Box Description Location Rating Fog Lamp 7.5A* Fog Lamps FUEL PUMP 15A* Fuel Pump Relay 10A* Powertrain Control Module (PCM), Injectors 7.5A* Anti-Theft Relay, Smart Entry Control (SEC)/Timer Module 7.5A* Radiator Fan Sensing...
Page 175 Roadside emergencies Fuse/Relay Fuse Amp Power Distribution Box Description Location Rating RR DEF 45A** Rear Window Defroster Relay 140A** Accessory Relay, Ignition Relay, Tail Lamp Relay, Fuse Junction Panel MAIN 100A** Generator * Mini Fuses ** Maxi Fuses Relay box The relay box is located in the engine compartment in front of the battery.
Page 176 Roadside emergencies CHANGING THE TIRES If you get a flat tire while driving, do not apply the brake heavily. Instead, gradually decrease your speed. Hold the steering wheel firmly and slowly move to a safe place on the side of the road. Temporary spare tire information Your vehicle may have a temporary or conventional size spare tire.
Page 177 Roadside emergencies Removing the spare tire 1. Open the liftgate, locate the U-shaped slits in the carpet, and flip up the piece of carpet to expose the hex nut. 2. Insert the lug nut wrench on the hex nut in cargo floor. 3.
Page 178 Roadside emergencies Stowing the spare tire 1. Lay the tire on the ground with the interior side facing up. 2. Install the retainer through the wheel center and slide the wheel under the vehicle. 3. Turn the wrench clockwise until the tire is raised to its original position underneath the vehicle.
Page 179 Roadside emergencies 1. Park on a level surface, activate hazard flashers and set parking brake. PUSH RELEASE 2. Place gearshift lever in P (Park), turn engine OFF, and block the diagonally opposite wheel. 3. Remove the spare tire and jack assembly.
Page 180 Roadside emergencies 7. Turn the jack handle clockwise until the wheel is completely off the ground. To lessen the risk of personal injury, do not put any part of your body under the vehicle while changing a tire. Do not start the engine when your vehicle is on the jack.
Page 181 Roadside emergencies Preparing your vehicle When the battery is disconnected or a new battery is installed, the transmission must relearn its adaptive strategy. As a result of this, the transmission may shift firmly. This operation is considered normal and will not effect function or durability of the transmission. Over time, the adaptive learning process will fully update transmission operation to its optimum shift feel.
Page 182 Roadside emergencies 2. Connect the other end of the positive (+) cable to the positive (+) terminal of the assisting battery. 3. Connect the negative (-) cable to the negative (-) terminal of the assisting battery. 4. Make the final connection of the negative (-) cable to an exposed metal part of the stalled vehicle’s engine, away from the battery and the carburetor/fuel injection system.
Page 183 Roadside emergencies Do not connect the end of the second cable to the negative (-) terminal of the battery to be jumped. A spark may cause an explosion of the gases that surround the battery. 5. Ensure that the cables are clear of fan blades, belts, moving parts of both engines, or any fuel delivery system parts.
Page 184 Roadside emergencies 2. Remove the jumper cable on the negative (-) connection of the booster vehicle’s battery. 3. Remove the jumper cable from the positive (+) terminal of the booster vehicle’s battery. 4. Remove the jumper cable from the positive (+) terminal of the disabled vehicle’s battery.
Page 185 Roadside emergencies After the disabled vehicle has been started and the jumper cables removed, allow it to idle for several minutes so the engine computer can relearn its idle conditions. When the battery is disconnected or a new battery is installed, the transmission must relearn its adaptive strategy.
Page 186 Roadside emergencies If your vehicle is to be towed from the rear using wheel lift equipment, the front wheels (drive wheels) must be placed on a dolly to prevent damage to the transmission. If the vehicle is towed by other means or incorrectly, vehicle damage may occur.
Page 187: Maintenance And Care
Maintenance and care SERVICE RECOMMENDATIONS To help you service your vehicle: • We highlight do-it-yourself items in the engine compartment for easy location. • We provide a scheduled maintenance guide which makes tracking routine service easy. If your vehicle requires professional service, your dealership can provide the necessary parts and service.
Page 188 Maintenance and care Do not start your engine with the air cleaner removed and do not remove it while the engine is running. OPENING THE HOOD 1. Inside the vehicle, pull the hood release handle located under the bottom left corner of the instrument panel.
Page 189 Maintenance and care IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT 3.3L V6 engine 1. Power distribution box 2. Brake fluid reservoir 3. Air filter assembly 4. Battery 5. Relay box 6. Engine oil filler cap 7. Engine oil dipstick 8. Windshield washer fluid reservoir 9.
Page 190 Maintenance and care ENGINE OIL Checking the engine oil Refer to the scheduled maintenance guide for the appropriate intervals for checking the engine oil. 1. Make sure the vehicle is on level ground. 2. Turn the engine off and wait a few minutes for the oil to drain into the oil pan.
Page 191 Maintenance and care • If the oil level is below the L mark, add enough oil to raise the level within the L and H range. • Oil levels above the H mark may cause engine damage. Some oil must be removed from the engine by a service technician.
Page 192 Maintenance and care Engine oil and filter recommendations Look for this certification trademark. SAE 5W-30 engine oil is recommended. Use SAE 5W-30 motor oil certified for gasoline engines by the American Petroleum Institute (API). Motor oil displaying the API certification trademark will meet all requirements for your vehicle’s engine.
Page 193 Maintenance and care BRAKE FLUID Checking and adding brake fluid Brake fluid should be checked and refilled as needed. Refer to the scheduled maintenance guide for the service interval schedules. 1. Clean the reservoir cap before removal to prevent dirt or water from entering the reservoir.
Page 194 Maintenance and care WINDSHIELD WASHER FLUID Washer fluid Check the washer fluid whenever you stop for fuel. The reservoir is highlighted with a symbol. If the level is low, add enough fluid to fill the reservoir. In very cold weather, do not fill the reservoir all the way.
Page 195 Maintenance and care 60%, the engine parts could become damaged or not work properly. A 50/50 mixture of coolant and water provides the following: • freeze protection down to -36° C (-34° F). • boiling protection up to 129° C (265° F). •...
Page 196 Maintenance and care Adding engine coolant Use only Ford Premium Engine Coolant E2FZ-19549-AA (in Canada, Motorcraft CXC-8-B) or a premium engine coolant that meets Ford specification ESE-M97B44-A. • DO NOT USE Ford Extended Life Engine Coolant F6AZ-19544-AA (orange in color). •...
Page 197 Maintenance and care mixture of engine coolant and distilled water to the engine coolant reservoir until the coolant level is at the “cold fill level” or within the “cold fill range” as listed on the reservoir (depending upon application). Have your dealer check the engine cooling system for leaks if you have to add more than 1.0 liter (1.0 quart) of engine coolant per month.
Page 198 Maintenance and care Severe climates If you drive in extremely cold climates (less than –36° C [–34° F]): • it may be necessary to increase the coolant concentration above 50%. • NEVER increase the coolant concentration above 60%. • increased engine coolant concentrations above 60% will decrease the overheat protection characteristics of the engine coolant and may cause engine damage.
Page 199 Maintenance and care 1. Start the engine and let it run until it reaches normal operating temperature (the engine coolant temperature gauge indicator will be near the center of the normal area between H and C). 2. While the engine idles, turn the steering wheel left and right several times.
Page 200 Maintenance and care 3. With the parking brake engaged and your foot on the brake pedal, start the engine and move the gearshift lever through all of the gear ranges. Allow sufficient time for each gear to engage. 4. Latch the gearshift lever in P (Park) and leave the engine running. 5.
Page 201 Maintenance and care Adjusting automatic transmission fluid levels Before adding any fluid, make sure the correct type is used. The type of fluid used is normally indicated on the dipstick and also in the Lubricant specifications section in the Capacities and specifications chapter.
Page 202 Maintenance and care 4. Install a new air filter element. Be careful not to crimp the filter element edges between the air filter housing and cover. This could cause filter damage and allow unmetered air to enter the engine if not properly seated.
Page 203 Maintenance and care If you see any corrosion on the battery or terminals, remove the cables from the terminals and clean with a wire brush. You can neutralize the acid with a solution of baking soda and water. When the battery is disconnected or a new battery installed, the transmission must learn its adaptive strategy.
Page 204 Maintenance and care If the battery has been disconnected or a new battery has been installed, the clock and the preset radio stations must be reset once the battery is reconnected. • Always dispose of automotive batteries in a responsible manner. Follow your local authorized standards for disposal.
Page 205 Maintenance and care odor itself and the perceptional threshold of the individual. The odor and particulate filtration system gives the following benefits to customers: • Improves the customer’s driving comfort by reducing odor and particle concentration • Improves the interior compartment cleanliness •...
Page 206 Maintenance and care 2. Remove the six (6) screws (B) from the cowl grille (A) at the base of the windshield. 3. Open the hood. 4. Remove the four (4) plastic screws (C) from the forward edge of the cowl leaf screen under the hood. •...
Page 207 Maintenance and care 8. Remove four (4) screws from the top surface of the cabin air filter top cover. 9. Remove the cover. 10. Remove the filter element by pulling forward on the top surface of the filter and lifting. 11.
Page 208 Maintenance and care 15. Reinstall the four (4) screw anchors and the four (4) plastic screws. 16. Close the hood. 17. Reinstall the six (6) screws in the cowl grille. 18. Reinstall the wiper arms. Ensure that you reinstall the wiper arms in the same position.
Page 209 Maintenance and care REAR WINDOW WIPER BLADES Refer to Windshield Wiper Blades in this section for more information on rear wiper blades. INFORMATION ABOUT UNIFORM TIRE QUALITY GRADING New vehicles are fitted with tires that have a rating on them called Tire Quality Grades.
Page 210 Maintenance and care The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning or peak traction characteristics. Temperature A B C The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 211 Maintenance and care them as indicated in the scheduled maintenance guide. If you notice that the tires wear unevenly, have them checked. • Four tire rotation Replacing the tires Replace the tires when the wear band is visible through the tire treads.
Page 212 Maintenance and care Failure to follow these precautions may adversely affect the handling of the vehicle and make it easier for the driver to lose control and roll over. Tires that are larger or smaller than your vehicle’s original tires may also affect the accuracy of your speedometer.
Page 213 Maintenance and care The fuel system may be under pressure. If the fuel filler cap is venting vapor or if you hear a hissing sound, wait until it stops before completely removing the fuel filler cap. Otherwise, fuel may spray out and injure you or others. If you do not use the proper fuel filler cap, excessive pressure or vacuum in the fuel tank may damage the fuel system or cause the fuel cap to disengage in a collision, which may result in possible...
Page 214 Maintenance and care • Fuels can also be harmful if absorbed through the skin. If fuel is splashed on the skin and/or clothing, promptly remove contaminated clothing and wash skin thoroughly with soap and water. Repeated or prolonged skin contact with fuel liquid or vapor causes skin irritation. •...
Page 215 Maintenance and care 2. Carefully turn the filler cap counterclockwise 1/4 of a turn until it stops. 3. Pull to remove the cap from the fuel filler pipe. 4. To install the cap, align the tabs on the cap with the notches on the filler pipe.
Page 216 Maintenance and care Octane recommendations Your vehicle is designed to use “Regular” unleaded gasoline with pump (R+M)/2 octane rating of 87. We do not recommend the use of (R+M)/2 METHOD gasolines labeled as “Regular” that are sold with octane ratings of 86 or lower in high altitude areas. Do not be concerned if your engine sometimes knocks lightly.
Page 217 Maintenance and care Running out of fuel Avoid running out of fuel because this situation may have an adverse affect on powertrain components. If you have run out of fuel: • You may need to cycle the ignition from OFF to ON several times after refueling, to allow the fuel system to pump the fuel from the tank to the engine.
Page 218 Maintenance and care The amount of usable fuel in the empty reserve varies and should not be relied upon to increase driving range. When refueling your vehicle after the fuel gauge indicates empty, you might not be able to refuel the full amount of the advertised capacity of the fuel tank due to the empty reserve still present in the tank.
Page 219 Maintenance and care Driving style — good driving and fuel economy habits Give consideration to the lists that follow and you may be able to change a number of variables and improve your fuel economy. Habits • Smooth, moderate operation can yield up to 10% savings in fuel. •...
Page 220 Maintenance and care Conditions • Heavily loading a vehicle or towing a trailer may reduce fuel economy at any speed. • Carrying unnecessary weight may reduce fuel economy (approximately 0.4 km/L [1 mpg] is lost for every 180 kg [400 lb] of weight carried). •...
Page 221 Maintenance and care • Have the items listed in your scheduled maintenance guide performed according to the specified schedule. The scheduled maintenance items listed in the scheduled maintenance guide are essential to the life and performance of your vehicle and to its emissions system.
Page 222 Maintenance and care If the vehicle’s powertrain system or its battery has just been serviced, the on-board diagnostics system is reset to a “not ready for I/M test” condition. To ready the on-board diagnostics system for I/M testing, follow the procedure described below: 1.
Page 223 Maintenance and care • Brakelamps • Backup lamps • License plate lamps Do not remove lamp bulbs unless they will be replaced immediately. If a bulb is removed for an extended period of time, contaminants may enter the lamp housings and affect performance. Replacing headlamp bulbs To remove the headlamp bulb: 1.
Page 224 Maintenance and care 1. With the flat side of the new bulb’s plastic base facing upward, insert the glass end of the bulb into the lamp assembly. Turn the bulb left or right to align the grooves in the plastic base with the tabs in the lamp assembly.
Page 225 Maintenance and care Replacing front turn signal lamp bulbs 1. Remove bulb socket by turning it counterclockwise, then slide it out of the lamp assembly. 2. Carefully pull bulb straight out of the socket and push in the new bulb. 3.
Page 226 Maintenance and care Replacing license plate lamp bulbs 1. Remove two screws, grommets and the license plate lamp assembly from the liftgate. 2. Remove bulb socket by turning counterclockwise. 3. Carefully pull the bulb from the socket and push in the new bulb. 4.
Page 227: Customer Assistance
Maintenance and care Function Number of Trade number bulbs Turn signal lamps (rear) 3156 Tail Lamps 3157 Personal reading lamps Stepwell lamps Glove compartment All replacement bulbs are clear in color except where noted. To replace all instrument panel lights - see your dealer. AIMING THE HEADLAMPS The headlamps on your vehicle are properly aimed at the assembly plant.
Page 228 Maintenance and care Remove any exterior accessories, such as antennas, before entering a car wash. If you have wax applied to the vehicle at a commercial car wash, it is recommended that you clean the wiper blades and windshield as described in Cleaning the wiper blades and windshield.
Page 229 Maintenance and care The brushes used in some automatic car washes may damage the finish on your wheels. Before going to a car wash, find out if the brushes are abrasive. Cleaning non-painted plastic exterior parts Use vinyl cleaner for routine cleaning. Clean with a tar remover if necessary.
Page 230 Maintenance and care • Cover the highlighted areas to prevent water damage when cleaning the engine. • Never wash or rinse the engine while it is running; water in the running engine may cause internal damage. Cleaning the wiper blades, windshield and rear window If the wiper blades do not wipe properly, clean the wiper blade rubber element with undiluted windshield washer solution or a mild detergent.
Page 231 Maintenance and care Cleaning the instrument panel Clean with a damp cloth, then dry with a dry cloth. Avoid cleaner or polish that increases the gloss of the upper portion of the instrument panel. The dull finish in this area helps protect the driver from undesirable windshield reflection.
Page 232 Maintenance and care Cleaning and maintaining the safety belts Clean the safety belts with a mild soap solution recommended for cleaning upholstery or carpets. Do not bleach or dye the belts, because these actions may weaken the belt webbing. Check the safety belt system periodically to make sure there are no nicks, tears or cuts.
Page 233: Capacities And Specifications
Capacities and specifications MOTORCRAFT PART NUMBERS Component 3.3L V6 engine Engine air filter element FA-1121 Cabin air filter FP-27 Fuel filter FG-993 Battery BXT-24-F Oil filter FL-2007 PCV Valve EV-217 Spark plugs AGSP-32FP Refer to Vehicle Emissions Control Information (VECI) decal for spark plug gap information.
Page 234 Capacities and specifications LUBRICANT SPECIFICATIONS Item Ford part Ford part Ford name number specification Brake fluid High C6AZ-19542-AB ESA-M6C25-A Performance and DOT 3 DOT 3 Motor Vehicle Brake Fluid Door Silicone F7AZ-19G208-BA ESR-M13P4-A weatherstrips Lubricant F5AZ-19553-AA Engine coolant Ford Premium VC-4–A (in ESE-M97B44-A Engine Coolant...
Page 235 Capacities and specifications Item Ford part Ford part Ford name number specification Disc brake Silicone Brake D7AZ-19A331-A ESE-M1C171-A caliper rails Caliper Grease (Motorcraft and Dielectric WA-10) Compound Constant CV Joint Grease E43Z-19590-A ESP-M1C207-A velocity joints (High Temp.) Windshield Ultra-clear C9AZ-19550-AC ESR-M17P5-A washer fluid Windshield...
Page 236 Capacities and specifications...
Page 237: Certification Label
Capacities and specifications IDENTIFYING YOUR VEHICLE Certification label The National Highway Traffic Safety MFD. BY FORD MOTOR CO. DATE: XX/XX GVWR: XXXXLB/ XXXXKG FRONT GAWR: XXXXLB/ XXXXKG REAR GAWR: XXXXLB/ XXXXKG Administration Regulations require WITH PXXX/XXXXXXX TIRES WITH PXXX/XXXXXXX TIRES that a Certification Label be affixed XXXX.XXX RIMS...
Page 238: Customer Assistance
Warranty expires You may purchase Ford ESP from any participating Ford and Lincoln Mercury and Ford of Canada dealer. There are several plans available in various time, distance and deductible combinations which can be tailored to fit your own driving needs. Ford ESP also offers reimbursement benefits for towing and rental coverage.
Page 239 Away from home If you own a Ford or Mercury vehicle and are away from home when your vehicle needs service, or if you need more help than the dealership could provide, after following the steps described above, contact the Ford Customer Relationship Center to find an authorized dealership to help you.
Page 240 P.O. Box 2000 Oakville, Ontario L6J 5E4 1-800-565-3673 (FORD) In order to help you service your Ford or Lincoln Mercury vehicle, please have the following information available when contacting a Customer Relationship Center: • Your telephone number (home and business) •...
Page 241 Unresolved warranty repair concerns or vehicle performance as designed concerns on Ford and Lincoln Mercury cars and Ford and Lincoln Mercury light trucks which are within the terms of any applicable written new vehicle warranty are eligible for review, except those involving: •...
Page 242 • a Ford or Lincoln Mercury dealership representative Consumer candidates for Board membership are recruited and trained by an independent consulting firm. The dealership Board member is chosen from Ford and Lincoln Mercury dealership management, recognized for their business leadership qualities. What the Board needs...
Page 243 Customer assistance • a brief summary of the action taken by the dealer(s) and Ford Motor Company • the names (if known) of all the people you contacted at the dealership(s) • a description of the action you expect to resolve your concern You will receive a letter of explanation if your application does not qualify for Board review.
Page 244 Customer assistance You may also contact the North American Customer Relationship Center at 1-800-392-3673 (Ford), TDD for the hearing impaired: 1-800-232-5952 or by writing to the Center at the following address: Ford Motor Company Customer Relationship Center 16800 Executive Plaza Drive P.O.
Page 245 Customer assistance The use of leaded fuel in your vehicle without proper conversion may damage the effectiveness of your emission control system and may cause engine knocking or serious engine damage. Ford Motor Company/Ford of Canada is not responsible for any damage caused by use of improper fuel.
Page 246 FORD ACCESSORIES FOR YOUR VEHICLE A wide selection of Ford accessories are available for your vehicle through your local authorized Ford, Lincoln Mercury or Ford of Canada dealer. These quality accessories have been specifically engineered to fulfill your automotive needs; they are custom designed to complement the style and aerodynamic appearance of your vehicle.
Page 247 Customer assistance Comfort and convenience Cargo nets Cargo organizer Cargo tray Electrochromic inside mirror with compass display Electrochromic inside mirror with compass and temperature display Engine block heater Seatback organizer Tire step Travel equipment Ash cup Auto headlamps with daytime running lights (DRL) Cigarette lighter element Console Daytime running lights (DRL)
Page 248 Customer assistance Protection and appearance equipment Air bag anti-theft locks Carpet floor mats Cleaners, waxes and polishes Door edge guards Flat splash guards Front end covers (full and mini) Hood deflectors Lubricants and oils Molded splash guards Molded vinyl floor mats Park aid system Rear air deflectors Side window air deflectors...
Page 249 Customer assistance cause the engine to stumble or stall or cause the transmission to be damaged or operate improperly. In addition, such systems may be damaged or their performance may be affected by operating your vehicle. (Citizens band [CB] transceivers, garage door openers and other transmitters with outputs of five watts or less will not ordinarily affect your vehicle’s operation.) •...
Page 250: Reporting Safety Defects
Reporting safety defects REPORTING SAFETY DEFECTS (U.S. ONLY) If you believe that your vehicle has a defect that could cause a crash, or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Ford Motor Company.
Page 251: Index
Index Accessory delay ......91 Battery ........201 acid, treating emergencies ..201 Air bag supplemental charging system warning light ..8 restraint system ....131–132 jumping a disabled battery ..179 and child safety seats ....133 maintenance-free ....201 description ......132 replacement, specifications ...232 disposal ........136 servicing ........201 driver air bag ......134 indicator light .....8, 135...
Page 252 Index built-in child seat ....231 Getting the engine compartment ....228 service you need ....237 exterior ........227 Ordering additional exterior lamps ......228 owner’s literature ....248 instrument cluster lens ..230 The Dispute instrument panel ....230 Settlement Board ....240 interior ......230–231 Utilizing the Mediation/ mirrors ........228 Arbitration Program ....243 plastic parts ......228...
Page 253 Index Engine block heater ....150 Engine oil ........189 Garage door opener ....94 checking and adding ....189 dipstick ........189 Gas cap (see Fuel cap) ....213 filter, specifications ..191, 232 Gas mileage recommendations ....191 (see Fuel economy) ....216 refill capacities ......232 Gauges .........14 specifications ....233–234 engine coolant Exhaust fumes ......151...
Page 254 Index Heating ........24 bulb replacement heating and air specifications chart ....225 conditioning system ....24 cargo lamps .......22 fog lamps ........23 HomeLink universal headlamps .........22 transceiver (see headlamps, flash to pass ..22 Garage door opener) ....94–97 instrument panel, dimming ..22 Hood ..........187 interior lamps ......98 replacing bulbs ....221–225 Lane change indicator...
Page 255 Index locking/ unlocking doors ....101–102 Message center .....18–19 panic alarm ......102 replacement/ Mirrors .........98 additional transmitters ...103 cleaning ........228 replacing the batteries ...103 heated ........94 side view mirrors (power) ..93 Roof rack ........165 Moon roof ........99 Motorcraft parts ....216, 232 Safety belts (see Safety restraints) ..124–127, 129 Safety defects, reporting ..249...
Page 256 Index jump starting ......179 Steering wheel Vehicle dimensions ....234 controls ........86 tilting .........90 Vehicle Identification Number (VIN) ..........236 Vehicle loading ......160 Ventilating your vehicle ...151 Tachometer .........14 Tires ......175, 208–209 changing ......175, 177 checking the pressure ....209 Warning chimes ......13 replacing ........210 Warning lights (see Lights) ..8 rotating ........209...
Page 257: Filling Station Information
Filling station information Item Information Required fuel Unleaded fuel only - 87 octane Fuel tank capacity 75.7L (20.0 gallons) Engine oil capacity 4.0L (4.2 quarts). Use Motorcraft (includes filter change) SAE 5W-30 Super Premium Motor Oil, Ford specification WSS-M2C153-G. Tire size and pressure Refer to the Certification Label on inside of driver’s door.

Mercury Villager 2001 Owner's Manual

Quick Links

Related Manuals for Mercury Villager 2001

Summary of Contents for Mercury Villager 2001

Table of Contents
