2. Product specifications

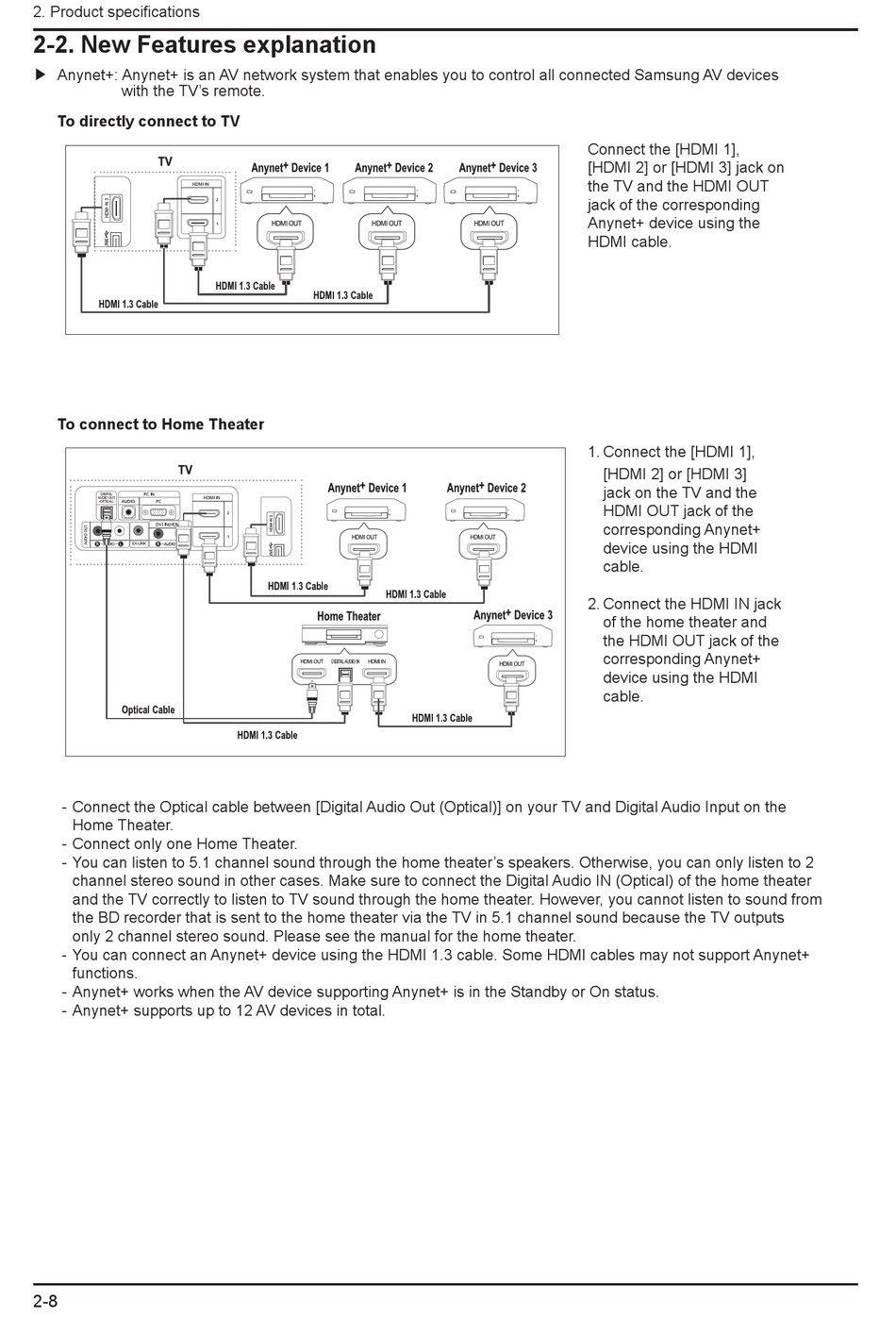

2-2. New Features explanation

Anynet+: Anynet+ is an AV network system that enables you to control all connected Samsung AV devices
�
with the TV's remote.

To directly connect to TV

To connect to Home Theater

- Connect the Optical cable between [Digital Audio Out (Optical)] on your TV and Digital Audio Input on the
Home Theater.
- Connect only one Home Theater.
- You can listen to 5.1 channel sound through the home theater's speakers. Otherwise, you can only listen to 2
channel stereo sound in other cases. Make sure to connect the Digital Audio IN (Optical) of the home theater
and the TV correctly to listen to TV sound through the home theater. However, you cannot listen to sound from
the BD recorder that is sent to the home theater via the TV in 5.1 channel sound because the TV outputs
only 2 channel stereo sound. Please see the manual for the home theater.
- You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+
functions.
- Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
- Anynet+ supports up to 12 AV devices in total.
2-8
Connect the [HDMI 1],
[HDMI 2] or [HDMI 3] jack on
the TV and the HDMI OUT
jack of the corresponding
Anynet+ device using the
HDMI cable.
1. Connect the [HDMI 1],
[HDMI 2] or [HDMI 3]
jack on the TV and the
HDMI OUT jack of the
corresponding Anynet+
device using the HDMI
cable.
2. Connect the HDMI IN jack
of the home theater and
the HDMI OUT jack of the
corresponding Anynet+
device using the HDMI
cable.
