2 Operation

2.1 General

The Wheelpilot powers up in Standby Mode, indicat-
ed by a flashing LED next to the STBY AUTO key.
The two direction LEDs above the Port and Starboard
keys are always dimly lit, which provides night illu-
mination for the keypad. All functions are confirmed
audibly by a ÒbeepÓ and visually by the LEDs, so the
status of the unit can always be confirmed at a glance.

2.2 Engaging the clutch

The Wheelpilot will not drive in any mode unless the
drive clutch is engaged first. The clutch is controlled
by the lever on the left side of the unit (Fig 2.1). When
the lever is in the upward position, the clutch is disen-
gaged, and the wheel is free to turn by hand. To
engage the clutch, push the lever down fully until it is
flush with the motor housing. The wheel will then be
held firmly by the Wheelpilot - hand steering will not
be possible until the clutch is disengaged.

2.3 Autopilot Mode

To lock the vessel onto the current heading, simply
steer a straight course, engage the clutch and press the
STBY AUTO key to switch to Auto Mode, indicated
by the LED next to the STBY AUTO key lighting per-
manently (Fig 2.2).
To lock the pilot onto the desired course, simply steer
the correct course and then engage the autopilot. The
wheel should always be in the centreline position
before engaging the Wheelpilot.
If the STBY AUTO key is pressed and held, the pilot
will beep a second time and lock onto the previously
used heading (this feature will not be available if the
unit has just been switched on).
To disengage the pilot, press the STBY AUTO key and
lift the clutch lever. Always switch the pilot to
Standby mode when disengaging the clutch.

2.4 Adjusting Course

While in Autopilot Mode, precise course adjustments
can be easily made -
Page 6
Clutch Off
Clutch On

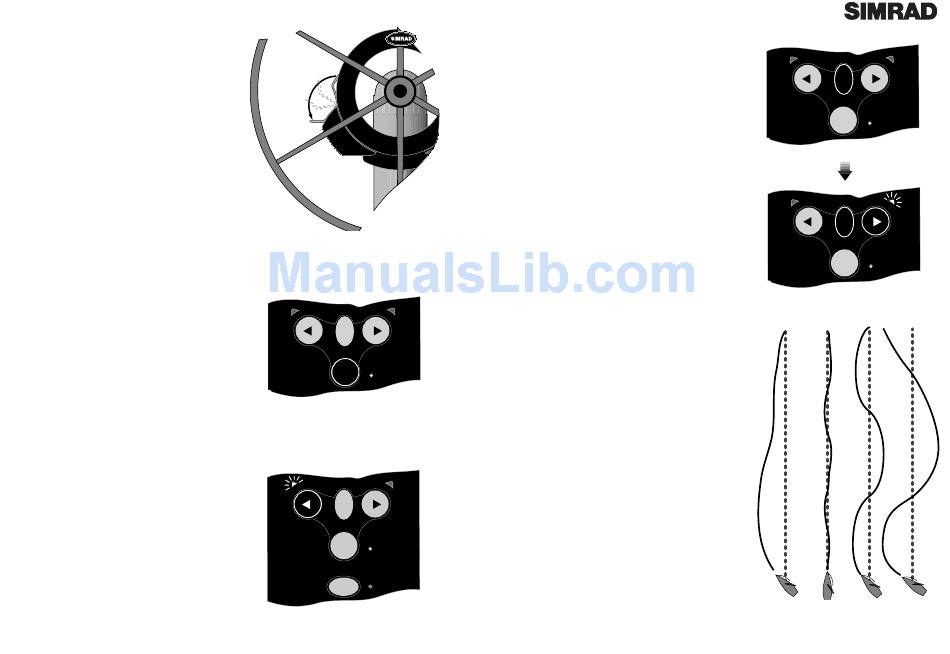

Fig 2.1 - Engaging clutch
