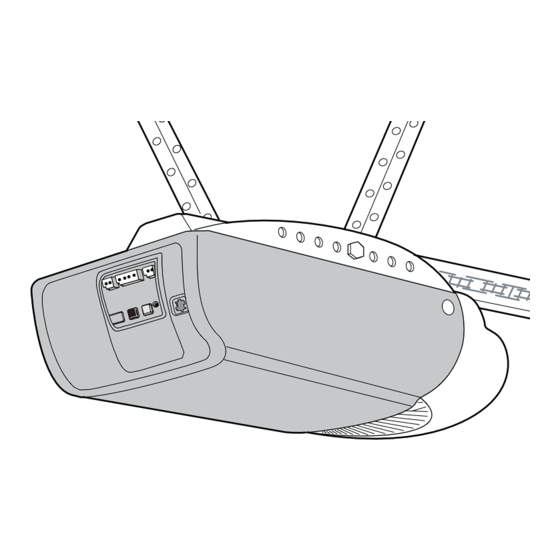

GARAGE DOOR OPENER
Model 711MB
For Residential Use Only
Owner's Manual
Please read this manual and the enclosed safety materials carefully!
Fasten the manual near the garage door after installation.
Periodic checks of the opener are required to ensure safe operation.
The model number label is located on the front panel of your opener.
®

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 711MB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Merik 711MB

  • Page 1 ® GARAGE DOOR OPENER Model 711MB For Residential Use Only Owner’s Manual Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation. ■ Periodic checks of the opener are required to ensure safe operation.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Adjustment 29-31 Safety symbol and signal word review......2 Program the travel limits ...........29 Preparing your garage door ........3 Adjust the setting............30 Tools needed ...............3 Test the safety reversal system.........31 Planning ..............4-6 Operation 32-35 Carton inventory ............7 Operation safety instructions........32 Hardware inventory .............8 Using your garage door opener ........32...
  • Page 3: Preparing Your Garage Door

    Preparing your garage door WARNING Before you begin: To prevent possible SERIOUS INJURY OR DEATH: • Disable locks. • ALWAYS call a trained door systems technician if CAUTION • Remove any ropes connected to garage door. garage door binds, sticks, or is out of balance. An unbalanced garage door may not reverse when •...
  • Page 4: Planning

    • Do you have an access door in addition to the Planning garage door? If not, Model 1702E Outside Quick Identify the type and height of your garage door. Release is required. See Accessories page. Survey your garage area to see if any of the •...
  • Page 5 Planning (Continued) WARNING ONE-PIECE DOOR INSTALLATIONS Without a properly working safety reversal system, persons (particularly small children) could be • Generally, a one-piece door does not require CAUTION SERIOUSLY INJURED or KILLED by a closing garage reinforcement. If your door is lightweight, refer to door.
  • Page 6 Planning (Continued) WARNING GATE INSTALLATIONS Without a properly working safety reversal system, persons (particularly small children) could be • It is recommended that you attach fine mesh or CAUTION SERIOUSLY INJURED or KILLED by a closing gate. screening across the inside of swinging or sliding gates in order to prevent intruders from reaching •...
  • Page 7: Carton Inventory

    Carton Inventory Your garage door opener is packaged in two cartons Parts may be stuck in the foam. Hardware for which contains the motor unit and the parts illustrated assembly and installation is shown on the next page. below. Note that accessories will depend on the Save the carton and packing material until installation model purchased.
  • Page 8: Hardware Inventory

    Hardware Inventory Separate all hardware and group as shown below for the assembly and installation procedures. Assembly Hardware Hex Bolt Washered Screw Carriage Bolt 5/16"-18x7/8" (3) Master Link (2) 5/16"-18 (5) 5/16"-18x1/2" (2) 1/4"-20x1/2" (4) (mounted in opener) Trolley Lock Nut Lock Washer Threaded Shaft (1) 1/4"-20x7/16"...
  • Page 9 ASSEMBLY STEP 1 For Sectional and One-Piece Doors ONLY Assemble the Rail and Attach the Cable Pulley Bracket HARDWARE SHOWN ACTUAL SIZE To avoid installation difficulties, do not run the garage door opener until instructed to do so. Carriage Bolts Lock Nut 1/4"-20x1/2"...
  • Page 10 ASSEMBLY STEP 1 HARDWARE For Sliding and Swinging Gates ONLY SHOWN ACTUAL SIZE Assemble the Rail and Carriage Bolts Attach the Cable Pulley Bracket Lock Nut 1/4"-20x1/2" 1/4"-20 To avoid installation difficulties, do not run the garage door opener until instructed to do so.
  • Page 11: Install The Trolley

    HARDWARE SHOWN ACTUAL SIZE ASSEMBLY STEP 2 For Sectional and One-Piece Doors Only Install the Trolley • Attach the trolley threaded shaft to the trolley with Lock Washer the lock washer and nuts as shown. 5/16" 5/16" -18 • As a temporary stop, insert a screwdriver into the hole in the front end of the rail.
  • Page 12: Fasten The Rail To The Motor Unit

    WARNING CAUTION ASSEMBLY STEP 3 Fasten the Rail to the Motor Unit To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of • Place the opener on packing material to protect the opener. the cover.
  • Page 13 WARNING ASSEMBLY STEP 4 For Sectional and One-Piece Doors Only To avoid possible SERIOUS INJURY to fingers from Install the Chain/Cable moving garage door opener: CAUTION and Attach the Sprocket Cover • ALWAYS keep hand clear of sprocket while operating opener.
  • Page 14 WARNING ASSEMBLY STEP 4 For Sliding and Swinging Gates Only To avoid possible SERIOUS INJURY to fingers from Install the Chain/Cable moving opener: CAUTION and Attach the Sprocket Cover • ALWAYS keep hand clear of sprocket while operating opener. INSTALLING THE •...
  • Page 15: Tighten The Chain And Cable

    ASSEMBLY STEP 5 Tighten the Chain and Cable Lock Washer • Spin the inner nut and lock washer down the Outer Nut Inner Nut trolley threaded shaft, away from the trolley. To Tighten Outer Nut • To tighten the chain, turn outer nut in the direction To Tighten shown.
  • Page 16: Determine The Header Bracket Location

    Unfinished INSTALLATION STEP 1 OPTIONAL Ceiling CEILING Determine the Header Bracket MOUNT Location HEADER BRACKET 25mm Header Wall WARNING WARNING Vertical Centerline of Garage Door To prevent possible SERIOUS INJURY or DEATH: 25mm • Header bracket MUST be RIGIDLY fastened to Structural WARNING CAUTION...
  • Page 17 ONE-PIECE DOOR WITHOUT TRACK Unfinished 1. Close the door and mark the inside vertical Ceiling centerline of your garage door. Extend the line Structural onto the header wall above door, as shown. Vertical Supports Header Wall Centerline If headroom clearance is minimal, you can install 25 mm the header bracket on the ceiling.
  • Page 18: Install The Header Bracket

    INSTALLATION STEP 2 Install the Header Bracket You can attach the header bracket either to the wall Wall Mounting Holes above the garage door, or to the ceiling. Follow the CEILING MOUNT ONLY instructions which will work best for your particular The nail hole is for positioning only.
  • Page 19: Attach The Rail To The Header Bracket

    INSTALLATION STEP 3 Attach the Rail to the Header Bracket Header Wall • Position the opener on the garage floor below the header bracket. Use packing material as a Header protective base. Bracket NOTE: If the door spring is in the way you’ll need Cable help.
  • Page 20: Position The Opener

    WARNING CAUTION INSTALLATION STEP 4 Position the Opener To prevent damage to garage door, rest garage door opener rail on 25 mm board placed on top section of Follow instructions which apply to your door type as door. illustrated. SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK AVERTISSEMENT A 25 mm board is convenient for setting an ideal...
  • Page 21: Hang The Opener

    WARNING INSTALLATION STEP 5 Hang the Opener To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural CAUTION Three representative installations are shown. Yours supports of the garage. Concrete anchors MUST be used may be different. Hanging brackets should be angled if installing any brackets into masonry.
  • Page 22: Install The Door Control

    WARNING WARNING WARNING CAUTION INSTALLATION STEP 6 Install the Door Control To prevent possible SERIOUS INJURY or DEATH from electrocution: Locate door control within sight of the door at a • Be sure power is not connected BEFORE installing door minimum height of 1.5 m where small children cannot control.
  • Page 23: Install The Lights

    WARNING CAUTION INSTALLATION STEP 7 Install the Lights To prevent possible OVERHEATING of the endpanel of light socket, • Press the release tabs on both sides of lens. Gently • DO NOT use short neck or specialty light bulbs. rotate lens back and downward until the lens hinge •...
  • Page 24: Electrical Requirements

    WARNING WARNING INSTALLATION STEP 9 Electrical Requirements To prevent possible SERIOUS INJURY or DEATH from electrocution or fire: To avoid installation difficulties, do not run the WARNING CAUTION • Be sure power is not connected to the opener, and opener at this time. disconnect power to circuit BEFORE removing cover to To reduce the risk of electric shock, your garage door establish permanent wiring connection.
  • Page 25: Fasten The Door Bracket

    WARNING CAUTION INSTALLATION STEP 10 Fasten the Door Bracket To prevent damage to garage door, reinforce inside of door with angle iron both vertically and horizontally. Follow instructions which apply to your door type as illustrated below or on the following page. A horizontal reinforcement brace should be long enough to be secured to two vertical supports.
  • Page 26 ONE-PIECE DOORS Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also. • Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.
  • Page 27: Connect Door Arm To Trolley

    INSTALLATION STEP 11 Inner Trolley Connect Door Arm to Trolley Outer Trolley Follow instructions which apply to your door type as illustrated below and on the following page. Clevis Pin SECTIONAL DOORS ONLY 5/16"x1" Ring Fastener • Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley.
  • Page 28 ALL ONE-PIECE DOORS Assemble the Door Arm: • Fasten the straight and curved door arm sections together to the longest possible length (with a 2 Door or 3 hole overlap). Bracket Ring Fastener • Make sure the garage door is fully closed. Nuts Lock Connect the straight door arm section to the door...
  • Page 29: Adjustment

    WARNING ADJUSTMENT STEP 1 Program the Travel Limits Without a properly installed safety reversal system, persons (particularly small children) could be CAUTION Travel limits regulate the points at which the SERIOUSLY INJURED or KILLED by a closing garage door will stop when moving up or down. Follow door.
  • Page 30: Setting The Force

    WARNING ADJUSTMENT STEP 2 Setting the Force Without a properly installed safety reversal system, persons (particularly small children) could be CAUTION The force setting button is located on the back SERIOUSLY INJURED or KILLED by a closing garage panel of the motor unit. The force setting door.
  • Page 31: Test The Safety Reversal System

    WARNING ADJUSTMENT STEP 3 Test the Safety Reversal System Without a properly installed safety reversal system, persons (particularly small children) could be CAUTION Garage Door Installation SERIOUSLY INJURED or KILLED by a closing garage TEST door. • With the door fully open, place a 38 mm obstacle on •...
  • Page 32: Operation

    OPERATION IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of severe injury or death: 1. READ AND FOLLOW ALL WARNINGS AND 8. NEVER use handle to pull garage door open or closed. INSTRUCTIONS. If rope knot becomes untied, you could fall. 2.
  • Page 33: Using The Wall-Mounted Door Control

    Using the Wall-Mounted To Open the Door Manually Door Control WARNING THE MULTI-FUNCTION DOOR CONTROL To prevent possible SERIOUS INJURY or DEATH from a Press the push bar to open or close Push falling garage door: the door. Press again to reverse the CAUTION •...
  • Page 34: Care Of Your Garage Door Opener

    Care of Your Garage Door Opener Having a Problem? 1. The opener doesn't operate from either the MAINTENANCE SCHEDULE Door Control or the remote control: Once a Month • Does the opener have electric power? Plug a lamp • Manually operate door. If it is unbalanced or into the outlet.
  • Page 35 14. The opener motor hums briefly, then won't Having a Problem? (Continued) work: 6. The garage door opens and closes by itself: • The garage door springs may be broken. See above. • Be sure that all remote control push buttons are off.
  • Page 36: Programming

    PROGRAMMING NOTICE: If this Security ✚ ® garage door opener is operated with a non-rolling code transmitter, the technical measure in the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.
  • Page 37: To Add, Reprogram Or Change A Keyless Entry Pin

    To Add, Reprogram or Change a Keyless Entry PIN NOTE: Your new Keyless Entry must be programmed to operate your garage door opener. USING THE LIGHTED DOOR CONTROL USING THE MULTI-FUNCTION DOOR CONTROL NOTE: These methods requires two people if the Keyless Entry is already mounted outside the garage.
  • Page 38: Motor Unit Assembly Parts

    Motor Unit Assembly Parts PART PART DESCRIPTION DESCRIPTION 41C168 Transformer 41A4371-1 Sprocket cover 41D630-2 Bracket: light socket, limit switch 41B4245-1 Line cord 41A5490-11 Cover 41B4375-3 Terminal block w/screws 175C147 Light socket 41B5348 Sprocket 108D60 Light lens 41C5317 Wire harness - Logic (End Panel) NOT SHOWN 41C5839...
  • Page 39: Accessories

    475MK Battery Backup System: motion sensor that automatically Provides backup power to the model turns opener lights on for 5 711MB garage door opener. minutes when it detects a person entering the garage. Sensor can be easily deactivated when desired.
  • Page 40: Warranty

    MERIK GARAGE DOOR OPENER ONE-YEAR LIMITED WARRANTY Merik (“Seller”) warrants to the first retail purchaser of this product that it is free from defect in materials and/or workmanship for a period of one year from the date of purchase. The proper operation of this product is dependent on your compliance with the Owner’s Manual instructions regarding installation, operation, maintenance and testing.
  • Page 41 ® ABRE-PUERTAS DE GARAJE Modelo 711MB Sólo para uso residencial Manual del propietario ■ ¡ Favor de leer cuidadosamente este manual y los materiales de seguridad anexos! ■ Guarde este manual cerca de la puerta del garaje. ■ Se deben realizar revisiones periódicas del abre-puertas para asegurar su operación segura.
  • Page 42 CONTENIDO Introducción Ajustes 29-31 Revisión de los símbolos y términos de seguridad..2 Ajuste el limite del recorrido .........29 Preparación de la puerta de su garaje......3 Ajustar la fuerza ............30 Herramientas necesarias ..........3 Pruebe el sistema de reversa de seguridad ....31 Planificación ...............4-6 Operación 32-35...
  • Page 43: Preparación De La Puerta De Su Garaje

    Preparación de la puerta del garaje ADVERTENCIA ADVERTENCIA Antes de comenzar: Para evitar una LESIÓN GRAVE O INCLUSO LA MUERTE: • Desarme las cerraduras. • SIEMPRE llame a un técnico profesional para que arregle la • Retire cualquier cuerda o cable que esté conectado a la puerta del garaje si éste se atora, se atasca, o está...
  • Page 44: Planificación

    Planificación Identifique la altura y el tipo de puerta de garaje que tiene. • Observe el punto donde la puerta hace contacto con el Revise el área de su garaje y observe si alguna de las piso. El espacio entre la base de la puerta y el piso no siguientes instalaciones corresponden a la suya.
  • Page 45 Planificación (continuación) ADVERTENCIA ADVERTENCIA INSTALACIÓN EN PUERTAS DE UNA SOLA PIEZA Sin un sistema de reversa de seguridad que funcione • Generalmente una puerta de una sola pieza no requiere debidamente, al cerrar la puerta del garaje se corre el riesgo de que las personas (y en particular los niños pequeños) sufran de refuerzos adicionales.
  • Page 46 Planificación (continuación) ADVERTENCIA ADVERTENCIA INSTALACIÓN DEL ABRE-PUERTAS Sin un sistema de retroceso que funcione de manera segura, las personas (en especial los niños pequeños) podrían resultar • Se recomienda colocar una malla fina a través de la GRAVEMENTE HERIDAS o MORIR al cerrar la puerta. puerta corrediza o batiente, con el objeto de evitar que cualquier intruso alcance el botón de control o el brazo •...
  • Page 47: Inventario De Las Cajas De Cartón

    Inventario de las cajas Su abre-puertas viene empacado en dos cajas de cartón Toda la pernería y las piezas necesarias para el montaje e que contienen el motor y las piezas que se muestran en la instalación de su abre-puertas se ilustran en la siguiente siguiente ilustración.
  • Page 48: Inventario De Piezas

    Inventario de piezas Antes de la instalación, organice todas las piezas en grupos como se muestra en la siguiente ilustración. Pernería de Ensamble Tuerca Perno de coche Perno con arandela Perno hexagonal Juego de enlace 5/16"-18 (5) 1/4"-20x1/2" (4) 5/16"-18x1/2" (2) 5/16"-18x7/8"...
  • Page 49: Ensamblado

    ENSAMBLADO PASO 1 SOLO para puertas seccionales y de una sola pieza Ensamble de riel y sujetar la ménsula ESTAS PIEZAS SE MUESTRAN EN SU TAMAÑO No encienda ni use el abre-puertas hasta que llegue al REAL paso de la instalación correspondiente, de otra manera corre el riesgo de complicar el proceso de instalación.
  • Page 50 ENSAMBLADO PASO 1 ESTAS PIEZAS SE MUESTRAN EN SU TAMAÑO SOLO para puertas corredizas y REAL batientes Ensamble de riel y sujetar Tuerca de sequridad Perno de coche 1/4"-20x7/16" 1/4"-20x1/2" la ménsula No encienda ni use el abre-puertas hasta que llegue al paso de la instalación correspondiente, de otra Perno Hexagonal Tuerca...
  • Page 51: Instalar El Carro Sobre El Riel

    ESTAS PIEZAS SE MUESTRAN ENSAMBLADO PASO 2 EN SU TAMAÑO REAL Solamente para puertas seccionales y de una sola pieza con rieles Instalar el carro sobre el riel • Unir la espiga roscada con el carro con arandela y Arandela Tuerca 5/16"...
  • Page 52: Fijar Riel A Abre-Puertas

    ENSAMBLADO PASO 3 PRECAUCI PRECAUCIÓN Fijar riel al abre-puertas de garaje Use SÓLO el perno y la tuerca que vienen montados en la parte superior del abridor para evitar que el abridor de la puerta de • Colocar el abre-puertas de garaje material de empaque cochera se dañe SERIAMENTE.
  • Page 53 ADVERTENCIA ENSAMBLADO PASO 4 Solamente para puertas seccionales y Para evitar posibles LESIONES GRAVES en los dedos causadas de una pieza con rieles por las partes móviles del abre-puertas de garaje: Instalar la Cadena y Cable y • SIEMPRE tenga las manos lejos de la polea mientras esté Conecte el Portacadena funcionando el abre-puertas.
  • Page 54 ADVERTENCIA ENSAMBLADO PASO 4 Solamente puertas corredizas y batientes Para evitar posibles LESIONES GRAVES en los dedos causadas Instalar la cadena y cable y por las partes móviles del abre-puertas de garaje: conecte el portacadena • SIEMPRE tenga las manos lejos de la polea mientras esté funcionando el abre-puertas.
  • Page 55: Apretar La Cadena Y Cable

    ENSAMBLADO PASO 5 Tuerca Apretar la Cadena y Cable externa Tuerca Arandela interna • Girar la tuerca y la arandela de cierre en la dirección del Para apretar la tuerca externa perno roscado y alejado del carro. Para apretar • Para aligerar la cadena, girar la tuerca externa en la la tuerca interna dirección mostrada.
  • Page 56: La Ménsula Del Cabezal

    INSTALACIÓN PASO 1 Cielo raso sin acabado Determinar la localización INSTALACIÓN de soporte de cabecera OPCIONAL DE LA MÉNSULA DEL CABEZAL EN EL CIELO ADVERTENCIA ADVERTENCIA RASO Pedazo de madera Pared de 5x10 cm delantera Para evitar una posible LESIÓN GRAVE O INCLUSO LA (2x4 pulg.) Línea central MUERTE:...
  • Page 57 PUERTA DE UNA SOLA PIEZA SIN RIEL Cielo raso sin acabados 1. Con la puerta cerrada, buscar y marcar el centro vertical de la puerta del garaje. Extender la línea del centro Soportes de hasta la pared de cabecera arriba de la puerta, como se Pared Línea la estructura...
  • Page 58: Instale La Ménsula Del Cabezal

    INSTALACIÓN, PASO 2 Instale la ménsula del cabezal La ménsula del cabezal se puede sujetar a la pared sobre Orificios para la instalación de pared la puerta de el garaje o en el cielo raso. Siga las instrucciones quesean las más adecuadas para las CEILING MOUNT ONLY Este orificio es solamente necesidades de su garaje.
  • Page 59: Coloque El Riel La Ménsula Del Cabezal

    INSTALACIÓN PASO 3 Coloque el riel en la ménsula del cabezal • Coloque el abre-puertas sobre el piso del garaje debajo Pared del cabezal de la ménsula del cabezal. Use el hule espuma del empaque como base para protegerlo. NOTA: Si el resorte de la puerta está obstruido, va a Soporte del cabezal necesitar ayuda.
  • Page 60: Coloque El Abre-Puertas

    PRECAUCIÓN INSTALACIÓN PASO 4 Coloque el abre-puertas Para evitar que la puerta del garaje sufra daños, apoye el riel del abre-puertas de garaje sobre un pedazo de madera de Siga las instrucciones correspondientes al tipo de puerta 25 mm colocado en la sección superior de la puerta. de su garaje, como se muestra en la ilustración.
  • Page 61: Cuelgue El Abre-Puertas

    ADVERTENCIA ADVERTENCIA INSTALACIÓN PASO 5 Cuelgue el abre-puertas Para evitar la posibilidad de una LESIÓN GRAVE si se cae el ADVERTENCIA ADVERTENCIA abre-puertas de garaje, sujételo FIRMEMENTE a los soportes Se muestran tres instalaciones representativas. Quizá su estructurales del garaje. Se DEBEN usar sujetadores para instalación sea diferente.
  • Page 62: Instalar El Control De La Puerta

    ADVERTENCIA ADVERTENCIA ADVERTENCIA ADVERTENCIA INSTALACIÓN PASO 6 Instalar el control de la puerta Para evitar la posibilidad de una LESIÓN GRAVE O INCLUSO LA MUERTE por electrocución: ADVERTENCIA Ubique el control de la puerta de manera que quede a la •...
  • Page 63: Instale El Foco

    PRECAUCI PRECAUCIÓN INSTALACIÓN PASO 7 Instale el foco Para evitar que el panel o el portalámpara se SOBRECALIENTE, • Oprima las lengüetas de desenganche ubicados a • NO UTILICE bombillas de cuello corto o especiales. ambos lados de la lente. Rote la lente suavemente •...
  • Page 64: Requisitos Para La Instalación Eléctrica

    ADVERTENCIA ADVERTENCIA ADVERTENCIA ADVERTENCIA INSTALACIÓN PASO 9 Requisitos para la instalación eléctrica Para evitar la posibilidad de una LESIÓN GRAVE O INCLUSO LA MUERTE por electrocución o incendio: ADVERTENCIA Para evitar problemas con la instalación, no opere el • Asegúrese de que el abre-puertas no esté conectado a la abre-puertas de garaje ahora.
  • Page 65: Sujete La Ménsula De La Puerta

    INSTALACIÓN PASO 10 PRECAUCI PRECAUCIÓN Sujete la ménsula de la puerta Para evitar que la puerta del garaje se dañe, refuerce su parte interior con ángulos de hierro tanto vertical como Siga las instrucciones que correspondan al tipo de puerta horizontalmente.
  • Page 66 PUERTAS DE UNA SOLA PIEZA Lea y respete todas las advertencias e instrucciones respecto a los refuerzos, contenidas en la página anterior, respecto a la instalación de puertas plegables, ya que todos los refuerzos para su puerta de una sola pieza son los mismos.
  • Page 67: Conectar El Brazo De La Puerta Al Carro

    INSTALACIÓN PASO 11 Carro interior Conectar el brazo de la puerta al carro Carro exterior Siga las instrucciones que correspondan al tipo de puerta de garaje que usted tenga, como se muestra a continuación y en las dos páginas siguientes. Pasador de chaveta Seguro...
  • Page 68 TODAS LAS PUERTAS DE UNA SOLA PIEZA Arme el brazo de la puerta: • Sujete las dos secciones de los brazos de la puerta Ménsula de la puerta Anillo sujetador (recta y curva) a la mayor distancia posible, (de Tuerca de manera que dos o tres de los orificios se sobrepongan 5/16-18 pulgadas...
  • Page 69: Ajustes

    ADVERTENCIA ADVERTENCIA AJUSTES PASO 1 Programar los límites de recorrido Si el sistema de reversa de seguridad no se ha instalado ADVERTENCIA ADVERTENCIA debidamente, las personas (y los niños pequeños en Los límites de recorrido regulan los puntos en que la particular) podrían sufrir LESIONES GRAVES O INCLUSO LA puerta debe parar cuando se desplaza hacia arriba o MUERTE cuando se cierre la puerta del garaje.
  • Page 70: Ajustar La Fuerza

    ADVERTENCIA ADVERTENCIA AJUSTES PASO 2 Ajustar la fuerza Si el sistema de reversa de seguridad no se ha instalado ADVERTENCIA ADVERTENCIA debidamente, las personas (y los niños pequeños en El botón de ajuste de la fuerza se encuentra en el particular) podrían sufrir LESIONES GRAVES O INCLUSO LA panel trasero de la unidad del motor.
  • Page 71: Pruebe El Sistema De Reversa De Seguridad

    ADVERTENCIA AJUSTES, PASO 3 Pruebe el sistema de reversa de seguridad Si el sistema de reversa de seguridad no se ha instalado debidamente, las personas (y los niños pequeños en Instalación del abre-puertas de garaje particular) podrían sufrir LESIONES GRAVES O INCLUSO LA MUERTE cuando se cierre la puerta del garaje.
  • Page 72: Operación

    OPERACIÓN INSTRUCCIONES DE SEGURIDAD IMPORTANTES ADVERTENCIA Para reducir el riesgo de lesiones graves o la muerte: 1. LEA Y RESPETE TODAS LAS ADVERTENCIAS Y LAS 8. NUNCA use la manija para jalar la puerta para abrirla o INSTRUCCIONES DE OPERACIÓN. cerrarla.
  • Page 73: Cómo Usar La Unidad De Control De Pared

    Cómo usar la unidad de control de pared Para abrir la puerta manualmente EL PANEL DE CONTROL DE FUNCIONES MÚLTIPLES ADVERTENCIA Oprima la barra pulsadora para abrir o cerrar la puerta. Oprima de nuevo para que la puerta Para evitar la posibilidad de una LESIÓN GRAVE O INCLUSO retroceda en el ciclo de cierre o para Barra LA MUERTE si la puerta del garaje se cae:...
  • Page 74: Mantenimiento De Su Abre-Puertas De Garaje

    Mantenimiento de su abre-puertas de ¿Si tiene algún problema? garage 1. El abre-puertas no funciona con la botonera de pared ni con el control remoto: CALENDARIO DE MANTENIMIENTO • ¿Está el abre-puertas conectado a la electricidad? Una vez al mes Conecte una lámpara a la toma de corriente.
  • Page 75 Si tiene algún problema (continuación) 14. El motor hace un ruido breve pero luego no funciona: 6. La puerta del garaje se abre y se cierra por sí • Los resortes de la puerta del garaje podrían estar rotos. misma: Vea los párrafos anteriores.
  • Page 76: Como Programar El Abre-Puertas

    COMO PROGRAMAR EL ABRE-PUERTAS Aviso: Si utiliza este abre puertas de garaje Security+ con un transmisor no dotado de un sistema de códigos de salto (código aleatorio), se verán circunvenidas las medidas técnicas incorporadas en el receptor del abridor para proteger contra los aparatos de captura de códigos.
  • Page 77: Cómo Agregar, Reprogramar O Cambiar Un Código De Entrada Sin Llave

    Cómo Agregar, Reprogramar o Cambiar un Código de Entrada sin Llave NOTA: Su nueva llave digital debe programarse para que accione el abre-puertas de garaje. USO DEL CONTROL DE PUERTA ILUMINADA CÓMO USAR EL CONTROL DE FUNCIONES MÚLTIPLES DE LA PUERTA NOTA: Estos métodos requiere dos personas si la Llave Digital ya está...
  • Page 78 Piezas de la unidad del motor CLAVE PARTE CLAVE PARTE DESCRIPCIÓN DESCRIPCIÓN 41A4371-1 Cubierta del portacadena 41A5351-6 Suministro eléctrico 41B4245-1 Cordón eléctrico 41C168 Transformador 41B4375-3 Bloque terminal con tornillos 41D630-2 Soporte: receptáculo de lámpara, conmutador limitador 41B5348 Portacadena 41A5490-11 Cubierta 41C5317 Arnés de alambrado - Tablero Lógico (Panel trasero)
  • Page 79: Accesorios

    Proporciona energía de respaldo al múltiples de la puerta está equipada con dispositivo para abrir una puerta de sensores de movimiento que garaje modelo 711MB. mantendrán la luz encendida durante cinco minutos cada vez que alguien entre al garaje. Es posible desactivar el sensor se así...
  • Page 80: Garantía

    GARANTIA LIMITADA DE UN AÑO DEL ABRIDOR MERIK DE PUERTA DE GARAJE Merik (“Vendedor”), garantiza al primer comprador minorista de éste producto, que éste mismo está libre de defectos de materiales y de mano de obra por un período de un año a partir de la fecha de compra. La operación correcta de éste producto depende del cumplimiento de las Instrucciones del Manual del Propietario, referentes a la instalación, operación, mantenimiento y prueba.
