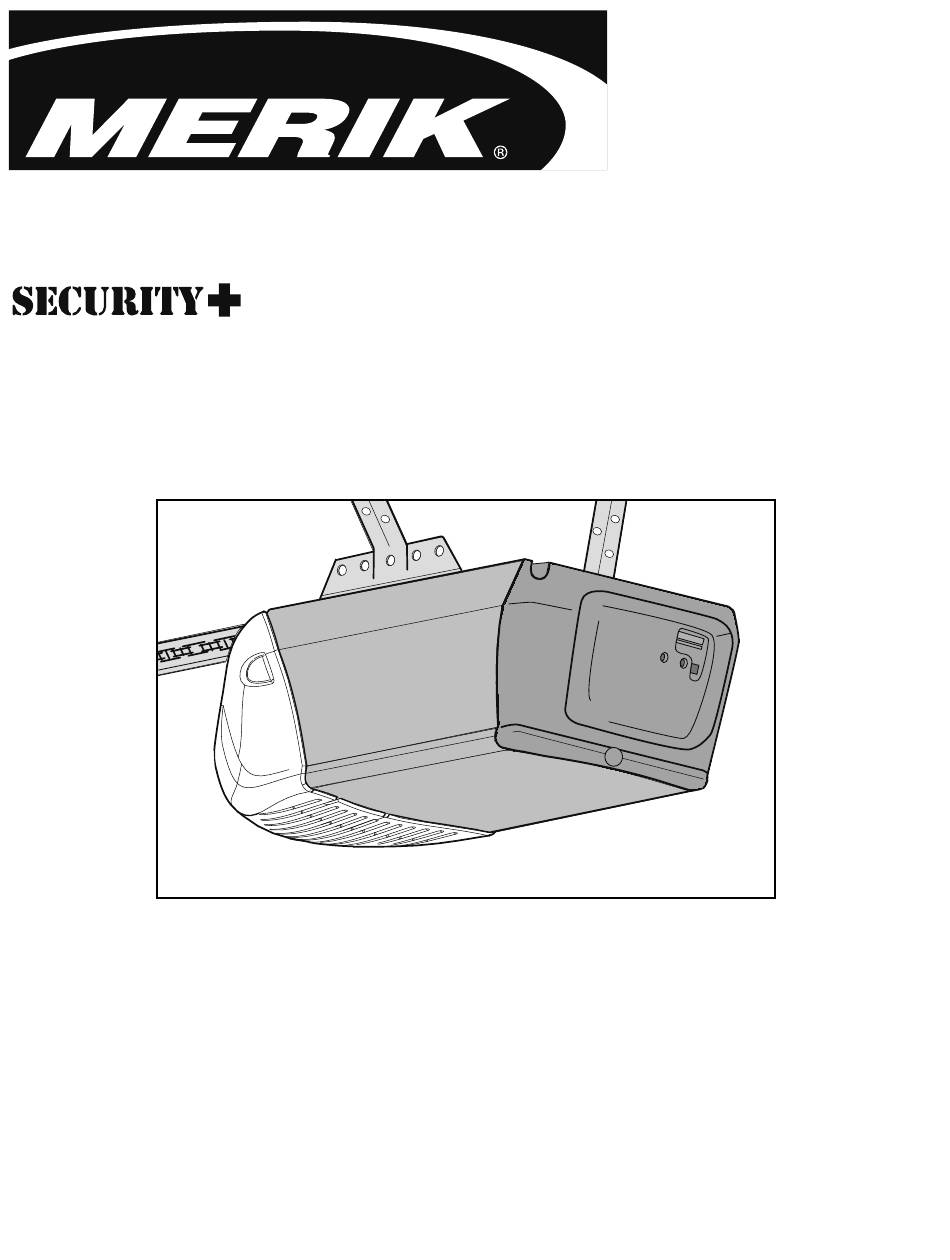

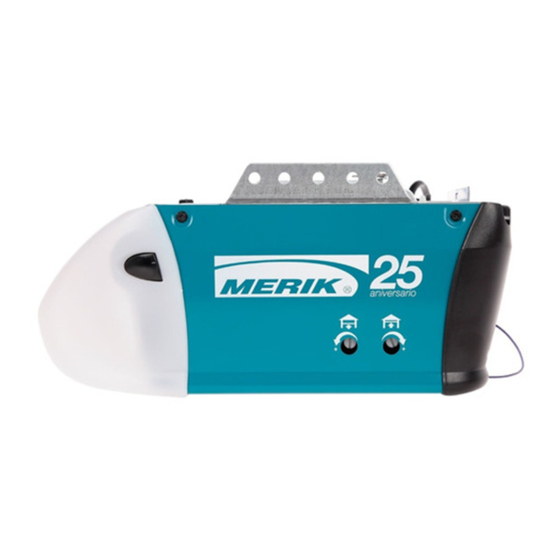

GARAGE DOOR OPENER
Model 511MM FS2
For Residential Use Only
Owner's Manual
Please read this manual and the enclosed safety materials carefully!
■
Fasten the manual near the garage door after installation.
■
Periodic checks of the opener are required to ensure safe operation.
■
The model number label is located on the front panel of your opener.
■
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SECURITY+ 511MM FS2 and is the answer not in the manual?

Questions and answers

Related Manuals for Merik SECURITY+ 511MM FS2

Summary of Contents for Merik SECURITY+ 511MM FS2

  • Page 1 ® GARAGE DOOR OPENER Model 511MM FS2 For Residential Use Only Owner’s Manual Please read this manual and the enclosed safety materials carefully! ■ Fasten the manual near the garage door after installation. ■ Periodic checks of the opener are required to ensure safe operation. ■...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Introduction Adjustment 29-31 Safety symbol and signal word review ....... 2 Adjust the travel limits ..........29 Preparing your garage door ........3 Adjust the force ............30 Tools needed .............. 3 Test the safety reversal system ........ 31 Planning ..............

  • Page 3: Preparing Your Garage Door

    Preparing your garage door Before you begin: To prevent possible SERIOUS INJURY OR DEATH: • Disable locks. • ALWAYS call a trained door systems technician if garage • Remove any ropes connected to garage door. door binds, sticks, or is out of balance. An unbalanced garage door may NOT reverse when required.

  • Page 4: Planning

    Planning • Look at the garage door where it meets the floor. Any Identify the type and height of your garage door. Survey gap between the floor and the bottom of the door must your garage area to see if any of the conditions below not exceed 6 mm.
  • Page 5 Planning (Continued) ONE-PIECE DOOR INSTALLATIONS Without a properly working safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or • Generally, a one-piece door does not require KILLED by a closing garage door. reinforcement. If your door is lightweight, refer to the •...
  • Page 6 Planning (Continued) GATE INSTALLATIONS Without a properly working safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or • It is recommended that you attach fine mesh or KILLED by a closing gate. screening across the inside of swinging or sliding gates •...

  • Page 7: Carton Inventory

    Carton Inventory Your garage door opener is packaged in one carton which Parts may be stuck in the foam. Hardware for assembly contains the motor unit and the parts illustrated below. and installation is shown on the next page. Save the Note that accessories will depend on the model carton and packing material until installation and purchased.

  • Page 8: Hardware Inventory

    Hardware Inventory Separate all hardware and group as shown below for the assembly and installation procedures. Assembly Hardware 41A3534 Hex Bolt Washered Bolt Carriage Bolt 5/16"-18x7/8" (3) Master Link (2) 5/16"-18x1/2" (2) 5/16"-18 (5) 1/4"-20x1/2" (12) (mounted in opener) Trolley Lock Nut Lock Washer Threaded Shaft (1)

  • Page 9: Assemble T-Rail & Attach The Pulley Bracket

    ASSEMBLY STEP 1 For Sectional and One-Piece Doors ONLY Assemble the T-Rail and Attach the Cable Pulley Bracket HARDWARE SHOWN ACTUAL SIZE To avoid installation difficulties, do not run the garage door opener until instructed to do so. Carriage Bolts Lock Nut 1/4"-20x1/2"...
  • Page 10 ASSEMBLY STEP 1 HARDWARE For Sliding and Swinging Gates ONLY SHOWN ACTUAL SIZE Assemble the T-Rail and Carriage Bolts Attach the Cable Pulley Bracket Lock Nut 1/4"-20x1/2" 1/4"-20 To avoid installation difficulties, do not run the garage door opener until instructed to do so.

  • Page 11: Install The Trolley

    ASSEMBLY STEP 2 HARDWARE SHOWN ACTUAL SIZE For Sectional and One-Piece Doors Only Install the Trolley • Attach the trolley threaded shaft to the trolley with the Lock Washer lock washer and nuts as shown. 5/16" 5/16"-18 • As a temporary stop, insert a screwdriver into the hole in the front end of the T-rail.

  • Page 12: Fasten The T-Rail To The Motor Unit

    ASSEMBLY STEP 3 Fasten the T-Rail to the Motor Unit To avoid serious damage to opener, ONLY use bolts/fasteners mounted in top of motor unit. • Place the opener on packing material to protect the cover. For convenience, put a support under the cable pulley bracket.

  • Page 13: Install The Chain/Cable And Chain Spreader

    ASSEMBLY STEP 4 For Sectional and One-Piece Doors Only To avoid possible SERIOUS INJURY to fingers from moving Install the Chain/Cable garage door opener: • ALWAYS keep hand clear of sprocket while operating opener. 1. Pull the cable loop from the •...
  • Page 14 ASSEMBLY STEP 4 For Sliding and Swinging Gates Only To avoid possible SERIOUS INJURY to fingers from moving Install the Chain/Cable opener: • ALWAYS keep hand clear of sprocket while operating opener. 1. Pull the cable loop from the • Securely attach sprocket cover BEFORE operating. carton and fasten it to the Leave Chain trolley with a master link from...

  • Page 15: Tighten The Chain And Cable

    ASSEMBLY STEP 5 Tighten the Chain and Cable Lock Washer Outer Nut Inner Nut • Spin the inner nut and lock washer down the trolley To Tighten Outer Nut threaded shaft, away from the trolley. To Tighten • To tighten the chain, turn outer nut in the direction Inner Nut shown.

  • Page 16: Determine The Header Bracket Location

    INSTALLATION STEP 1 Finished Determine the Header Bracket Ceiling 38 mm Location Header Board Structural Wall Supports To prevent possible SERIOUS INJURY or DEATH: • Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might NOT reverse when required.
  • Page 17 ONE-PIECE DOOR WITHOUT TRACK Unfinished 1. Close the door and mark the inside vertical centerline of Ceiling your garage door. Extend the line onto the header wall Structural above door, as shown. Supports Header Wall If headroom clearance is minimal, you can install the header bracket on the ceiling.

  • Page 18: Install The Header Bracket

    INSTALLATION STEP 2 Install the Header Bracket You can attach the header bracket either to the wall above Wall Mounting Holes the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do CEILING MOUNT ONLY The nail hole is for positioning only.

  • Page 19: Attach The T-Rail To The Header Bracket

    INSTALLATION STEP 3 Attach the T-Rail to the Header Bracket Header Wall • Position the opener on the garage floor below the header bracket. Use packing material as a protective Header Bracket base. Chain Pulley NOTE: If the door spring is in the way you’ll need help. Bracket Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

  • Page 20: Position The Opener

    INSTALLATION STEP 4 Position the Opener To prevent damage to garage door, rest garage door opener rail on 38 mm board placed on top section of door. Follow instructions which apply to your door type as illustrated. SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK A 38 mm board is convenient for setting an ideal door-to- T-rail distance.
