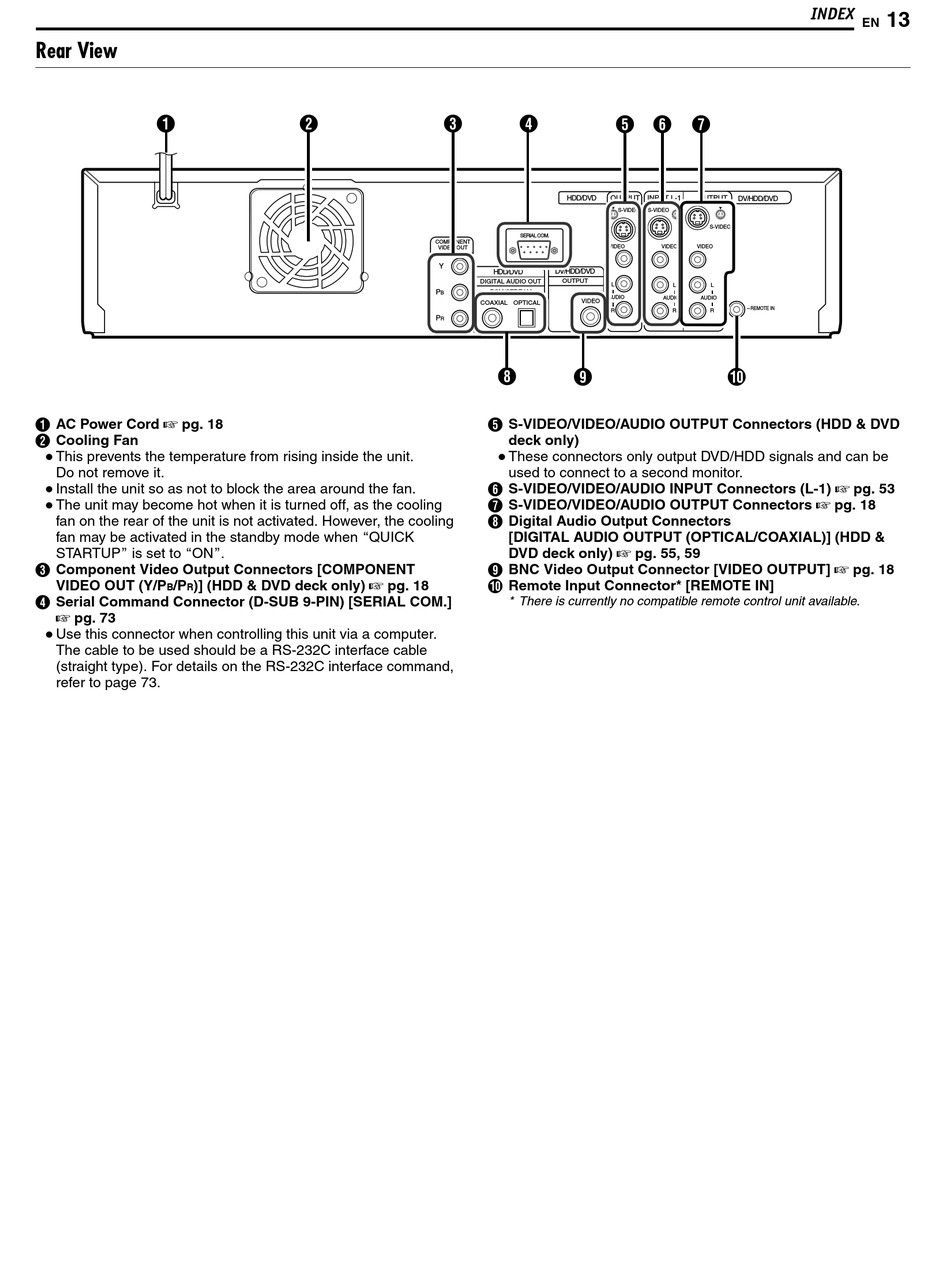

Rear View

A
A AC Power Cord A pg. 18
B Cooling Fan
●
This prevents the temperature from rising inside the unit.
Do not remove it.
●
Install the unit so as not to block the area around the fan.
●
The unit may become hot when it is turned off, as the cooling
fan on the rear of the unit is not activated. However, the cooling
fan may be activated in the standby mode when AQUICK
STARTUPB is set to AONB.
C Component Video Output Connectors [COMPONENT
)] (HDD & DVD deck only) A pg. 18
VIDEO OUT (Y/P /P
B R
D Serial Command Connector (D-SUB 9-PIN) [SERIAL COM.]
A pg. 73
●
Use this connector when controlling this unit via a computer.
The cable to be used should be a RS-232C interface cable
(straight type). For details on the RS-232C interface command,
refer to page 73.
B C
COMPONENT

VIDEO OUT

Y
P
B
P
R
D
E F
HDD/DVD OUTPUT INPUT L-1
S-VIDEO S-VIDEO
SERIAL COM.
VIDEO
HDD/DVD DV/HDD/DVD
OUTPUT
DIGITAL AUDIO OUT
L
PCM/STREAM
AUDIO
VIDEO
COAXIAL OPTICAL
R
H I
E S-VIDEO/VIDEO/AUDIO OUTPUT Connectors (HDD & DVD
deck only)
●
These connectors only output DVD/HDD signals and can be
used to connect to a second monitor.
F S-VIDEO/VIDEO/AUDIO INPUT Connectors (L-1) A pg. 53
G S-VIDEO/VIDEO/AUDIO OUTPUT Connectors A pg. 18
H Digital Audio Output Connectors
[DIGITAL AUDIO OUTPUT (OPTICAL/COAXIAL)] (HDD &
DVD deck only) A pg. 55, 59
I BNC Video Output Connector [VIDEO OUTPUT] A pg. 18
J Remote Input Connector* [REMOTE IN]
* There is currently no compatible remote control unit available.
INDEX
G
OUTPUT
DV/HDD/DVD
S-VIDEO
VIDEO VIDEO
L L
AUDIO AUDIO
REMOTE IN
R R
J
